Product Overview
Description
Product Overview
slitting machine with rotary die-cutting function and turret rewind is a new product, it equipped with high accurate rotary
die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It
has the function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the
characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.Features:
©EPC control system: photo cell
©Magnetic cylinder die cutting station
©Slitting station,min. slitting width 15mm
©Length counting function, automatic stop function when it reaches the set length.
©Piece counting function
©Waste discharge blower
©Magnetic brake & clutch
©Materials linking-up platform
©Optional functions can be added accordingly, such as constant tension control system, magnetic cylinder, flexible dies.
die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It
has the function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the
characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.Features:
©EPC control system: photo cell
©Magnetic cylinder die cutting station
©Slitting station,min. slitting width 15mm
©Length counting function, automatic stop function when it reaches the set length.
©Piece counting function
©Waste discharge blower
©Magnetic brake & clutch
©Materials linking-up platform
©Optional functions can be added accordingly, such as constant tension control system, magnetic cylinder, flexible dies.
machine features
1. Max web width: 320mm;
2. The tolerance: +/-0.2mm, precision: 0.1mm;
3. Material thickness range: 0.05-3mm;
4. This label cutting machine is a new product;
5. This label cutting machine is equipped with high accurate rotary die-cutting system;
6. This label cutting machine is suitable for blank adhesive labels;
7. Die-cutting, slitting can be finished in one process;
8. This label cutting machine has the function of automatic meter counting, automatic stopping, web guiding with a edge correction
device;
9. Compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc;
10. Manufacture experience: 10 years;
11. Export experience: 5 years.
Standard Configuration:
1. One slitting station
2.1 pc 3 inch unwinding air shaft, 2 pcs 3 inch rewinding air shafts
3. A meter/number counter
4. A set of edge correction device
5. 8 pairs slitting knife
6. One magnetic brake
7. Two magnetic clutches
Options:
1. Engraving die or magnetic cylinder+flexible die
2. Laminating system
3. 1 inch, 2 inch unwinding and rewinding shafts
4. Additional slitting knives
2. The tolerance: +/-0.2mm, precision: 0.1mm;
3. Material thickness range: 0.05-3mm;
4. This label cutting machine is a new product;
5. This label cutting machine is equipped with high accurate rotary die-cutting system;
6. This label cutting machine is suitable for blank adhesive labels;
7. Die-cutting, slitting can be finished in one process;
8. This label cutting machine has the function of automatic meter counting, automatic stopping, web guiding with a edge correction
device;
9. Compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc;
10. Manufacture experience: 10 years;
11. Export experience: 5 years.
Standard Configuration:
1. One slitting station
2.1 pc 3 inch unwinding air shaft, 2 pcs 3 inch rewinding air shafts
3. A meter/number counter
4. A set of edge correction device
5. 8 pairs slitting knife
6. One magnetic brake
7. Two magnetic clutches
Options:
1. Engraving die or magnetic cylinder+flexible die
2. Laminating system
3. 1 inch, 2 inch unwinding and rewinding shafts
4. Additional slitting knives
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Model | HX-320C |
Slitting Speed | 75m/min |
Die Cutting Speed | 70m/min |
Max Web Width | 320mm |
Max Unwinding Diameter | 500mm |
Max Rewinding Diameter | 480mm |
Die Cutting Length | 178mm-470mm |
Overall Diameter | 1.32mx1.02mx1.5m |
Machine Weight | 1000kg |
PRODUCT CONFIGURATION

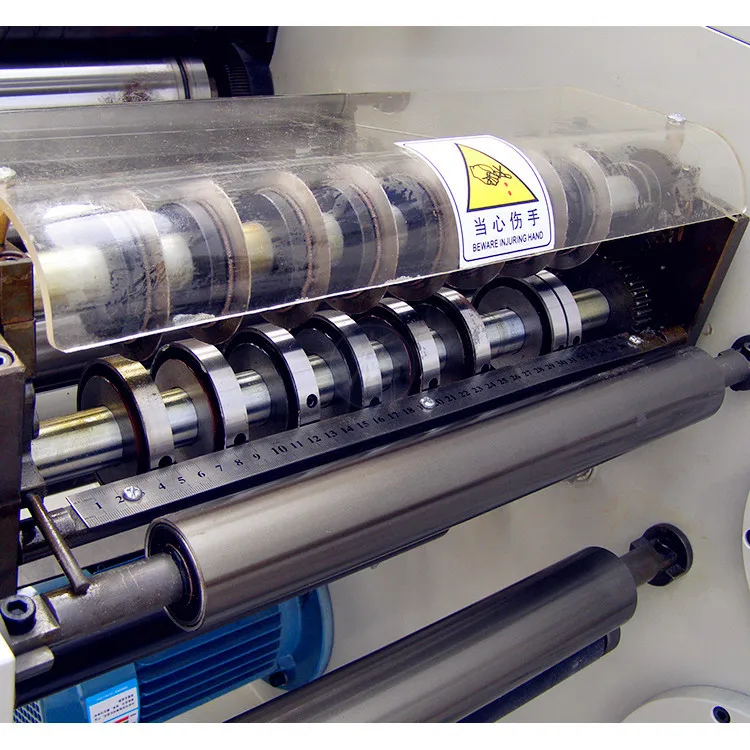

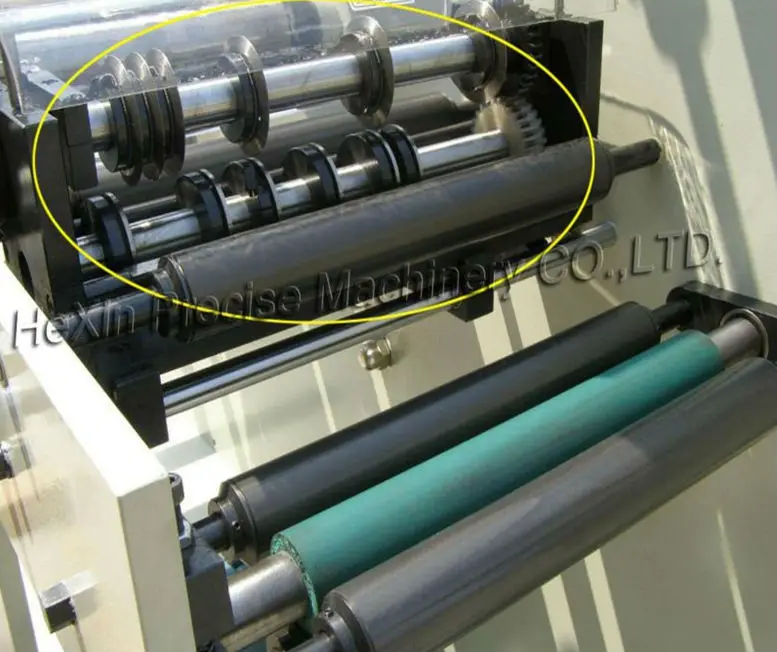

Slitting Area

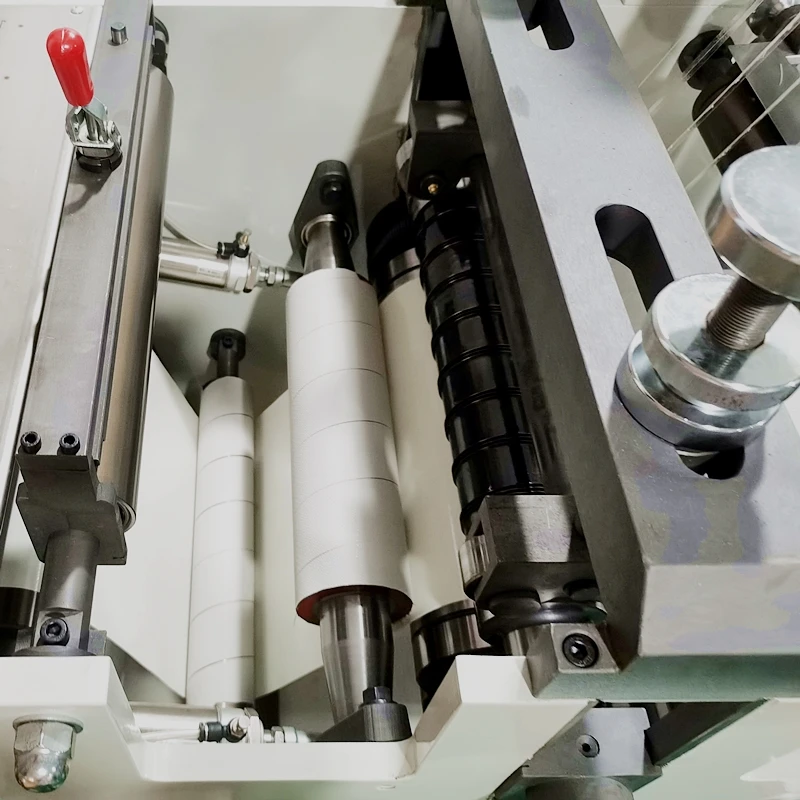

Die Cutting Platform

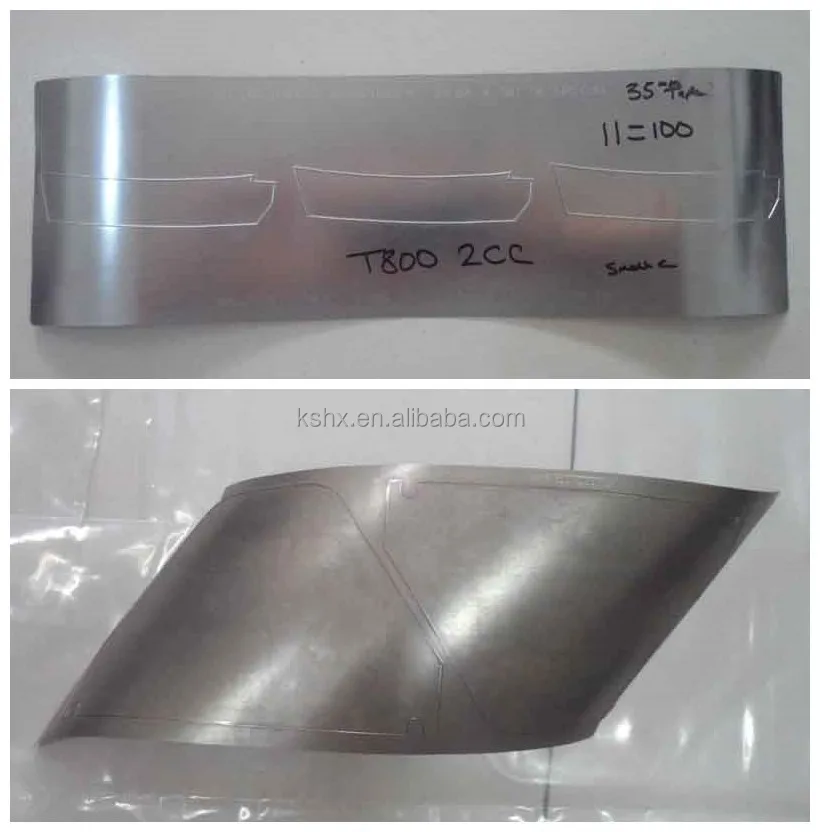

Samples of the die

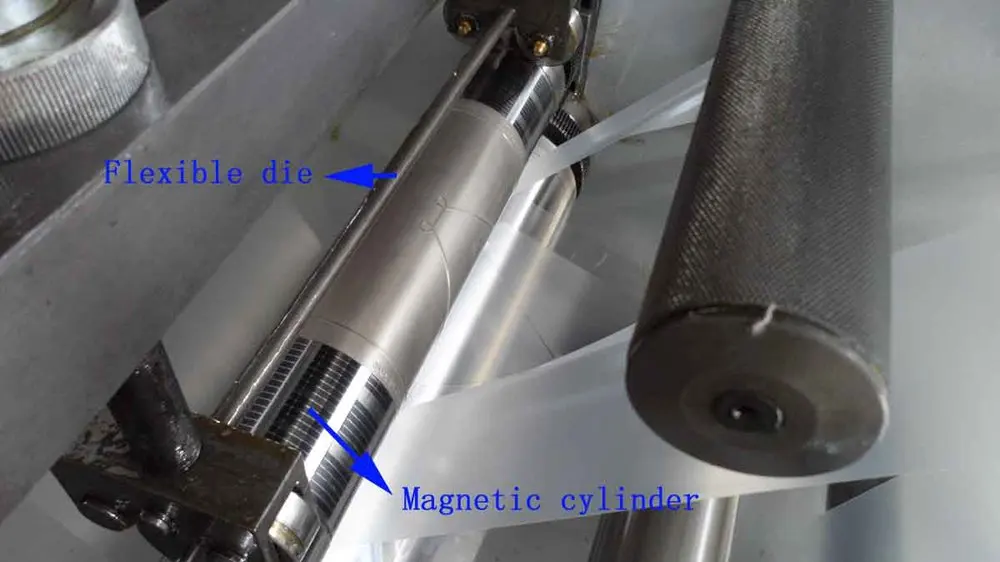

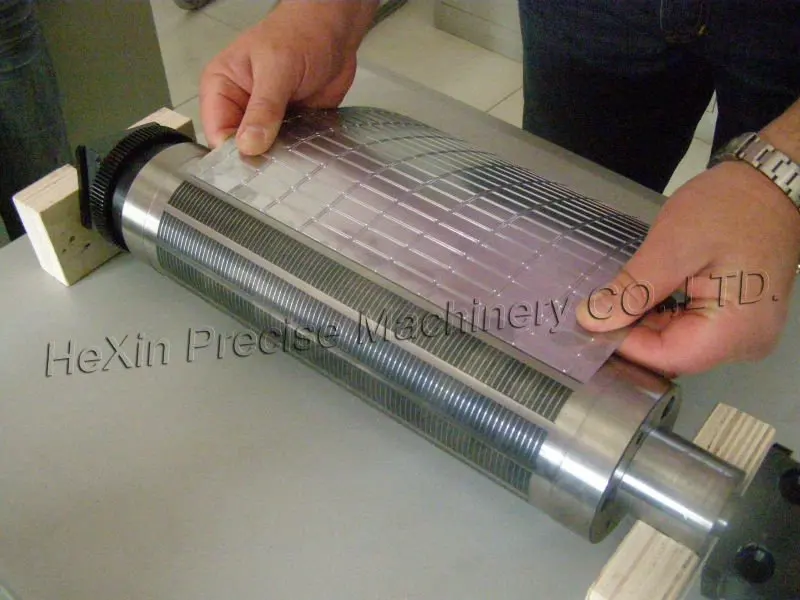

Flexible die
Die cutter

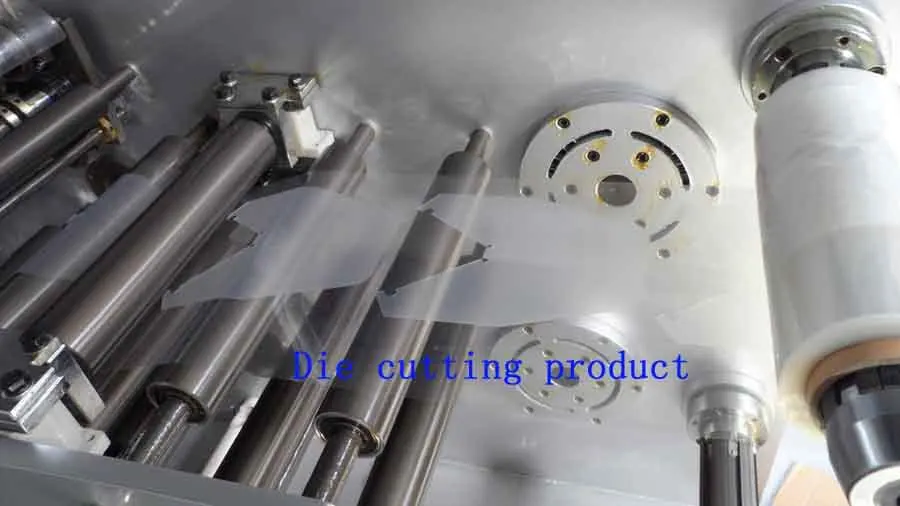

The sample after cutting with the cutter die
