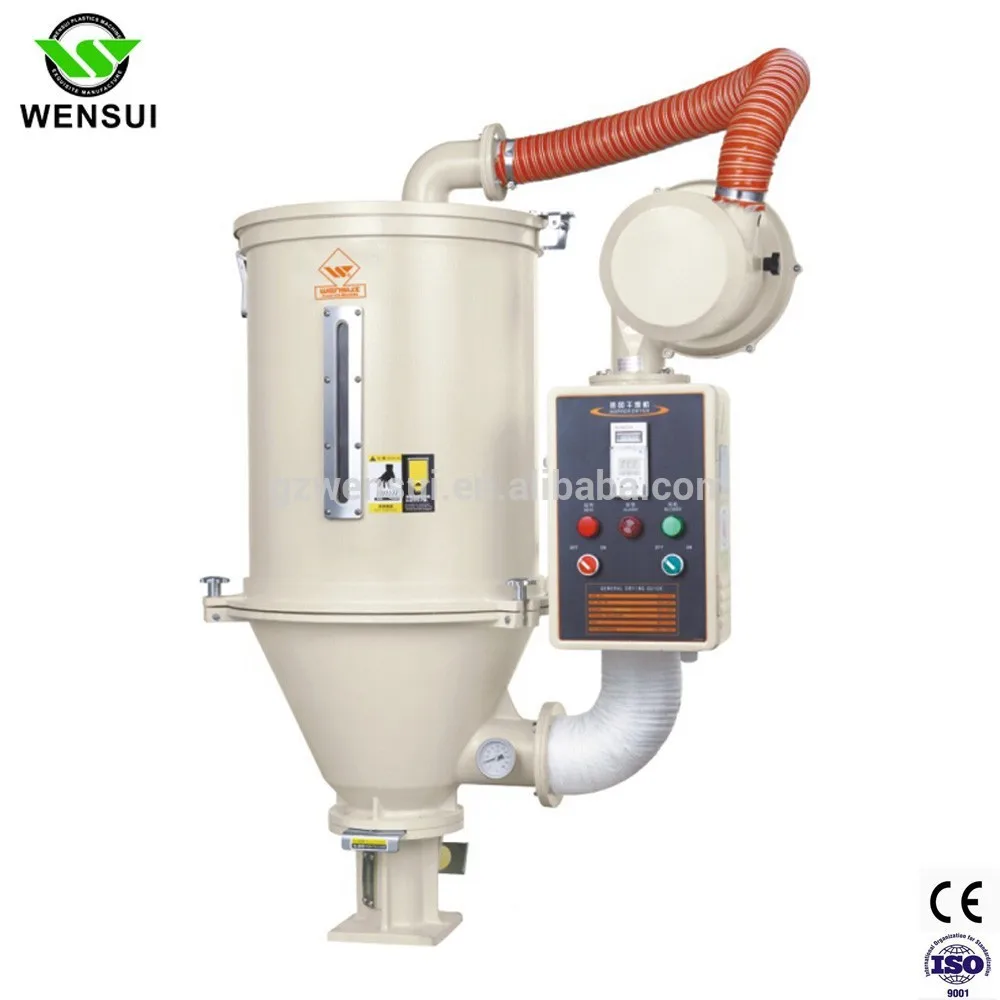

Wensui Plastic Hot Air Recycle Hopper dryer WSDD 50
Wensui Plastic Hot Air Recycle Hopper dryer WSDD-50
Wensui Plastic Hot Air Recycle Hopper dryer WSDD-50

Wensui Plastic Hot Air Recycle Hopper dryer WSDD 50

Share on (60177023503):


Price:

Quantity:


Product Overview

Description


Product Description
Working Principle:
WSDD series are equiped with hot air recycling hose to reduce heat loss, higher drying efficiency and air-pollution avioded. Even hot air flow at hopper, Highest drying temperature is up to 160℃.



Features:
✔ Added a hose to recycle airflow to be more environmentally-friendly.

✔ Features internal circulation of hot air to reduce 15-30% heat lost.

✔ Concentrated thermal energy rapidly expels moisture.

✔ Confined drying chamber with filter can avoid overheat and air pollution.

✔ Special filter can wit stand high temperature.
Specification
Model
Capacity(kg)
Heating (kW)
Blower (W)
Dimension (cm) L*W*H
Base Size (mm)
N.W(kg)
WSDB-12
12
1.6
75
64*44*76
11*11*∅4
22
WSDB-25
25
3.0
135
76*50*104
16*16*∅6.2
34
WSDB-50
50
4.5
155
87*54*121
16*16*∅7
45
WSDB-75
75
6.5
210
94*60*131
16*16*∅7
56
WSDB-100
100
6.5
210
101*70*141
18*18*∅8
68
WSDB-150
150
9
320
110*74*170
20*20*∅8.8
78
WSDB-200
200
12
320
118*84*176
23*23*∅11.5
110
WSDB-300
300
15
340
142*100*183
27.5*27.5*∅12
152
WSDB-400
400
15
340
148*106*202
27.5*27.5*∅12
170
WSDB-600
600
20
1030
158*116*240
28*28*∅13.5
280
WSDB-800
800
30
1100
177*118*254
28*28*∅13.5
380
Recycle Hose specifications
Model
Compatible Hopper Dryer Model
Hose Diameter(mm)
EP-12
DB-12
∅50.8
EP-25
DB-25
∅63.5
EP-100
DB50-100
∅63.5
EP-200
DB150-200
∅101.60
EP-400
DB300-400
∅101.60
EP-600
DB600
∅101.60
Note: If recycle hose EP12 adds to hopper dryer DB12, the standard blower of DB-12 is required to be changed to high temperature blower.
Product Details

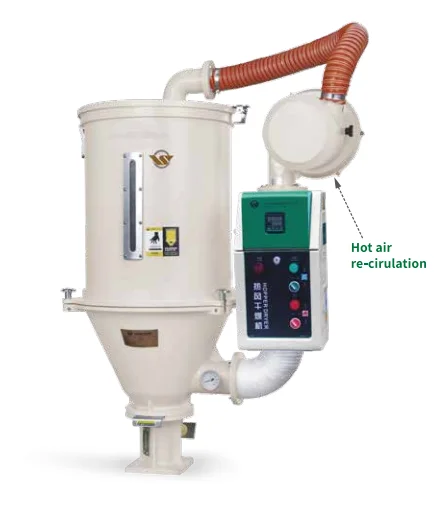

Hot air recycling hose to reduce 15-30% heat loss
Upper and Lower stainless steel screen
Control Box
Thermometer
Certifications
Exhibicion
Packing & Delivery
Strong Package
Finished Package
Container Loading
Company Profile
Wensui, founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia. Welcome to browse our website www.wensui.com if necessary.

Our products range as following:
1. Automation Series
2. Granulating & Recycling Series
3. Drying & Dehumidifying Series
4. Mixing & Separating Series
5. Heating & Cooling Series
6. Feeding &Conveying Series
7. Shredder and Prodution lines (Washing line, recycling line, crushing line … ).
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Founded 30 years ago, focused on one stop solution for all kinds of injection workshops, the most professional factory for auxiliary machinery production and development, and a very famous brand all over the Asia.

Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 45 days if the goods are not in stock, it is according to quantity.

Q:how long is the warranty?
A:Within 1 year from date of the factory, if parts failure or damage (because of the quality problem ,except wearing parts), our company provide these parts for free.

Q:What is your payment term ?
A:TT 100% before shipment ,LC at sign, Western Union or Trade Assurance order recommended.
