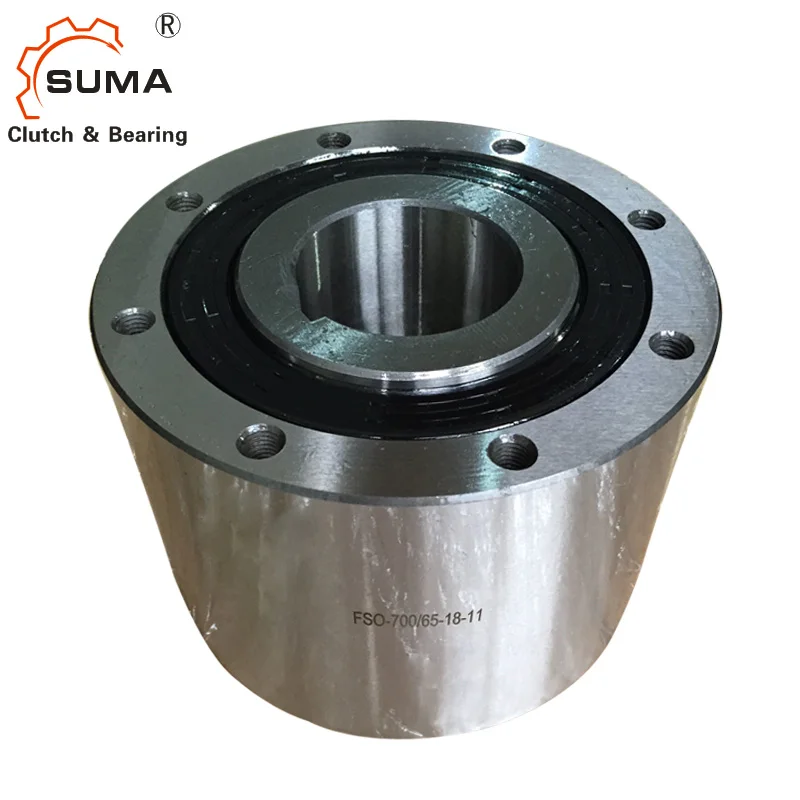

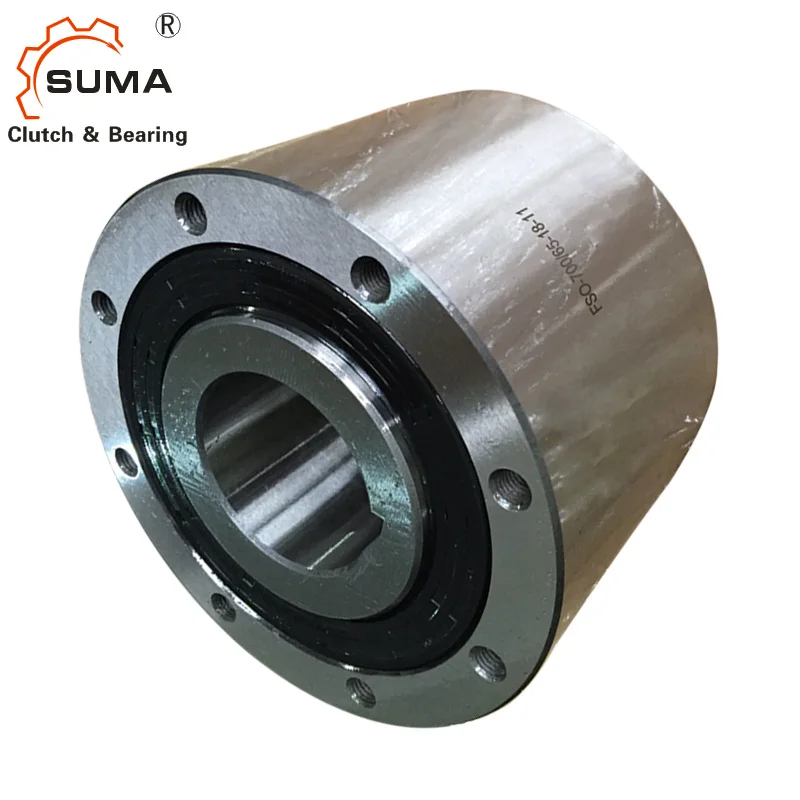

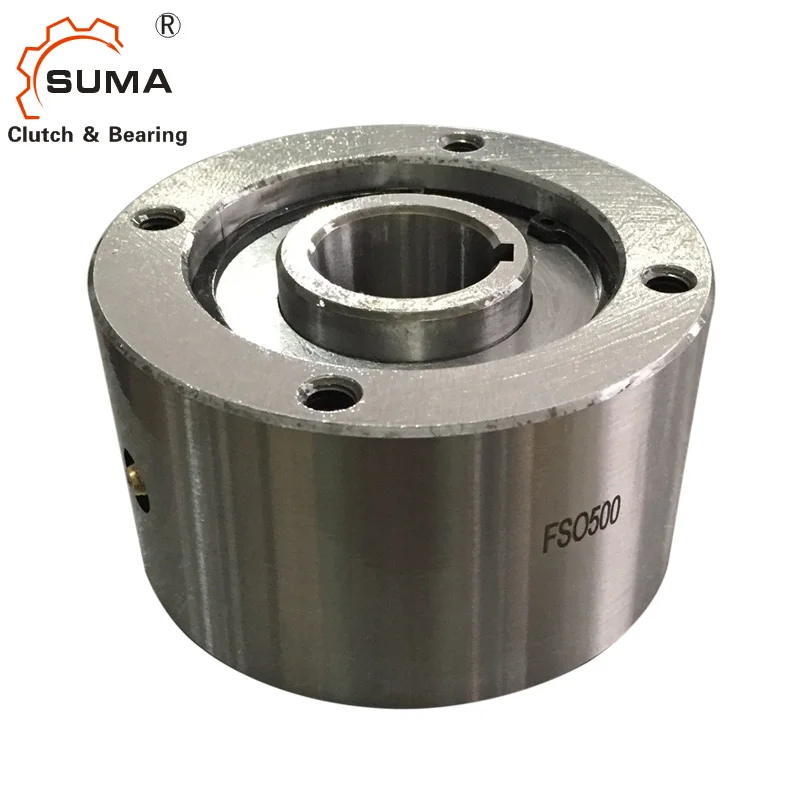

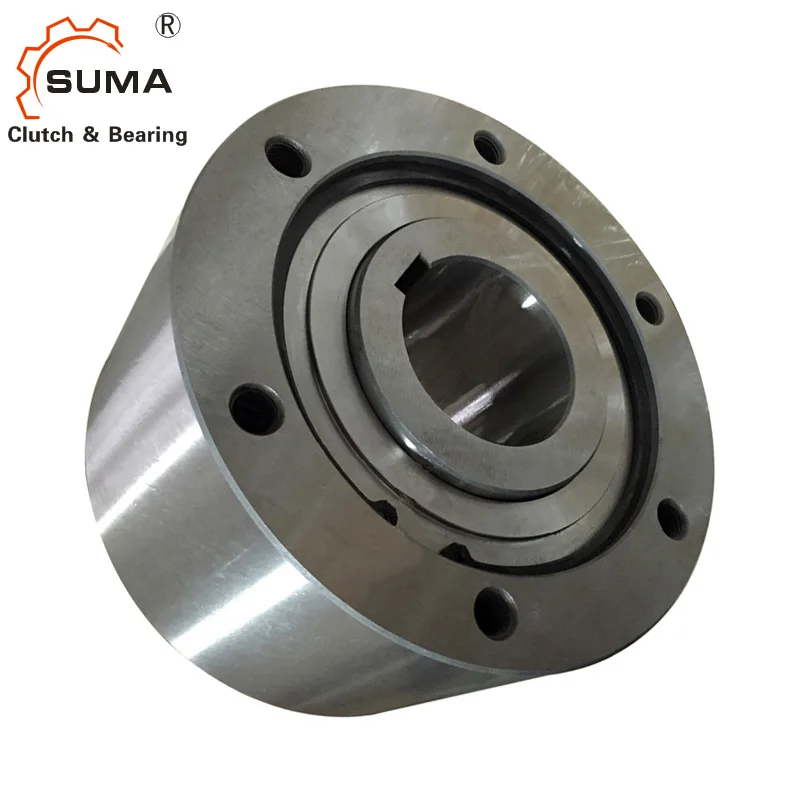

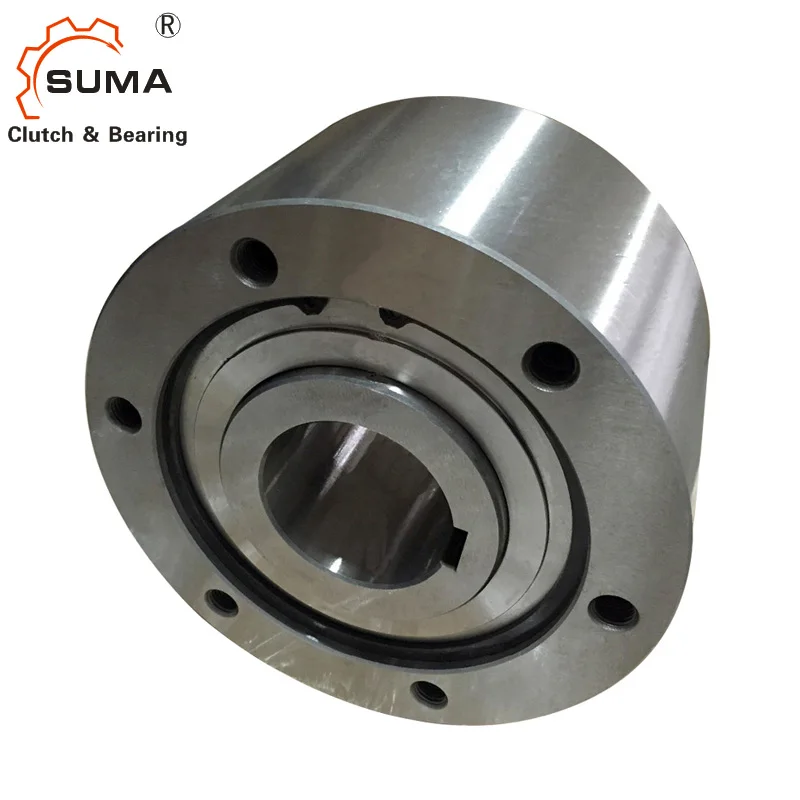

FS600 FS700 FS800 Sprag Type Freewheel Clutch Bearing One Direction Sprag Clutch



Feature

Types HPI300 to 700 are sprag type freewheels selfcontained, sealed and bearing supported, using two ball bearings.
Units are delivered oil or grease lubricated according to the type.

full sprag complement? that gives a very high torque for a given diameter. Any overload is resisted by a sprag to sprag abutment, avoiding a sprag tilt over. Types FSO and HPI are oil lubricated and use standard shaft lip seals. Type FSOGR is grease lubricated and can be equipped with contact free labyrinth seals. Type HPI is specially designed for high speed indexing applicatation.

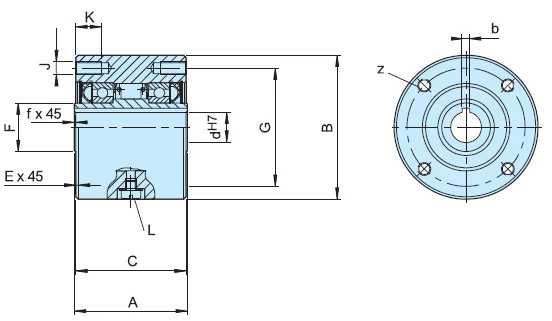

Type	Size		Overrunning											Weight	Torque
			speeds												Drag
			HPI	dH7-bxh	d4)	A	B	C	E	F	G	K	f		TR
HPI		TKN1)	nmax2)		min-max		-0.05
		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]	[Ncm]
	300	379	3000/900	15-5x5	12...19	63.5	76.2	60.45	1.6	28.58	66.67	13	0.8	1.6	18
	400	407	2800/850	18-6x6	12...22	69.9	88.9	68.07	1.6	30	73	13	0.8	2.7	27
	500	1621	2500/800	30-8x7	19...33	88.9	107.95	85.73	1.6	45	92	16	1.5	4.8	31
				40-12x8
	600	3105	2200/750	45-14x9	24...57	95.3	136.53	92.2	1.6	63.5	120.6	16	1.6	8.6	62
				50-14x6
				50-14x9
	700	6900	1600/450	60-18x11	48...82	127	180.98	123.9	1.6	90	158.8	20	1.6	19	156
				65-18x11
				70-20x12						101.7

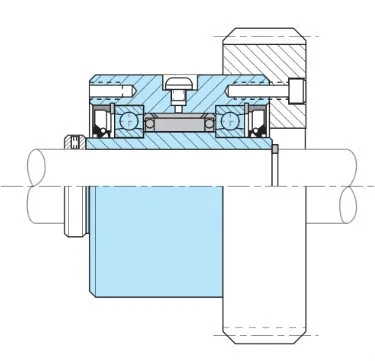

 Mounting example
