AIRY/ air inlet filter media washable air filter foam air filter material

Product Overview

Description

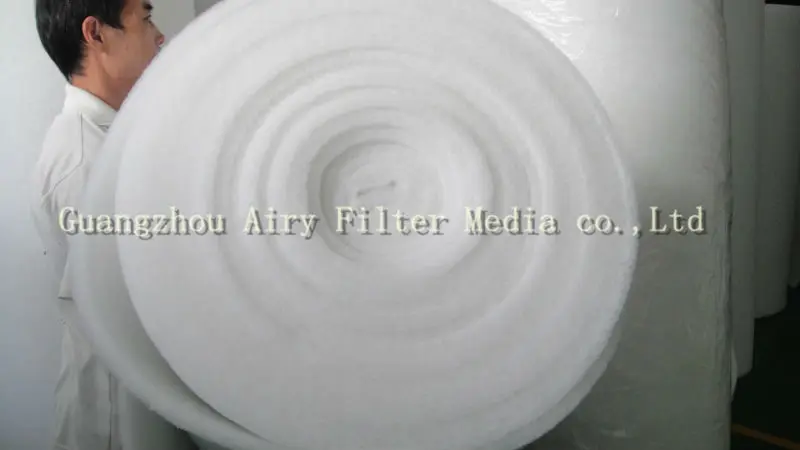

AIRY /air inlet filter media washable air filter foam air filter material







Specialty:



1.   Air filter foam material  is designed for pre-filter or coarse filtration in the inlet of general ventilation and air conditioning equipment.



2. It is processed by high-performance synthetic fiber with gradual density.



3. High dust holding capacity and low resistance, strong fire retardance.



4. It can use many times after washable which is economical.



5. Temperature resistance: 100°C.



6. It conforms to the fire resistant standard and classification of European DIN53438-F1 and American UL900-Class2.



7. It is widely used in plank filters, pleated filters and pocket filters.



8. There are white, blue&white for choose, blue&white can easier distinguish the windward side and leeward side.







Application:



   Air filter foam material  applies for many industries, such as: painting industry, pollution prevents and control, air conditioning, electronic, pharmaceutical factory, food sanitation etc.







Specification:







Type	ARB100	ARB150	ARB180	ARB220
Thickness	5mm	10mm	15mm	20mm
Test Air Velocity	1.5m/s	1.5m/s	1.5m/s	1.5m/s
Rated Air Flow(m3/h)	5400	5400	5400	5400
Average Arrestance(EN779)	65%	70%	80%	90%
Initial Resistance(pa)	15	18	20	25
Final Resistance(pa)	250	250	250	250
Dust Holding Capacity	400g/m2	420 g/m2	520 g/m2	630 g/m2
Filtration Class	G2	G2	G3	G4
Size	2x20M,1x20M



  Note: Special Size Available Upon Request.
