low cost single point Load Cell

Product Overview

Description



Product Discription:

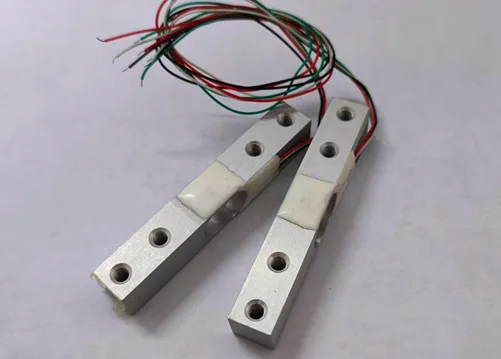

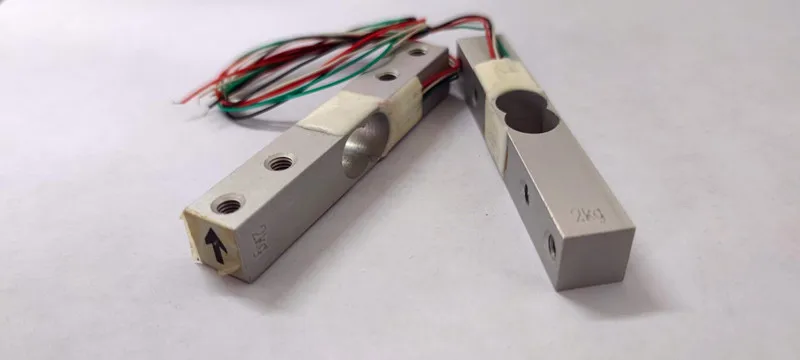

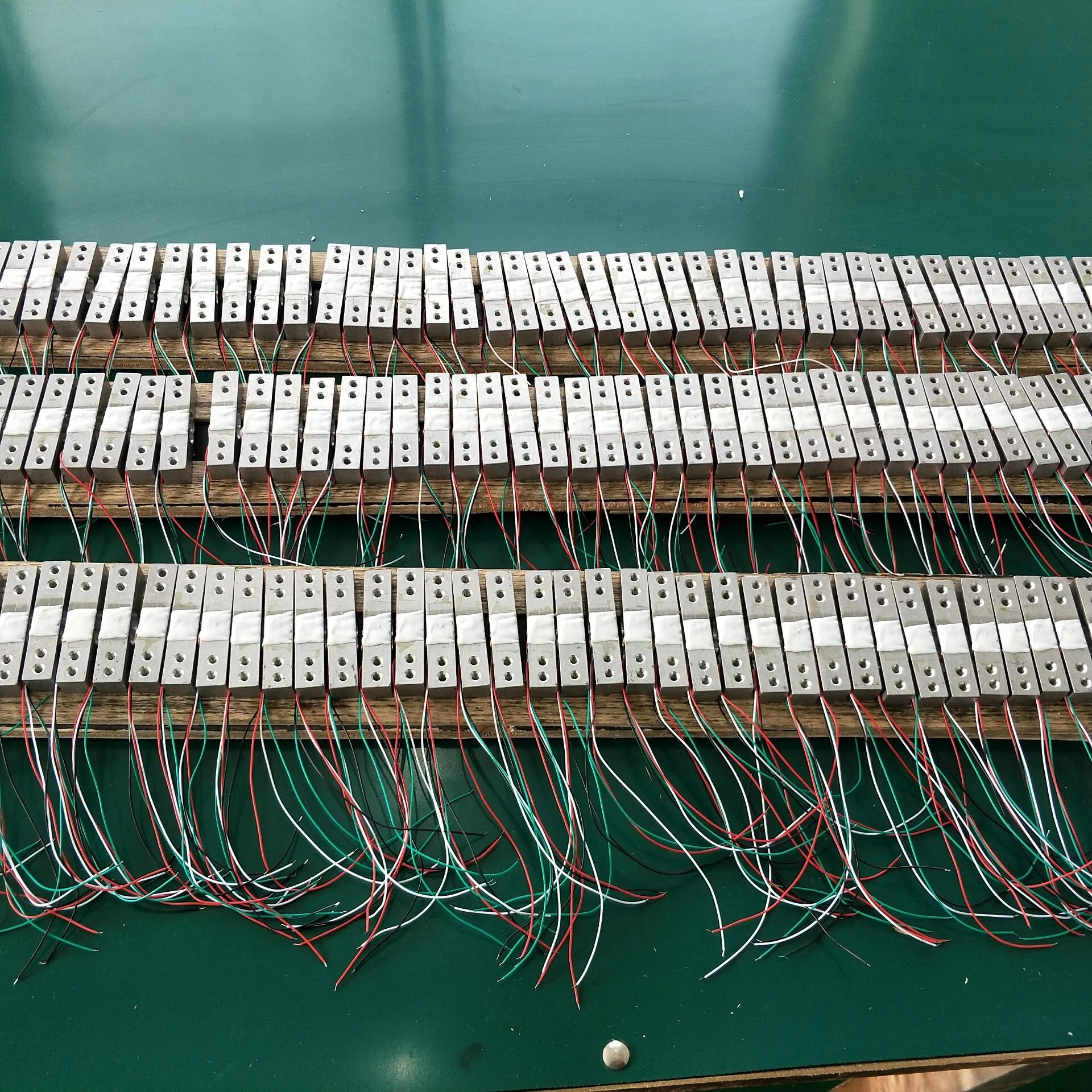

QL-55 load cells are available in the capacities from 0.5 kg to 50 kg.

Aluminum construction with parallel beam type.

Silicon adhesive sealed, surface anodized and anti-corrosion.

Integral structure and easy installation.

Suitable for electronic balance, electronic platform scale and other electronic weighing devices.



Features:



Capacity :0.5 kg to 50 kg

High accuracy.
Aluminum parallel beam

Max. platform size:450x450mm

Integral installation

The cable length could be chose by customer’s application.

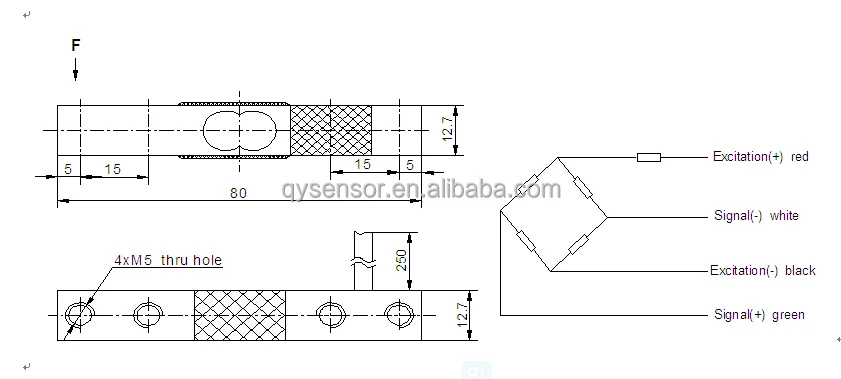

Electrical connection and Dimensions:





Technical Specifications:



Specifications:
capacity	kg	QL-55: 0.5, 1, 2, 3, 5, 10, 20, 30, 50,
		QH-55:  20, 30, 50, 80, 100
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	1.0 ± 0.1
excitation voltage	Vdc	5 ~ 15
combined error	%FS	± 0.05
zero unbalance	%FS	± 5
non-linearity	%FS	± 0.05
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.03
creep	%FS/10min	± 0.05
input resistance	Ω	1090 ± 50
output resistance	Ω	1000 ± 10
insulation resistance	M Ω	≥ 3000 @ 50 Vdc
operating temperature range	℃	-20 ~ +55
compensated temperature range	℃	-10 ~ +40
temperature coefficient of SPAN	%FS/10℃	± 0.05
temperature coefficient of ZERO	%FS/10℃	± 0.05







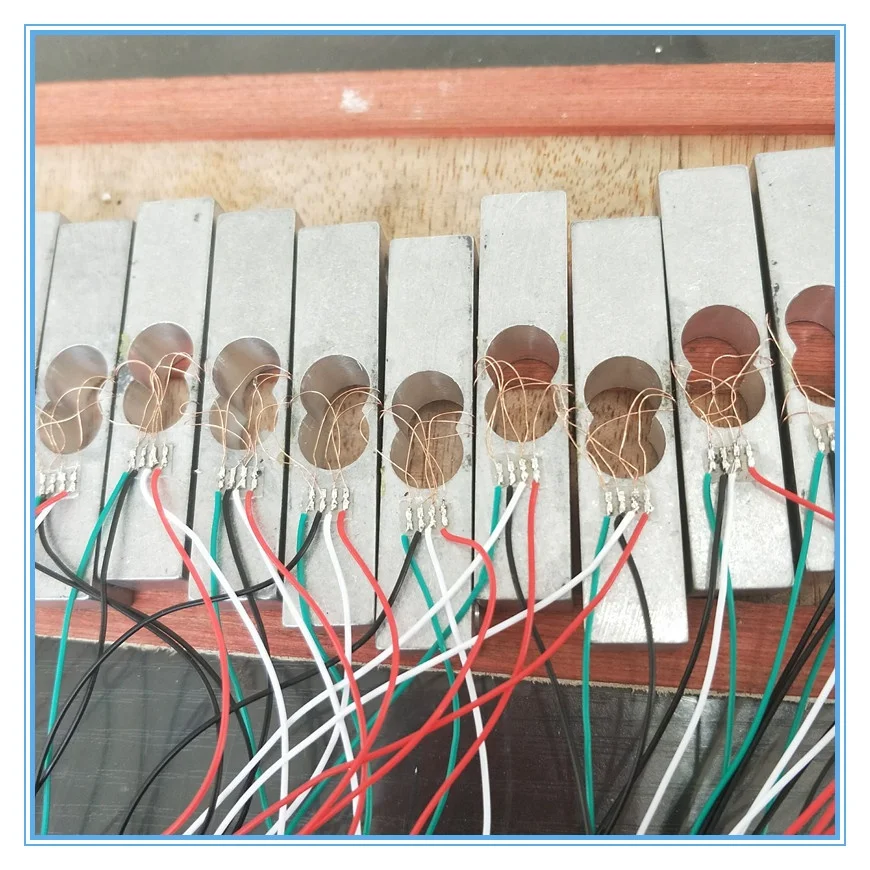

Electrical connection:



Excitation+ red     Excitation- black   Signal+ green   Signal- white

Four-core shielded cable with polyethylene.

(The four-dispersion cable could be selected); Cable is not connected with elastomer.

Cable length:250 mm ±20 mm

Cable diameter :3 ±0.2 mm

The cable length could be chose by customer’s application.
