CD6240C CD6250C CD6260C Universal Lathe for lathe Machine
- Category: >>>
- Supplier: Yancheng C&J Machinery Co. Ltd.
Share on (60177530849):
Product Overview
Description
CD6240C CD6250C CD6260C Universal Lathe for lathe Machinemm spindle hole)
Product Description
Feature:
◊ Oversized spindle bore of 80mm;
◊ Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand;
◊ Outward appearance of machine features large plains, making the machine more good-looking;
◊ Gapped bedways, which are super-audio frequency hardened (HB450 plus);
◊ All gears hardened and ground by Reishauer grinding machine;
◊ Leadscrew and feedrod interlocked, both with overload protection;
◊ Automatic feed stopper;
◊ Configuration variable totally according to orders:
Metric or inch system; right or left hand wheel; halogen lamp; quick change; tool post; DRP; T-slot compound; chuck guard; leadscrew hood; rapid traverse motor; electromagnetic brake; forced lubrication system.
Main specification
Item Model | CD6140C | CD6150C | CD6160C | |
CAPACTIES | Max. swing over bed mm | 400 | 500 | 600 |
Max. swing over cross slide mm | 225 | 325 | 360 | |
Max. swing in gap mm | 530 | 630 | 730 | |
Center distance | 1000,1500, 2000mm | |||
Cross slide travel mm | 300mm | |||
SPINDLE | Spindle hole | 80mm(23/5¡å) | ||
Spindle nose | ISO-C8 or ISO-D8 | |||
Spindle taper | Metric 85mm | |||
Spindle speeds | 24-1600rpm (15 Steps) | |||
FEEDS | Metric threads range (Kinds) | 0.5-28mm (66Kinds) | ||
Inch threads range (Kinds) | 1-56tpi (66 Kinds) | |||
Module threads range (Kings) | 0.5-3.5mm (33 Kinds) | |||
Diametral threads range (Kings) | 8-56tpi (33 Kinds) | |||
TAILSTOCK | Spindle diameter | 65mm(23/5¡å) | 75mm(3¡å) | |
Spindle taper | Morse No. 5 | |||
Spindle travel | 120mm(43/4¡å) | |||
Main motor | 5.5kw | 7.5kw | ||
Net weight/Gross weight | 1000mm | 1640/2250kg | 1700/2350kg | 1800/2500kg |
1500mm | 1850/2250kg | 1910/2610kg | 2010/2760kg | |
2000mm | 2090/2860kg | 2150/2920kg | 2250/3070kg | |
PACKING SIZE | 1000mm | 2460*1150*1800mm | ||
1500mm | 2950*1150*1800mm | |||
2000mm | 3460*1150*1800mm | |||
CD6240C CD6250C CD6260C Gap Lathe(80mm spindle hole)

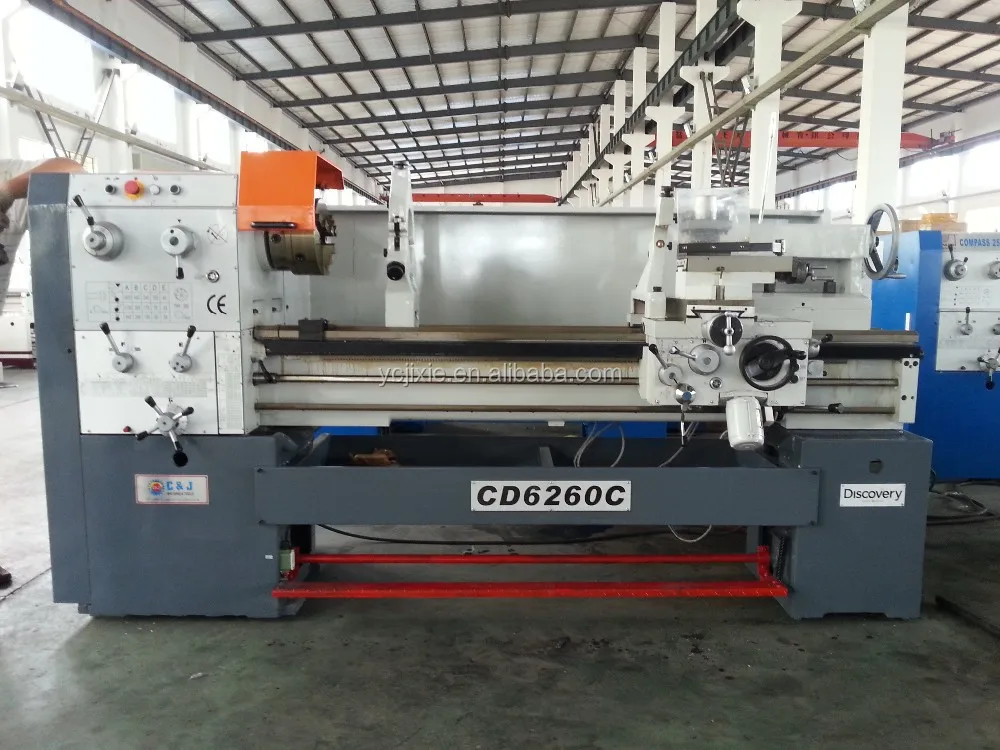

Machine photo:
Certifications
CE certificate
More customer
More Credit to customer, More customer, More and More Business Cooperation!
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
WhatsApp: 0086 13851005559
- Please do not hesitate to contact us for more details or data sheets, all other questions would be fully welcomed too.
- Latest MACHINERY CATALOGUES are available now! Download them on our official website or directly contact us.
- CJ Machinery always insist on the concept of providing our customers the most enjoyable metal working experiences. Every need or request would be answered at our best considering customer’s greatest interests.
- CJ Machinery values each relationship among our worldwide customers and hopes every unique requirement of our customers could be satisfied.
