Домашний бесшумный закрытый дизельный генератор Yangdong YD480D 10 кВт

Share on:

Price:2 600,00 $ - 2 800,00 $
Price in USD:Details


Product Overview

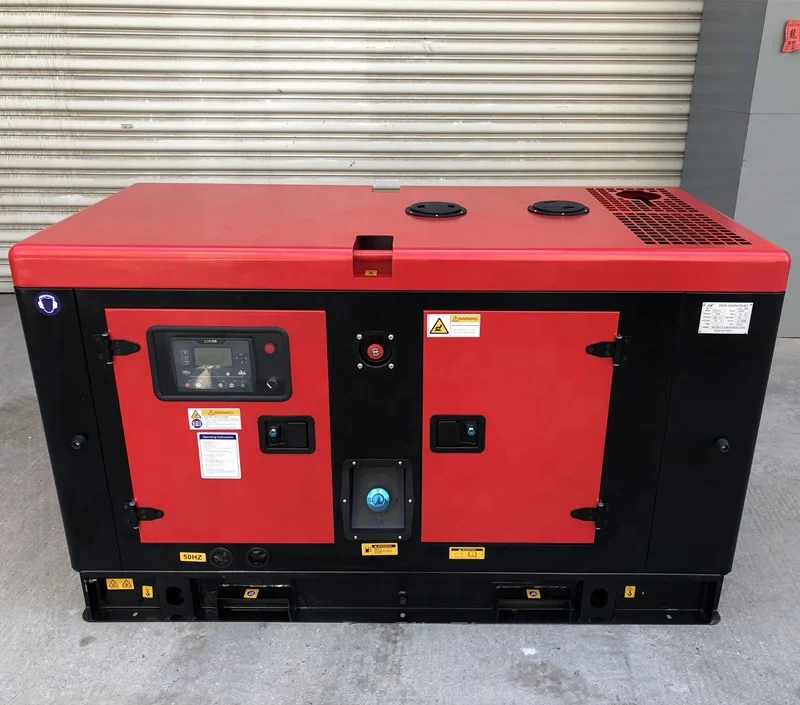

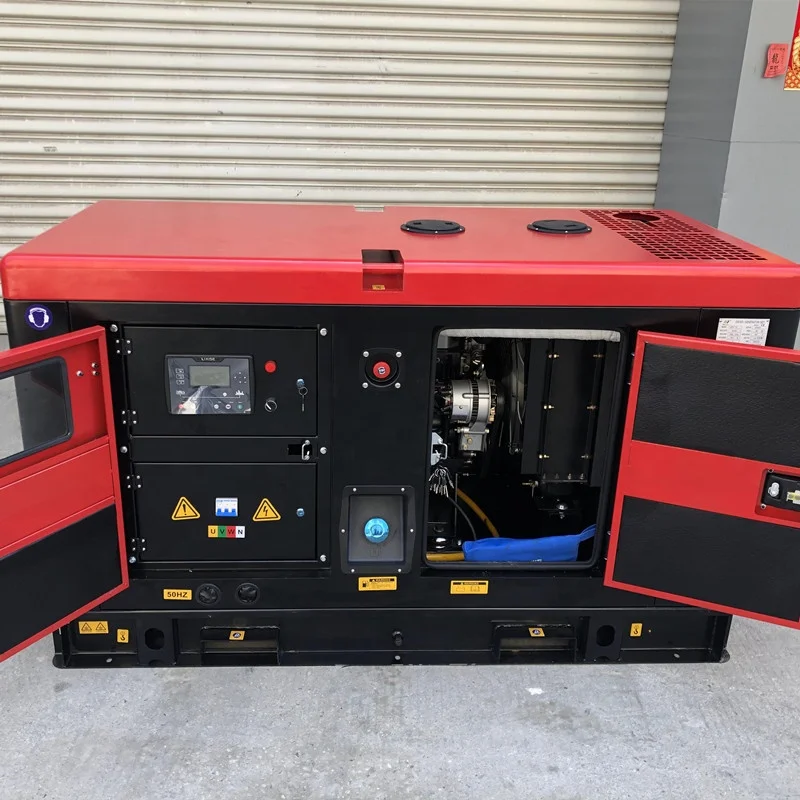

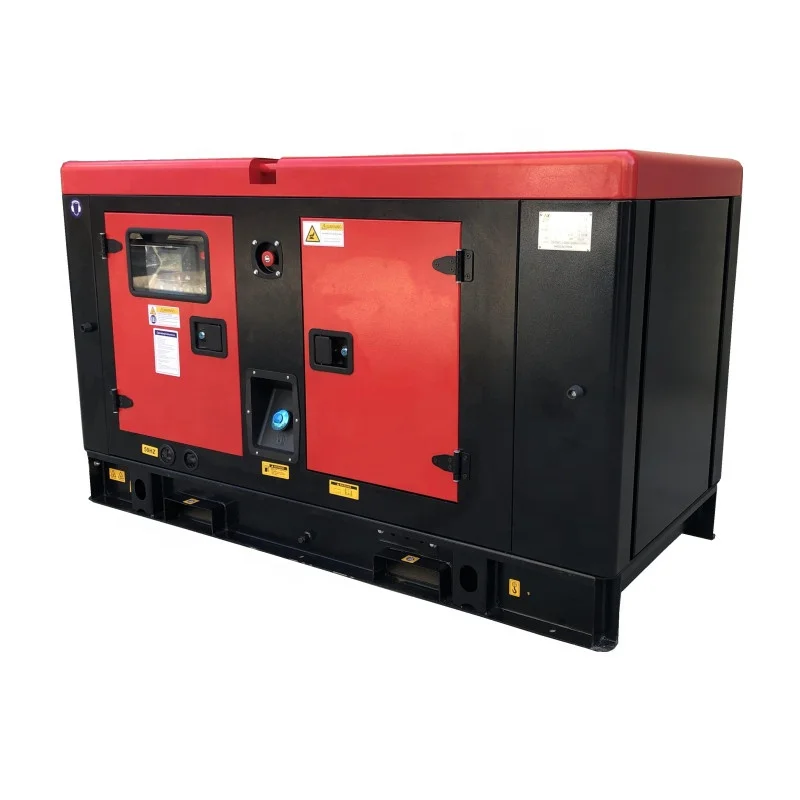

Yangdong YD480D 10kw home use standby silent enclosed cabinet diesel generator




    Yangdong.Co.,Ltd. is the largest production base that manufactures small bore and multi cylinders diesel engines. It is a national high-tech enterprise. The production has such excellence as following: the variety is satisfied, the performance
is outstanding and the emission capability is well. Also, the production has been certificated by the ISO9001 and TS16949
quality system.

    Generally the generators adobt our company's TFW2 series brushless three phase synchronous generator. If the customer requires that also could adopt series compound excitation generator or STC series third-harmonic excitation generator or other generators.
    The generator sets also can adopt fuel box at bottom, contoller with four protections(high water temperature, high oil temperature, low oil pressure, over speed); Also can design for silent, fully automatic transfer and automatic parallel system.

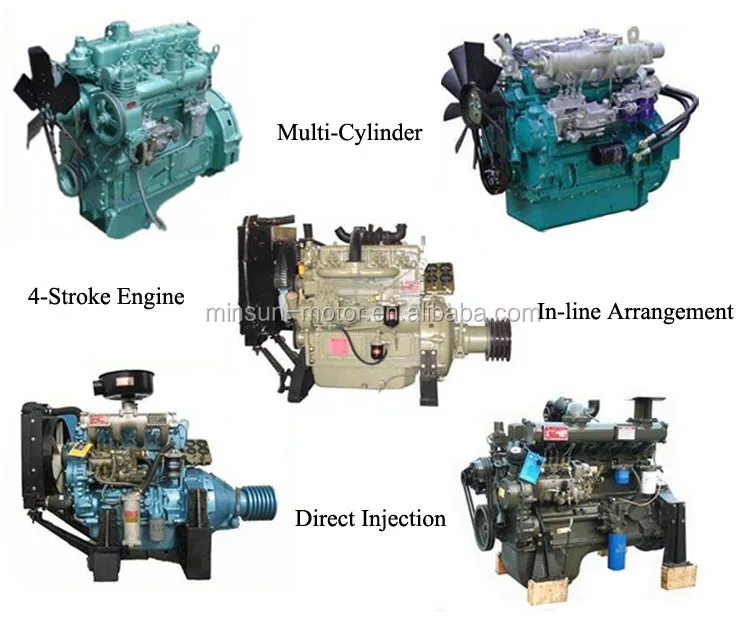

Engine feature


→Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
→24V D.C starter and charger alternator
→Industrial capacity exhaust silencer supplied loose with flexible section and mating connections                                     → Set mounted tropical duty radiator

→Engine driven cooling fan with protection guard

→Steel wire braided fuel lines, vent and rain fittings

→Set mounted acid battery installed with leads and terminals



alternator (2).jpg

electric_permanent_magnet_generator_10kva_silent_type (2).jpg




Technical Data





Generator ModelRated  PowerEngine ModelSTC AlternatorCopy Stamford Alternator
GF-810KVA/8KW       YD380DSTC-8SY-A 164B
GF-1012.5KVA/10KW     YD480DSTC-10SY-A 164C
GF-1215KVA/12KW        YD4KDSTC-12SY-A 164D
GF-1518.75KVA/15KW     YSD490DSTC-15SY-A 184E
GF-2025KVA/20KW         Y490DSTC-20SY-A 184F
GF-2430KVA/24KW        Y4102DSTC-24SY-A 184G
GF-3037.5KVA/30KW     Y4102ZDSTC-30SY-A 184H
GF-4050KVA/40KW     Y4105ZLDSTC-40SY-A 224D
GF-5062.5KVA/50KW     Y4105ZLDSTC-50SY-A 224E
Generator ModelRated  PowerEngine ModelSTC AlternatorCopy Stamford Alternator
GF-810KVA/8KWYD380D/YD380GSTC-8SY-A 164B
GF-1012.5KVA/10KWYD385GSTC-10SY-A 164C
GF-1215KVA/12KWYD480GSTC-12SY-A 164D
GF-1518.75KVA/15KW YND485GSTC-15SY-A 184E
GF-2025KVA/20KWY490HSTC-20SY-A 184F
GF-2430KVA/24KWY4100GSTC-24SY-A 184G
GF-3037.5KVA/30KWY4102ZDSTC-30SY-A 184H
GF-4050KVA/40KWY4105ZLDSTC-40SY-A 224D
GF-5062.5KVA/50KWY4105ZLDSTC-50SY-A 224E


Product shows


1076504640_256.jpg-1 (1).jpg-1 (2).jpg-1 (3).jpg-1 (4).jpg-1 (5).jpg-1 (6).jpg-1 (7).jpg
