Wireless Tire Pressure and Temperature Monitoring System for 3 wheels Motorcycle with External Sensors

Product Overview

Description

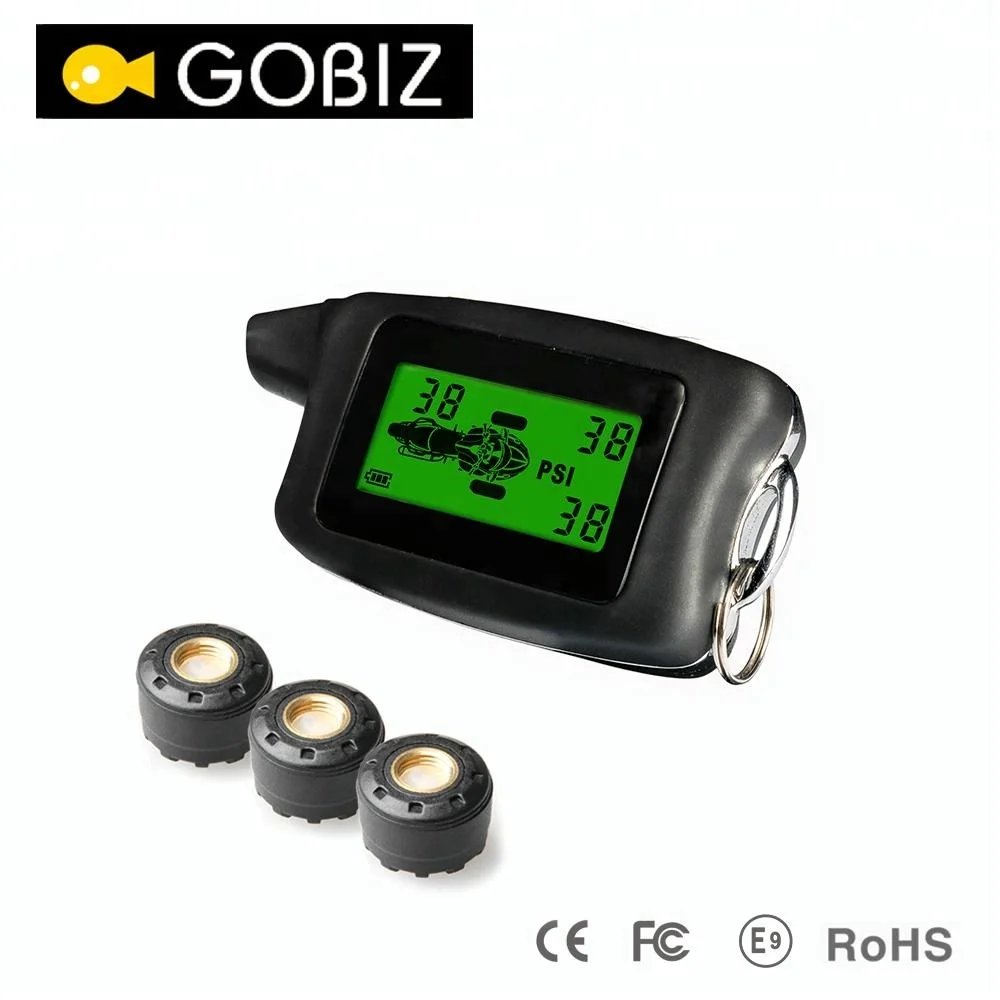

Wireless Tire Pressure and Temperature Monitoring System for 3-wheels Motorcycle with External Sensors







1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires





2. Features:

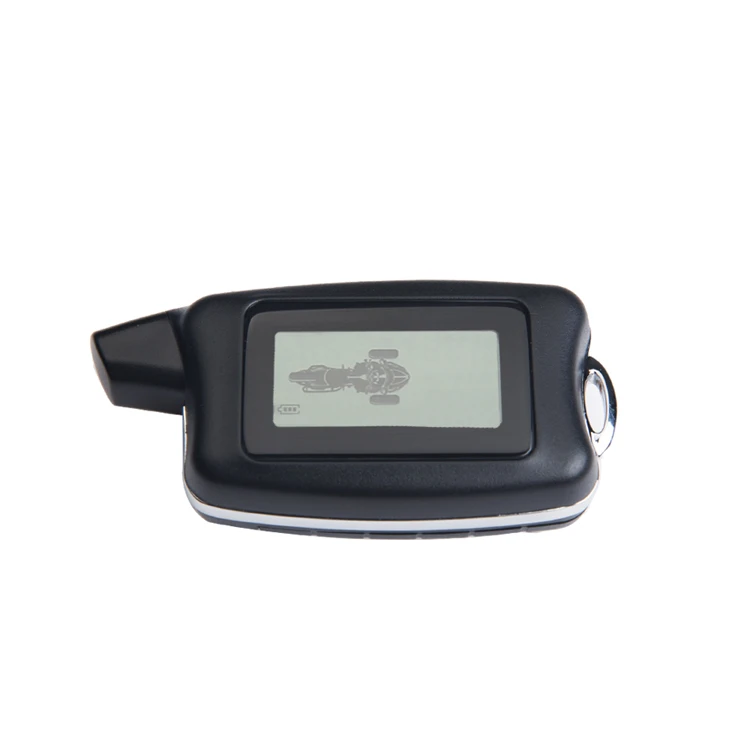

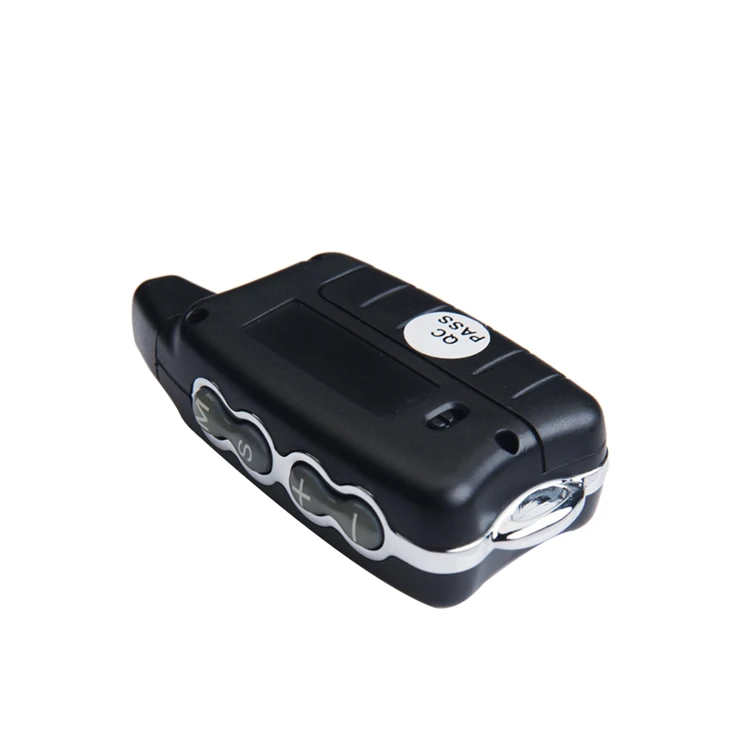

Monitor Features:



Long battery life.

Reliable and easy to program.
LCD displays 3 tires' pressure or temperature simultaneous.
Configurable high/low pressure warnings.
Configurable high temperature warnings.
Vibration, Visible and audible alerts.
Selectable temperature units ( ℃ or ℉ ).
Long range between sensors and monitor.
Selectable pressure units (PSI, BAR).

Long range between sensors and monitor.

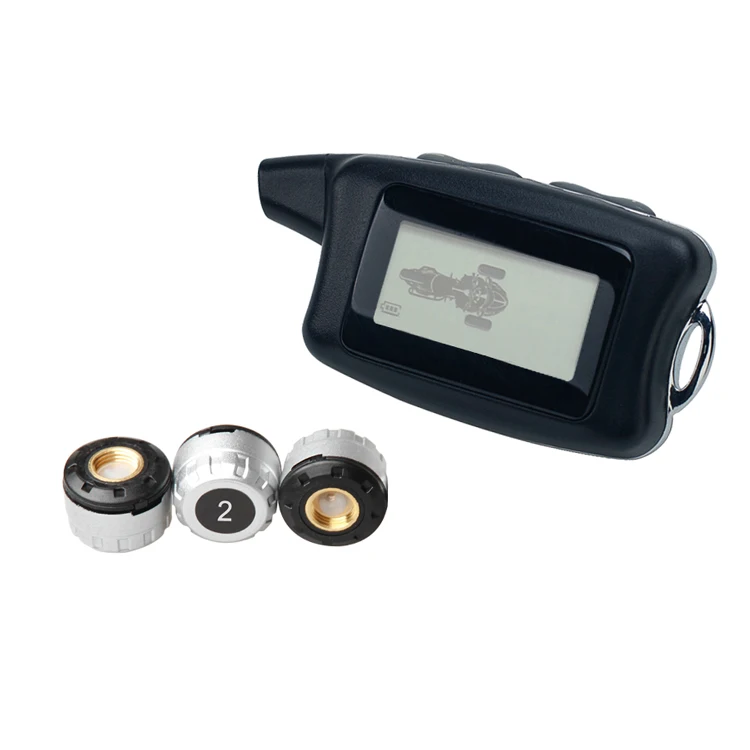

Sensor Features:

Reliable cap sensors, easy to install.
Water resistant.
Replaceable sensor batteries.
Sensors transmit pressure and temperature data every 5 minutes.
Fast leakage alert.
Individually coded sensors.
Anti-theft design .

3. Specifications:



Monitor specifications:



Operating voltage:	1.5 V
Frequency	433.92MHz
Operating temperature	-40 to +80° C
Size	77(L) x 39(W) x 18(H) mm
Weight	52g





External Sensor Specifications:



Pressure range:	0 to 8 bar, 0 to 116 Psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission power:	< 10dBm
Transmission frequency:	433.92MHz
Battery life:	2 years (Sensor battery replaceable)
Operating temperature:	-40 to +80° C
Weight:	8 grams
Size:	diameter:21 mm, height:17.7 mm
