4/3C NH bare shaft building material slurry pump

Product Overview

Description

4/3C-NH bare shaft building material slurry pump for Thailand

Point1.1:Pump Overview



Size range (outlet):----- 1'' to 18'' (25 mm to 450 mm)

Capacity:-------------- up to 22,000 gpm ( 5,000 m3/hr )

Head: -----------------up to 240 ft (73 m )

Pressure: --------------up to 300 psi (2,020 kPa)



Point 1.2: Pump Features

1).  Cantilever, horizontal centrifugal slurry pump

2).  Better wear-resistance and corrosive resistance slurry pump

3).  Wet parts for pumps such as liners , impeller , throat bush and frame plate liner insert have

      replaceable wear-resistant metal( high chrome alloy ) material or rubber material .

      Structure of pump is as below :







4).  In allowable pressure range, it can be used in series in stages, and allowable

      maximum working pressure is 3.6Mpa.

5).  Shaft Seal : expeller seal, mechanical seal and packing seal are available .

6).  The discharge branch can be positioned at interval of 45 degrees by request and oriented

      to anyone of eight positions to suit installations and applications.







7). To adapt to convey heavy abrasion, high concentration slag ,slurry pump's body is

     used double-shell construction , in other words, being made of inside liner and outside casing.



 Point 1.3: Pump Models and Dimensions

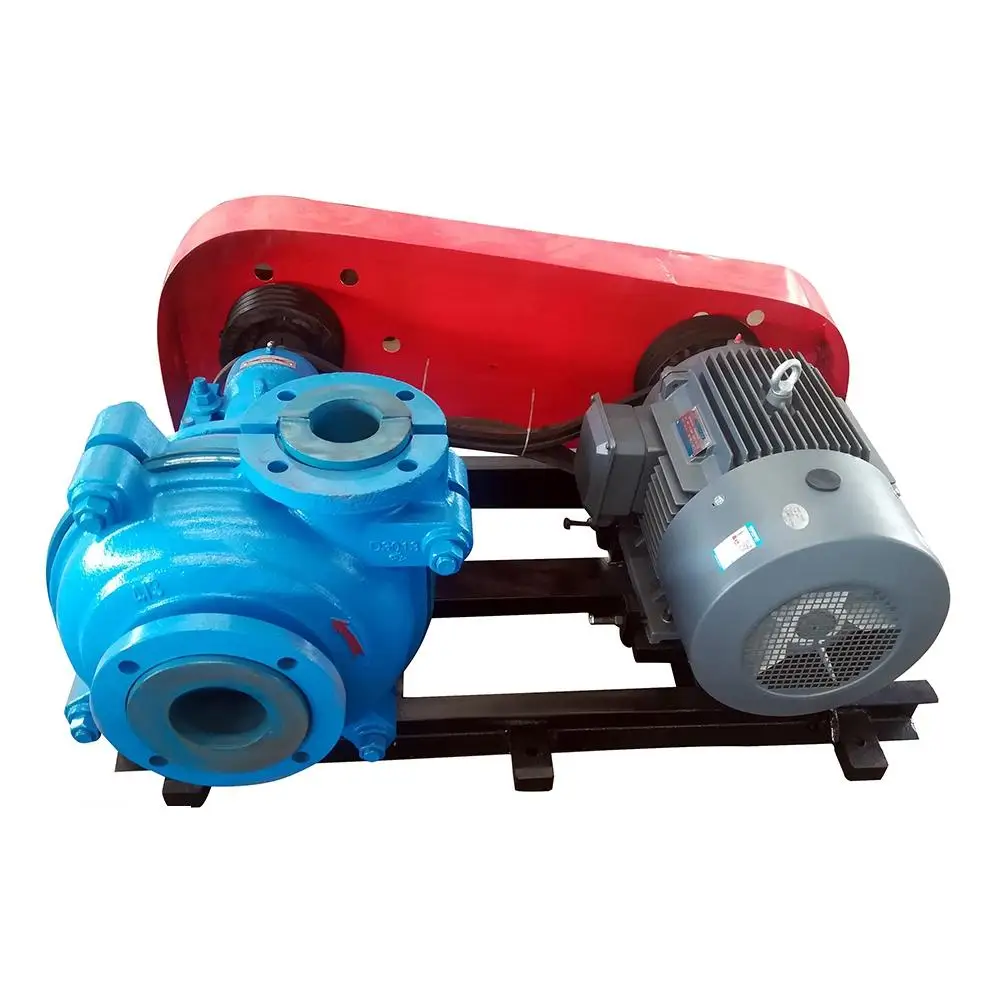

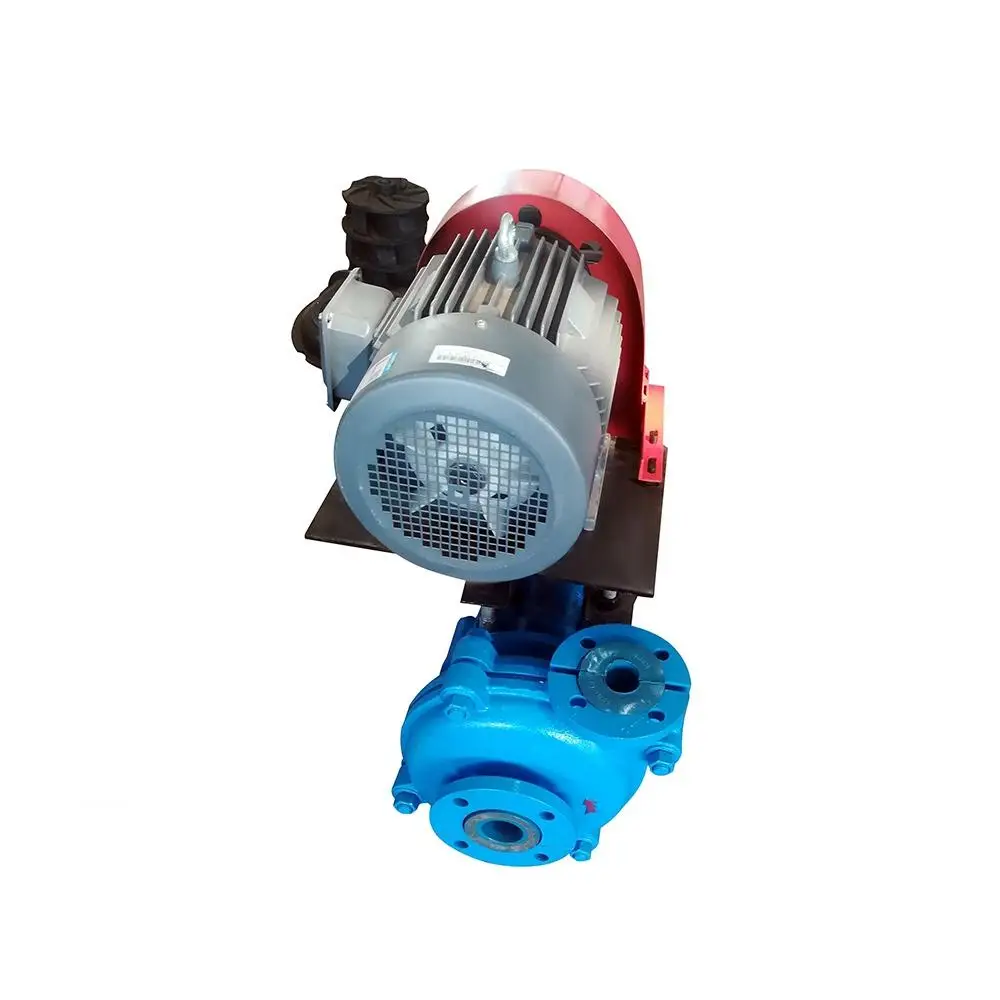

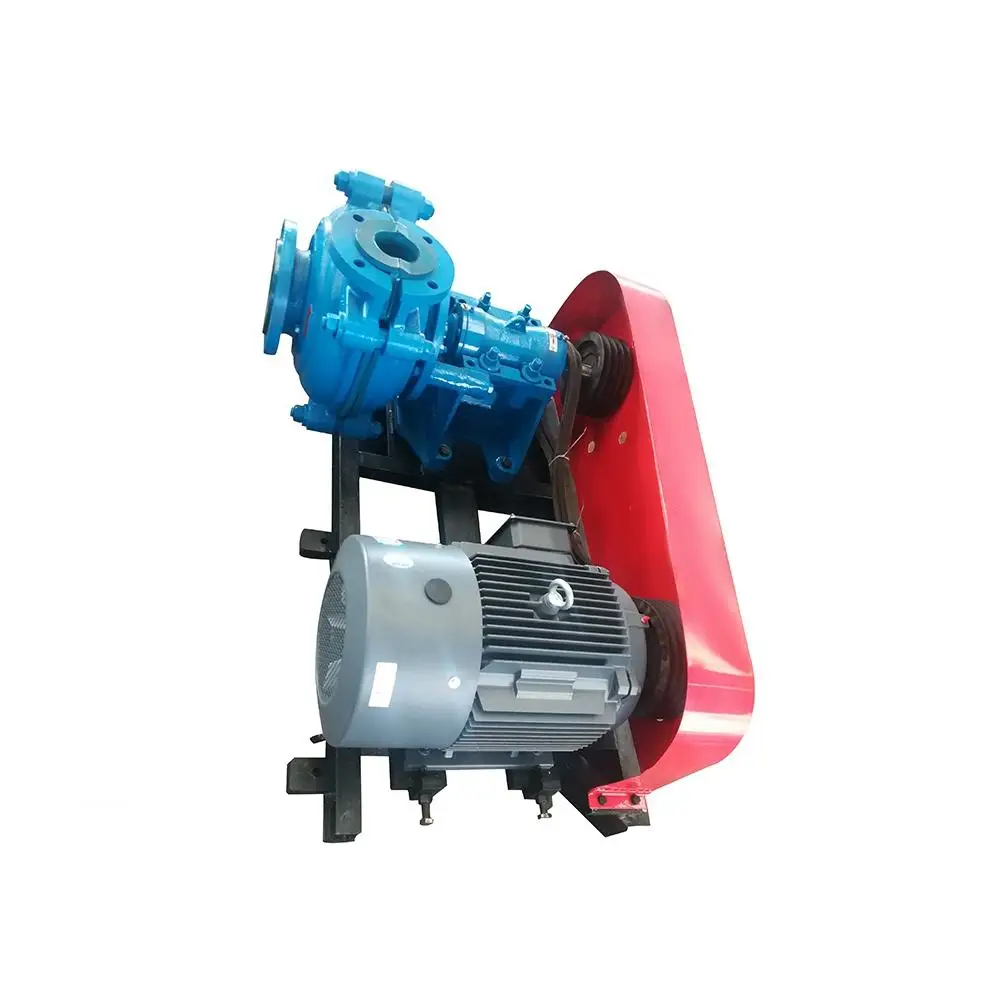

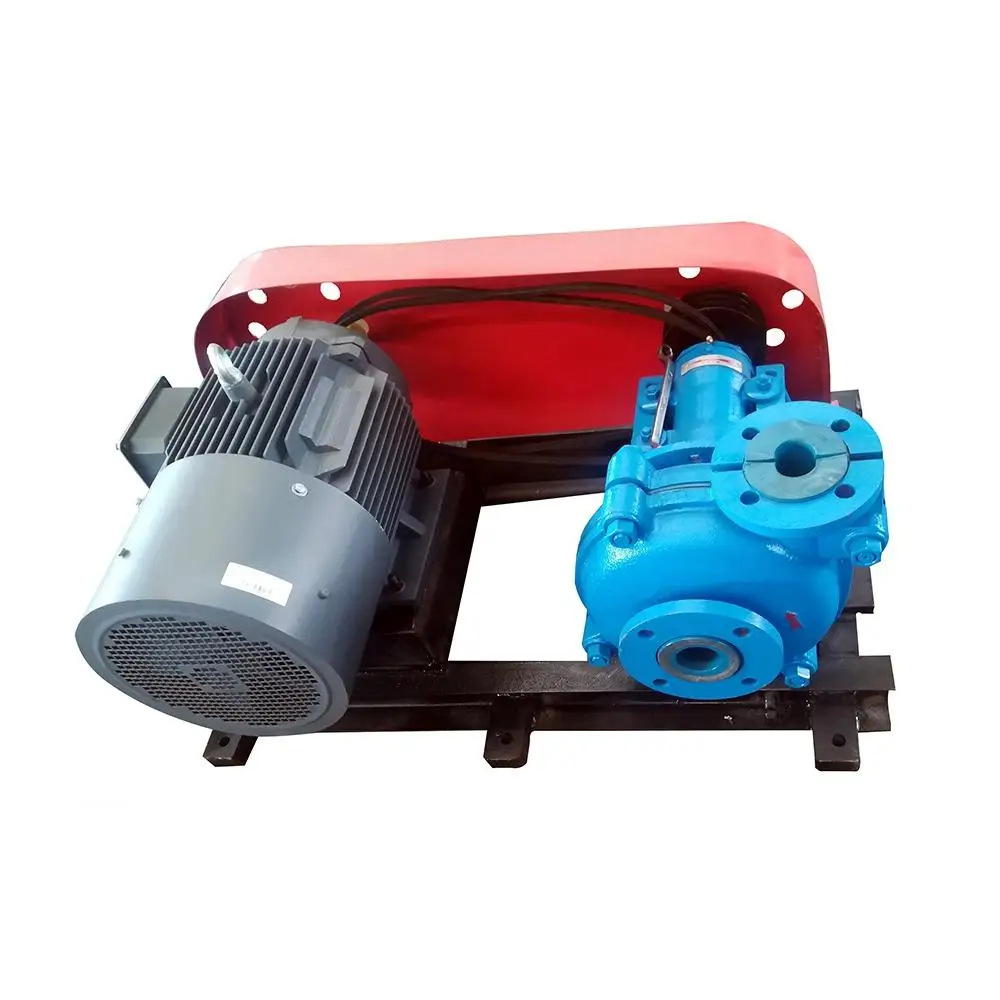

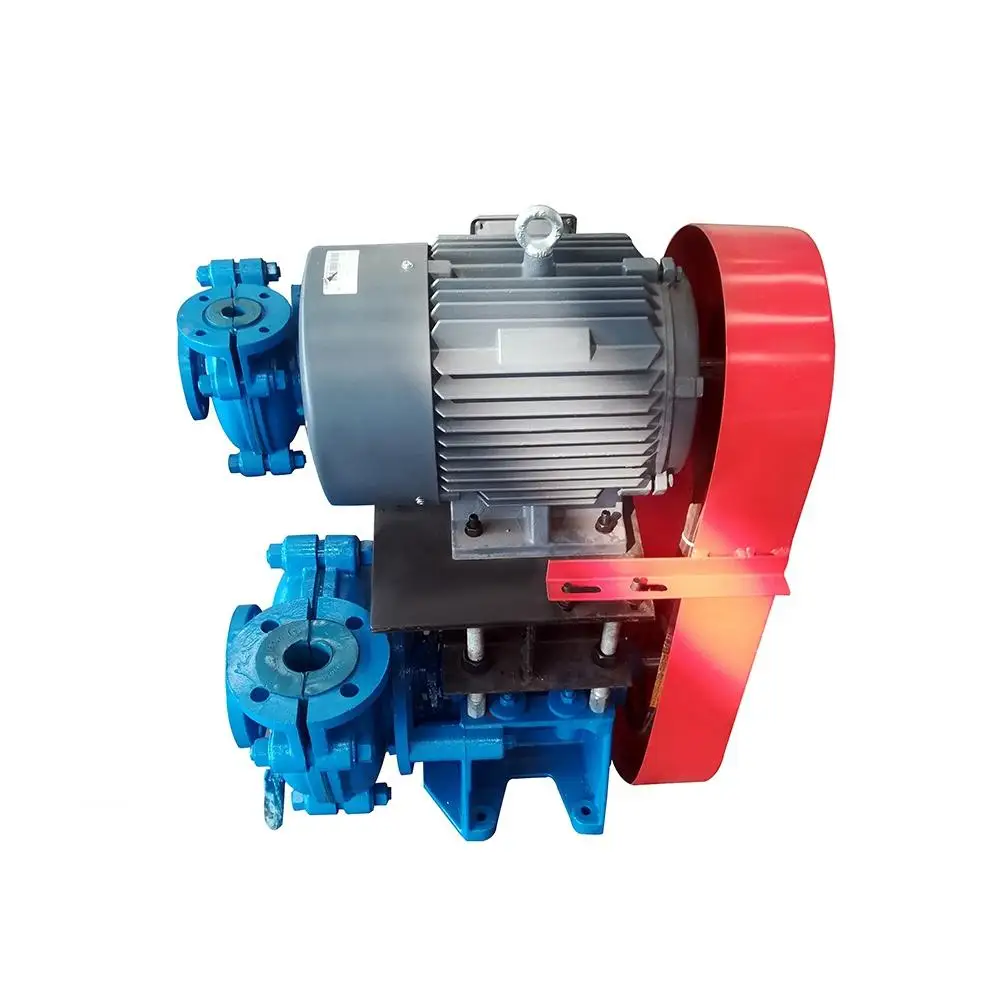

Point 1.4 : Pump Pictures





This Series of Pumps are used conveying abrasive or corrosive slurry, especially clinker of power plants in

electric power, metallurgy, mining, coal, building materials, chemical industry and other industrial sectors,etc.
