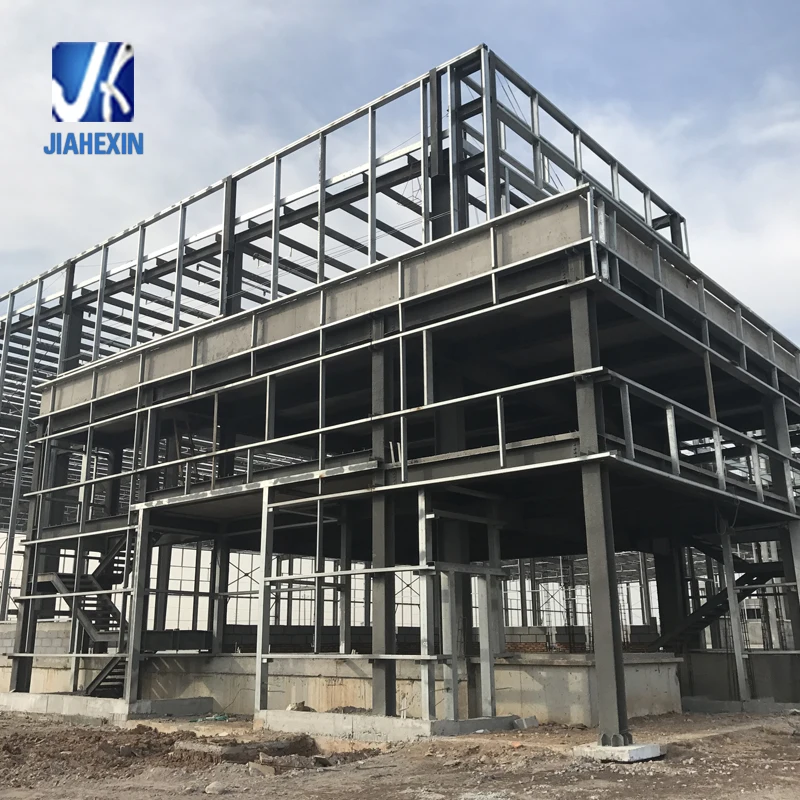

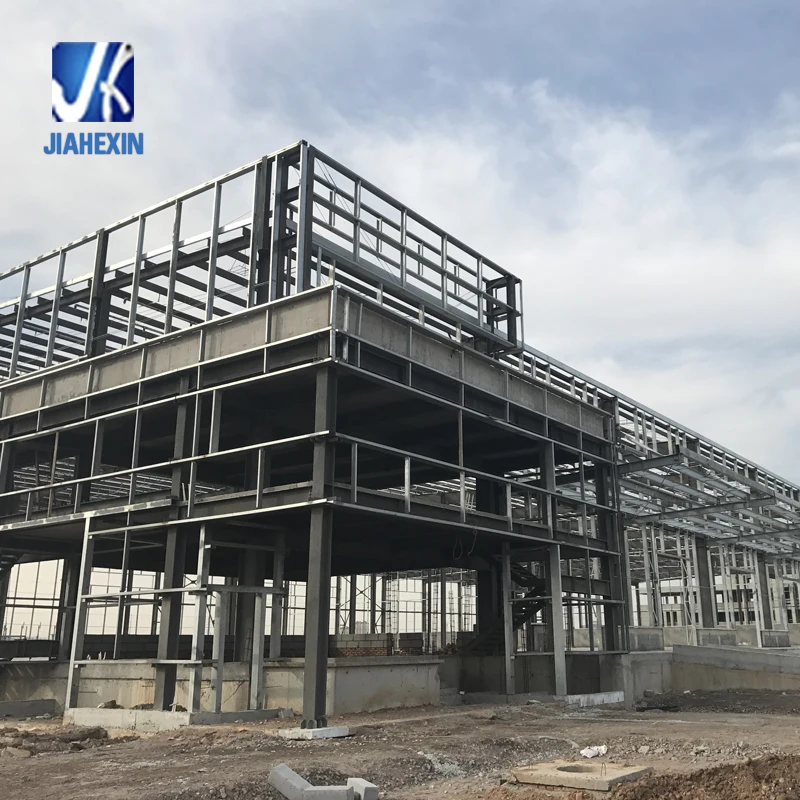

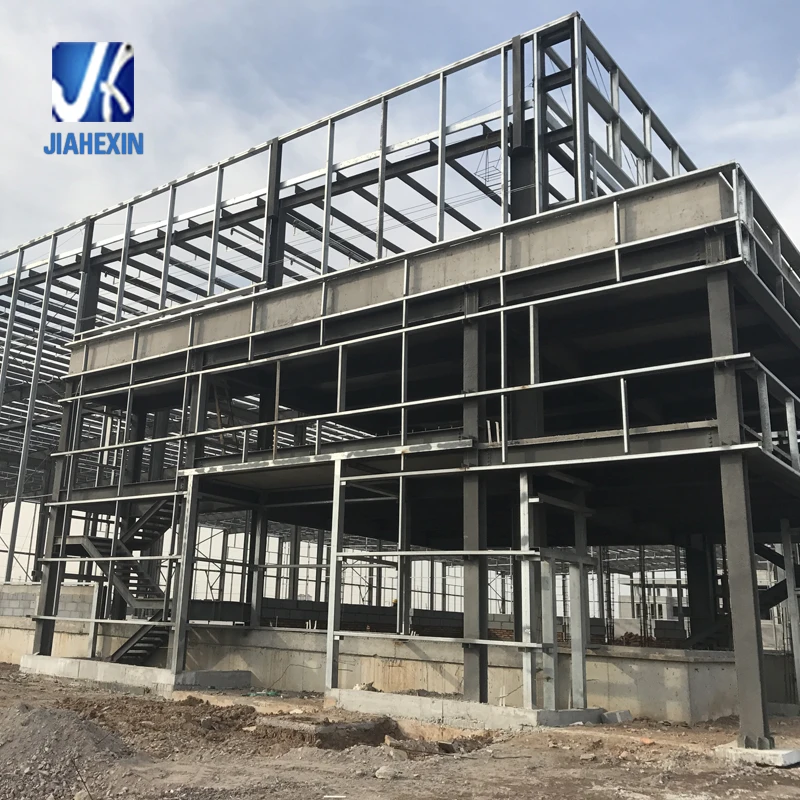

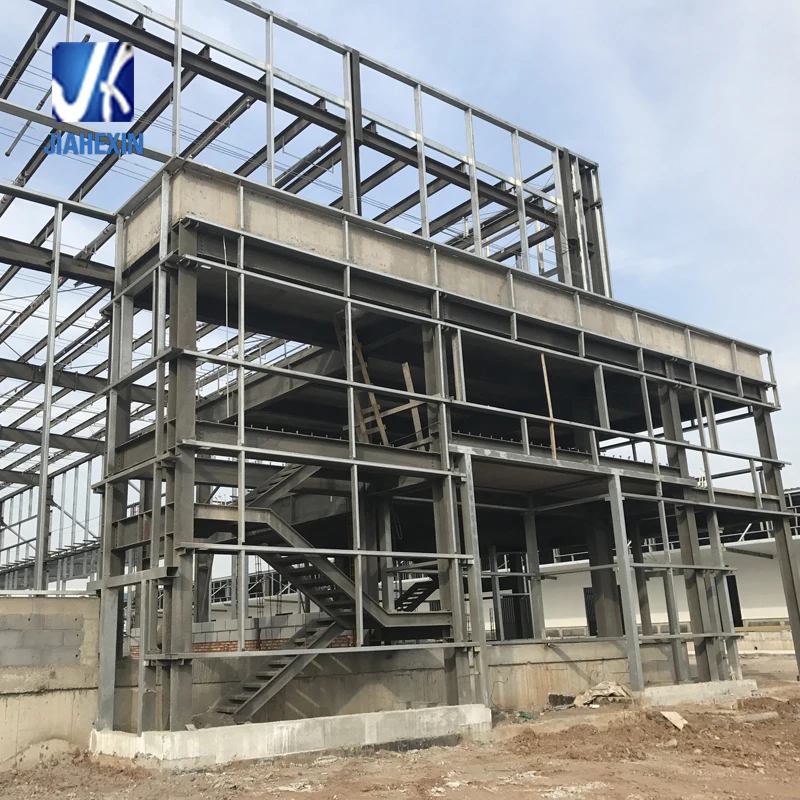

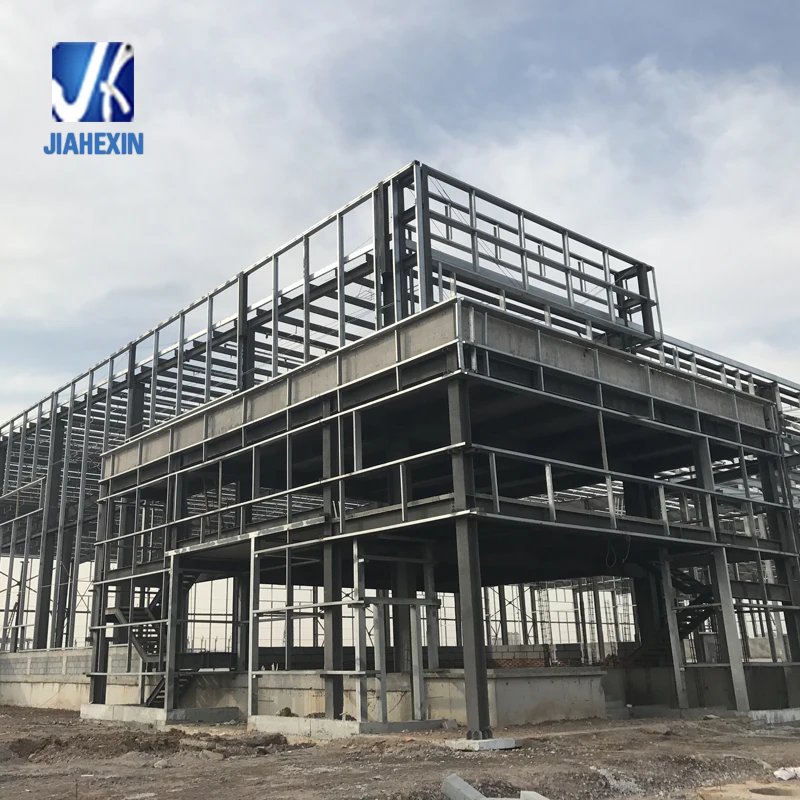

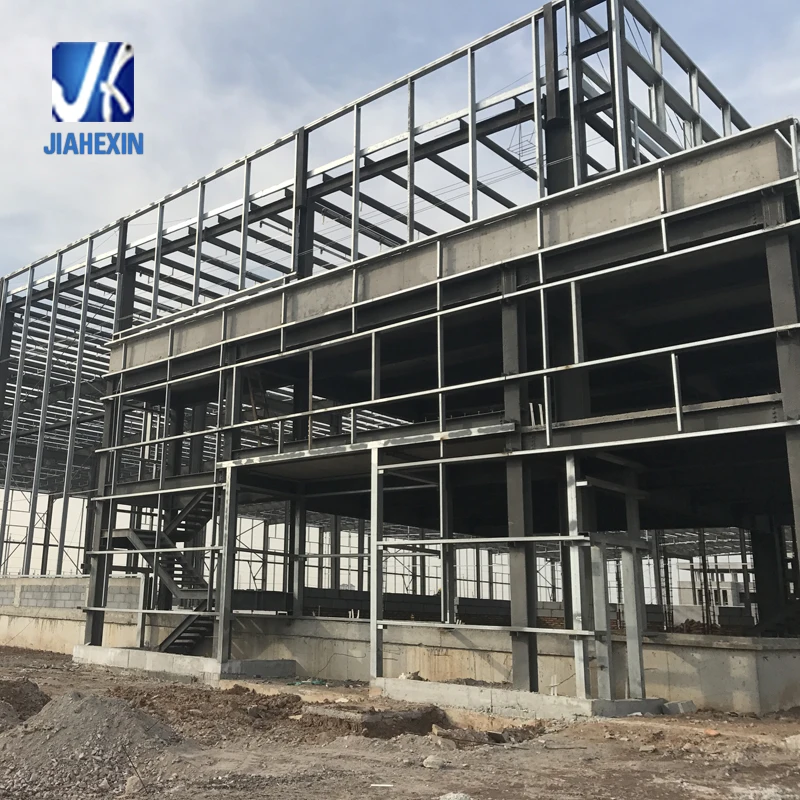

ISO certificated qingdao structural steel fabricator supplied prefab steel structure factory office building
- Category: >>>
- Supplier: Qingdao Jiahexin Steel Co. Ltd.
Share on (60178168230):
Product Overview
Description
ISO certificated qingdao structural steel fabricator supplied prefab steel structure factory office building
* Products&Service Scope:
Design&Engineering Service, Steel Building, Space Frames, Portable Cabins, Tubular Steel Structures, basic building elements(built-up welded H-section, hot-rolled H-section, channel, steel column, steel beam), standard frames, secondary framing, roof & wall materials, Tempcon (sandwich) panels
* Engineering Design Software:
AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0. Etc
Product Description:
| Item | Materials | Remark |
| Steel Frame | 1.H section column and beam | Q345 steel, paint or galvanization |
| 2.wind resistant column | Q345 steel,paint or galvanization | |
| 3.Roof purline | Q235B C/Z section galvanized steel | |
| 4.Wall purline | Q235B C/Z section galvanized steel | |
| Supporting system | 1.Tie bar | Q235 round steel pipe |
| 2.knee brace | angle steel L50*4,Q235 | |
| 3.roof horizontal bracing | φ20,Q235B steel bar, paint or galvanized | |
| 4.column vertical bracing | φ20,Q235B steel bar, paint or galvanized | |
| 5.purline brace | Φ12 round bar Q235 | |
| 6.knee brace | angle steel, L50*4,Q235 | |
| 7.casing pipe | φ32*2.0,Q235 steel pipe | |
| 8.gable angle steel | M24 Q235B | |
Roof and wall protecting system | 1.Wall and roof panel | corrugated steel sheet/sandwich panel |
| 2.self tapping screw | M5.5*50 | |
| 3.Ridge tile | color steel sheet | |
| 4.gutter | color steel sheet/galvanized steel/ stainless steel | |
| 5.down pipe | ||
| 6.corner trim | color steel sheet | |
| Fastener system | 1.Anchor bolts | M24 Q235 steel |
| 2.Bolts | 4.8S / 8.8S /10.9 S Galvanized | |
| 3.Nuts | Galvanized |
