reinforced concrete column formwork
- Category: >>>
- Supplier: Shandong Fangyuan Building Materials Co. Ltd.
Share on (60178713390):
Product Overview
Description
Product Description
Specification
Panel | Coating inside | Glossy PP plastic |
Coating outside | Red phenolic film with logo | |
Edges | Sealed by PP plastic | |
Core | Poplar plywood with 15mm thickness, A grade | |
Glue | Euro standard WBP, 50h water boiling | |
Hot press | Two times | |
Sanding | Two sides | |
Beam | Size | 40x50mm |
Structure | LVL wood | |
Surface | Waterproof painting in yellow color | |
Accessory | Style | Adjustable |
Surface | Galvanized | |
Steel no. | 6.0#, 10.0# |
Size
| Size of columns | Interval of steel frames |
| 300x300mm | 500mm |
| 400x400mm | 500mm |
| 500x500mm | 500mm |
| 550x550mm | 450mm |
| 600x600mm | 450mm |
| 700x700mm | 450mm |
| 800x800mm | 400mm |
| 900x900mm | 400mm |
the customized size is available according to your project drawing
| |
Product show

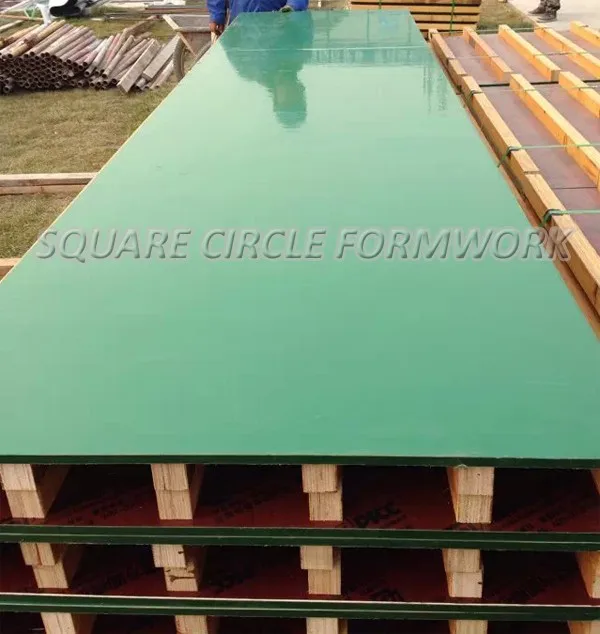

1. PP plastic coating inside
It's better strength and resistance to abrasion, water, heat, and chemical than phenolic film.
Besides, it's quick dismantling without release agent and supply a nice concrete finish.

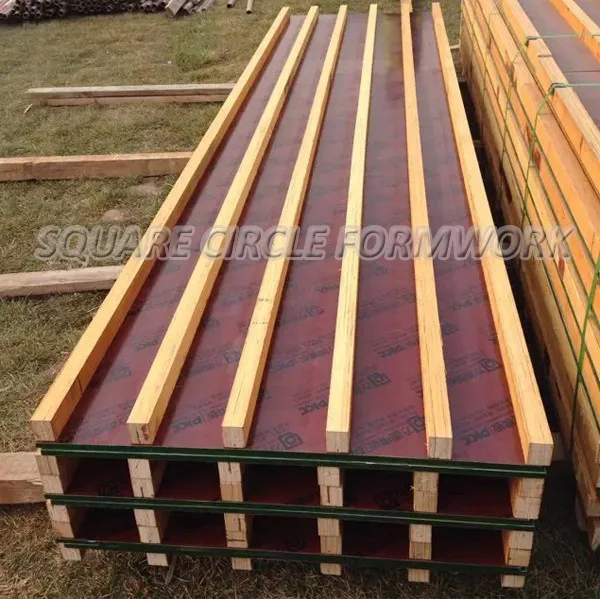

2. high quality phenolic film with logo and LVL beam outside

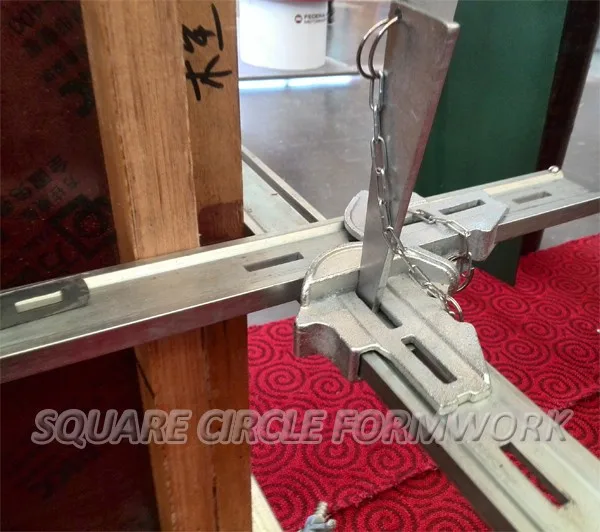

3. galvanized steel frame accessory ( it's optioned or sold it separately)
It's made of steel with high strength and adjustable according to panel size.
4. seamless joining at edges

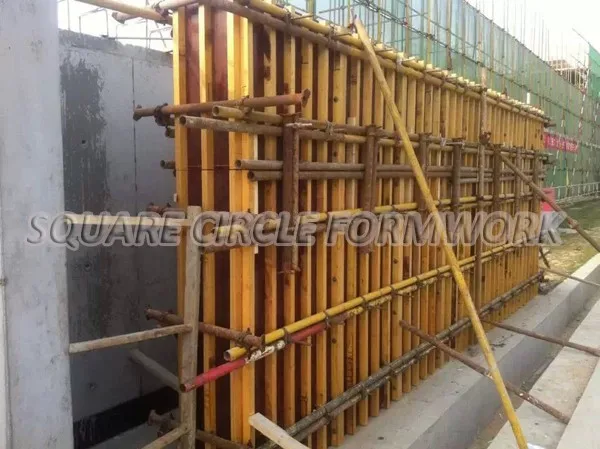

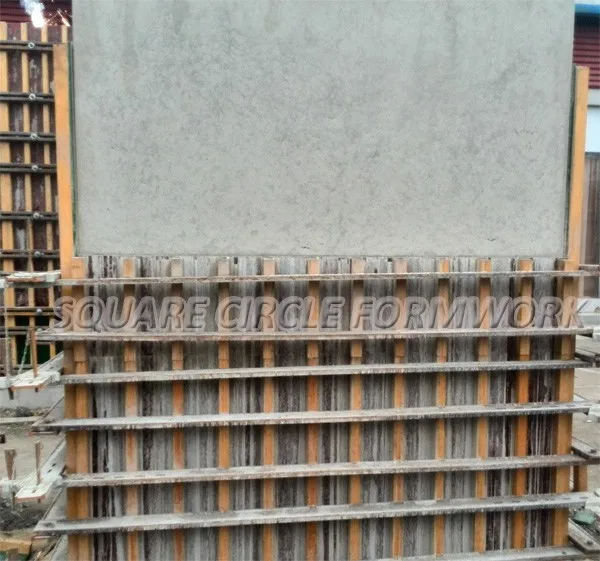

Application on site
From feedback on site, the size is accurate, fast installation by hands, quick dismantling without any concrete, and nice concrete finish without rework. Besides, it's reused 30 times at least.
Packaging & Shipping
Packing details
pallet packing or based on your requirements
Shipping
1. free samples are sent out by international express, such as DHL, TNT, EMS...
2. Qingdao port is our loading port. We transport the container goods by sea
FAQ
1. Are you a manufacturer or trader ?
Square Circle Formwork is a manufacturer specializing in production and direct-sales of PP plastic plywood, column formwork, circular column formwork, and film faced plywood.
2. Why do you use the PP plastic as coating ? Is it friendly for environment ?
Polypropylene (PP) is a polymer plastic that is a member of the ‘polyolefin’ (polymers produced from alkenes) family. It is a highly versatile material that has many beneficial physical properties, and most importantly it is also recyclable.
PP is tough and yet flexible and classed as semi-rigid. It is extremely resistant to heat, chemicals and fatigue.The PIC was introduced by the Society of the Plastics Industry, Inc., to provide a uniform system for the identification of various polymer types and to help recycling companies separate various plastics for reprocessing.
Company Information
Square Circle Formwork is a brand made by Shandong Fangyuan Building Materials Co.,Ltd, subsidiary to Pengcheng Group, which located in Linyi City, Shandong Province, the north of China.
We specialize in developing and manufacturing innovative products for concrete forming, such as PP plastic plywood, film faced plywood, circular column formwork, column formwork.
ISO9001 certification, machines from Germany, strict raw materials sourcing, experienced
management team, skilled workers, ensure the high quality of finished products.
Production line | 4 lines |
Production capacity | 50,000 square meters per month |
Welcome to visit our factory and negotiate the business !
