Gear Box Motor Gearless Elevators Parts Name

Product Overview

Description



WTYF250 Series of permanent-magnet synchronous gearless traction machines are directly driven by a low-speed, high-torque, 3-phase permanent magnet synchronous motor.







These traction machines can be installed on the top of shaft way with upward traction with handwinding function.



v With CSA  Certificate



v Eco-Friendly & Energy-Saving & Noiseless



v Low Energy Consumption & No Pollution & Little Maintenance.

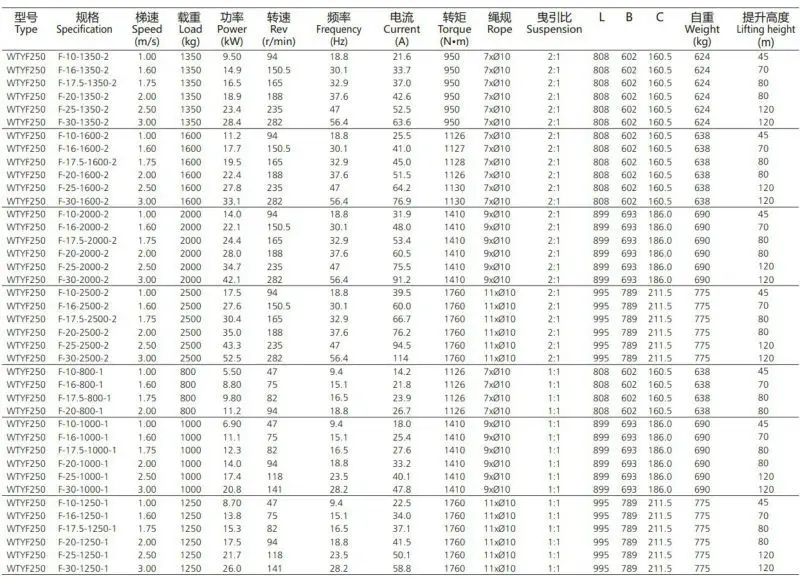

Product Characteristics



Traction Ratio:   1:1, 2:1



Rated Capacity:   800,1000,1250,1350,1600,2000, 2500kg



Rated Elevator Speed:   1,1.6,1.75,2,2.5,3m/s



Max. Lifting Height: 120m



Max. Shaft Load:    10000kg



Applicable Converter: 3 Phase 400V



Brake Voltage:  DC200V



Number of Motor Poles:  24 Poles

























Hosting Elevator always following market requirement to convince our users around the world with quality products and satisfactory service.



Establishing a sound marketing service network and participates in different exhibitions all over the world , we are now wining 125 agents at home and 25 agents on abroad throughout the world’s major emerging markets.











Quality Control



Hosting Elevator not only import Automatic Optical Inspection, Spectrum Analyzer, CMM, but also found precision detection experimental center.



Strictly followed international QC management to elevator production, we set rigorous manufacturing standards of Hosting Elevator to make sure every elevator remarkable.











Set up in 1993 while creating HOSTING brand in Ningbo, Hosting located in  an important port city in China.



Since the establishment, HOSTING was dedicated in research development and the manufacturing of elevator and escalator.





v   Multiply Products



     Passenger Elevator, Observation lift, Bed Elevator, Cargo Elevator, Escalator, Conveyor and the Spare Parts.



     Popular in government-financed projects, real estate projects, hotels and urban rail transit projects.



v   Safety First



      High Safety Standard ensured for any Accidents occurs.



      ISO9001:2000 quality and CE marking certification systems.



v   Services



      First-Class Sets of Equipment for  metal cutting, sheet metal fabrication, coating and test equipment worth USD70 million



      Win-Win Cooperation and Mutual Benefits.



v  Global Market



     More than 30% of our products are exported to South America, Europe, Asia, and Africa etc; Our export volume ranks ninth in

     China and second in self-owned brand of China. We provide elevator and escalator with competitive price and reliable quality.

     Furthermore, we will spend more efforts to look for good and qualified abroad agents so that we can localize our after-service

     world widely in the future.





HOSTING has the strong ability of design and manufacturing thanks to a lot of first-class manufacturing equipments including NC laser cutter, CNC multi-stations punch press, NC plate bending machine, processing center, spraying production line, welding robot and well-equipped production line. We adopt risk management and delicacy operation for safe production and employ precise testing instruments for more stable products, more complete functions and longer service life.



v   Delicated in Research Development and the Manufacturing Process.



v   Set up in 1993 while creating HOSTING brand in Ningbo, Hosting located in an important port city in China.



v   6 Subsidiaries: Xinda Elevator, Xinda Compressor, Xinda Elevators Parts, Xinda Heavy Industry and Lebang Electron.



v   Widely applied in government-financed projects, real estate projects, hotels and urban rail transit projects.



v   More than 30% of our products are exported to South America, Europe, Asia, and Africa.







FAQ



1. Are the elevator wire ropes durable?



The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.



2.Is it dangerous for power failure suddenly during the elevator running?



If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure, elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.



3. Will us be hurt when it closed suddenly?



In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.



4.How the elevator running?



Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.



5. Do you have any cerifications?



Yes, we do with CE, KLA,CSA and UL Certificates for u.
