Product Overview
Description

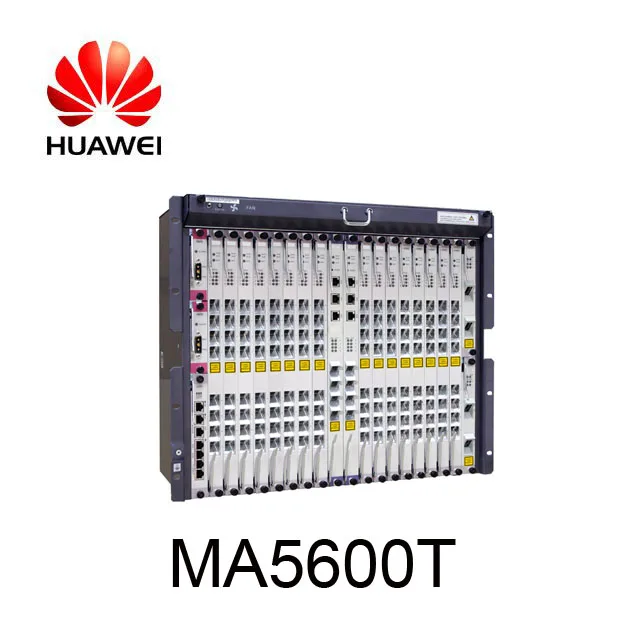

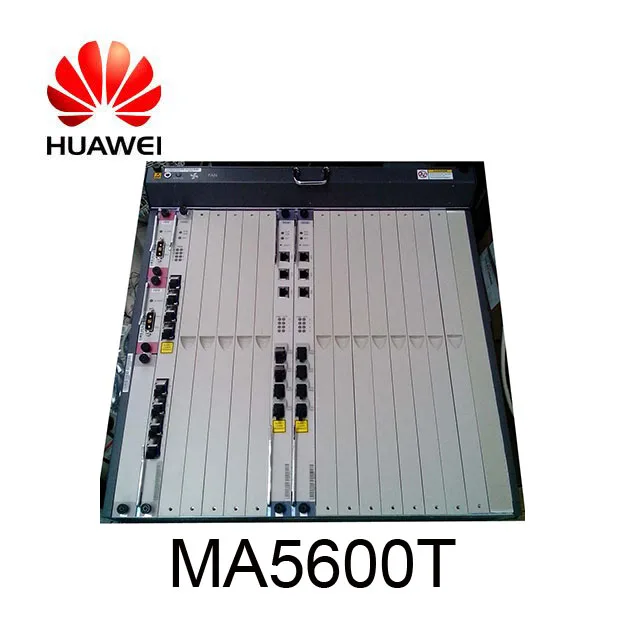

HUAWEI dslam MA5600 ADSL2+ MSAN
product description
- As an IP digital subscriber line access multiplexer (DSLAM), it supports non-blocking gigabit Ethernet (GE) switching fabric to suit the high rate requirements of the broadband telecom network.
- As a multi-service access module, it provides integrated service access to address the diversified service requirements of telecom subscribers
- As a next generation network (NGN) solution, it provides ensured quality of service (QoS) to be ready for evolving to the next generation network.
Board type

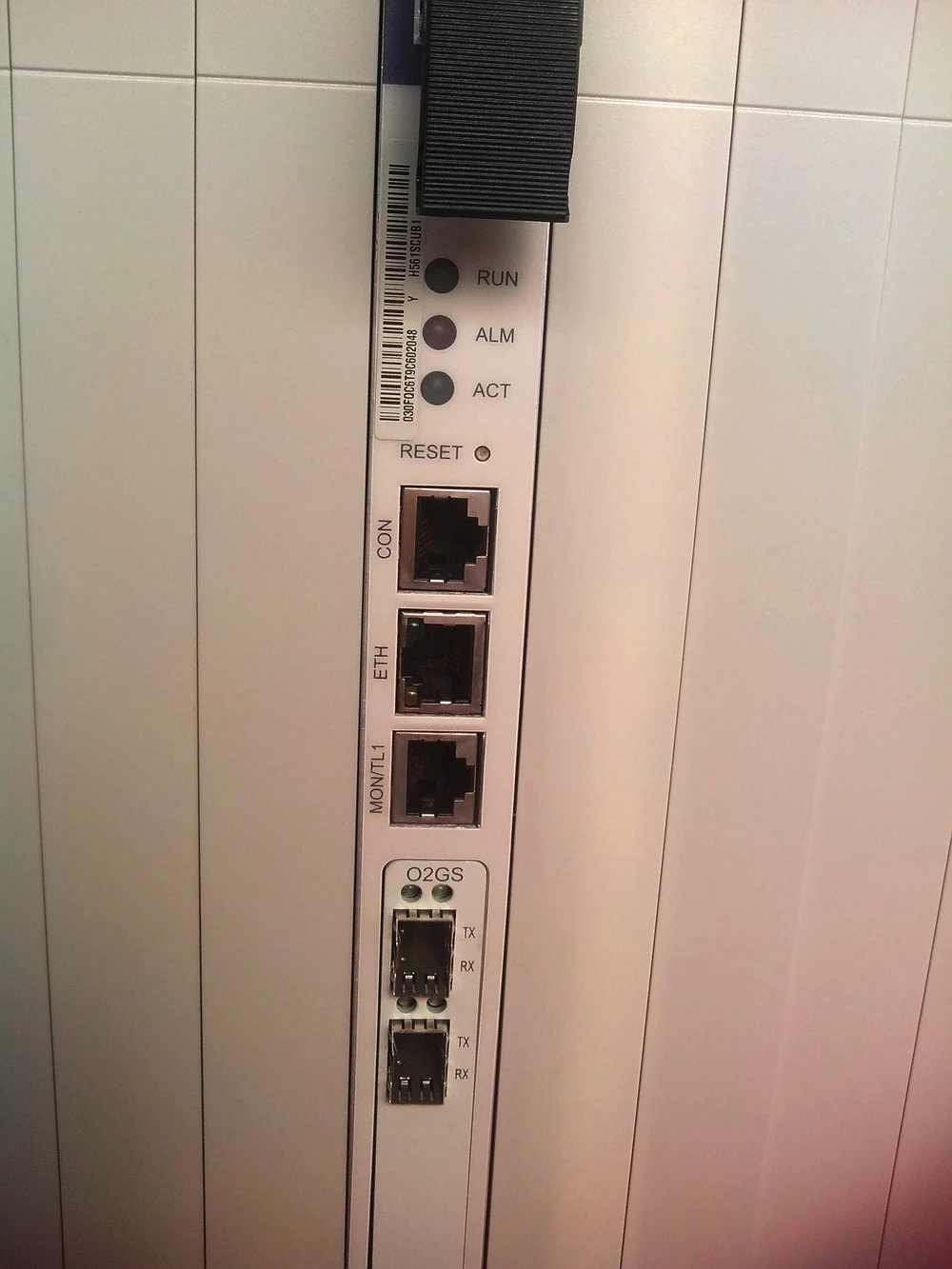

- Control board of the MA5600
Board | Name | Fuction | External Port |
| SCU | Super control unit | It controls,aggregates,and processes the broadband service | 1. maintenacne port |
| It provides GE/FE ports | 2. 1 serial port | ||
| The two boards support active-standby hot backup | 3. 1 evironment monitoring port | ||
| It supports the Jumbo frame feature | 4.6GE/FE ports |
- Service boards of the MA5600
| Board | Name | Fuction | External Port |
| ADEF | ADSL2+ over POTS | It supports: | 64 ADSL2+ ports |
| ADBF | ADSL2+ over ISDN | It supports: | 64 ADSL2+ ports |
| ADEE | ADSL2+ over POTS | It supports: | 64 ADSL2+ ports |
| SHEB | SHDSL.bis service | It supports SHDSL.bis access | 32 SHDSL ports |
| SHEA | SHDSL service board | It supports SHDSL access | 32 SHDSL ports |
| VDEB* | VDSL2 interface | It supports: | 32 VDSL ports |
| VDBD | VDSL2 interface | It supports: | 32 VDSL ports |
| AIUG* | ATM interface board | It supports: IMA access | 4 STM-1 ports or 8 IMA E1 ports |
| ETHA* | Ethernet subtending | It is used for GE/FE subtending | 8 GE optical/electrical ports or 8 FE optical/electrical |
- SPL boards of the MA5600
Board | Name | Fuction | External Port |
| SPLH* | 64-port | It supports: | 64 ADSL2+ ports |
| SPLF* | 64-port | It supports: | 64 ADSL2+ ports 64 LINE ports |
| SPLL* | 64-port | It supports: | 64 ADSL2+ ports |

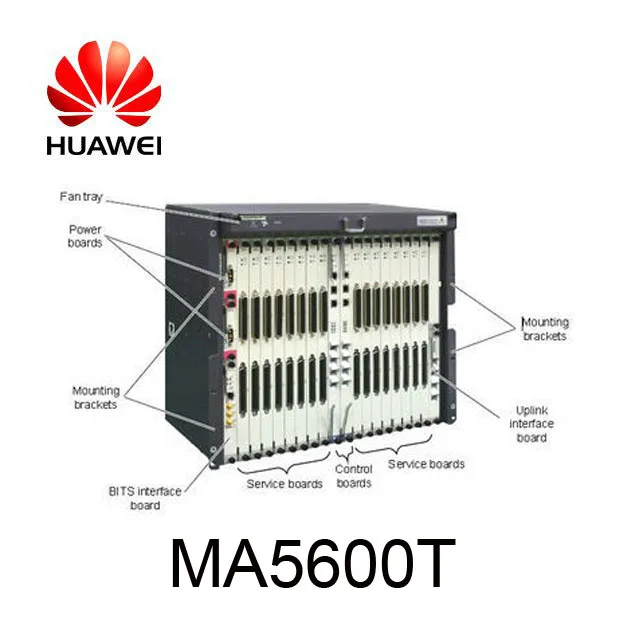

- Boards supported by the MA5600
Type | Silk Screen | Full Name | Function |
Control board | SCUB | Super control unit | Controls the boards of the service shelf, converges and processes broadband services. Two boards can be configured for dual-system hot backup. The board is hot swappable. |
SCUK | Super control unit | Controls the boards of the service shelf, converges and processes broadband services. Two boards can be configured for dual-system hot backup. The board is hot swappable. | |
Service board | ADEF | 64-channel ADSL2+ service board | Works with the external splitter and supports ADSL2+ over POTS. It adopts the GE bus and supports line protection. The board is hot swappable. |
ADBF | 64-channel ADSL2+ service board | Works with the external splitter and supports ADSL2+ over ISDN. It adopts the GE bus and supports line protection. The board is hot swappable. | |

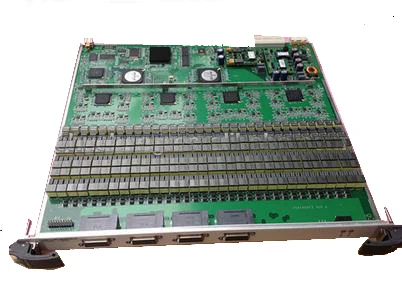

ADEE | 64-channel ADSL2+ service board | Works with the built-in splitter and supports ADSL2+ over POTS. It adopts the GE bus and supports line protection. The board is hot swappable. | |
VDEA | 32-channel VDSL2 service board | Works with the built-in SPL and supports VDSL2 over POTS, It supports line protection. The board is hot swappable. | |
VDEB | 32-channel VDSL2 service board | Works with the built-in SPL and supports VDSL2 over POTS. It adopts the GE bus and supports line protection. The board is hot swappable. | |
VDBD | 32-channel VDSL2 service board | Works with the external SPL and supports VDSL2 over ISDN. It adopts the GE bus and supports line protection. The board is hot swappable. | |
SHEA | 32-channel SHDSL service board | Supports ATM SHDSL access and adopts the GE bus. The board is hot swappable. | |
SHEB | 32-channel SHDSL service board | Supports ATM/PTM SHDSL access and adopts the GE bus. The board is hot swappable. | |
Interface board | AIUG | ATM interface board | Connects to the ATM-DSLAM. The board is hot swappable. |
ETHA | Ethernet subtending board | Servers for the GE/FE subtending or uplink, and can provide both uplink ports and subtending ports. | |
Splitter board | SPLF | 64-channel ADSL2+ over POTS splitter board | Separates POTS signals from ADSL2+ signals. The board is hot swappable. |
SPLH | 64-channel ADSL2+ over ISDN splitter board | Separates ISDN signals from ADSL2+ signals. The board is hot swappable. |
