Product Overview
Description

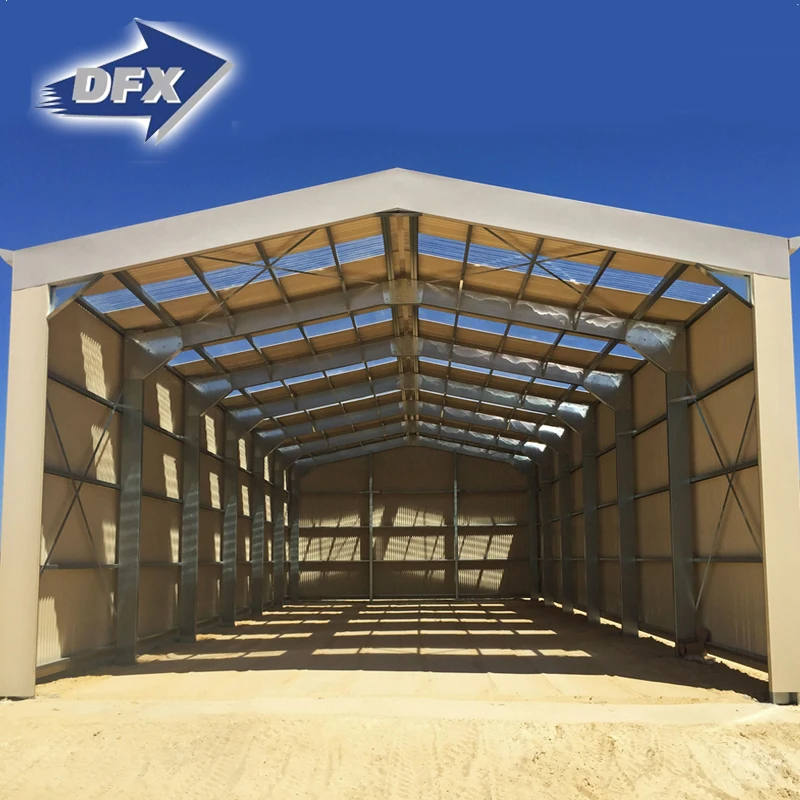

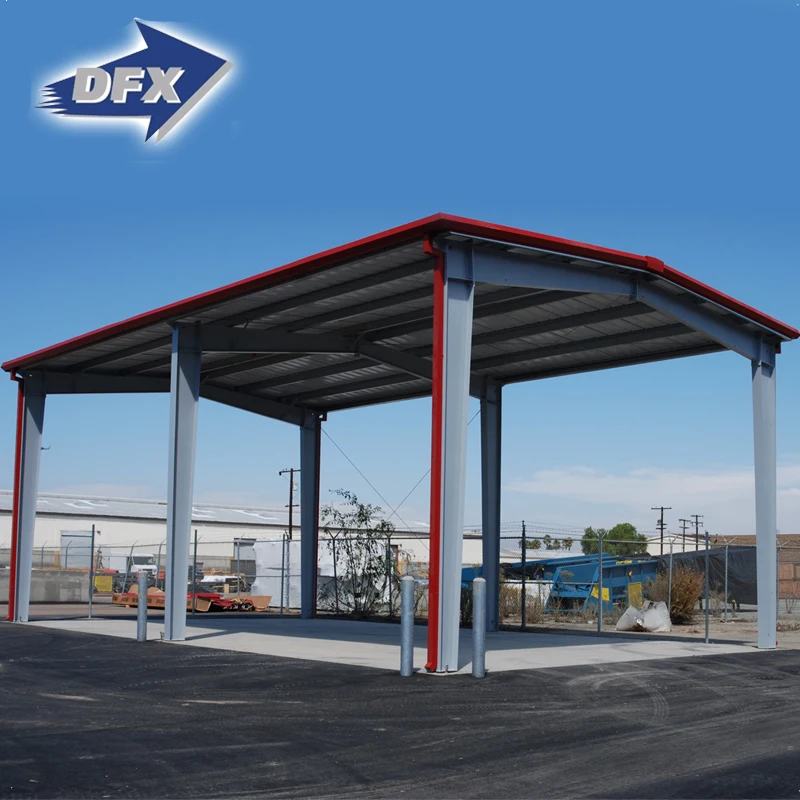

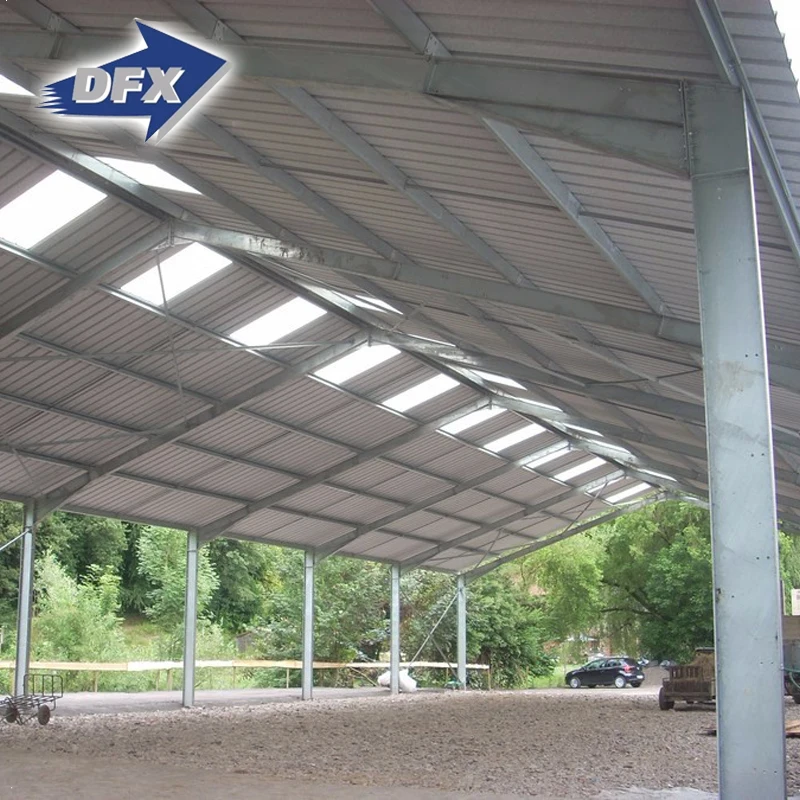

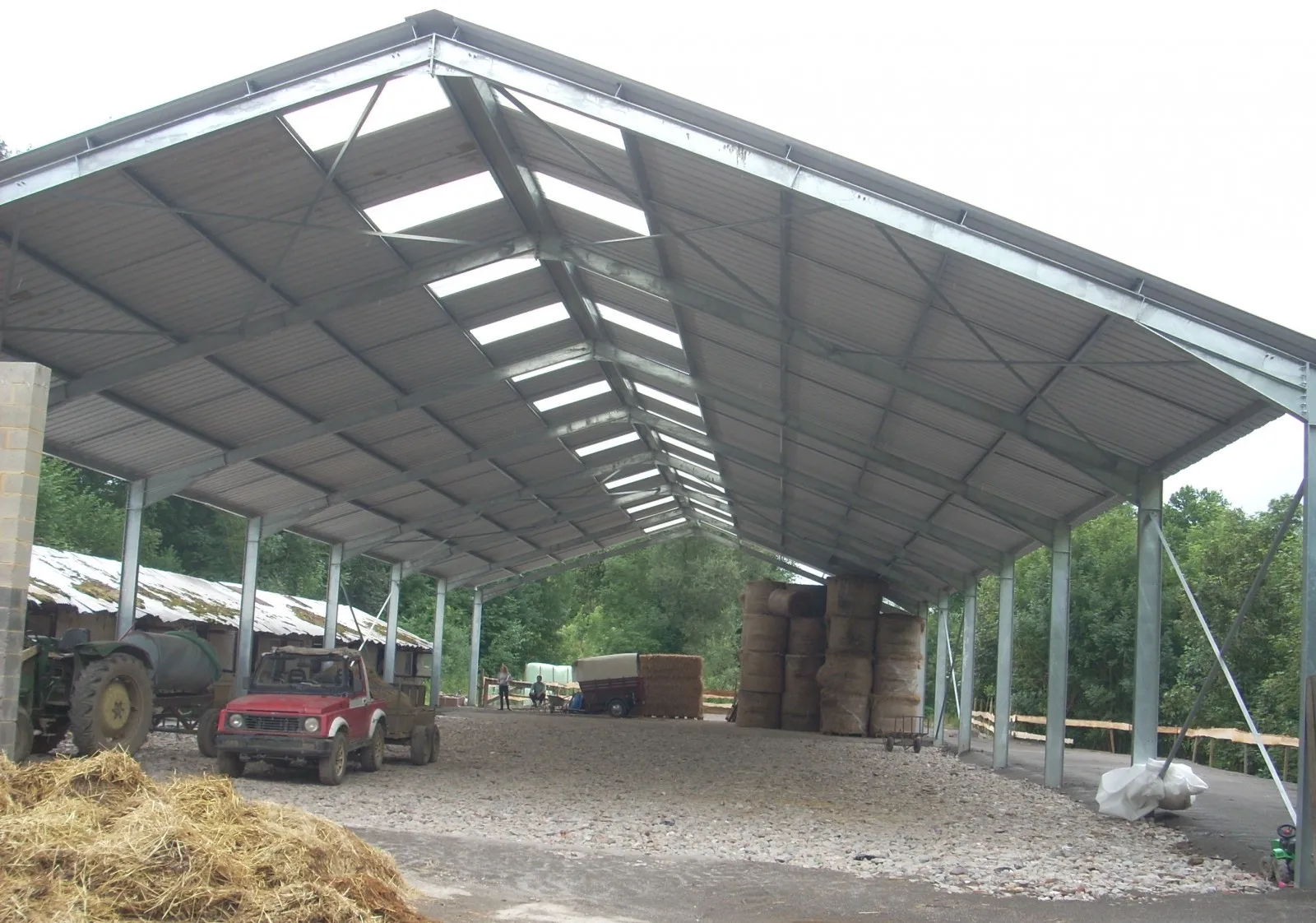

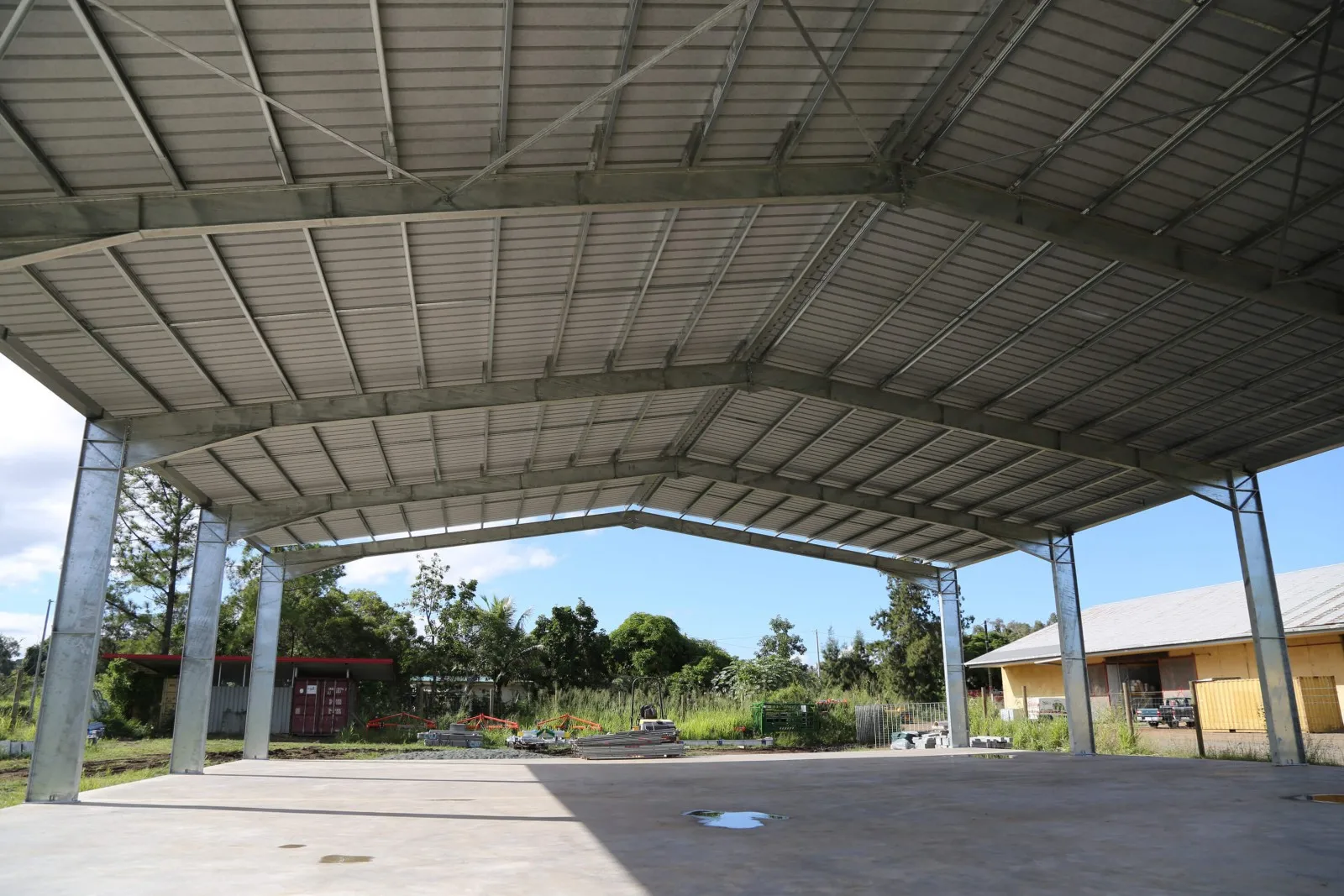

China Made Industrial Shed Designs Light Frame Steel Structure Prefabricated Storage Shed
Company Information
Company Information
We have been in this line more 10years. With well professional trained workers,professional architects and engineers,better quality control and experienced internationaltrade service team,more than 40 countries have our products.
Our factory is very near to Qingdao airport about 25-30 minutes by car.
1.Description:
steel structure building is a new type of building structure system,which is formed by the main steel framework linking up H section,Z section and U section steel components,roof an walls using a variety of panels and other components such as windows, doors,cranes,etc.
steel structure building is widely used in warehouses,workshops,large factories, etc.
2 Characteristics:
1.Wide span: single span or multiple spans,the max span clear distance is 36m, without middle columns.
2.Low cost: unit price range from USD15 to USD50/square meter FOB according to customer's request.
3.Fast construction and easy in installation
4.Long term service life:more than 20 years.
5.Other characteristics:environmental protection, stable structure,earthquake resistance,water proofing,and energy saving.
3 Main parts of the steel structure building:
4 Specifications for wall and roof panel
EPS Sandwich panel | |
| EPS sandwich panel(50mm,75mm,100mm) | |
| Width of panels | 950mm/1150mm |
| Lengths of panels | customized |
| Thickness of color steel plate | 0.3-0.5mm |
| Specific gravities | 8-16Kg/ |
| Resistances of heat-transfer process | 0.035-0.05w/m.k |
| Sound deadening | |
| Limits of fire resistance | None |
| Rock wool sandwich panel | |
| Rockwool sandwich panel(50mm,75mm,100mm) | |
| Width of panels | 950mm/1150mm |
| Lengths of panels | customized |
| Thickness of color steel plate | 0.3-0.5mm |
| Specific gravities | 10.2-17.7Kg/ |
| Resistances of heat-transfer process | ≤0.044w/m.k |
| Sound deadening | 21.5db |
| Limits of fire resistance | Grade A incombustible |
| PU sandwich panel | |
| PU sandwich panel (50mm,75mm,100mm) | |
| Width of panels | 950mm/1150mm |
| Lengths of panels | customized |
| Thickness of color steel plate | 0.3-0.5mm |
| density | ≥30Kg/m3 |
| Water absorption for 24 hours | ≤1 |
| thermal conductivity | ≤0.023w/m·k |
| compressive strength | ≥200kpa |
| fire proof rate | B1 |
(5)DFX company finished steel structure projects :
Some main oversea projects we undertook in the last couple years:
Industrial Warehouse(13000M2) Argentina
Warehouse(14000M2)----Republic of Uzbekistan
Workshop(12000M2)----Canada
Warehouse(3600M2)---Romonia
Vegetable Market(2500M2)----Mauritius
Pigshed(3500M2)---USA
Chicken shed(2800M2) Austrilia
Aircraft Hangar(1300M2)------Austrilia
Warehouse(900M2)----Mongolia
Prefabricated house(70M2)----800sets---Angola
Container house(20')-----60 sets SouthAfrica
We can provide the quotation , if you confirm the information as bellow:
*Wind speed(KM/H)
*Snow load (KG/M2)
*Rain load (KG/M2)
*Earthquake load if have
*Demands for doors and windows
*Crane (if have) ,Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!
Workshop View and production line :
Quality Control
Goods Packing photos:
China made industrial shed designs light frame steel structure prefabricated temporary shed, please contact
