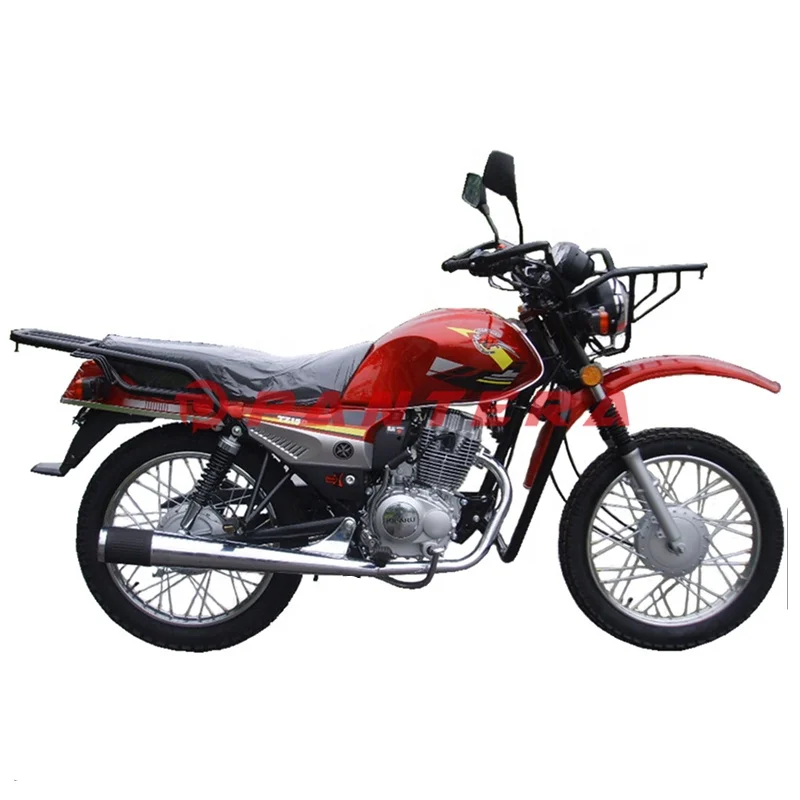

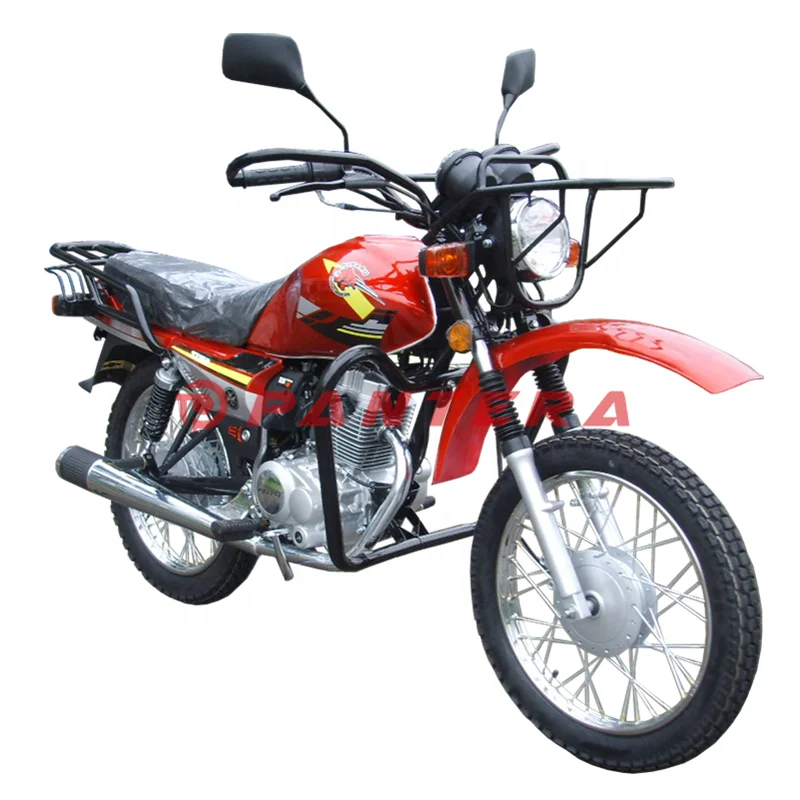

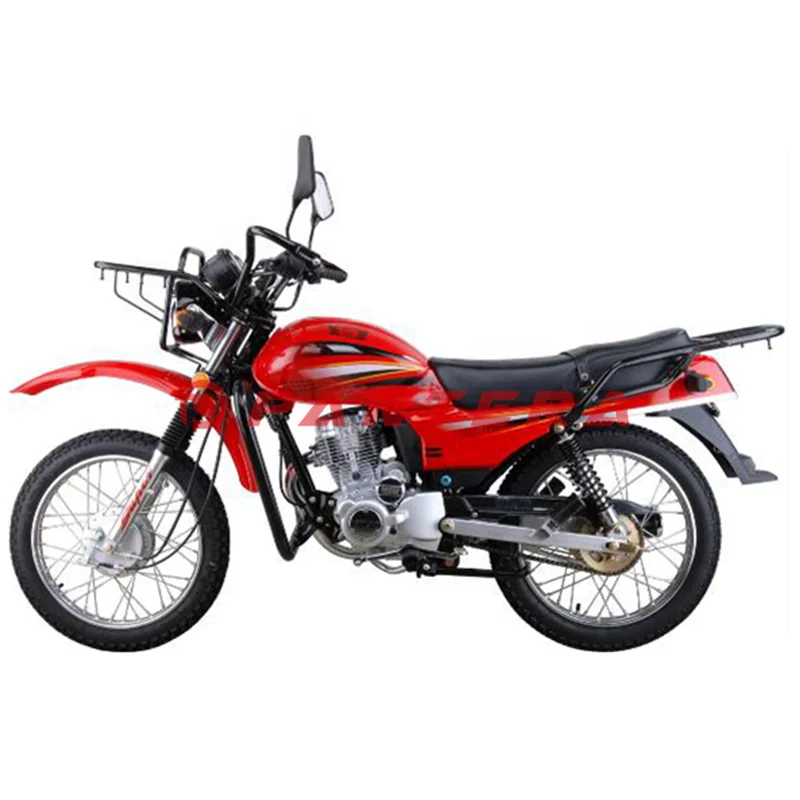

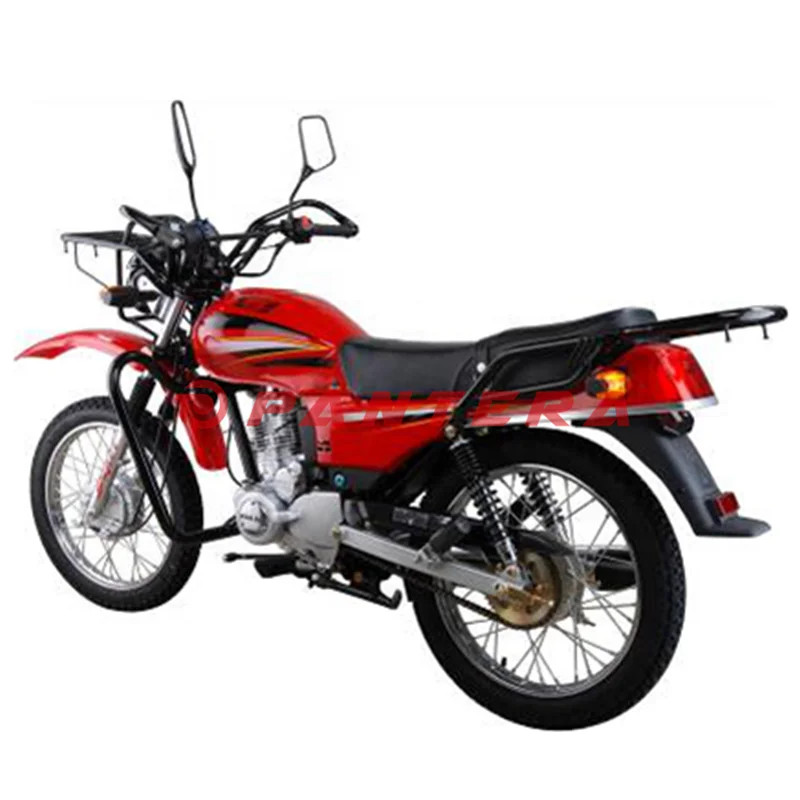

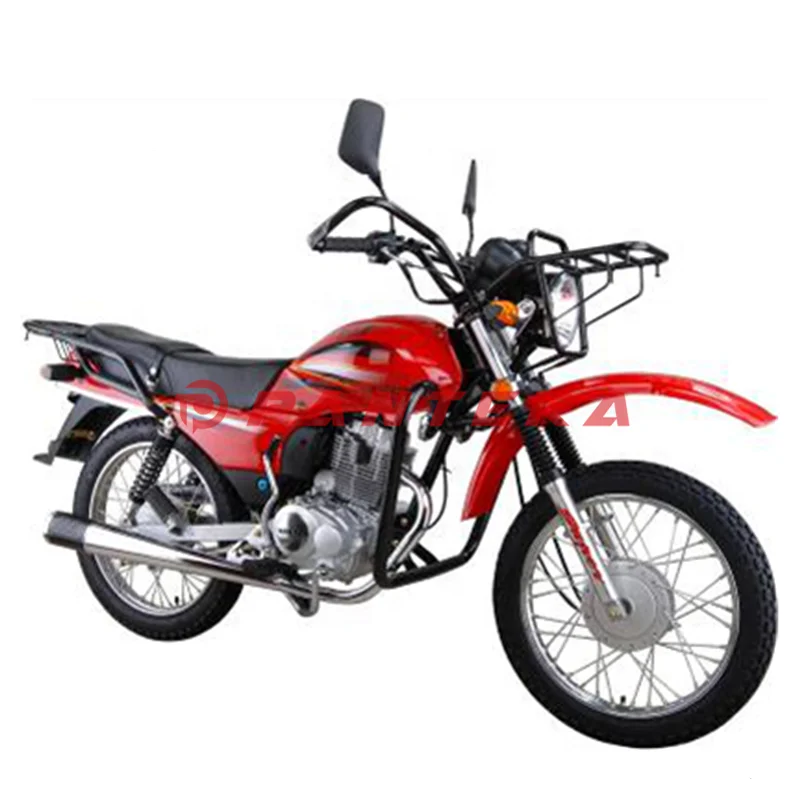

New Condition Wuyang Off Road Type Cheap 150cc Motorcycle
- Category: >>>
- Supplier: Chongqing Pantera Group
Share on (60179170672):
Product Overview
Description
New Condition Wuyang Off Road Type Cheap 150cc Motorcycle
Product Description
Technical Parameter:
| ENGINE | |
| Engine Type: | Single cylinder,wind-cooled,Four-stroke |
| Displacement (ml): | 193 |
| Bore X Stroke (mm): | 63 x 62 |
| Compression Ratio: | 9.0:1 |
| Max. Power (kw/r/min) | 11/7500 |
| Max. Torque (N.m/r/min): | 14/6000 |
| Max. Speed (Km/h): | 95 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch, Manual |
| Ignition: | CDI |
| Starting System: | Electric/Kick |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front Brake: | Disk |
| Rear Brake: | Drum or Disk |
| Front Tire: | 80/100-21 |
| Rear Tire: | 110/100-18 |
| Battery: | 12V6.5Ah |
| DIMENSIONS | |
| L X W X H (mm): | 2060x830x1350 |
| Seat Height (mm): | 870 |
| Wheelbase (mm): | 1355 |
| Min. Ground Clearance (mm): | 205 |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 1 Person |
| Dry. Weigth (kg): | 130 |
| Engine Oil (L): | 1.1 |
| Fuel Tank Capacity (L): | 7 |

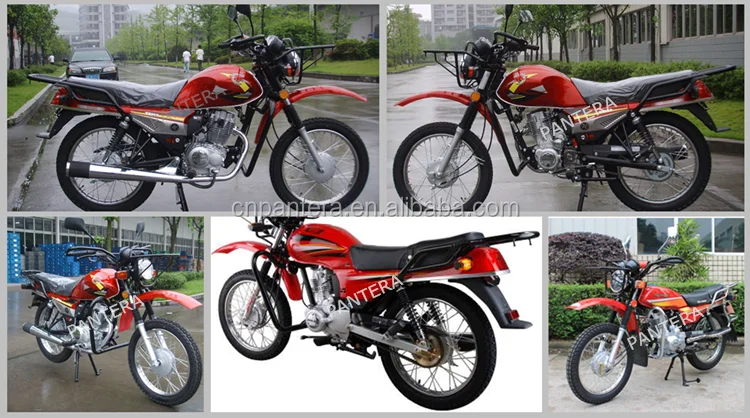

Detailed Information
Optional:
1. Wheel type: spoke wheel or alloy wheel
2. Front brake: drum brake or disc brake
3. Remote control
We can offer all the colors which you like
Warranty:
| 1.we offer engine 6000 kms and one year warranty on the basis of normal riding. | |
| 2.we offer 1% easy broken spare parts freely. | |
| easy broken spare parts list: | |
| No. | spare parts name |
| 1 | carburetor |
| 2 | electric parts |
| 3 | headlight assy |
| 4 | meter assy |
| 5 | L. front turning light |
| 6 | R. front truning litht |
| 7 | L. rear turning light |
| 8 | R. raer turning light |
| 9 | tail light assy |
| 10 | front and rear inner tube |
| 11 | rearview mirror |
| 12 | pasoes |
| 13 | chain |
| 14 | handle switch |
| 15 | handle bar |
| 16 | cable |
| 17 | battery |
| 18 | seat |
| 19 | rear shock |
| 20 | footrest |
| 21 | starting arm |
| 22 | gear pedal |
| 23 | muffler |
| Note: the above spare parts packaged separately, carton packaging, standard marks. | |

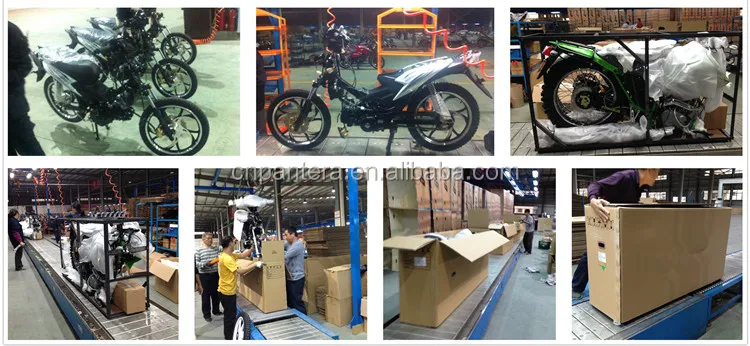

Packaging & Shipping
Company Information
1. We are professional motorcycles motorcycle parts supplier in china .We have done motorcycle business more than 20 years.
2. All the motorcycles are high quality, best price you can find in China.
3. No matter this is a small order or a big one, we can insure send it to you in time.Moreover you can be our sole agent at your end, and get more commission when order amount is big.
4. We have our own brand: Pantera. You can use ours, but we can also make your Logo. We are a kind of professional team. We have matured quality control system.
