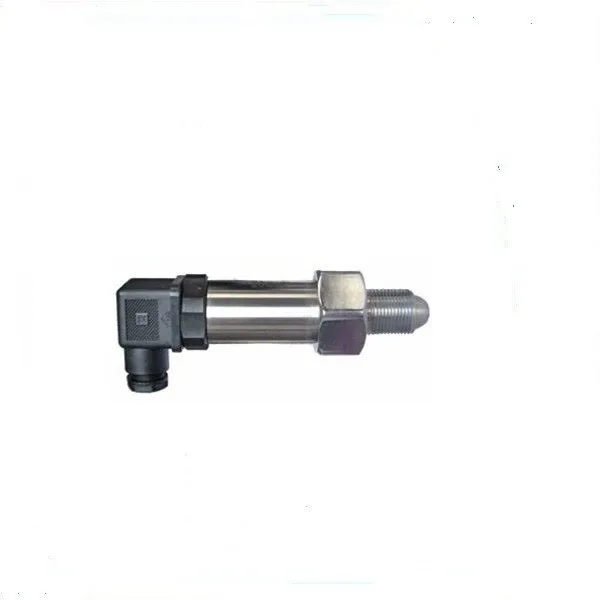

QP 81A (0~600 Mpa)Liquid Pressure Sensor

Product Overview

Description

 QP-81A- (0~600 Mpa) Liquid Pressure Sensor



Range: 0~1.6......600 MPa



Features:



High accuracy, good reliability, suitable for high pressure.

Hermetically-sealed construction, it' can work outside.

Adopting high precision components, it's will to work in the bad environment.

Pressure interface has flat diaphragm interface which can be chosen.

Easy to dismantle, easy to adjustment the zero and full degrees.

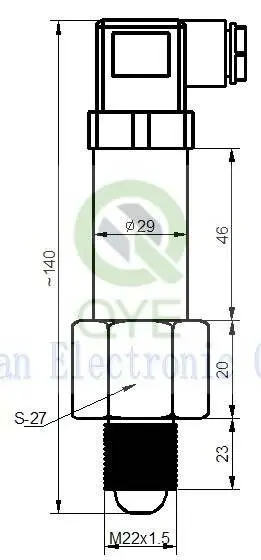

Dimensions: (unit: mm)







Technical Specifications:





Measuring media	Gases or liquids which are compatible to nichrome
Measuring range	Mpa	0~1.6......600
Pressure type	Gauge(G)
Signal output	transmitter, mA (2 wires)	4~20
	transmitter, Vdc (3 wires)	0~5, 1~5
Static accuracy	%FS	0.5, 0.25(selectable)
Power supply	Vdc	12~36
Compensated temp.	ºC	0~+70
Storage temp.	ºC	-40~+120
Operating temp.	ºC	-20~+80
TCZ	%FS/10ºC	≤±0.3
TCS	%FS/10ºC	≤±0.3



Insulation resistance	MΩ	>500 @ 100Vdc
Electrical connection	DIN43650,aviation connector,directly lead(selectable)
Material	stainless steel
Pressure connection	M20x1.5 , M22x1.5 ,Special requirements can be formulated  according to the customer request
Environment protection	IP	65
Safe overload	%FS	120
Ultimate overload	%FS	150

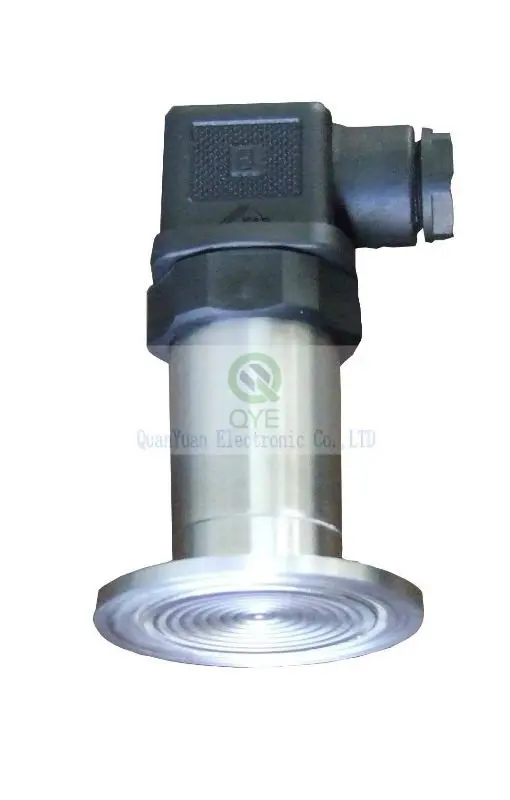

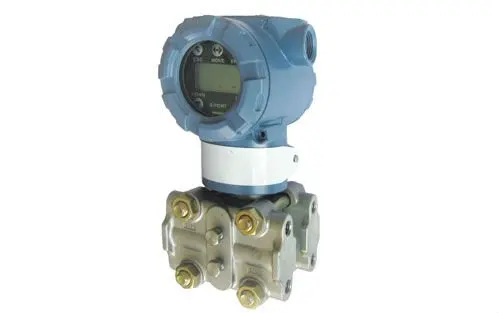

 other similar products:
