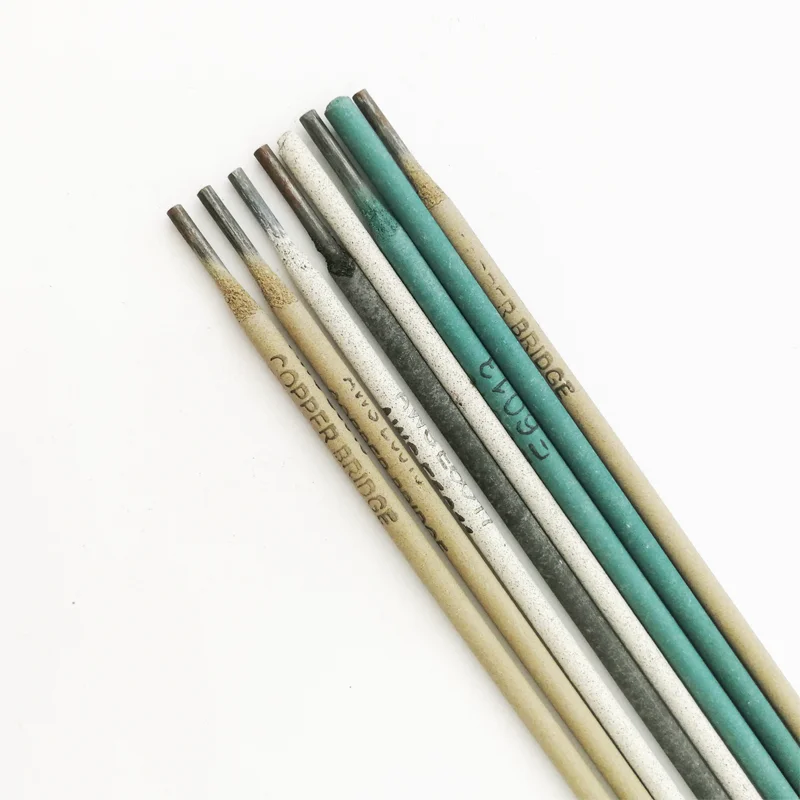

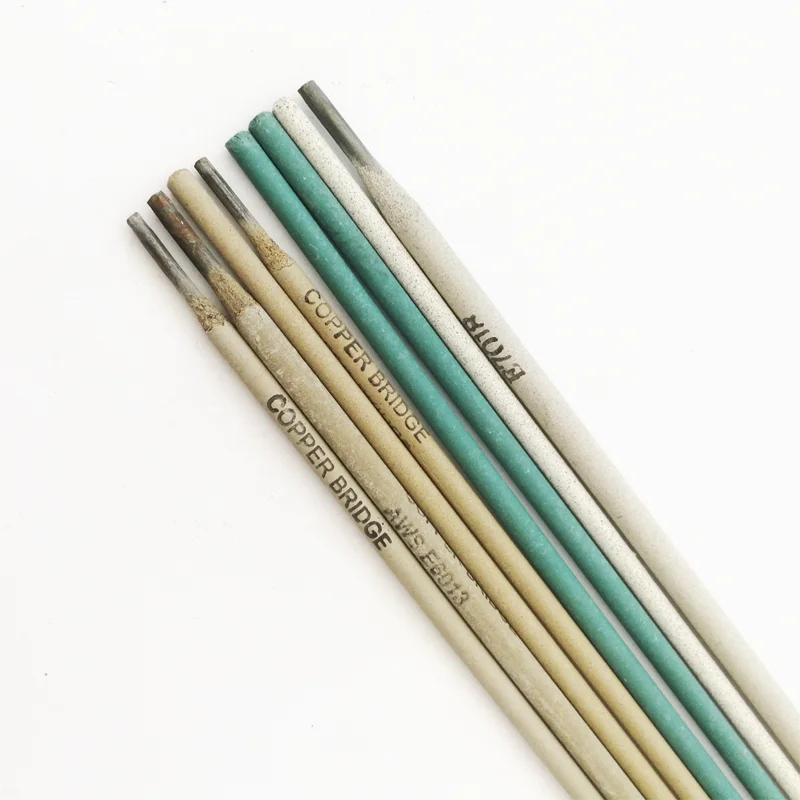

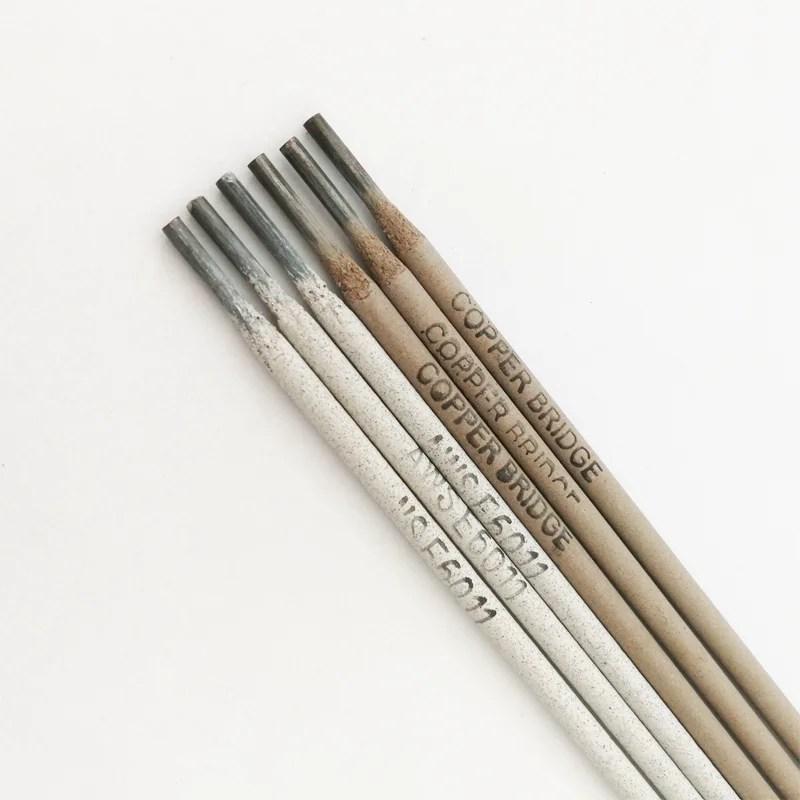

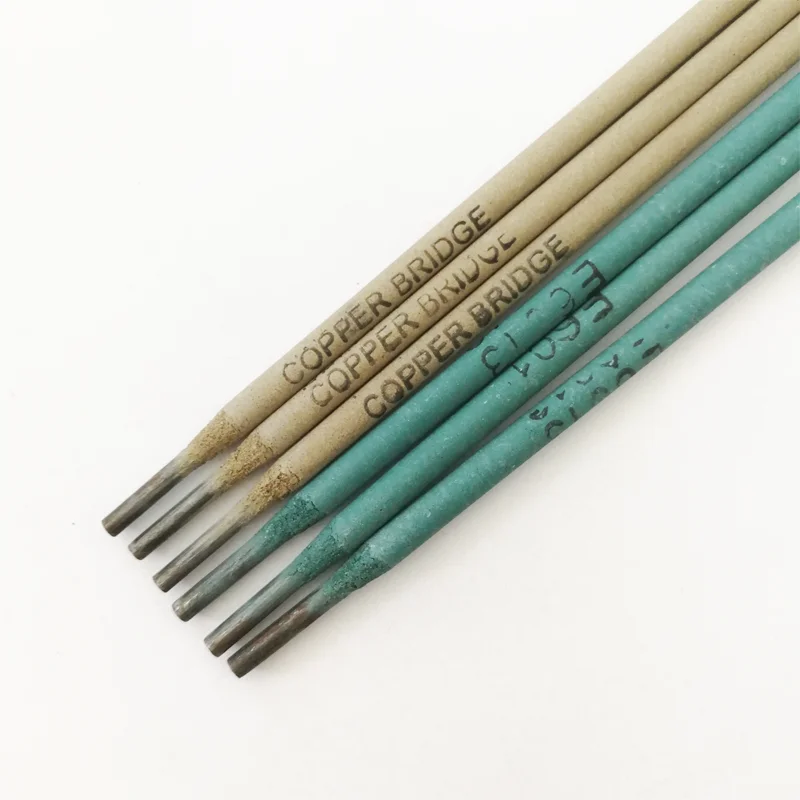

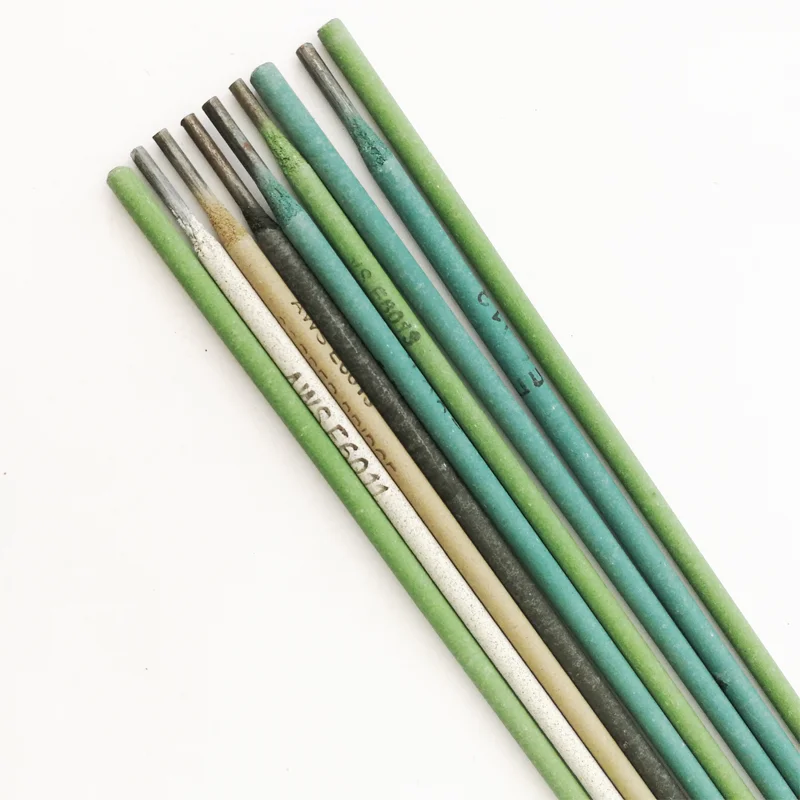

china G12 G10 G8 easy arc 2.6mm carbon steel welding electrode AWS E6013 E7018 E7016
- Category: >>>
- Supplier: Dingzhou Jinlong Metal Production Co. Ltd. [Hebei China]Dingzhou
Share on (60179277261):
Product Overview
Description
china G12 G10 G8 easy arc 2.6mm carbon steel welding electrode AWS E6013 E7018 E7016
FEATURES:
AWS E6013 arc welding electrodes
is carbon steel welding electrode covered with a high titania potassium type coating. Both AC and DC can be applied, and it is applicable for all-position welding, including vertical-down welding.
It shows a very good welding performance with small spatters, easy restrike arc,very good weld shape and slag easy to remove .
APPLICATIONS:
AWS E6013 arc welding electrodes
suitable for welding low carbon steel structures and low carbon galvanized plate especially applicable for vertical-down welding and intermittent welding
Pls Note, this electrode must be kept dry. If it gets wet, it must be dried in a rod oven before use.
PACKAGE:
AWS E6013 arc welding electrodes
Size: 2.5MM X 300MM
(Packing :2.5kg/inner boxes 8 boxes/cartons=20kg)
Size: 3.2MM X 350MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
Size: 4.0MM X 400MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
Chemical Composition of Wire(%):
| C | Mn | Si | S | P |
| ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal:
| Test Item | σb(MPa) | σc(MPa) | δs(%) |
| Guarantee Value | ≥420 | ≥330 | ≥17 |
Recommended Welding Current:
| Electrode Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
| Current Range(A) | 40-70 | 50-80 | 80-120 | 150-190 | 180-240 |
SIZE(MM) | WIGHT | INNER PACKING(MM) | OUTER PACKING(MM) |
2.5×300 | 2.5kg/box 8boxes/carton=20kg | 310*80*60 | 320*170*120 |
2.5×350 | 5kg/box 4boxes/carton=20kg | 360*80*60 | 360*170*120 |
3.2×350 | 5kg/box 4boxes/carton=20kg | 360*80*60 | 360*170*120 |
4.0×400 | 5kg/box 4boxes/carton=20kg | 410*80*60 | 420*170*120 |
5.0×400 | 5kg/box 4boxes/carton=20kg | 410*80*60 | 420*170*120 |
inner boxes is a shrink-wrapped cardboard box ,
1MT/Pallet , or 2.5MT/Pallet
one 20' feet container can load 25-27MTS ,
1250- 1350 CARTONS , one MTS is about 0.6 CBM .
what is more, our own brand is Copper Bridge,
We can do OEM package according to the customers’ request.
As a professional welding electrode factory in China, our main products are series of welding electrodes and welding wires. Additionally, we can offer our customers some metal products, such as pvc coated wire, celling system products,nails and pipes.
We have oneour own brands“Copper Bridge”.
"QUALITY FIRST, CUSTOMERS FIRST" is our service tenet
"HONESTY,PRAGMATIC,INNOVATION" is our firmly seeking business ideas.
Give us a chance we will offer you a surprise! ^^^^^
