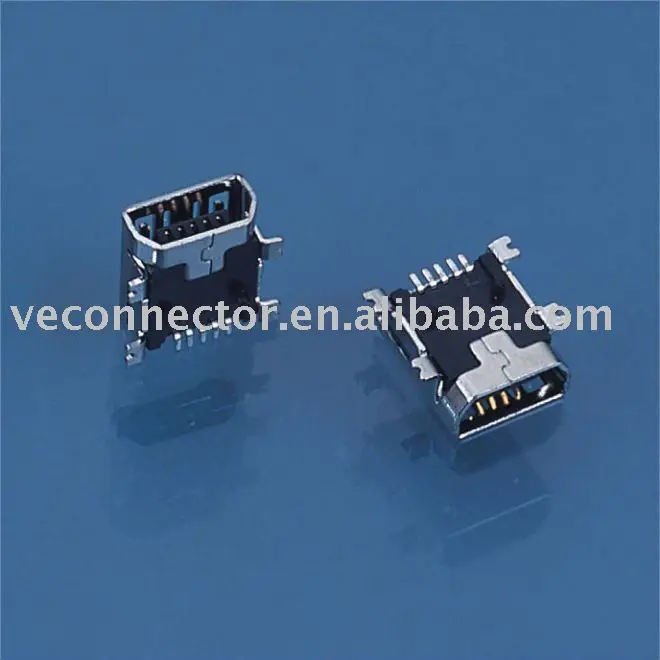

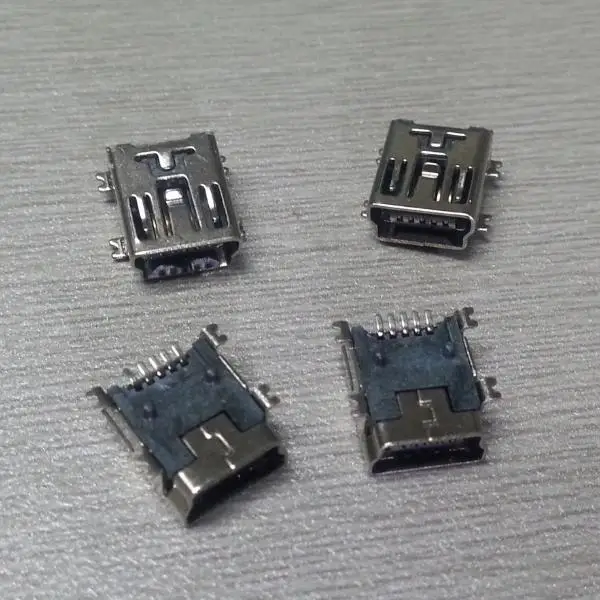

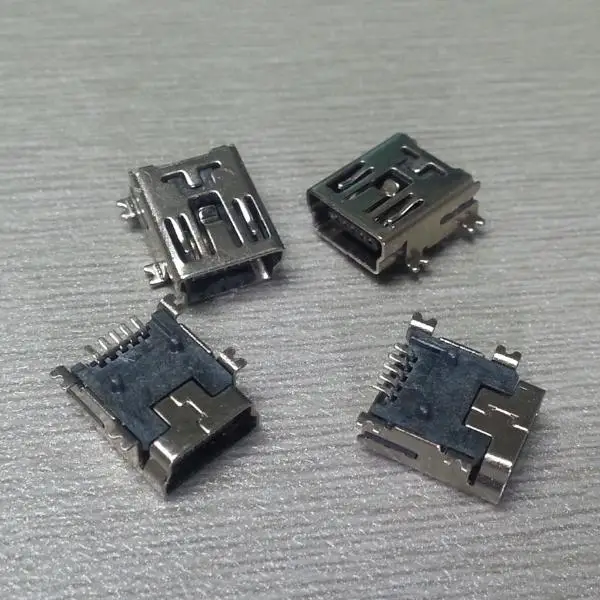

5PIN B type female SMD mini USB connector

Product Overview

Description

Mini USB Key Specifications/Special Features:



MATERIALS

Contact: Brass/Phosphor Bronze

Housing: High Temperature thermoplastics, Insulator: LCP, UL 94V-0 Rated, Black/White/Nature

Shell: Brass/Phosphor Bronze



PLATING

Contact: gold plated  (gold flash: FU"/3U"/6U''/15U''/30U'')

Shell: Gold/Nickel/Tin

Materials and plating can be varied according to customer definition



ELECTRICAL CHARACTERISTICS

• Rated current: 1A


• Insulation resistance: 100 Mohms min (at 500VDC)


• Contact resistance: 50 mohms max


• Dielectric withstanding voltage: 100VAC (for 1 minute)


• Operating temperature: -25 - 85 deg. C


• Insulator material: LCP (UL94V-0)


• Contact material: phosphor bronze


• Durability: 5000 cycles min
