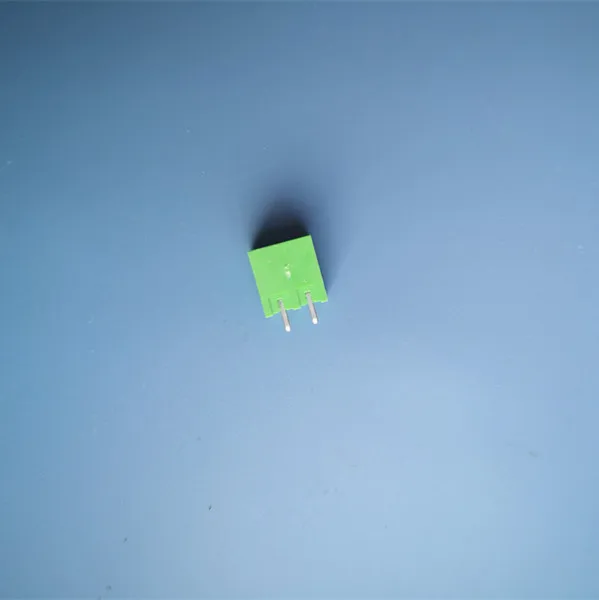

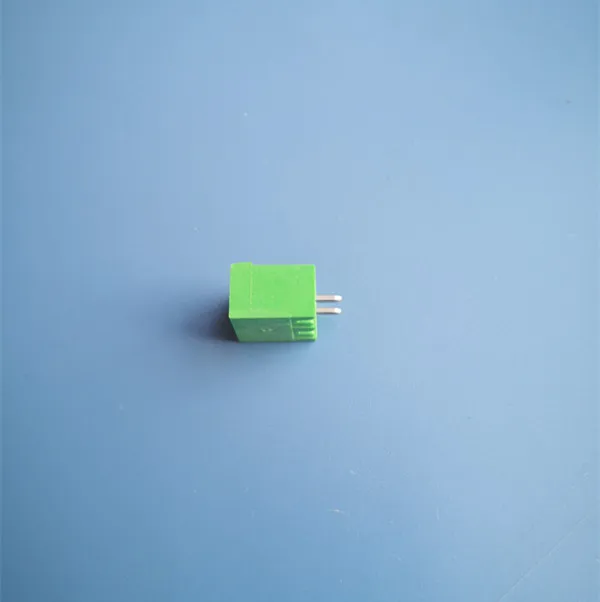

3.5mm or 3.81mm pitch straight dip type terminal blocks

Product Overview

Description



Plug-in terminal blocks, provide the wire size from 0.08mm² to 16mm². Available with different pitches from 2.5mm to 10.16mm. Choosing insert direction, contact direction, plug-in direction according to requests. The product is designed in accordance with IEC60998, IEC61984, 1059, 486E, CSA C22.2 No.158 standards.

APPROVAL
Electrical
Standard		IEC
Rated voltage	300V	250V
Rated current	10A	15A
Wire range	22-16AWG	0.2-1.5mm2
Withstanding voltage	AC2000V/1Min
Mechanical
Ambient temperature	-40°C~+105°C
Strip length	10mm
Dimensions
Pitch	3.81mm(.150")
Poles	1P-XXP
Material
Housing	PA66,94V-0
Pin header	Brass,Tin plated
Wire guard	Stainless steel
