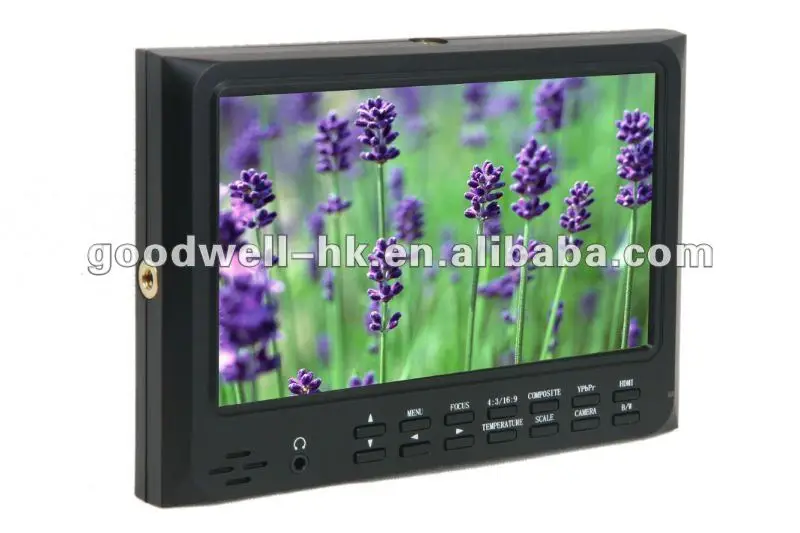

1024x 600 7 Inch Full HD DSLR LCD Monitor for Camera with HDMI Input and Output (Not for India Market)

Product Overview

Description



1024x 600 7 Inch Full HD DSLR LCD Monitor for Camera







Advanced Features :



*Peaking Focus Assist(Red-outline peaking focus based on Mono background)

*Camera 5D II Mode

*Check Field:(Red,Green,Blue,Mono)

*Full Screen Display in mode of Monitoring & Recording

*Screen Marker(80%,85%,90%,93%,96%,2.35:1)

*Centre Marker

*4:3&16:9 image adjustable

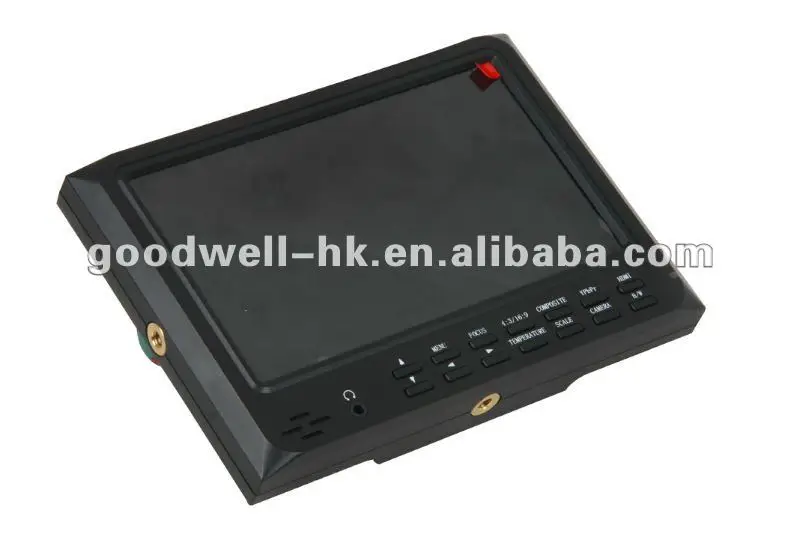

*Front Earphone Jack

*Image Freeze&Flip(U/D,L/R)

*Pixel-to-Pixel Mode



Specifications :



Model Number	7D/O
Screen Size	7 inch with digital panel ,LED backlight
Resolution	1024x 600( up to 1920x 1440)
Horizontal Frequency	30-60KHz
Vertical Frequency	60-75Hz
Dot Pitch	0.05(W) x 0.15 (H)mm
Aspect Ratio	16:9
Brightness	250cd/m²
Contrast Ratio	700:1
Response Time	10ms
Viewing Angle	75°/75°(L/R) 70°/75°(U/D)

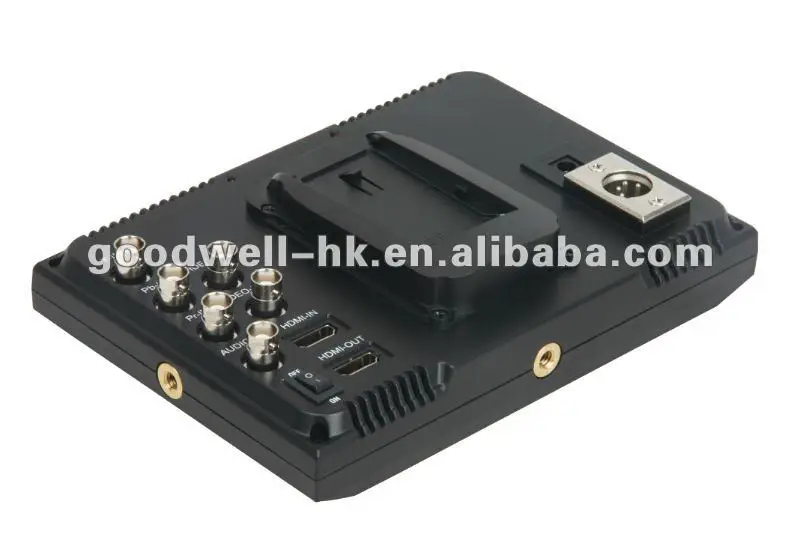

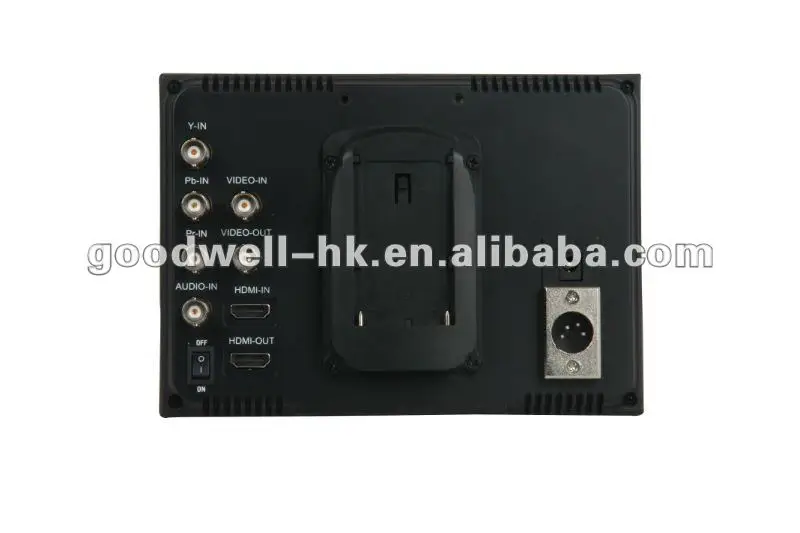

Input Signal	HDMI,YPbPr,Video 1,Video 2, Audio
Output Signal	Video ,HDMI
HDMI Support Mode	480i / 576i / 480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29/25/24/23.98) 1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps)
Standby Current	≤50mA
Unit Size (mm)	188.5(L)x134(W) x42.5(H)

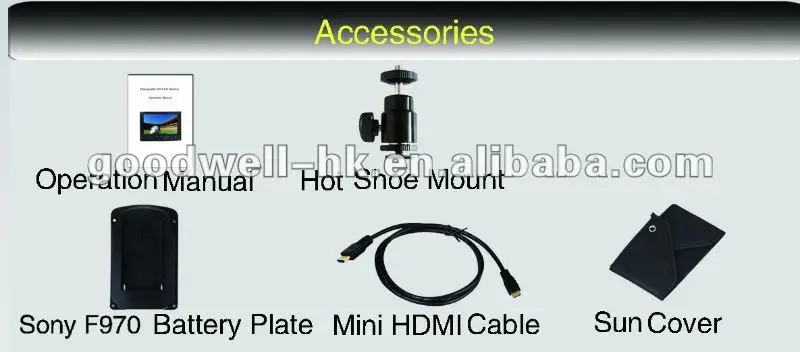

 Accessories:

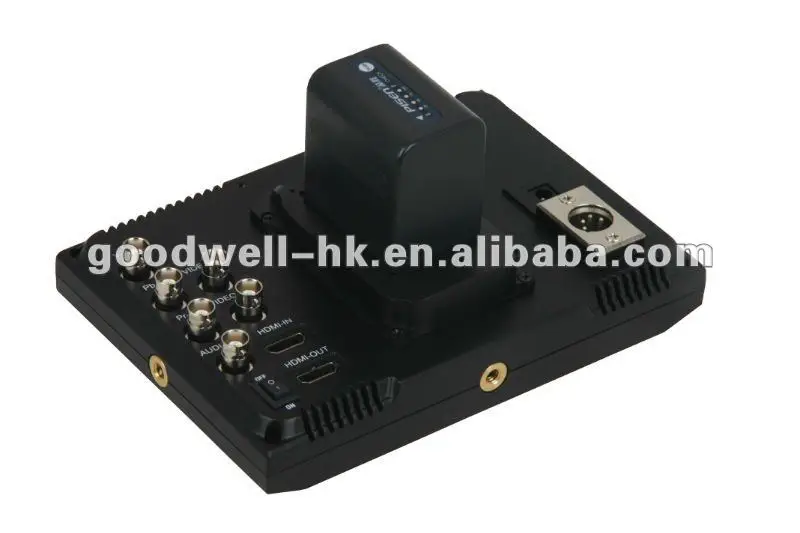

Sony F970 Battery Plate x 1

Mini HDMI Cable x 1

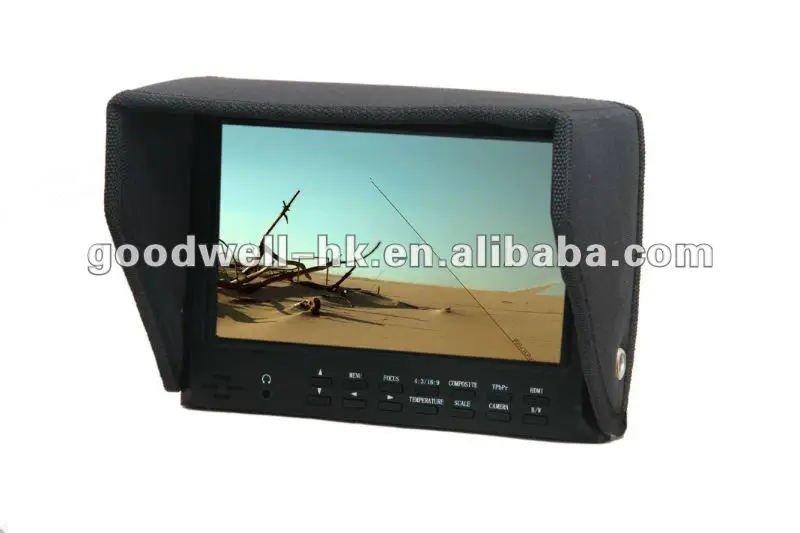

Sun Cover x 1

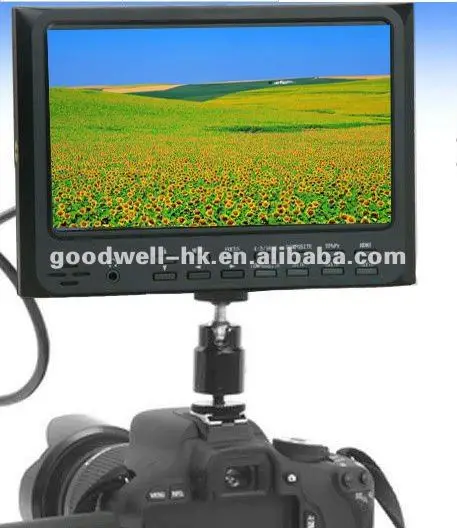

Hot shoe Mount x 1

Operation manual x 1

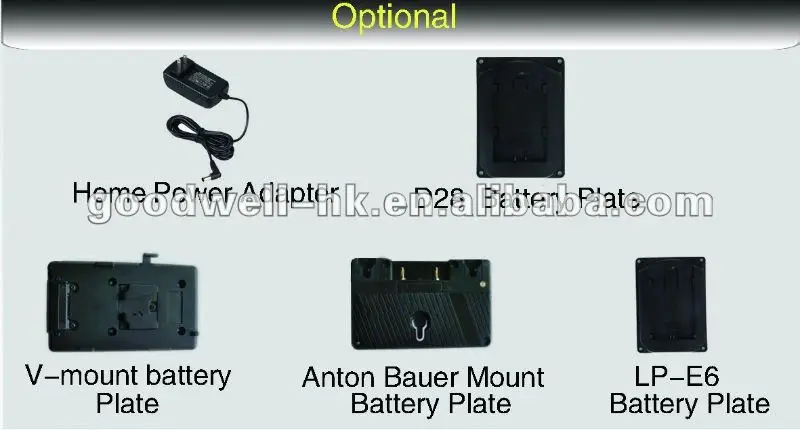

Home Power  Adaptor x 1(optional)

Battery Plate:  D28, V-mount ,Anton Bauer Mount ,LP-E6 Battery Plate(optional)
