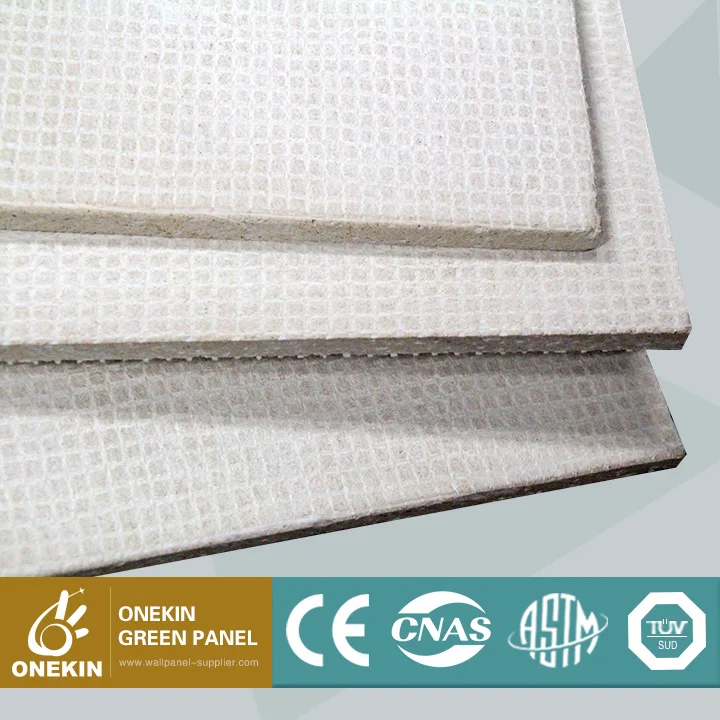

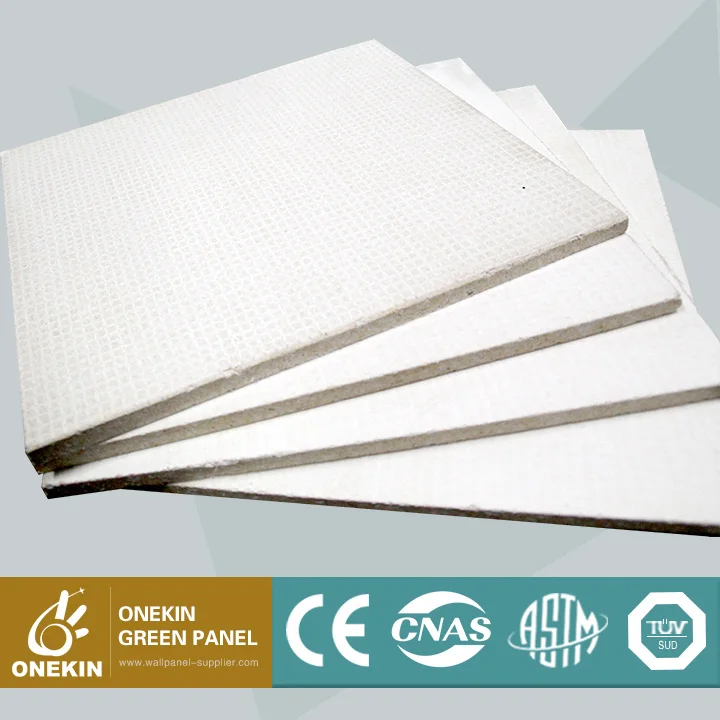

Light Steel Villas Fiberglass MgO Sheet Board for Villas

It is a new type non-flammable material made of lightweight materials. It's made from magnesium oxide, fly ash , plant fiber etc. the highly purified MgO is used as the main fireproof material, fly ash and plant fiber as filling materials, the high quality MgC12 as the main cementing material to solidify other materials.

Product Description

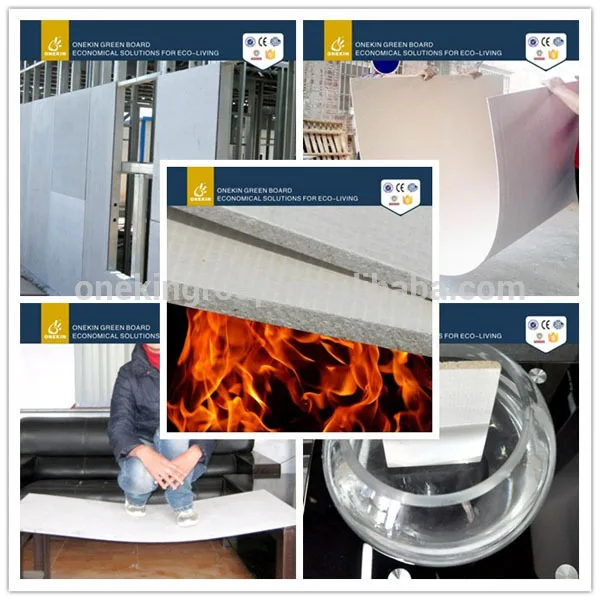

1,Superior Fireproof Performance
   Non-combustible panel, not combusted at 800℃ and no flames at 1200℃
2,Waterproof
   Stable physical performances will not be effected even in cold-dry or humid weather conditions.
3,Environmental
   Asbestos free, No radioactive elements like formaldehyde, benzene etc and no irritating harmful odor
4,Lightweight and anti-seismic
   Lightweight characteristic lowers the interior wall weight up to 60% of the building, increasing the usable areas
5,Sound and heat insulation
   Outstanding sound-insulating and heat-insulating (energy-saving) performances provide a cozy living atmosphere.

Details size:

Raw Mterials	MgO, MgSo4, fiberglass mesh, non-woven cloth
Standard Size(mm)	Density(t/m³)	Weight(kgs)	Loading pieces(20GP)
2440×1220×3	1.0-1.2	11	1360pcs
2440×1220×4	1.0-1.2	13	1240pcs
2440×1220×5	1.0-1.2	15	1008pcs
2440×1220×6	1.0-1.2	18	850pcs
2440×1220×8	1.0-1.2	24	640pcs
2440×1220×9	1.0-1.2	26	572pcs
2440×1220×10	1.0-1.2	28	512pcs
2440×1220×12	1.0-1.2	34	420pcs

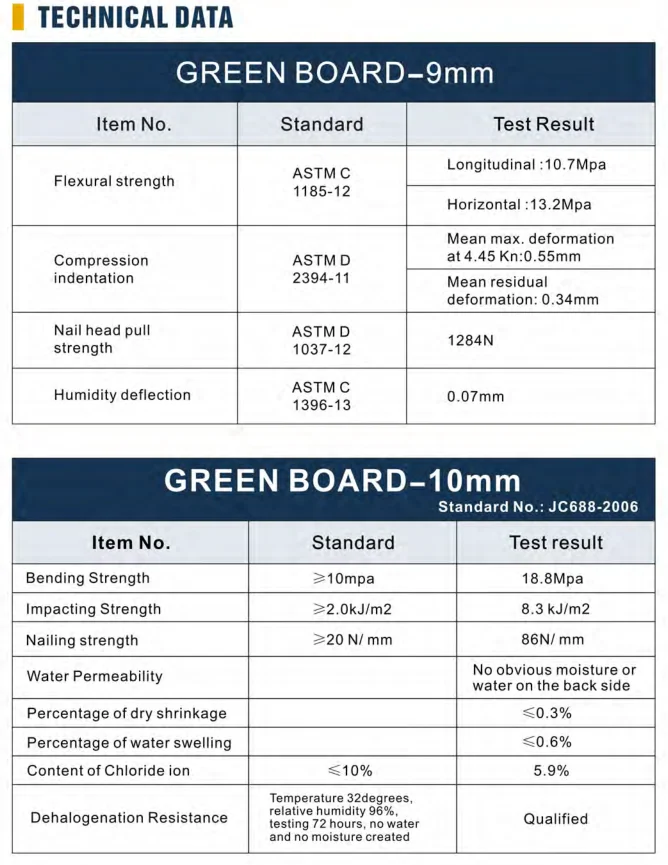

Physical Properties:

Item	Size	Standard Documents	Standard value	Test Value
Fireproof	2440×1220×8mm	GB8624-2006		A1
Density	2440×1220×8mm	Jc688-2006	1.0 t/m³<ρ<1.2 t/m³	1.17t/m³
Flexural Strength	2440×1220×8mm	Jc688-2006	≥10MPa	11.8MPa
Impaction resistance	2440×1220×8mm	Jc688-2006	≥2.0 kJ/m²	5.9kJ/m²
Water content	2440×1220×8mm	Jc688-2006	≤8%	2.8%
Drying shrinkage	2440×1220×8mm	Jc688-2006	≤0.3%	0.3%
Wet inflation	2440×1220×8mm	Jc688-2006	≤0.6%	0.39%
Screw holding	2440×1220×8mm	Jc688-2006	≥20N/mm	76.5N/mm
Anti-halogen	2440×1220×8mm	Jc688-2006	No water drop, no damp	Pass
Chloride content	2440×1220×8mm	Jc688-2006	≤10%	7.2%
