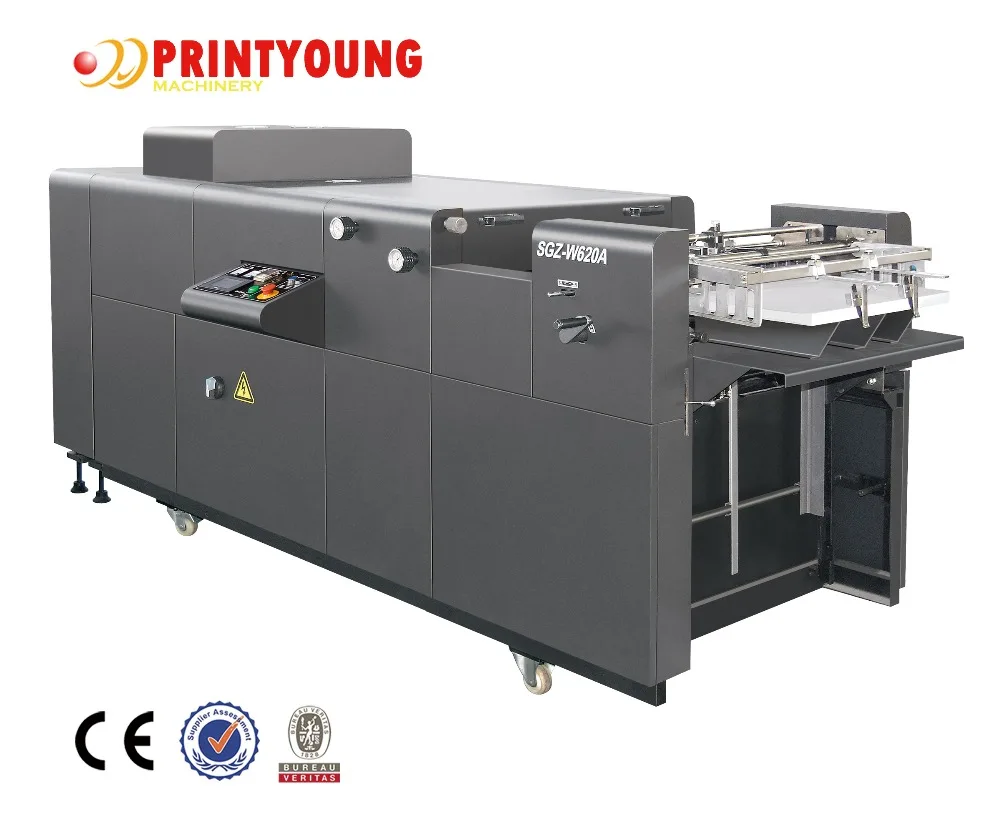

SGZ UI620W A Industrial Automatic Micro UV Coating Machine Case Paper Electric Hot Product 2019 Provided Printing Shops 1200

Product Overview

Description







Performance And Characteristics:

SGZ-UI620W-A Industrial automatic micro UV coating machine is used for coating on the surface of paper, which raises its brightness and plays a  role of damp-proof and abrasion-resistance so as to protect colors on the surface of paper.



Integrated control with PLC can provide easy operation & trouble shot during production. CE Safety requirement is considered and widely used in the machine design. Well designed inner circulation frame can prevent leakage of UV ray & exhausted air, which will satisfy the environmental requirement.



Famous international brand of components like bearing, electrical parts are used in the critical  functioning part of the machine. With its advantage of small & smart industrial design, easy moving function on wheel, accurate spot coating & perfect coating result, it is suitable for small sized printing product. And it is also much recommended to be used as a post printing equipment within a digital printing solution.



1.    Feeder

Multi-point high speed feeding with easy operation & adjustment.



2.    IR drying

Function for coating with water-based varnish. Far-IR short wave lamp equipped with double-layer heat isolation. Good at power saving.



3.    UV coating

Three rollers with reverse rotating and variable roller speed ratio can provide the best coating result for customer and customized coating layer thickness. Paper jam auto detection & stop. Air Knife for thin paper(above 80gsm) is optional.



4.    UV curing

Integrated curing box with reflector & fan cooling system inside. Stabilized temperature within the curing box. High efficiency & quality while running in high speed.



5.    Stacker

Pneumatic jogger with programmable  jogging frequency,can ensure order delivery during high speed production.



Main Technical Parameter:



Model	SGZ-UI620W-A
Max. paper size	450×620mm
Min. paper size	210×290mm
Paper weight range	80~350g/m2
Max. speed	5000p/hour
No. x UV lamp	2×5.6kw
IR lamp power	1.8kw
Dimension	2850×1200×1250mm
Total power	18kw
Total weight	1200kg
