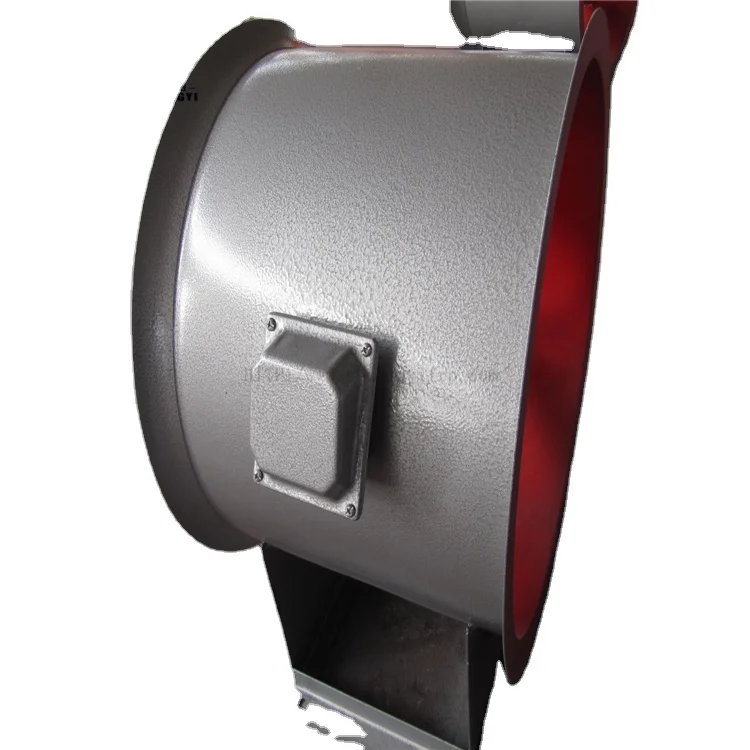

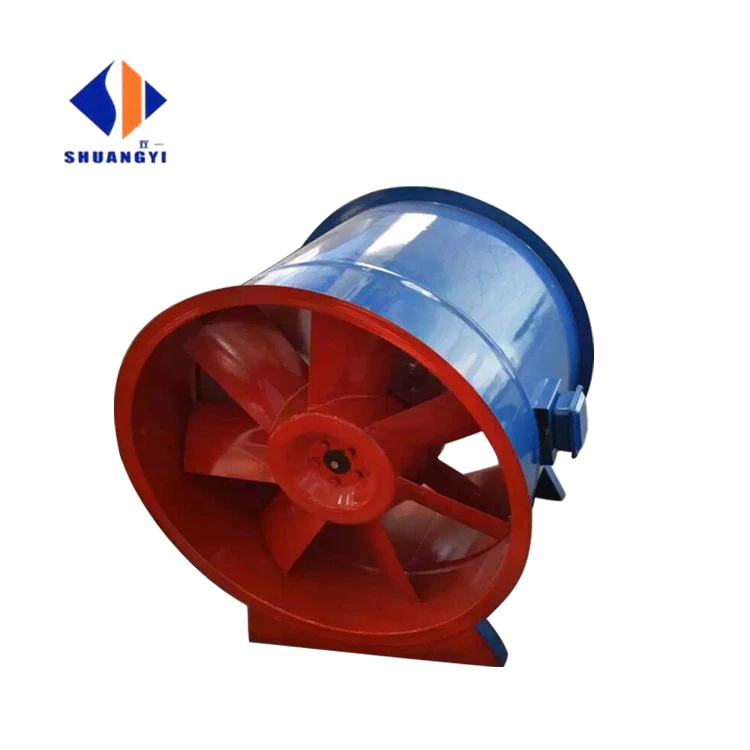

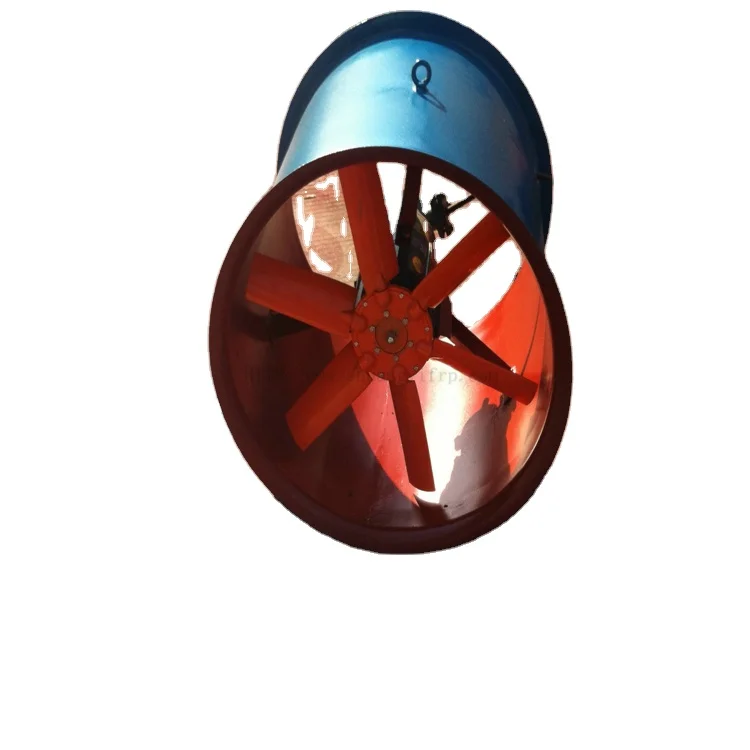

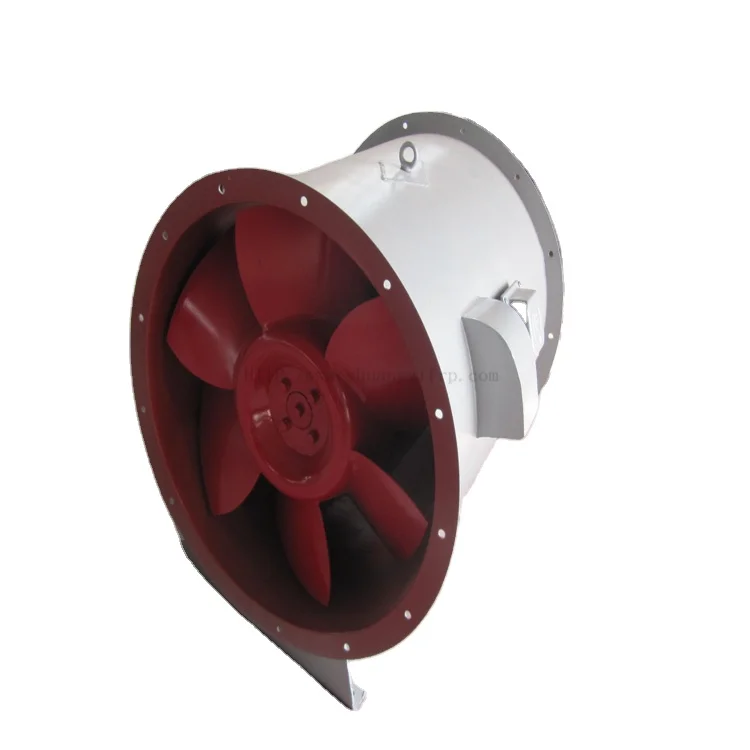

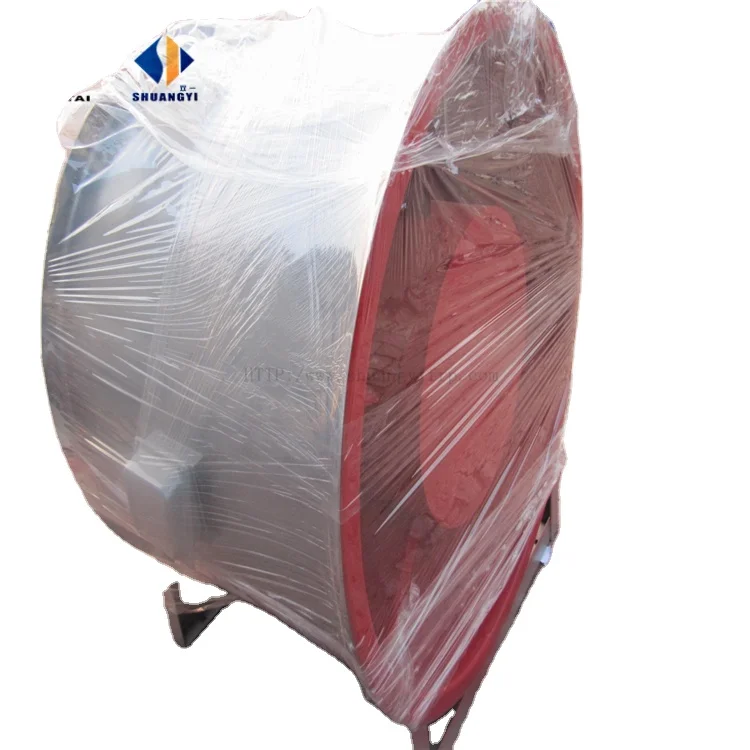

Industrial Ventilating Axial Fan with FRP

Product Overview

Description

   industrial ventilating axial fan







Specifications :



1. Simple structure, lower noise, low-pressure .



2. Difference impeller angle can be choose based your needed, 15Deg, 20 Deg , 25 Deg ,30 Deg, 35 Deg .



3.100% performance test before shipping.



4.Total 13 difference types based the impeller dimension, including including 280mm dia, 315mm dia, 355mm dia, 400mm dia, 450mm dia, 500mm dia, 560mm dia, 630mm dia, 710mm dia, 800mm dia, 900mm dia, 1000mm dia, 1120mm dia.





5.Impellers were drove directly by the power-generating.



The motor of ZHT-35 axial-flow fan  is improved, the loss of air flow is reduced. Therefore, the efficiency of the fans is 89.5% higher when the noise is much lower. We strengthen the welding of blades and impeller so that the blades can avoid breaking. TheZHT-35 series axial fan is divided into 5 kinds of blade installation angle such as 15°,20°,25°,30°, 35°.



 6) The FRP Axial fan can be apply to:



 ZHT-35  type Axial Fan is widely used in factories, warehouses, offices, residential houses to ventilate or  enhance heat dissipation. It is also series installed in longer pipe line.



The air transferred shall not be strong corrosive, not with notable dust, the temperature of the air should not exceed 60°C.



The parameter and model choose list of the FRP axial fan :



Model(No.)	Motor Power (Kw)	Adjustable Angle Blade	Rotation Speed (r/min)	Volume Flow (m3/h)	Total Pressure(Pa)
2.8	0.12~0.37	15°,20°, 25°,30°, 35°	2900	1224~2778	128~186
	0.025~0.04		1450	613~1392	32~46.6
3.15	0.18~0.55	15°,20°, 25°,30°, 35°.	2900	1944~4155	170.1~247
	0.025~0.09		1450	972~2078	42.5~61.7
3.55	0.37~1.1	15°,20°, 25°,30°, 35°.	2900	2783~5951	216.1~313.6
	0.04~0.12		1450	1394~2981	54~78.4
4	0.75~2.2	15°,20°, 25°,30°, 35°.	2900	3980~8500	274.3~398.2
	0.09~0.25		1450	1993~4261	68.6~99.5
4.5	0.12~0.37	15°,20°, 25°,30°, 35°.	1450	2838~6067	86.8~126
5	0.25~0.75	15°,20°, 25°,30°, 35°.	1450	4289~8712	112.6~164.6
	0.37		960	2839~5768	49.1~71.8
5.6	0.37~1.1	15°,20°, 25°,30°, 35°	1450	6025~12239	140.9~206
	0.37		960	3989~8103	61.8~90.3
6.3	0.75~2.2	15°,20°, 25°,30°, 35°	1450	8579~17426	178.3~260.7
	0.37~0.75		960	5680~11534	78.2~114.3
7.1	1.5~4	15°,20°, 25°,30°, 35°	1450	12280~24944	226.5~311.1
	0.75~1.1		960	8130~16514	99.3~145.2
8	3~7.5	15°,20°, 25°,30°, 35°	1450	17567~35682	287.6~420.3
	0.75~2.2		960	11630~23624	126.1~184.2
9	1.5~4	15°,20°, 25°,30°, 35°	960	16560~33937	159.5~233.2
10	2.2~7.5	15°,20°, 25°,30°, 35°	960	22716~46141	197~287.9
11.2	4~11	15°,20°, 25°,30°, 35°	960	31914~64825	247~361.1







1) Shuangyi has produce the FRP axial fan about 30 years.



2) Shuangyi has the professional moulding equipment, which can produce the quality mould FRP axial fan parts.



3) Shuangyi can produce 1000 sets of the FRP axial fan per month.



4) Each set FRP axial fan will be test before delivery.



Free Standing High Volume Small Industrial Axial Fan
