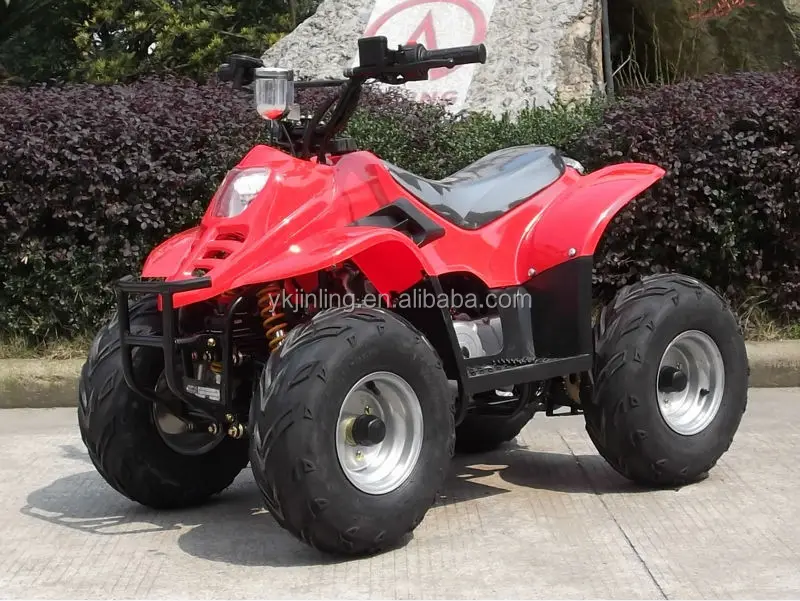

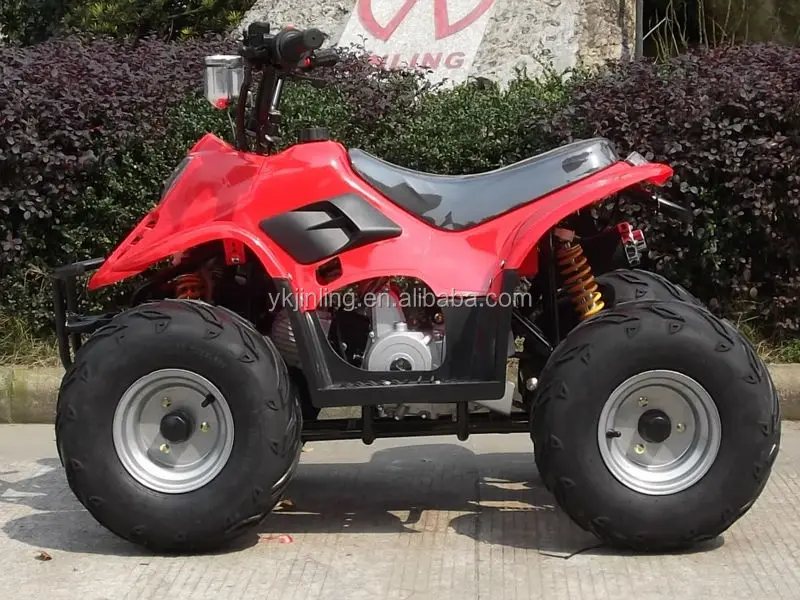

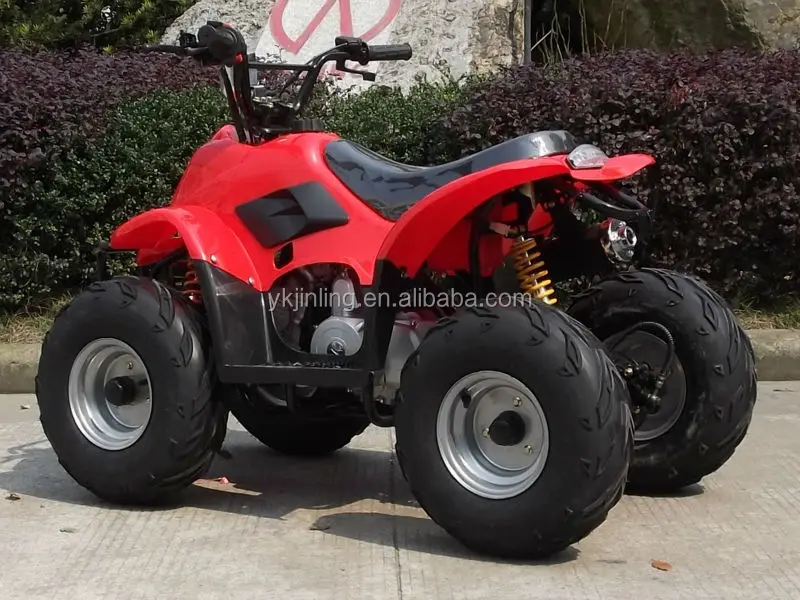

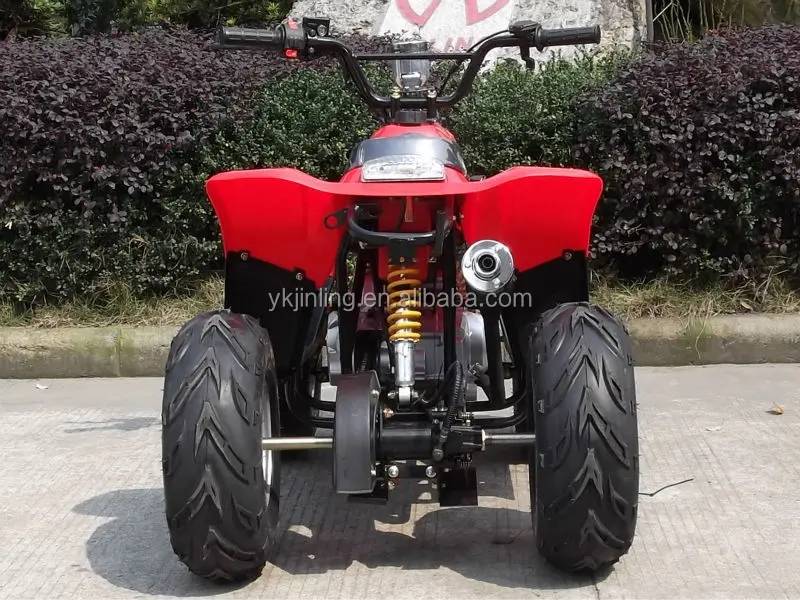

90cc kids atv for sale 4 stroke air cooled
- Category: >>>
- Supplier: Yongkang Jinling Vehicle Co. Ltd.
Share on (60180360723):
Product Overview
Description
Product Description
| IDENTIFICATION | |
| 1.Model No. | JLA-02-01-6B-90 |
| ENGINE | |
| 2.Cylinder | Single |
| 3.Cooled System | Air |
| 4.Engine Stroke | 4 Stroke |
| 5.Bore*Stroke(mm) | 47×49.5mm |
| 6.Displacement(ml) | 90cc |
| 7.Max.power(kw/rpm) | 3.3kw/7500rpm |
| 8.Max.torque(n.m/rpm) | 4.3Nm/5000rpm |
| TRANSMISSION | |
| 9.Transmission Type | Automatic,Chain |
| 10.Primary Drive(Rear Wheel) | Chain 4x2 |
| 11.Reverse | No |
| 12.Max Speed(km/h) | ≥50 |
| WHEEL | |
| 13.Front Wheel | 145/70-6 |
| 14.Rear Wheel | 145/70-6 |
| BRAKE SYSTEM | |
| 15.Front Brake | Drum |
| 16.Rear Brake | Disc |
| TECHINCAL SPECIFICATIONS | |
| 17.Product Dimensions(mm) | 1270x680x880mm |
| 18Ground Clearance(mm) | 100 |
| 19.Wheelbase(mm) | 800 |
| 20.Gross weight(kg) | 77 |
| 21.Net weight(kgs) | 70 |
| 22.Fuel Capacity(L) | 3.2 |
| SEAT | |
| 23.Seat Height(mm) | 590 |
| COLOR | |
| 24.Standard Color | Red/Yellow/Blue/Green/Black/White |
| 25.Optional Color | Green camo,Yellow camo,Snow Camo,Metallic,Carbon |
| LOADING | |
| 26.Packing Size(mm) | 1150x670x660 (Steel frame inside,carton outside) |
| 27.Quantity | 20FT:51PCS; 40FT:102PCS; 40HQ:140PCS |
