Pantera Bikes 50cc Mini Automatic Gear Motorcycles EEC Scooters for Sale
- Category: >>>
- Supplier: Chongqing Pantera Group
Share on (60180665200):
Product Overview
Description
Pantera Bikes 50cc Mini Automatic Gear Motorcycles EEC Scooters for Sale

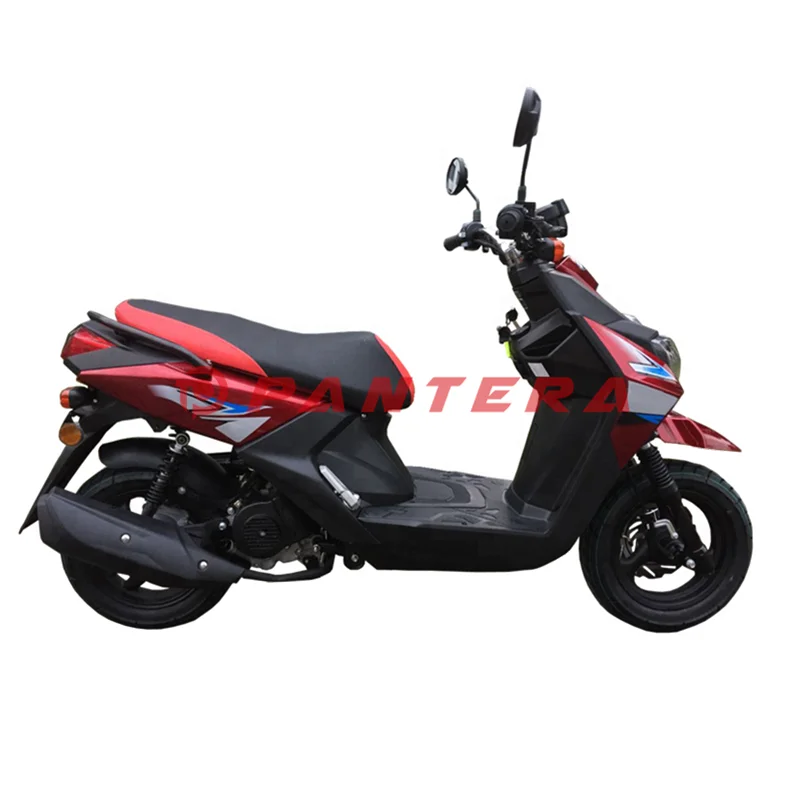

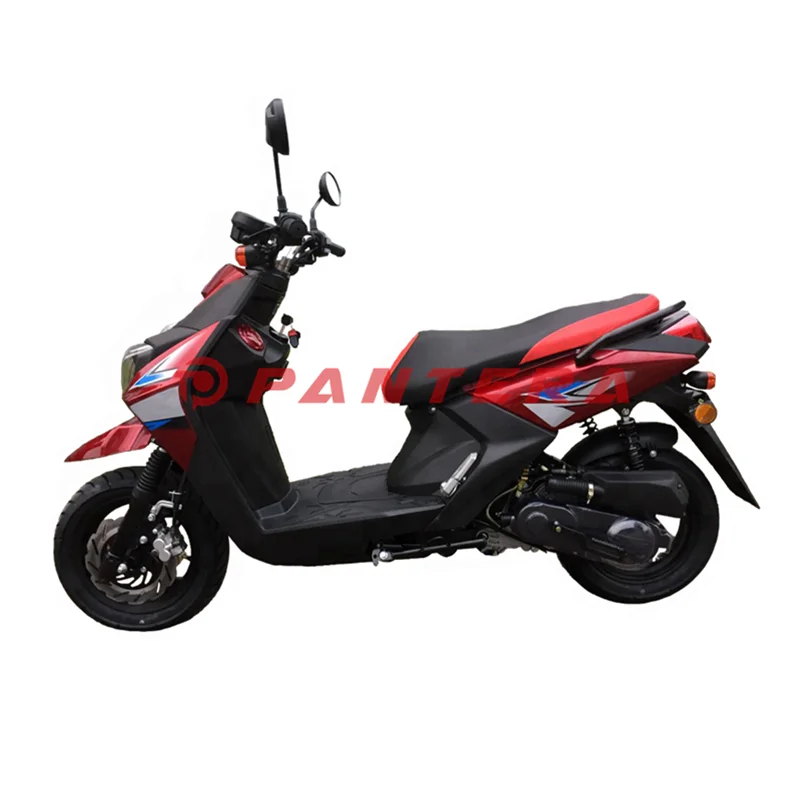

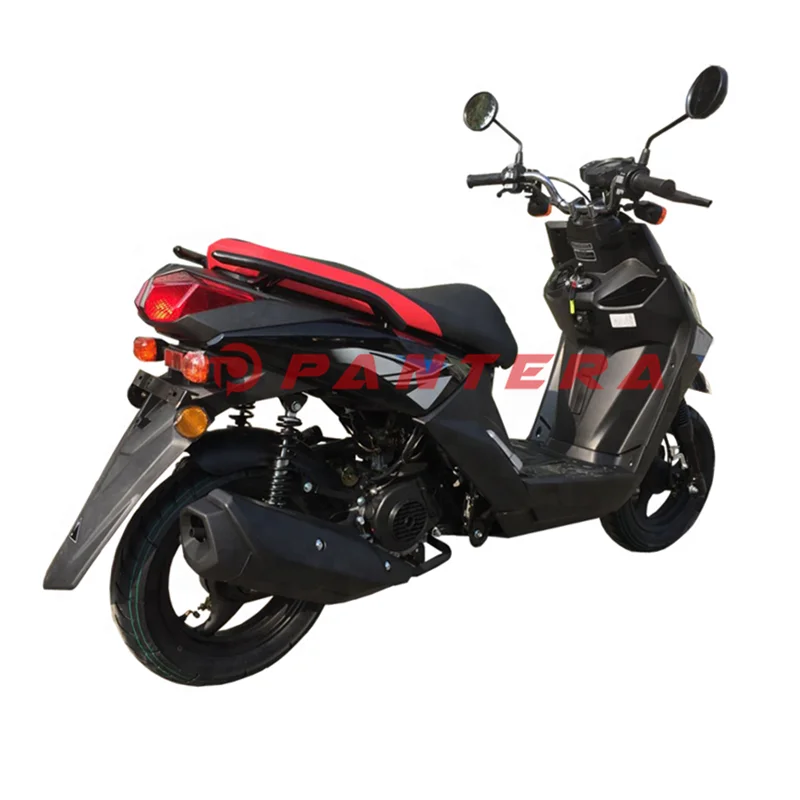

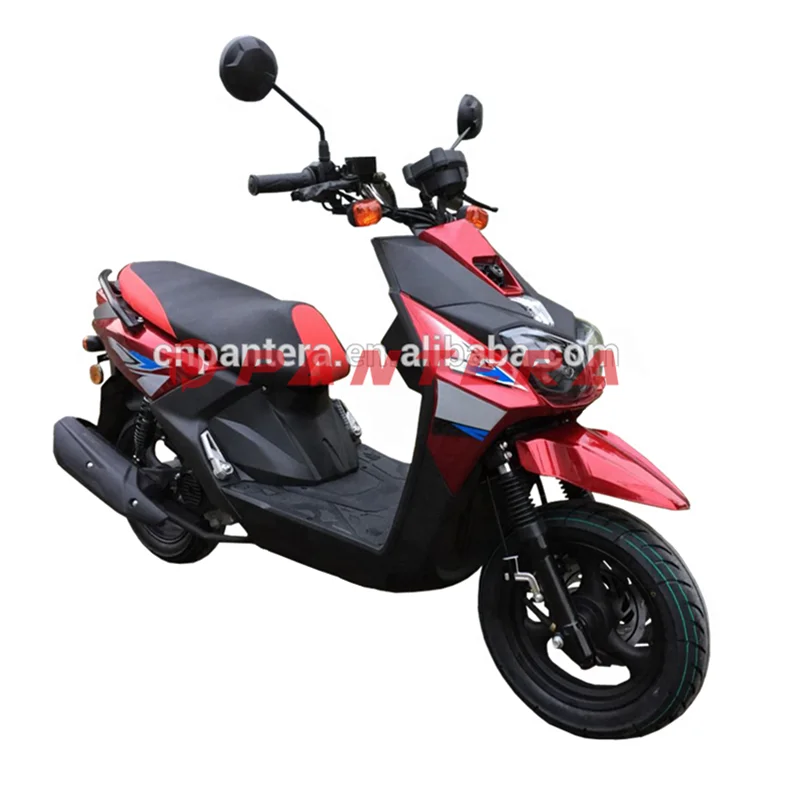

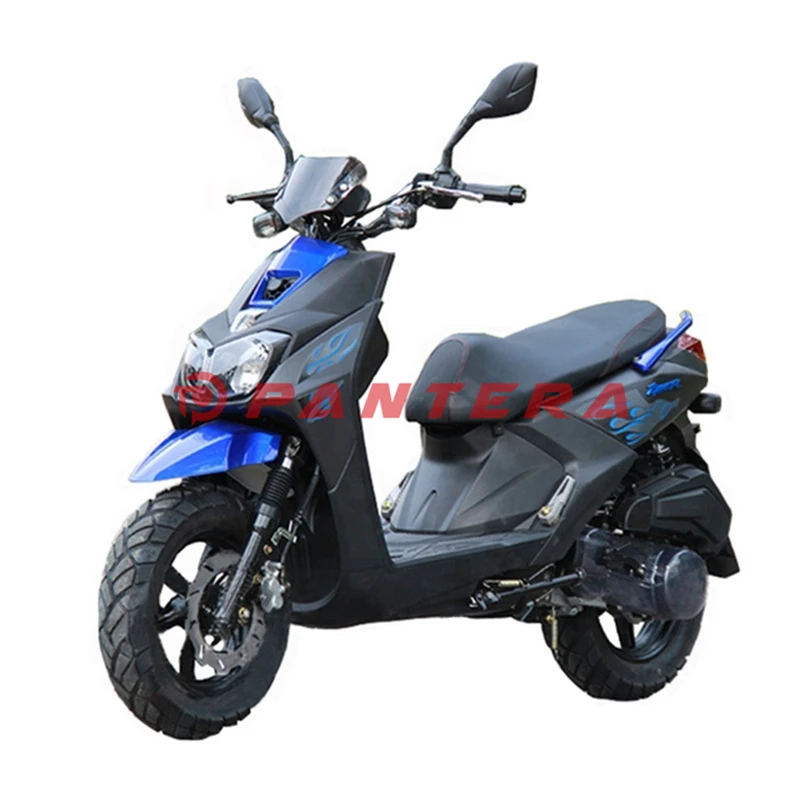

Detailed Images
Overview
Different Angles
Details
Specification
| Displacement | 49.5 | 124.6 | 149.6 |
| Engine | Single Cylinder, 4 Stroke | Single Cylinder, 4 Stroke | Single Cylinder, 4 Stroke |
| Bore & Stroke | 39×41.5 | 52.4×57.8 | 57.4×57.8 |
| Cooling System | Air Cooled | Air Cooled | Air Cooled |
| Compression Ratio | 10.5:1 | 9.2:1 | 9.2:1 |
| Fuel feed | 90# | 90# | 90# |
| Max Power( Kw/rpm) | 2.5/7500 | 5.6/7500 | 6.3/7500 |
| Max Torque(N.M/rpm) | 2.8/5500 | 7.8/4000 | 9.2/5500 |
| Max Speed | 50 kmph | 80 kmph | 85 kmph |
| Ground clearance | 105 mm | 110 mm | 110 mm |
| Fuel consumption | 2.0L/100KM | 2.4L/100KM | 2.5L/100KM |
| Drive Train | CVT | CVT | CVT |
| Ignition | CDI | CDI | CDI |
| Transmission | Belt | Belt | Belt |
| Fuel tank capacity | 5L | 5L | 5L |
| Starting System | Electric+kick start | Electric+kick start | Electric+kick start |
| Front Brakes | Disc brake | Disc brake | Disc brake |
| Rear Brake | Drum brake | Drum brake | Drum brake |
| Front suspension | Hydraulic Suspension | Hydraulic Suspension | Hydraulic Suspension |
| Rear suspension | Hydraulic Suspension | Hydraulic Suspension | Hydraulic Suspension |
| Front tires | 120/90-10 | 120/70-12 | 120/70-12 |
| Rear tires | 120/90-10 | 120/70-12 | 120/70-12 |
| Wheel Base | 1290 mm | 1310 mm | 1310 mm |
| Seat Height | 780 mm | 780 mm | 780 mm |
| Payload | 75kg | 150kg | 150kg |
| Net Weight | 87 kg | 109 kg | 109 kg |
| Gross Weight | 102 kg | 127 kg | 127 kg |
| Packing type | Steel + Carton | Steel + Carton | Steel + Carton |
| Packing size | 1630×570×860 | 1630×570×860 | 1630×570×860 |
| 20' container | 26 units | 26 units | 26 units |
| 40' HQ container | 87 units | 87 units | 78 |
Our Services
Personal Customization:
1.Front brake:drum brake/disc brake
2.Wheel:spoke wheel/alloy wheel
3.Speedmeter:normal speedmeter/digital speedmeter
4.Displacement can be changed from 50cc, 70cc, 100cc and 110cc
5.All the models can be equiped with cargo shelf and control remote
6.You can select 2 colors fo your motorcycles if you ordered an container
7.OEM service are welcomed. Please provide with your logo or brand name. We'll put it on the scooters.
Warranty
1.We can offer one year warranty or engine 6000kms for a container order. 2.And 1% easy-damaging spare parts are provided for free for a container order
| easy broken spare parts list: | |
| No. | spare parts name |
| 1 | carburetor |
| 2 | electric parts |
| 3 | headlight assy |
| 4 | meter assy |
| 5 | L. front turning light |
| 6 | R. front truning litht |
| 7 | L. rear turning light |
| 8 | R. raer turning light |
| 9 | tail light assy |
| 10 | front and rear inner tube |
| 11 | rearview mirror |
| 12 | pasoes |
| 13 | chain |
| 14 | handle switch |
| 15 | handle bar |
| 16 | cable |
| 17 | battery |
| 18 | seat |
| 19 | rear shock |
| 20 | footrest |
| 21 | starting arm |
| 22 | gear pedal |
| 23 | muffler |
| Note: the above spare parts packaged separately, carton packaging, standard marks. | |
Packaging & Shipping
SKD steel frame + cartoon or wooden frame
CKD wooden case or cartoon
Remark: SKD means semiknocked down and CKD means complete knocked down. They are the different package ways. Both of them will take less import tariffs and frieight than finished product.
Company Information
Company Profile
Pantera located in Chongqing the city of mountain. Pantera is the pioneer in motorcycle manufacture field in Chongqing, even in the whole China. We sell diversified gas motorcycles, electric motorcycles and tricycles. Advanced technique and equipments are imported since the company’s establishment in 2006. And we hired a number of technicians to enhance our quality. The factory has specialized product quality inspection department and test for our products.
Company’s main areas are: cub motorcycle, off road motorcycle, street motorcycle, electric motorcycle, tricycle, mini dumper, marine parts and spare parts of motorcycle. We insist on the principle of the supremacy of the interests of consumers, make innovations in our products to make the best motorcycles for you.
Honest and modest is company’s motto, win-win to each other is our aim. Our company sincerely welcome customers from all over the world to cooperate with us on the business to make a better motorcycle industry in the future.
Market
Certification
WMI and EEC
CQC and SGS
FAQ
Q:What's the packing method do you have?
A:We have two ways to pack the product.One is SKD and the other is CKD.
Q:Is the color of motorcycle optional?
A:Yes,the color is optional,we can print the motorcycle and make it unique just for you.
Q: What’s your payment term of transaction?
A:We accept T/T, and if it is necessary, L/C is considerable.
Q:What's the min order of this model?
A:The min order of this product is 32 unit.
