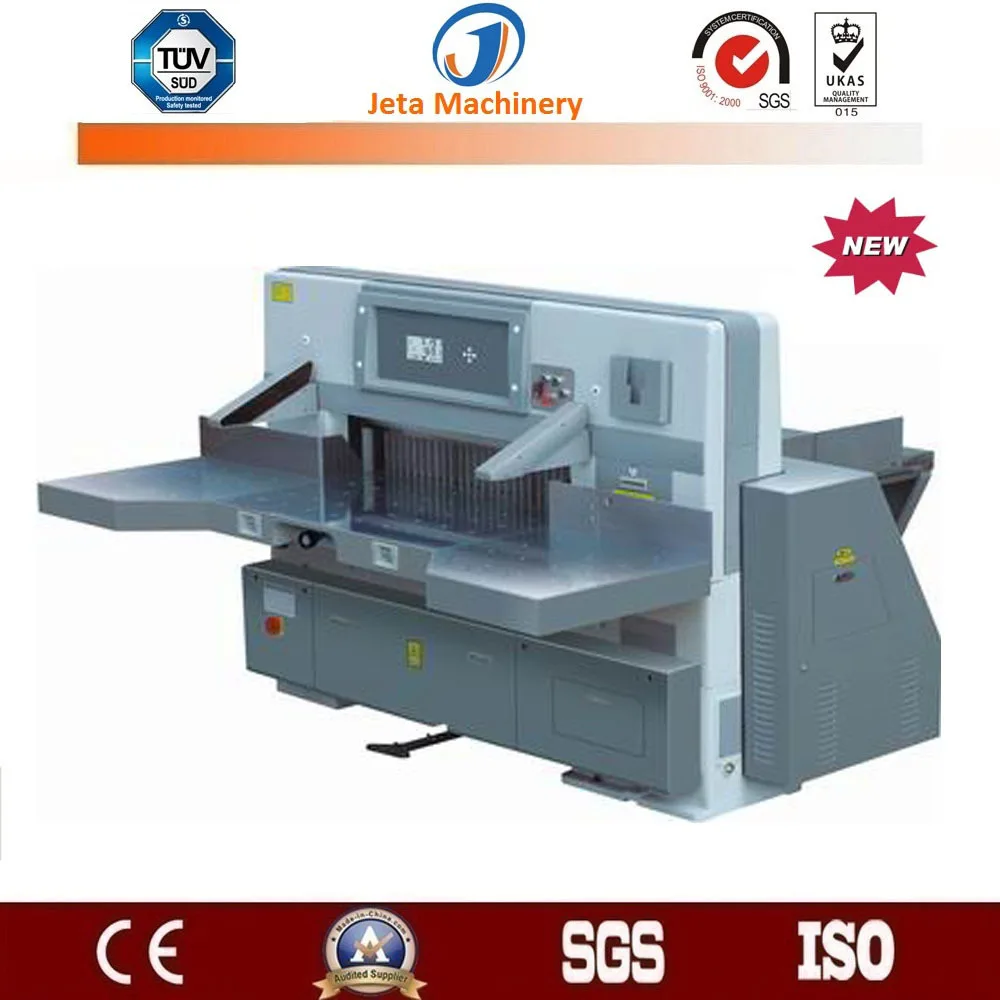

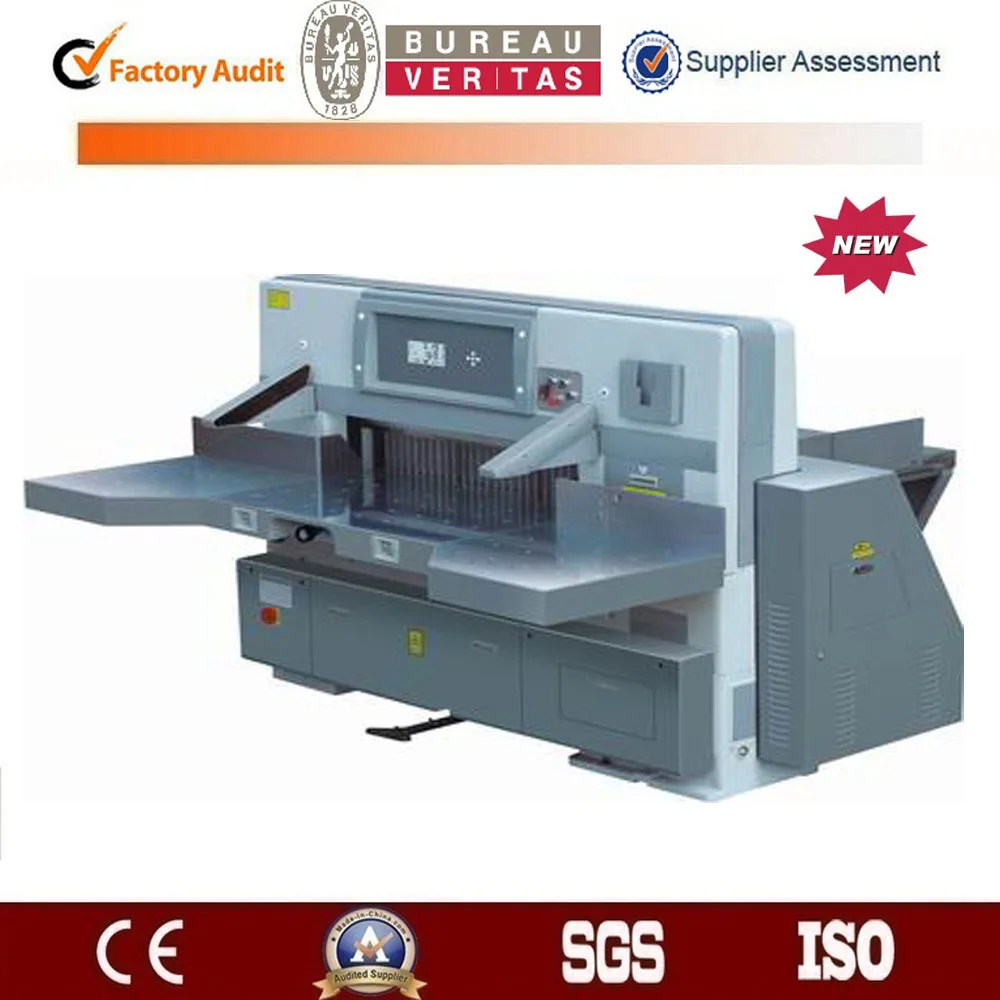

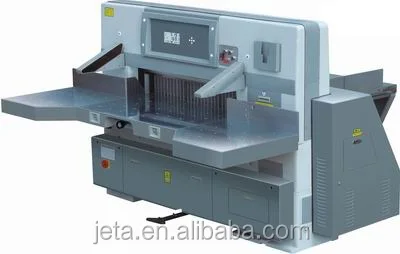

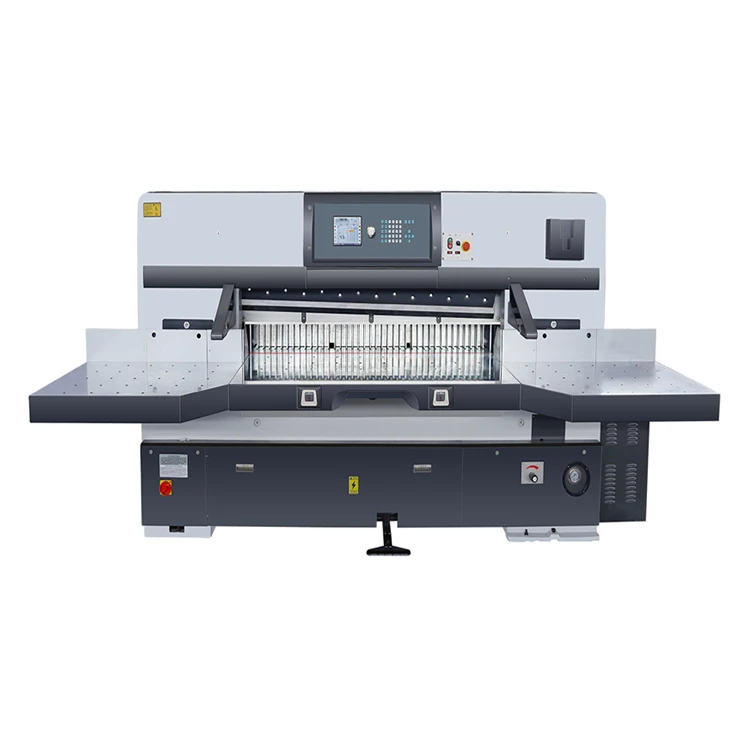

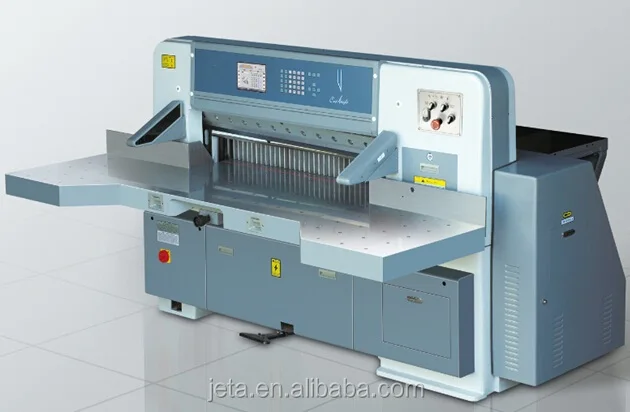

QZYK920DH 10 PAPER CUTTING MACHINE paper cutter paper guillotine
- Category: >>>
- Supplier: Yiwu Jeta International Trading Co . Ltd.
Share on (60180904263):
Product Overview
Description
Products Description
Features:
* Usage: QZYK920DH-10 PAPER CUTTING MACHINE paper cutter paper guillotine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.
* Computer: It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation. The paper sending motor power controlled by imported transducer, the speed of paper sending reaches 6-12m/min, and the position accuracy can be 0.05 mm.
* Single Hydraulic and Single Worm Wheel Device: The hydraulic device pass CE certificate.
* Double Guide Device: the paper pusher adopts imported double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.
* Photo Cell: it is equipped with a photo cell safety protection device.
* Over Load Protection Device: convenient knife changing device.
* Worktable Chrome Treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
* Air Ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
* Cutting Controller: both of the user’s hands operate the machine. It can cut paper in one time.
* Electronic Knife Lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
* Main Electric Device are imported from Germany, French, Japan, etc.
* Computer: It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation. The paper sending motor power controlled by imported transducer, the speed of paper sending reaches 6-12m/min, and the position accuracy can be 0.05 mm.
* Single Hydraulic and Single Worm Wheel Device: The hydraulic device pass CE certificate.
* Double Guide Device: the paper pusher adopts imported double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.
* Photo Cell: it is equipped with a photo cell safety protection device.
* Over Load Protection Device: convenient knife changing device.
* Worktable Chrome Treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
* Air Ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
* Cutting Controller: both of the user’s hands operate the machine. It can cut paper in one time.
* Electronic Knife Lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
* Main Electric Device are imported from Germany, French, Japan, etc.
Specification
Model | JT-QZYK920DH-10 | ||
Max cutting width | cm | 92 | |
Max cutting length | cm | 100 | |
Max cutting height | cm | 13 | |
Clamp press | dan | 150-8000 | |
Knife thickness | mm | 13.75 | |
Max grinding reserve | mm | 60 | |
Min cut without false clamp | mm | 25 | |
Min cut with false clamp | mm | 95 | |
Cutting speed | cycles/min | 45 | |
Main motor power | kw | 3 | |
Net weight | Kg | 2400 | |
Outline dimension (LXWXH) | mm | 2260*2170*1510 | |
Packing dimension(LXWXH) | mm | 2300*1370*1850 | |

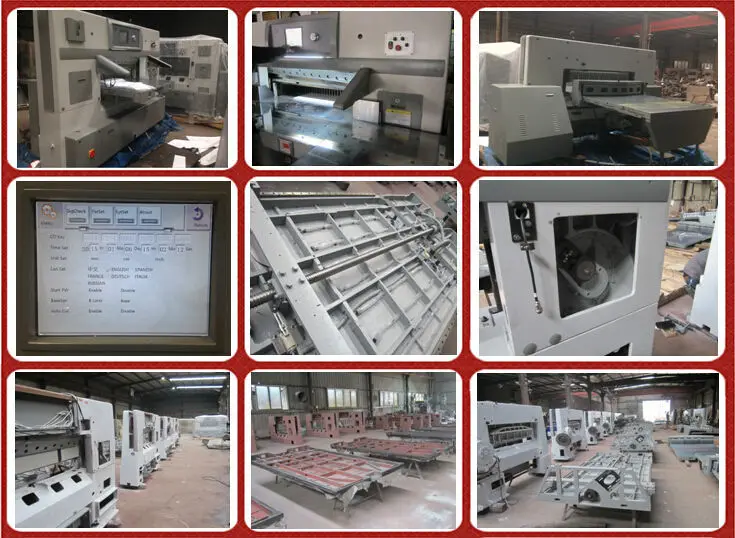

Details Images
