Aerial 2 8 12 24 48 Core Outdoor GYTC8S Fig8 Single Mode Fiber Optic Cable
- Category: >>>
- Supplier: Ningbo Haishu Efon Communication Equipment Limited
Share on (60181179581):
Product Overview
Description
2 12 23 36 Core Outdoor GYTC8S Fig8 Single Mode Fiber Optic Cable cable
Product Description

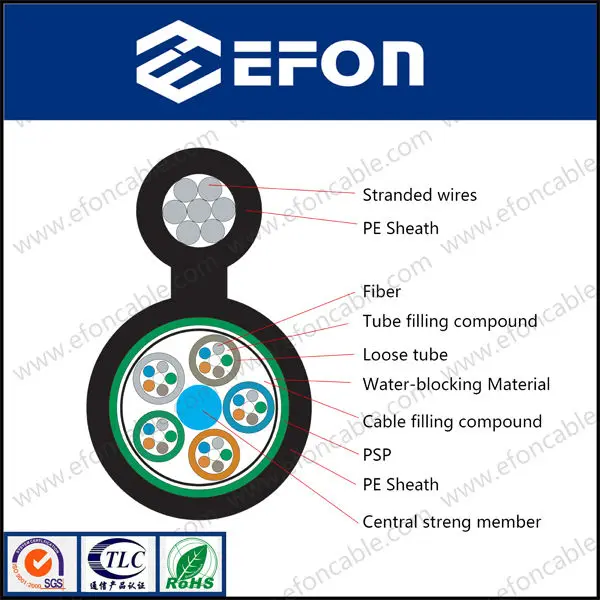

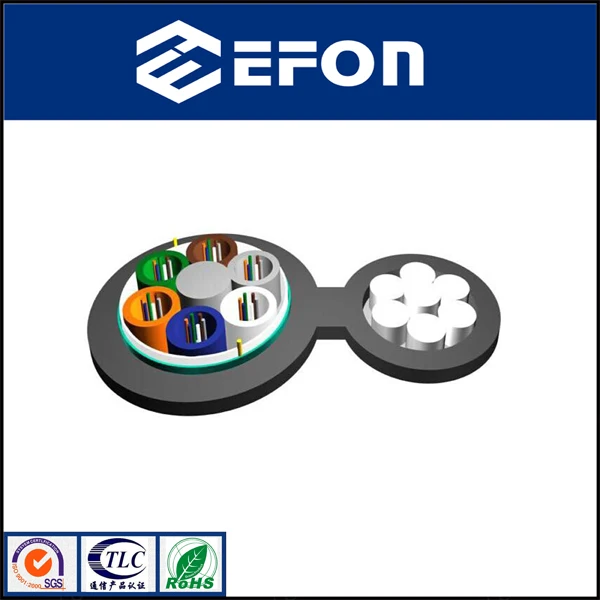

GYTC8S single mode fiber optic cable is an outdoor Steel strand wire selfsupporting cable.
The loose tube are made of high modulus plastics(PBT), which are filled with water resistant gel. The corrugated
steel tape is applied which provide for crush resistant. Outer sheath is made of UV resistance PE jacket. Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.
Features:
- Loose tube design. Up to 288 fibers.
- Water blocking, UV resistance, High and low temperature resistance.
- The corrugated steel tape(CST) armor provide desirable crush resistant.
- Adopt strict process and raw materials control guarantee the lifespan more than 30 years.
Applications:
For hanging on poles.
Structure and Technical Specifications
Fiber Count | 8-30 | 32-60 | 62-72 | 74-96 | 98-120 | 122-144 | |||||
Diameter of Self support member (Steel wire) | 7x0.9, 7x1.0, 7x1.2, 7x1.4 , 7x1.6 | ||||||||||
Diameter of Loose tube(mm) | 1.8 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | |||||
Diameter of Cable(mm) | 8.1 | 8.7 | 9.3 | 10.6 | 11.9 | 13.4 | |||||
Gross weight(Kg/Km) | — | — | — | — | — | — | |||||
Min. bending radius | Static 10xD Dynamic 20xD | ||||||||||
Diameter of Self support member (Steel strand wire) mm | 7x0.9mm | 7x1.0mm | 7x1.2mm | 7x1.4mm | 7x1.6mm | ||||||
Max. tensile force, N Short term | 3000 | 4000 | 6000 | 8000 | 12000 | ||||||
Max. tensile force, N Long term | 1000 | 1500 | 2000 | 3000 | 5000 | ||||||
Max Crush Resistance(N/100mm) | Short term 1000N | ||||||||||
Long term 300 N | |||||||||||
Allowable Temperatures | operation | -40°C – +60°C | |||||||||
storage | -50°C – +70°C | ||||||||||
install. | -20°C – +50°C | ||||||||||
We produce and test cable comply with following standard:
Mechanical Performance | |
Max Tension Performance | IEC 60794–1-2-E |
Max. Operation Tension | IEC 60794–1-2-E1 |
Crush Test | IEC 6079 –1-2-E3 |
Impact Test | IEC 60794–1-2-E4 |
Repeated Bending | IEC 60794–1-2-E6 |
Torsion Test | IEC 60794–1-2-E7 |
Cable bend | IEC 60794–1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance | |
Temperature Cycling | IEC 60794–1-2-F1 |
Water Penetration | IEC 60794–1–2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |
GYTC8S 24 core optical fiber cable
Our Hot Sale Products : You can click directly into the link
ADSS FTTH GYFTY
GYTA GYTS GYXTW
MORE INFORMATION

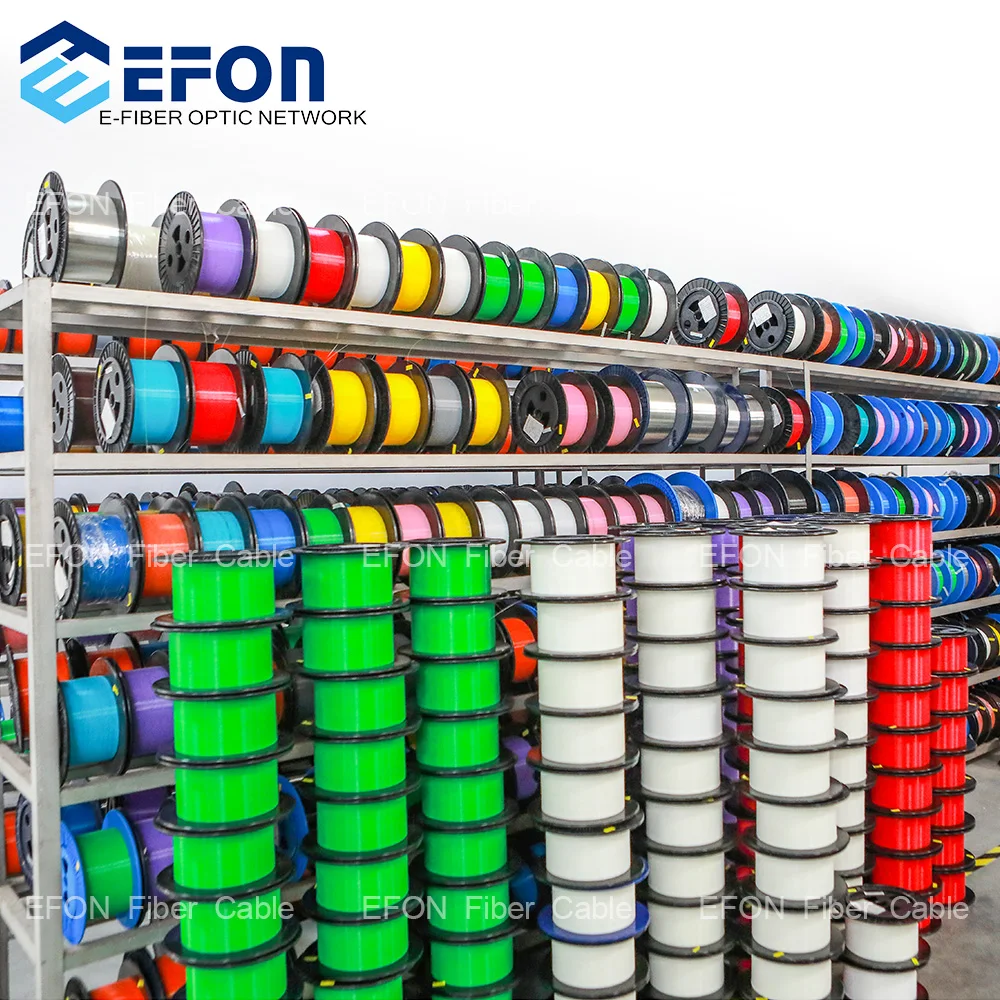

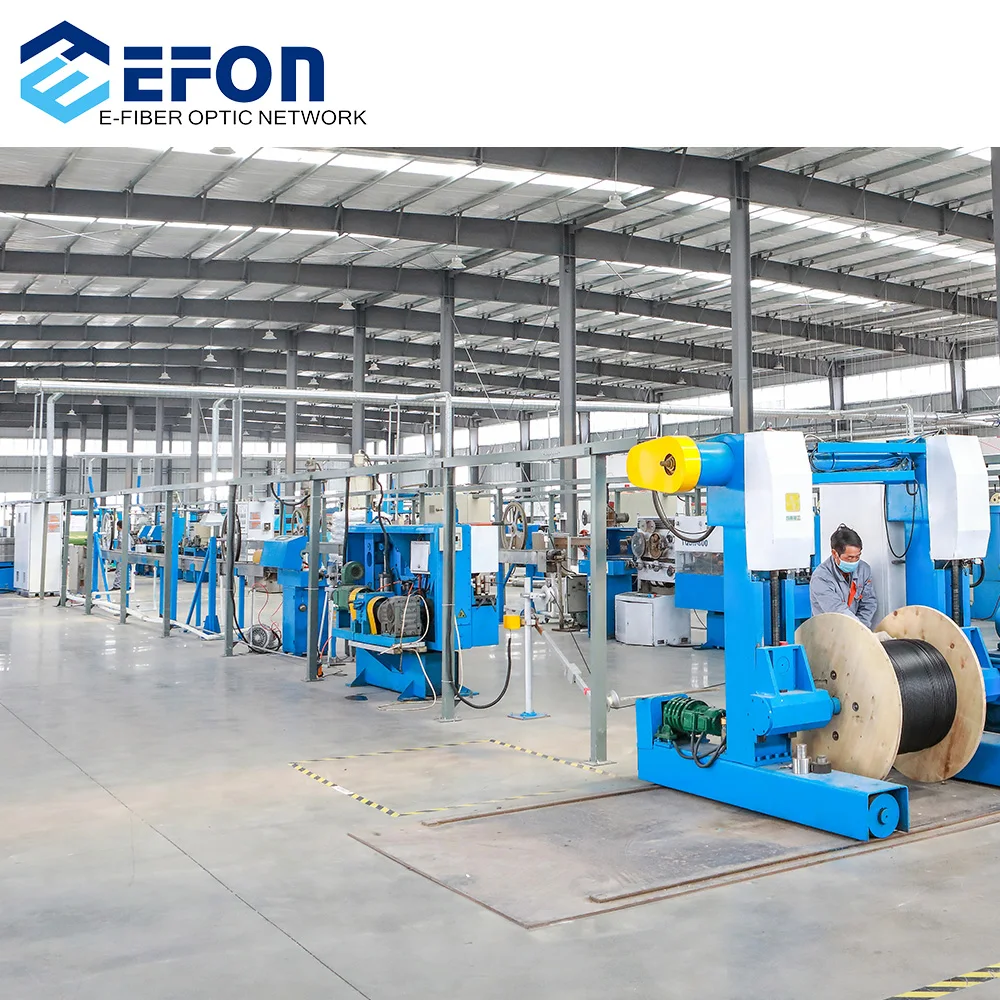

P R O D U C T I O N L I N E
T E S T C E N T R E
D E T A I LS

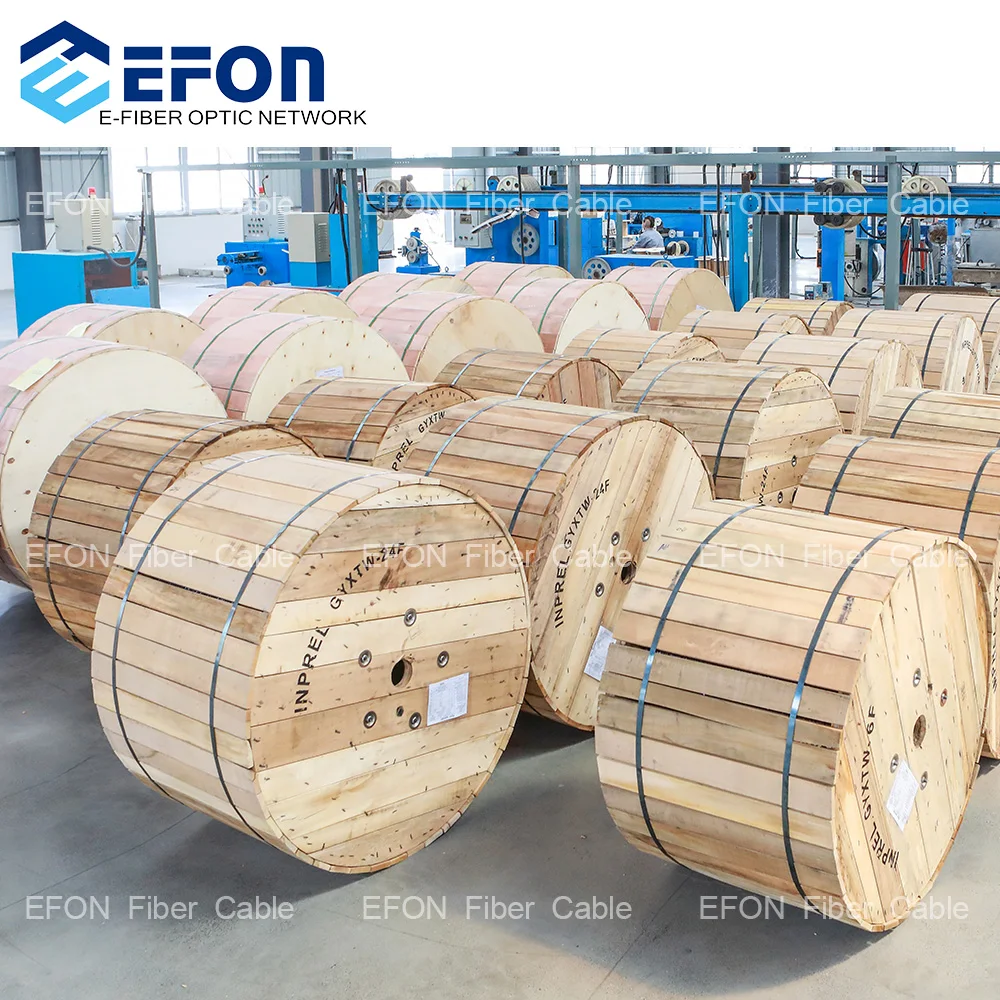

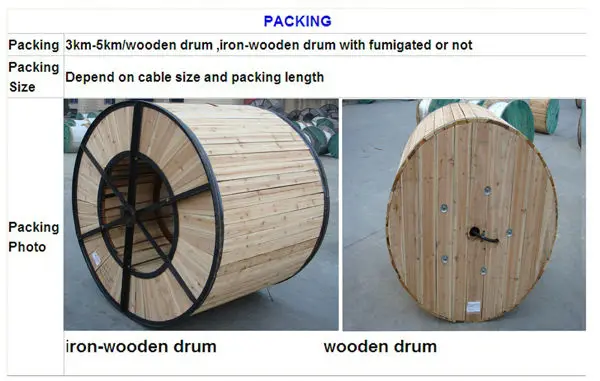

Packaging & Shipping
Our Services
- We are the one of biggest manufacture of fiber optic cable in China and has more than 25years manufacturing and selling experience.
- We accept OEM.ODM.The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to ur requirment and description;
- Please send us inquiry for more products info and we will give you feedback in 2 hours.
- Guarantee period: 5 years free replacement if quality problem.
FAQ
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.
Shipping & Delivery
We will send the products within 10 days.
We ship small batched by air, or large orders by container.
Return and Warranty:
All products have been tested before ship out
All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.
