Машина для производства пластиковых гранул, гранулирование водяных нитей, производственная линия экструдера с двойным винтом (60182413520)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


CaCO3 filler Masterbatch machine



Product Description





Plastic pellets granules making machine


water strand pelletizing production line


1


















>>Gearbox


Reduction transmission: High torque gearbox
Germany HENSCHEL / ZAMBELLO
Reduction ratio: I = 2.5:1.
Output power: P1 = 200 kW
Input speed N1 = 1500 rpm

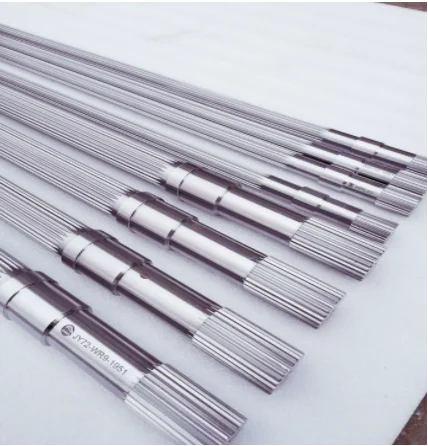

>>Screw


Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to suit different material. Screw component made of high speed & wear-resisting steel.

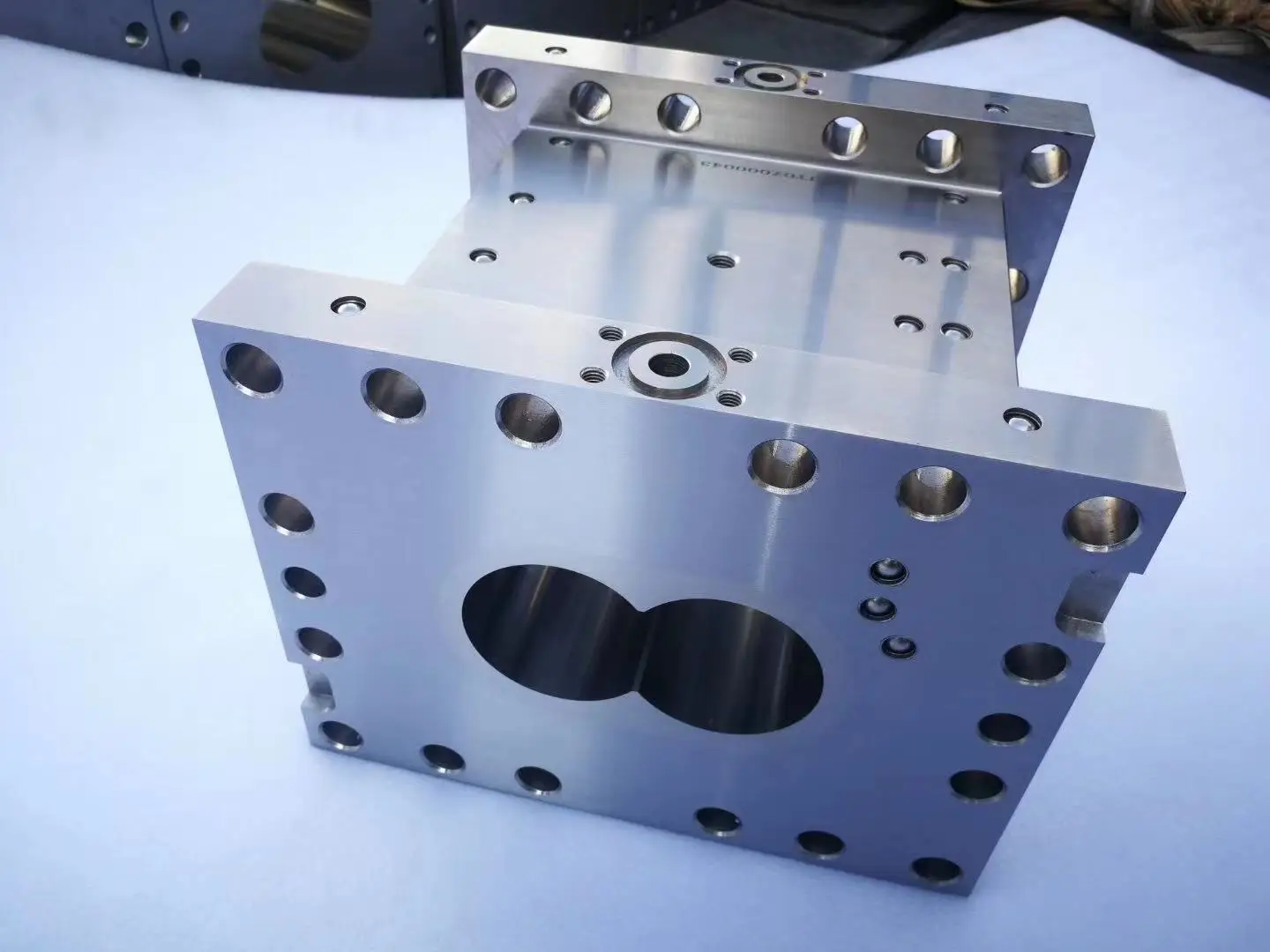

>>Barrel


By means of the replaceable screw barrel sections, the processing sections is devided into individual zones. The barrels are heated electrically. In addition, the barrels are provided with longitudinal bores for cooling with water. Uniform temperature distribution, namely on the circumference of the eightshaped barrel bore, is achieved by a reverse forceflow temperature
control circuit. Connections of pipes for temperature control are in groove-tongue design to balance alternating thermal stress and avoid leakage.












































































































Model
Parameter
Screw Diameter
(mm)
Groove depth
(mm)
L/DMotor power
(KW)
Rotating speed
(rpm/min)
Output
(kg/h)
MT-2021.73.8528/604600 5-15
MT-26254.128/605.5-10 60010-40
MT-3635.6628-6015-2260015-80
MT-4041728-6030-37500/60050-150
MT-5050.5928-6037-55500/60080-200
MT-60601028-6045-75400/500/600100-300
MT-6562.41128-6055-90400/500/600150-400
MT-75711228-60110-250400/500/600250-800
MT-959216.328-60 200-315400/500/600650-1500
MT-13513323.528-48600300/4001500-3000




3


water strand pelletizing production line Application:
1.Fiber reinforcement:


glass fiber, carbon fiber reinforced PP, PA, PBT, ABS, AS, PC, POM, PPS, PET, PPO, PSF, LCP,etc.
2.Ploymer blending :


bleding of PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+SBS,etc.
3.Incorporation of fillers :


CaCO3,Tale,TiO2,carbon black filled PE,PP,or EVA etc.
4.Cable Compounds:


cable sheath,cable insulation compounds of LDPE,HDPE,LLDPE,MDPE;radiation-crosslinkable compounds ,optical fiber protection compounds ,heat-shrinkable polymer compounds.
5.Special Compounds :


PPR pipe compounds,PE compounds for crosslinked pipes,tobacco filter compounds,etc
6.High Concentration Color Masterbatches:


PE,ABS,PS,EVA,PET,PP etc. With high concentration of pigments and other procrssing aids.
7.Masterbatches with Flame Retardants:


PP,PA,ABS,EVA,PBT etc.with flame retardants and other additives.
8.Special Functional Masterbatches :


Masterbatches with anti-static,anti-abcteria ,or other special functional fillers.
9.Masterbatches for Degradable Polymers:


PP,PE,PS etc. Blended with high concentration of starch and other processing aids.


application for plastic


plastic filler masterbatch making machine/pet bottles plastic scrap price/recycled pp pellets





Packaging & Shipping



.png





Company Information



Jiangsu Meizlon Machinery Co.,Ltd which specialized in twin screw extruder over 20 years. Covering a construction area of 18000m³ and begining with a workshop of 2000m³, owns a professional thread-grinder, CNC boring machine, over 80 modern machine-tools.
Meizlon products are widely used in chemical industry such as high filler plastics, modified plastics, special plastics etc.


0








FAQ


FAQ






































Q1: Are you a factory or trading company?

A: We are factory in Nanjing ,with export license.


And we have done export business over 20 years professional.


Q2:Where is your factory located? How can I visit there?

A:Factory add:NO.18,feiying Road,Binjiang Development Zone,Jiangning,Nanjing,China , Around 1


hour from Shanghai to Nanjing by high speed train.Warmly welcome to visit us!


Q3: Is your product can be assured ?
A: Our machine passed ISO9001:2001, has CE certificate by SGS, TUV.
Q4:If we show you our layout of factory, can you help to design the whole process line?

A:Yes, our experienced engineers and technical employee can help you to arrange the layout and

installation of whole process line based on your real situation;

Q5:If we have samples of new products, can you help to analysis and design the machine?
A:Yes, Our technical department can analysis, design and test the new products you offered.

WHAT ARE YOU WAITING FOR?


WRITE THE EMAIL! MAKE A CALL!! SEND THE ORDER!!!






Our Services
























Pre-sales service
♦1.Introducing in detail features and application of the products to customer.
2.Selecting economical and practical machine & equipment for customer.
3.Providing operation data of the related machine & equipment.
4.Providing means of trial performance for customer.
Sales service
1.Recommending engineering conditions required for installation if the machine & equipment.
2.Communicating in time the manufacturing progress of the machine with user.
3.Providing assistance in technical conditions ,screw combination and barrel disposition needed for product.
After-sales service
1.Providing on-the-spot technical assistance in installation,commissioning and training.
2.Filing in detail customer’s information.
3.Providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Providing free maintenance for a year.
