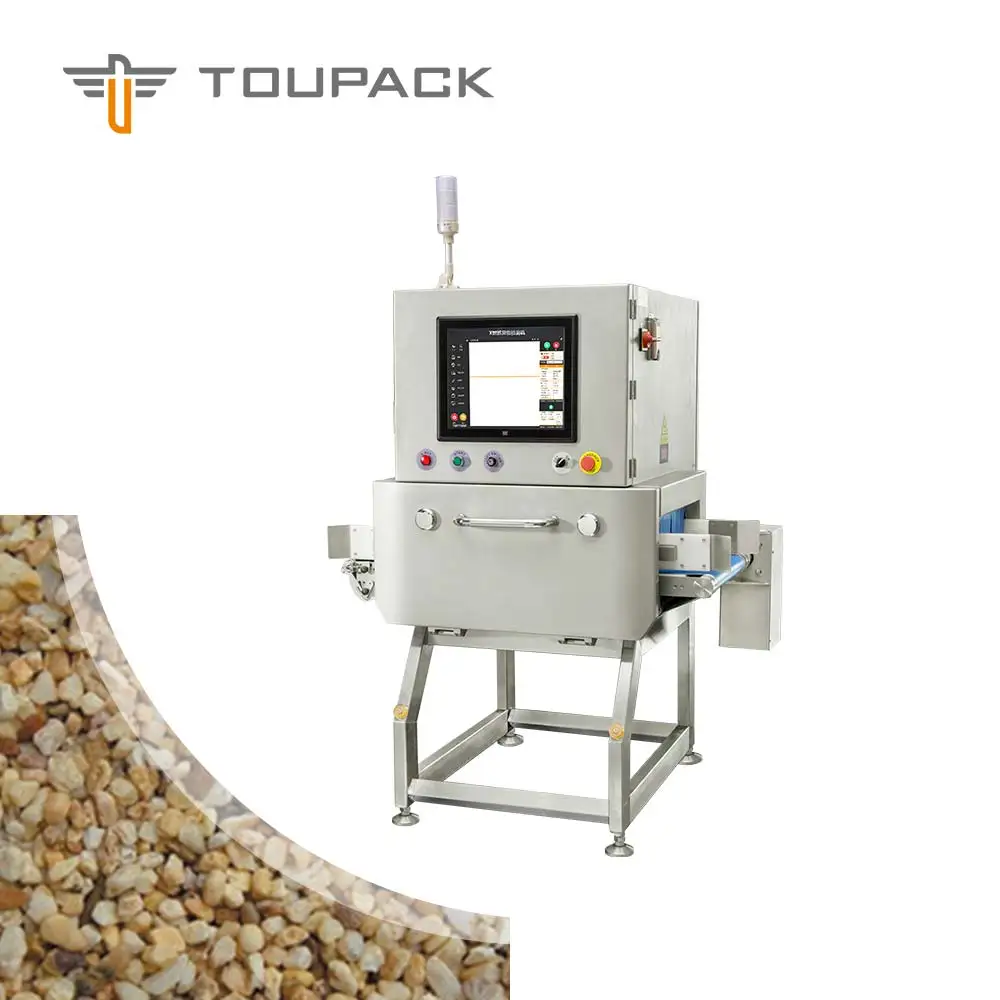

China industrial X ray inspection machine for food
- Category: >>>
- Supplier: Guangdong Toupack Intelligent Equipment Co. Ltd.
Share on (60182524398):
Product Overview
Description
Product Description
Technical Data Sheet
Model | FXR-2417K100 | ||
X-Ray Generator | 40-100kV (Adjustable) | ||
Inspection Width | 240mm | ||
Inspection Height | 170mm | ||
Non-load Inspection Sensitivity | Stainless steel ball Φ0.3mm Stainless steel wire Φ0.2*2mm Ceramic ball Φ1.0mm Glass ball Φ1.0mm | ||
Conveyor Speed | 10-70m/min. | ||
Display Screen | 17”full color touch screen | ||
Interface | LAN Port, USB Port | ||
Working Environment | Temperature: -10℃-40℃ (Cooling method: Industrial air conditioner) Humidity: 30%-90%, Preventing Dew (Dehumidification method: dehumidifier device) | ||
X-ray Leakage | ＜1μSv/hour | ||
Protection Mode | Protective curtains (Detachable) | ||
Alarming System | Alarm and machine stops (Rejecter optional) | ||
Power Supply | AC220V ±10% 50/60Hz, 1.5kVA Max | ||
IP Rate | IP66 | ||
Main Material | SUS304 | ||
Application | Packaged and products in bulk | ||
Loading Capacity | Standard: ≤5kg (On the whole conveying belt) | ||
FAQ
1. What industry is X-Ray inspection system suitable for?
X-Ray inspection system suitable for Food, plastics, pharmaceutical industries.
2. What product is suitable for X-Ray inspection system?
X-Ray inspection system suitable to inspect biscuit, chips, infants food, canned, bottled, pharmaceutical and other packaged products, etc.
X-Ray inspection system suitable for Food, plastics, pharmaceutical industries.
2. What product is suitable for X-Ray inspection system?
X-Ray inspection system suitable to inspect biscuit, chips, infants food, canned, bottled, pharmaceutical and other packaged products, etc.
Guangdong Toupack Intelligent Equipment Co., Ltd. was established in 2009, located in the National Torch High-tech Development Zone, Zhongshan City, Guangdong Province. It is a high-tech enterprise. The company focuses on the R&D and production of intelligent weighing, packaging, testing, and conveying systems. The products are exported to more than 80 countries and regions at home and abroad. It has an overseas after-sales service center in California, USA; it has a wholly-owned subsidiary-Anhui Toupack Intelligent Equipment Co., Ltd. in East China, and has offices in Shanghai and Chengdu, Sichuan.
4. What are your Payment terms?
T/T, or Alibaba Trade Guarantee Services
5. How can we choose the machinery?
Contact with our sales, and provide products and requirement, we will give you solution with suitable machine and offer
accordingly.
6. When can we expect the goods to be delivered?
Regular machine can be delivered within 20-25 days. For customized machines, need evaluate depend on the project.
7. How about the after-sales service?
We have a perfect after-sales service system and promise to respond within 24 hours.
Online service is free on anytime. If cannot solve by online, on-site after service is also available.
Warranty: 1 year
8. How to cooperate with you?
All you need to do is contact our sales representatives who will patiently guide you through the whole process
We solemnly promise: equipment and material contact parts are 304 stainless steel material or food grade plastic, in line with the health requirements.
