Off Road 250cc Cheap 4 Stroke China Sport Motorcycle
Technical
Engine
Engine Type:
Single cylinder,wind-cooled,Four-stroke
Displacement(ml):
193.3
Bore X Stroke (mm):
63×62
Compression Ratio:
9.0:1
Max. Power (kw/r/min)
11.0/7500
Max. Torque (N.m/r/min):
14.0/6000
Max. Speed (Km/h):
≥90
Lubrication:
Pressure ,splash
Clutch Type:
Multiplate wet clutch,automatic
Ignition:
CDI
Starting System:
Electric/Kick ; Electronics/Kick
Transmission System:
Chain drive
CHASSIS
Front Brake:
Disc brake
Rear Brake:
Drum brake
Front Tire:
90/100-21
Rear Tire:
120/90-18
Battery:
12V7Ah
DIMENSIONS
L X W X H (mm):
2220×810×1230
Seat Height (mm):
890
Wheelbase (mm):
1440
Min. Ground Clearance(mm):
280
Max. Permissionable Weight(kg):
150
Rider Capacity:
1 Person
Dry. Weigth (kg):
139
Engine Oil (L):
1.1L
Fuel Tank Capacity(L):
12.9L
Others
Packing Size (mm):
1890×460×860
Packing Weight(kg):
159
Container Loading(40HQ):
93

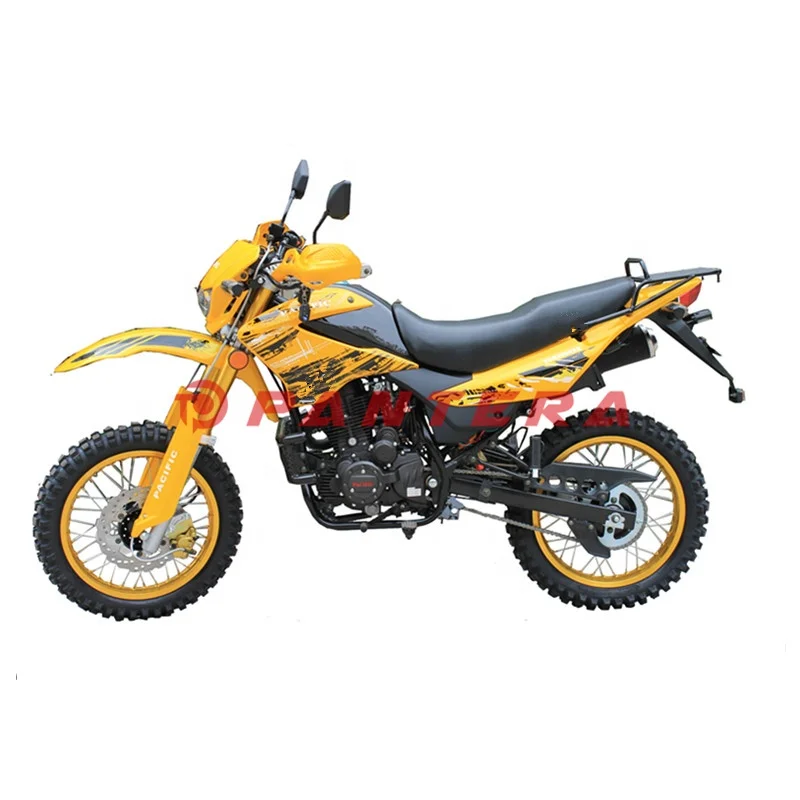

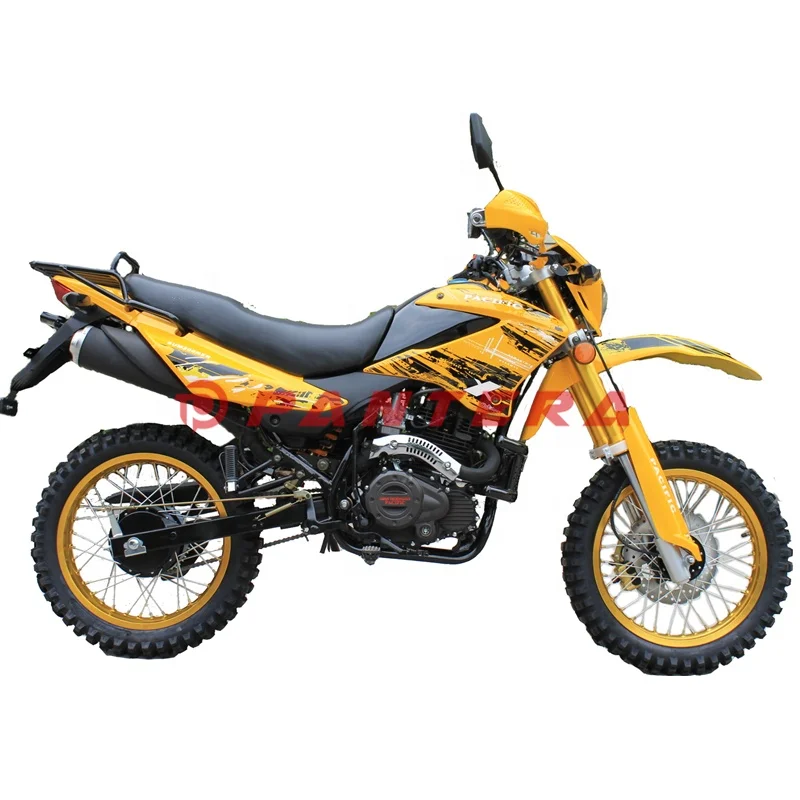

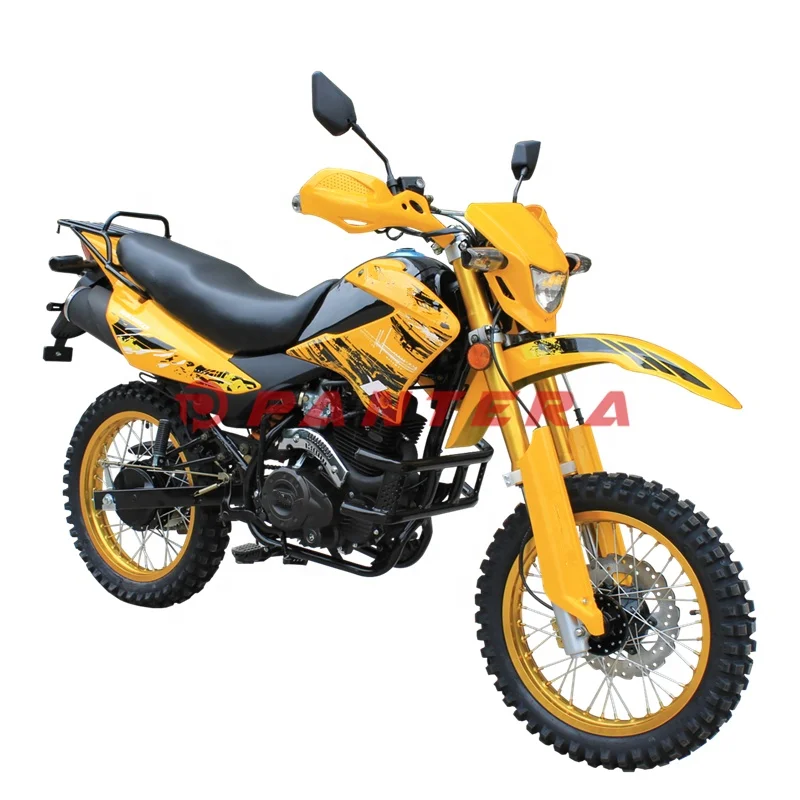

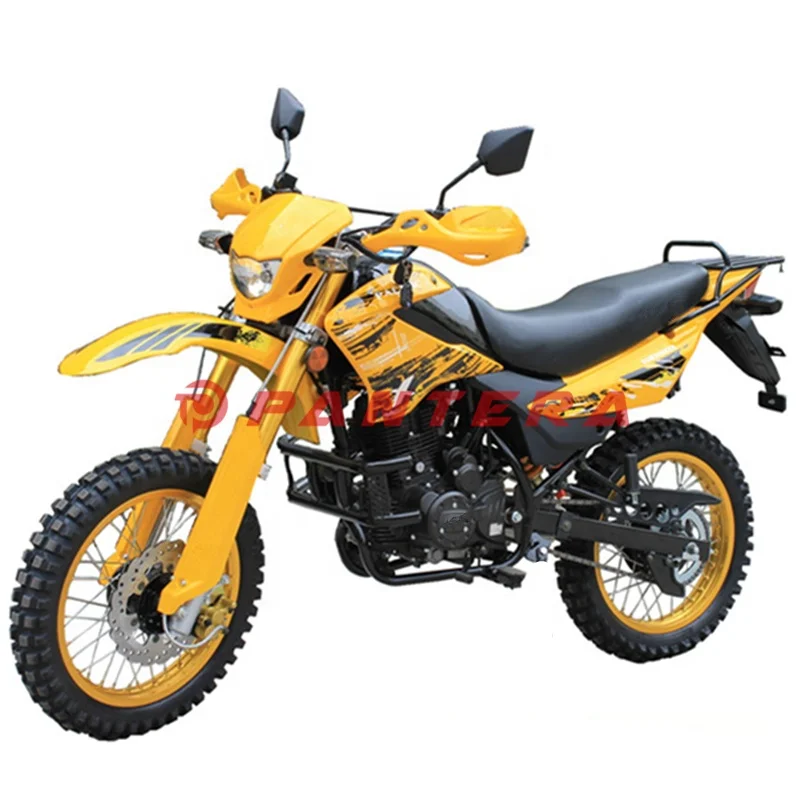

Multi-angle display
Optional:
1. Front brake: drum brake or disc brake
2. Speedometer: normal speedometer or digital speedometer
3. Remote control
5. Displancement ranging from 150cc to 250cc.
6. We can offer all the colors which you likeWarranty:
1.we offer engine 6000 kms and one year warranty on the basis of normal riding.
2.we offer 1% easy broken spare parts freely.
easy broken spare parts list:
No.
spare parts name
1
carburetor
2
electric parts
3
headlight assy
4
meter assy
5
L. front turning light
6
R. front truning litht
7
L. rear turning light
8
R. raer turning light
9
tail light assy
10
front and rear inner tube
11
rearview mirror
12
pasoes
13
chain
14
handle switch
15
handle bar
16
cable
17
battery
18
seat
19
rear shock
20
footrest
21
starting arm
22
gear pedal
23
muffler
Note: the above spare parts packaged separately, carton packaging, standard marks.
Packaging & Shipping
Production line
Packing line
Company Information
1. We are professional motorcycle supplier in china .
2. All the motorcycles are high quality, best price you can find in China.
3. No matter this is a small order or a big one, we can insure send it to you in time.
4. We have our own brand: Pantera. You can use ours, but we can also make your Logo.
If you are interested in our commodity, please feel free to contact us. We have sincere to have a good cooperation with you and then offer the best quality and service for you.
FAQ
1.What’s the delivery time for production?
Honestly, it depends on the quantity and the season you place the order. It is about 20 to 30 working days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
2.What’s your payment term of transaction? We accept T/T, and if it is necessary, L/C is considerable. You can choose the one which is the most convenient or cost effective for you.
3.What’s the minimum order quantity (MOQ) of this model? The MOQ of this model is 96 units.
4.Is it possible to use our own brand? Of course it is possible.You can use your own brand or our brand "PANTERA", it's up to you.
Warranty:
