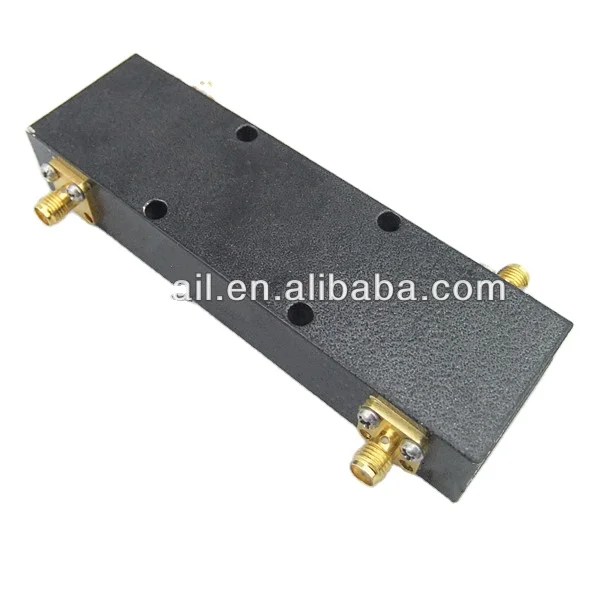

Factory price 800 2700 MHz SMA type hybrid coupler / combiner widely used in DAS/IBS/BTS solutions

Product Overview

Description

Factory price 800-2700 MHz SMA type hybrid coupler / combiner widely used in DAS/IBS/BTS  solutions



Applications:



1. Widely used in the Building coverage applications

2. Mobile Communication Network Optimization and In-door distribution system.

3. Cluster communication, satellite communication, shortwave communication and hopping radio.

4. Radar, electronic navigation and electronic confrontation.

5. Aerospace equipment systems.



Technical Specifications:



Model	YF-HC-827-3dB-SMA
Frequency(MHz)	800-2700
Insertion Loss(dB)	≤0.5
Isolation(dB)	≥25
VSWR	≤1.25:1
PIM3	≤-140
Power Capacity(W)	200
Impedance(ohm)	50
Connector	SMA-F
Operating Temperature(deg)	-35~+70
Color	Black-plated or Silvery-white Plated
Relative Humidity	5%-95%
IP Grade	IP60 or IP65



Noted: Hybrid combiners/couplers can be customized according to the detailed requirements.

More  product details:











Product processing





Each piece in opp bag, each bag in small white inner box, and then the small boxes in standard

exporting carton. the products will be protected very well with paper cardboard  and foam.



Certification we get:









Our service







1. Professional skills support.



2. OEM services is available.



3. 24 hours you can contact our salesman and engineer.



4. We will try our best to provide support whatever you need and we can do.





Warranty and return





1. All products accessories have been checked for 3 times before shipping out.



2. All products have one year warranty. If there is no man-made problems,



    we will replace or repair for you.









Looking forward to have a wonderful conversation with you !
