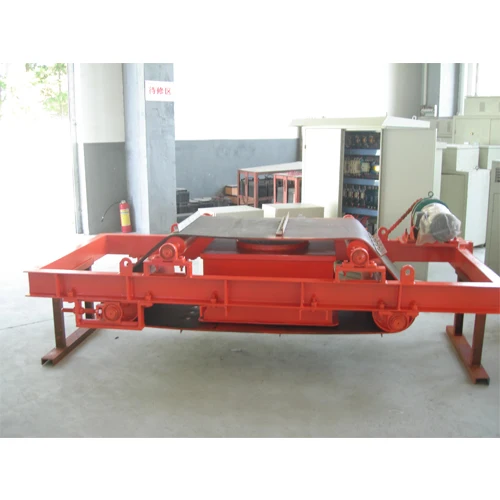

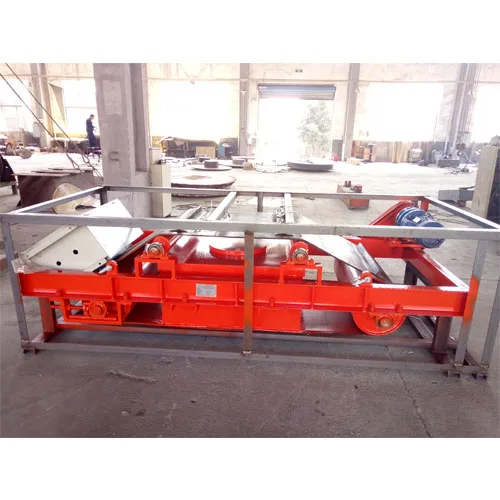

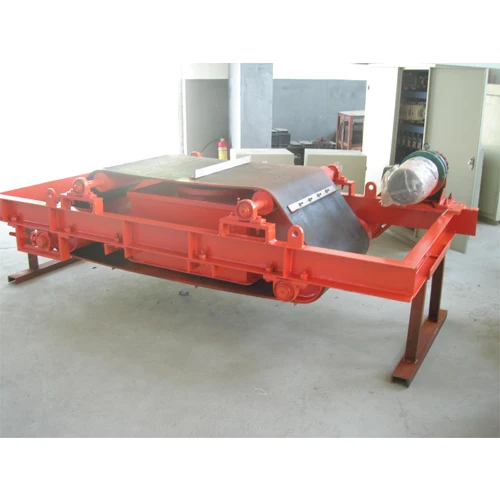

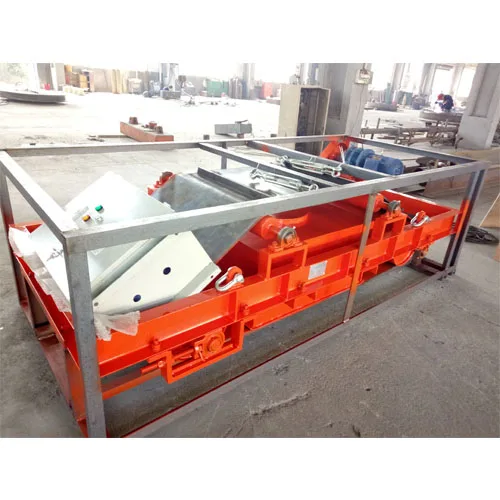

Belt Magnetic Separator Price, Electromagnetic Separator--- Series RCDD







Brief Introduction :



RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discarge the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.

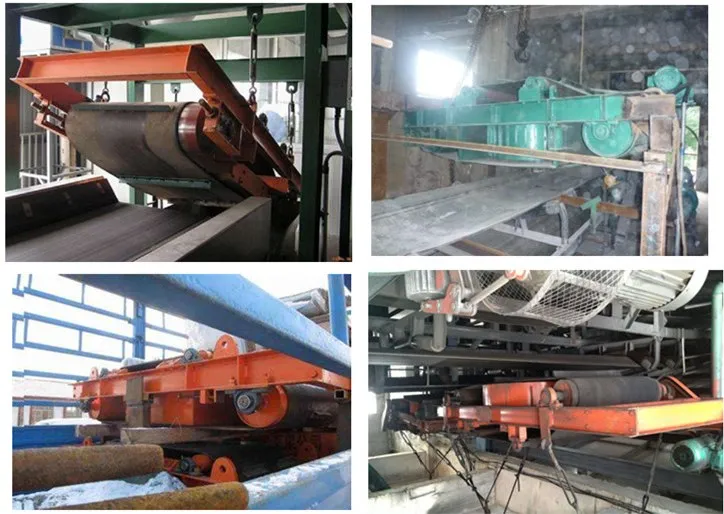

Application:



Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.



Features:



Improving and purifying non-magnetic materials; Recycling Iron

•  made of aluminum coil and iron core,etc.


•  high gauss


•  self-discharing type

Technical Data:



International Standard model	Standard Erection T(mm)	width of Conveyer belt(mm)	Rated voltage (v)	Cold state Consumption Power(kw)	Weight (kg)	Overall dimension (mm)						Driving Motor capacity (kw)	Corollary control panel
						A	B	C	D	E	F
RCDD-5	160	500	110	1.03	1074	2300	1330	1100	914	500	520	1.5	SSTM-1.5D1-D
RCDD-6	170	500	110	1.4	1160	2400	1400	1150	1068	650	520	1.5
RCDD-6	220	650	110	1.8	1330	2400	1250	1250	1120	650	555	1.5	SSTM-3.1D1-D
RCDD-8	250	800	110	2.6	1470	2750	1600	1360	1270	800	580	2.2
RCDD-8	250	800	110	2.9	2000	2750	1770	1465	1480	900	625	2.2
RCDD-10	260	1000	110	2.9	2000	2900	1770	1465	1480	900	625	2.2	SSTM6.2D1-D
RCDD-12	310	1200	220	4.2	2700	3200	2000	1590	1680	1000	625	4
RCDD-16	410	1600	220	8.2	6020	3800	2620	1850	1990	1400	725	4	SSTQ-12D1-D



Overall Dimension Drawing :



For inquiry:

1.what kind of material need to process separation?

2.does it work with belt? if yes, how about the belt width? belt speed?

3.how about the handling capacity you require? and the separation material size?

4.do you need self-discharging type or manual discharge type?

5.rectangular shape or round shape? permanent magnet type or electromagnet type?
