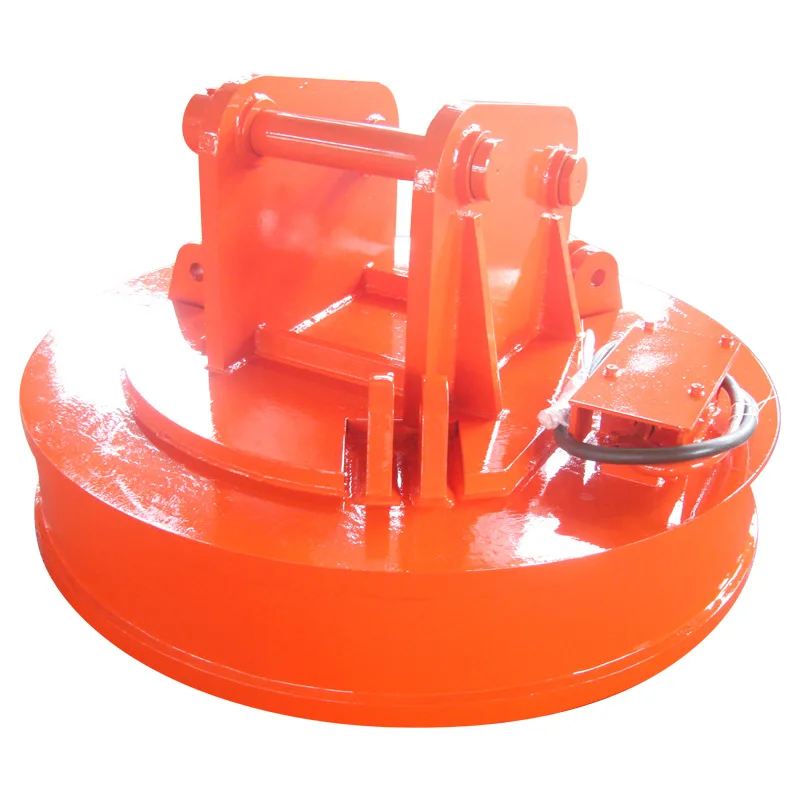

Scrap Lift Magnet For Excavator Magnet

1. It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire or copper wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption,high lifting capacity and long serving life.

2. This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils.The insulation grade can reach class special C.

3. It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.

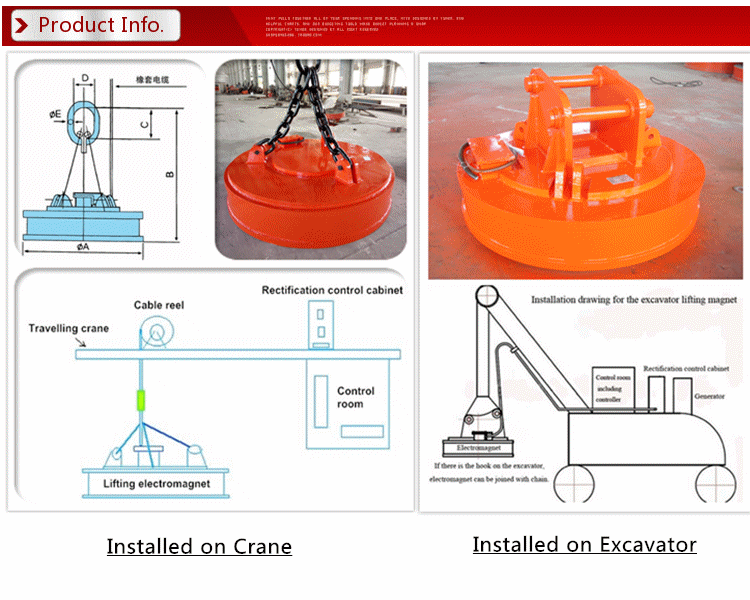

4. With simple structure reliability, it is suitable for working with all kinds of lifting equipments

We provide professional service for customers from over 30 countries. And we exported our main products as lifting magnet, cable reel, magnetic separator to the market as North America, South America, Europe, Southeast Asia/ Mideast,Africa, Australia and so on.

We are also looking for clients in different market to agent our products.Once you have interesting, welcome to contact with us at your convenient time.

(fixed iron frame with five-plywoodboard packing to keep scrap lift magnet for excavator with a safety and long-distance transportation and no need fumigation when clear custom )
