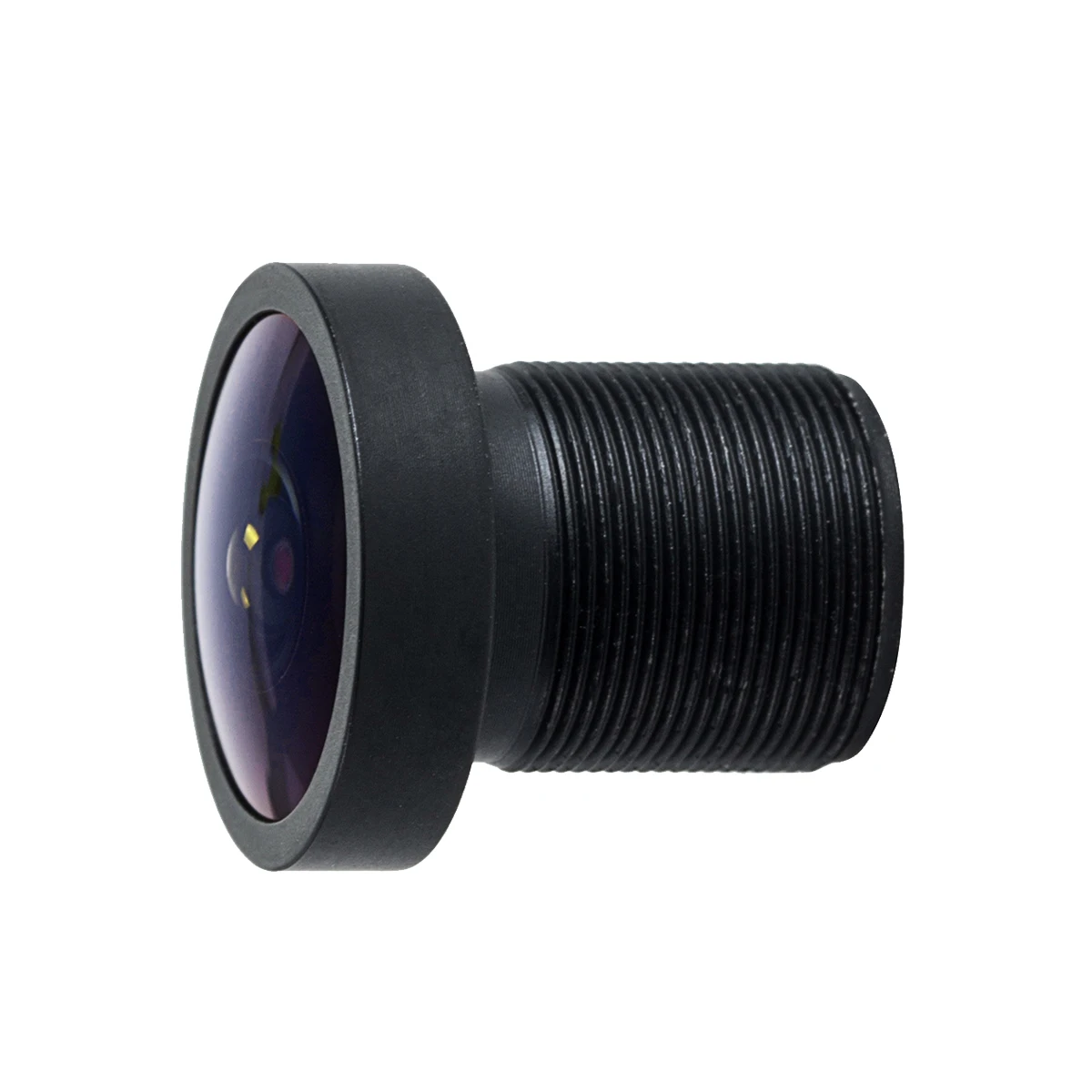

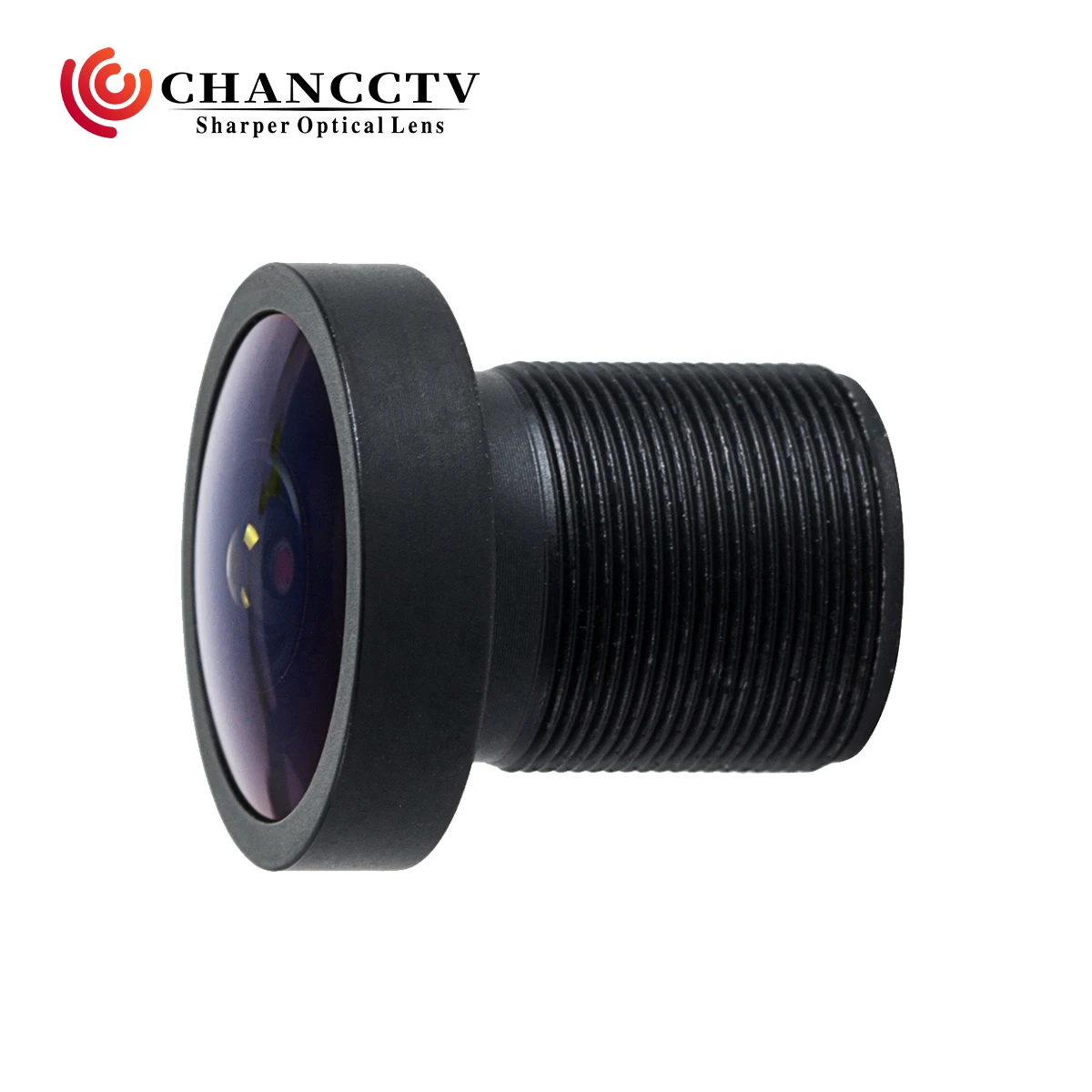

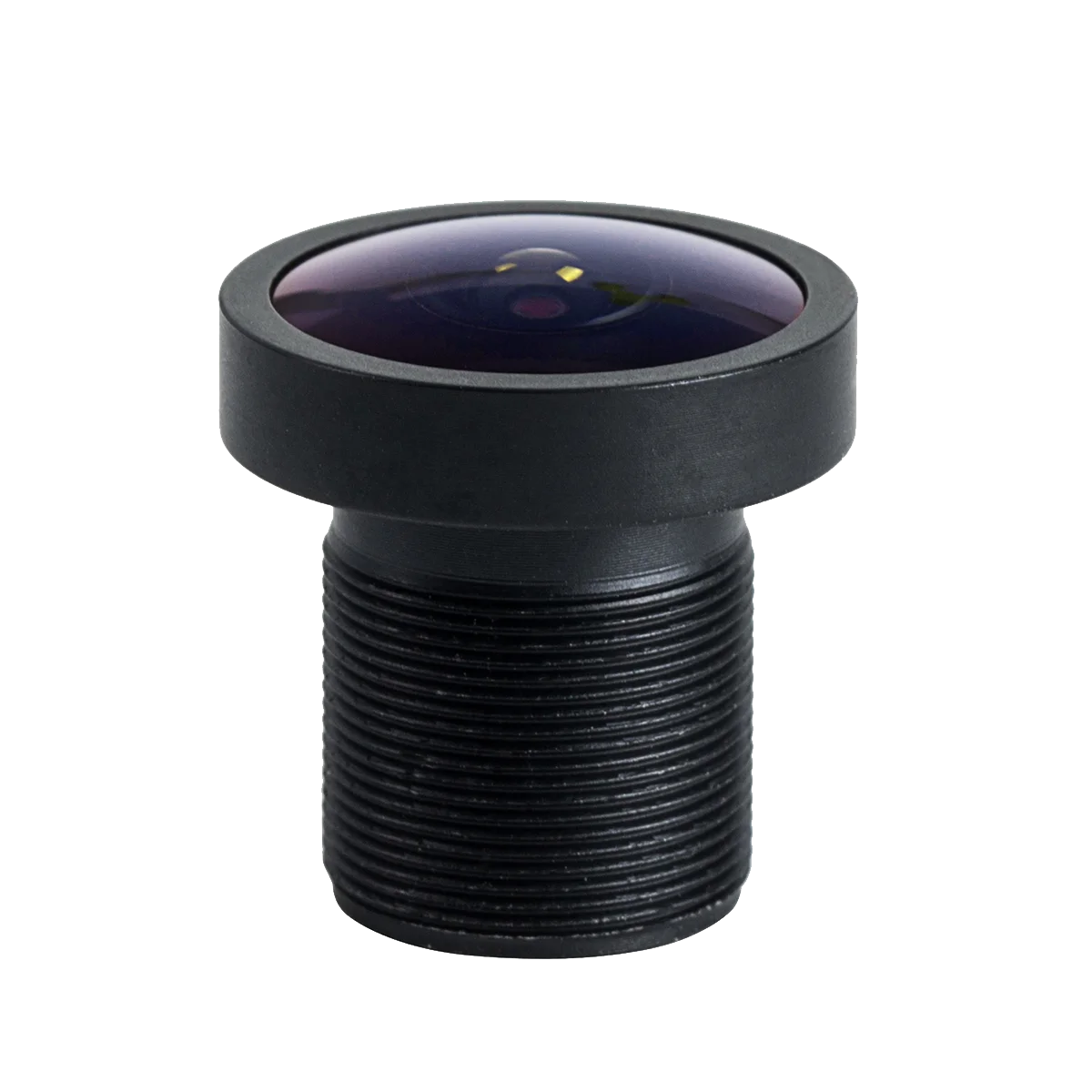

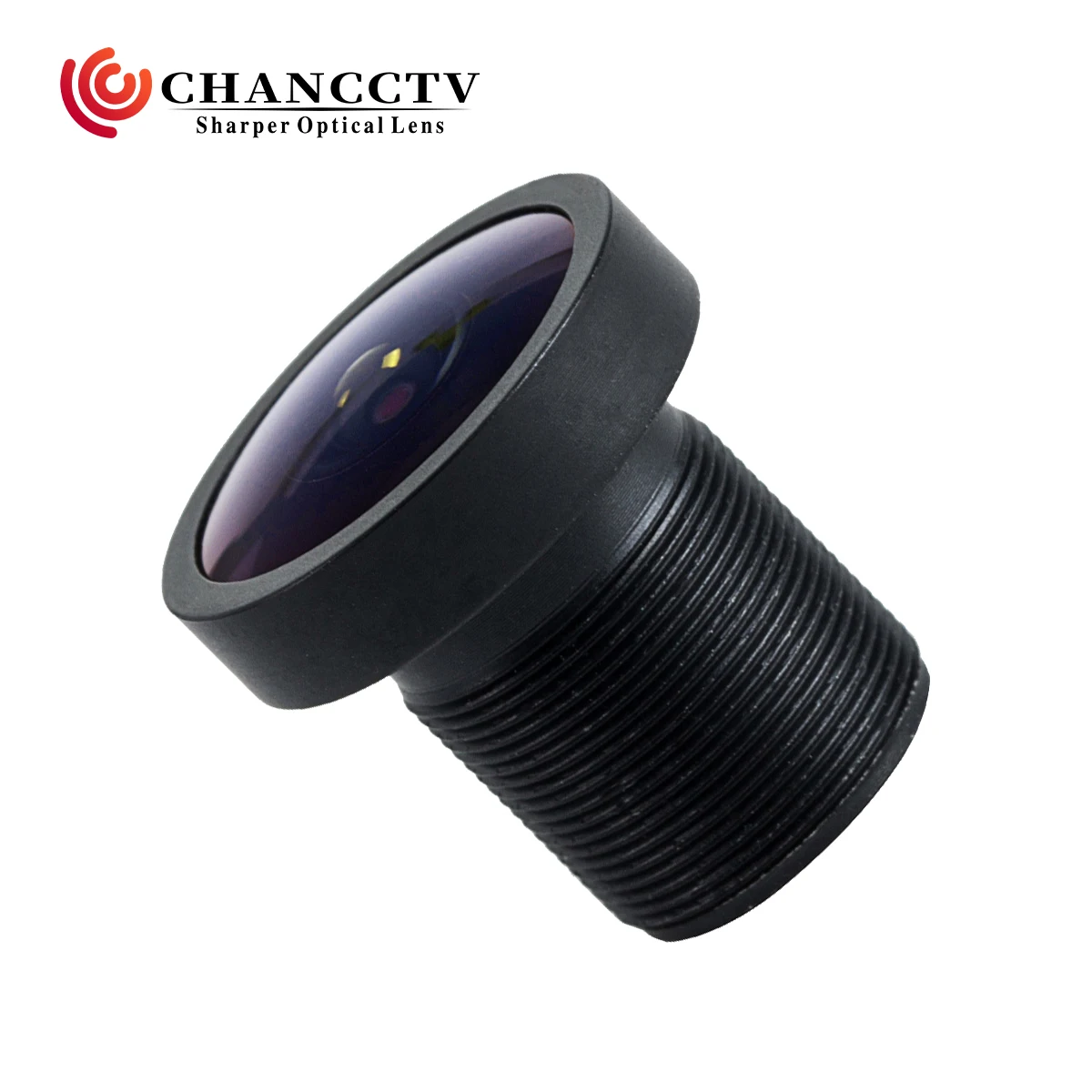

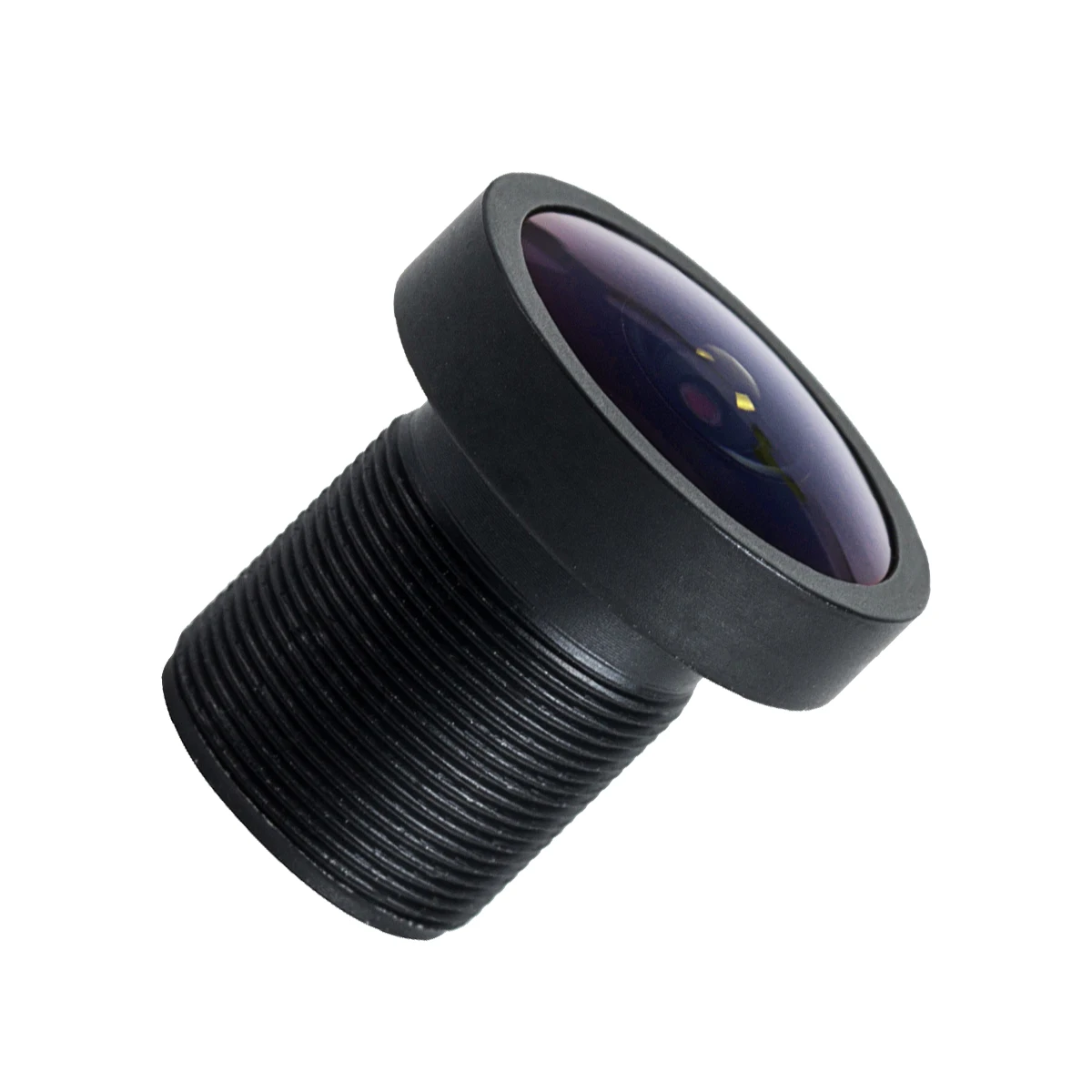

1/2.3 HD DFOV 170 Degree Wide Angle M12 lens with IR CUT Filter 14mp for Action Camera


























































































Medel NO.CH1101A
TypeWide Angle Lens
Resolution14MP
Image Format1/2.3"
Image Circle7.8mm(MAX)
EFL2.86mm
TTL23.00mm
F/NO.2.5
FFL4.31mm
BFL5.89mm
For Sensor1/2.3"
Field of View (V*H*D)95° 130° 170°
TV Distortion<-20%
Relative Ill.>65%
Chief Ray Angle<15.3º
Mount TypeM12*P0.5

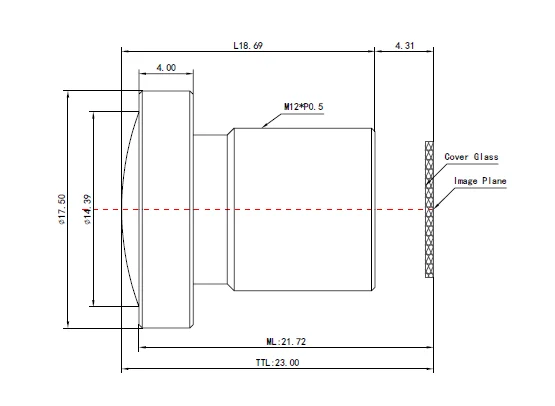

Dimension Figure17.50*L18.69mm
Lens Structure7G
IR-FilterT=50% &650±10nm
Iris OperationFixed
