Red Rawl Plugs
US $0.061-$0.068
Multi Size nylon expansion plastic wall plug anchor / Expand Nails With Screw Insulation Nails
- Category: Anchors >>>
- Supplier: Langfang Rongfeng Plastic Products Co. Ltd.
Share on (60183450874):
Product Overview
Description
insulation nail
expantion nail
shooting fastener
split insulating nail
insulation pin
aircraft expansion plug
Product Description
The expansion screw is composed of screw and expansion tube. The tail of the screw is conical: the inner diameter of the cone is larger than that of the expansion tube. When the nut is tightened, the screw moves outward. Axial movement through threads. By moving the cone part, a large positive pressure is formed around the expansion tube, and the angle of the cone is very small, so that the wall, the expansion tube and the cone can form friction self-locking, thus achieving a fixed effect.
Specification
Material: | PE, PP, Nylon | ||||||
Color: | Gray, White, Red, Yellow, Black, etc | ||||||
Dia: | 6*30, 8*40, 10*50, 12*60, 14*75 (mm) | ||||||
Standard: | ISO | ||||||
Heat Width: | All kinds of | ||||||
Packing: | 1. pvc bag + carton + pallet. 2. bulk packing | ||||||
ANCHOR SIZE | DRILL DIA (mm) | PLUG LENGTH | SCREW DIA (mm) | ||
6*30MM | 6 | 30MM | 3.5-5.0 | ||
8*40MM | 8 | 40MM | 4.5-6.0 | ||
10*50MM | 10 | 50MM | 6.0-8.0 | ||
12*60MM | 12 | 60MM | 8.0-10.0 | ||
14*75MM | 14 | 75MM | 10.0-12.0 | ||
Product Image
Preferred materials, high bearing capacity, strong and durable, strong corrosion resistance, safe and stable
Axisymmetric Modeling
The expansion area is divided into two symmetrical parts to avoid damage to the installation foundation and cause anchoring
failure
failure
The expansion curve design of flange inverted hook type greatly increases the anchoring force of anchor bolt
The blade fins on the casing prevent the expansion tube from rotating and increase friction during installation
The thick wall of the high elastic tube makes the expansion tube more fully expanded

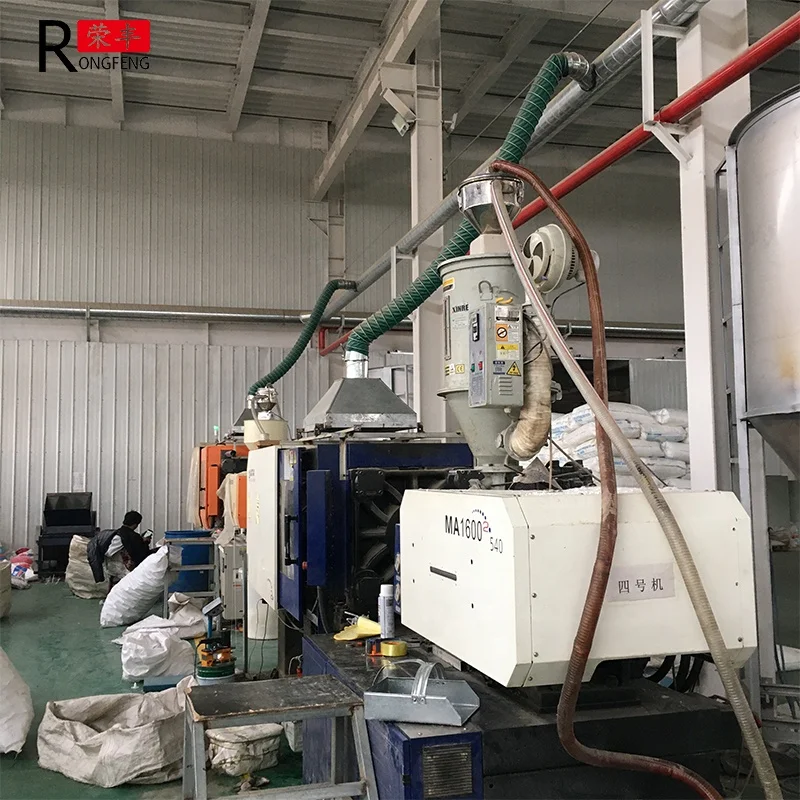

In our factory workshop, we have 15-lines production machine who is producing insulation fastener. And about 40,000 pieces production can be produced for a machine-line per day. So we can guarantee the delivery time very fast.
So if you need some special products, give us your darwing or tell us, we can also help you producing them.
So if you need some special products, give us your darwing or tell us, we can also help you producing them.
Product Usage
Used in building decoration, anchoring aspect of wall insulation house.
Our Advantages
A. Speed up the construction rate more than 10 times than using traditional, External Wall Insulation Fixing.
B. Air mechanics,high efficiency, safe and reliable, economy, environmental friendly.
C. External Wall Insulation Fixing are suitable for any environments, lowest damage to benzene boards.
D. Compact-tructure, convenient to assemble, easy to maintain.
E. External Wall Insulation Fixing can be continuous use.
B. Air mechanics,high efficiency, safe and reliable, economy, environmental friendly.
C. External Wall Insulation Fixing are suitable for any environments, lowest damage to benzene boards.
D. Compact-tructure, convenient to assemble, easy to maintain.
E. External Wall Insulation Fixing can be continuous use.
Packing & Delivery
a. Plastic films + carton+ pallet .
b. As the client's design.
b. As the client's design.
Related Products
Company Profile
Langfang Rongfeng Plastic Products Co.,Ltd. is a manufacturer of insulation nails, plastic discs, The valve of injection molded parts, Anchor bolt and any of the plastic products,with well-equipped testing facilities and strong technical force.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. Welcome new and old customers from all over the word to contact us for future business relationships and mutual success!
