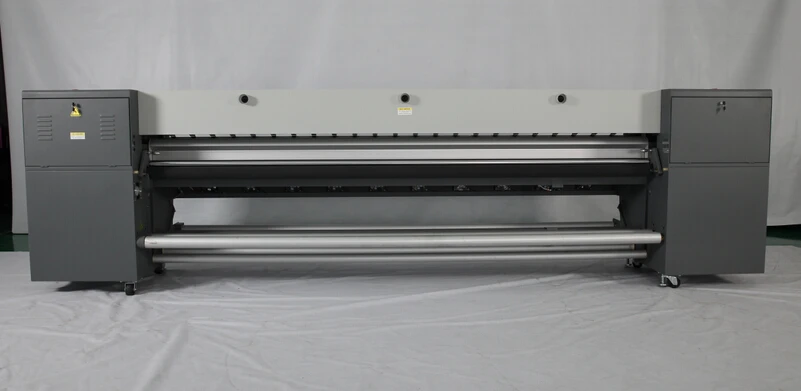

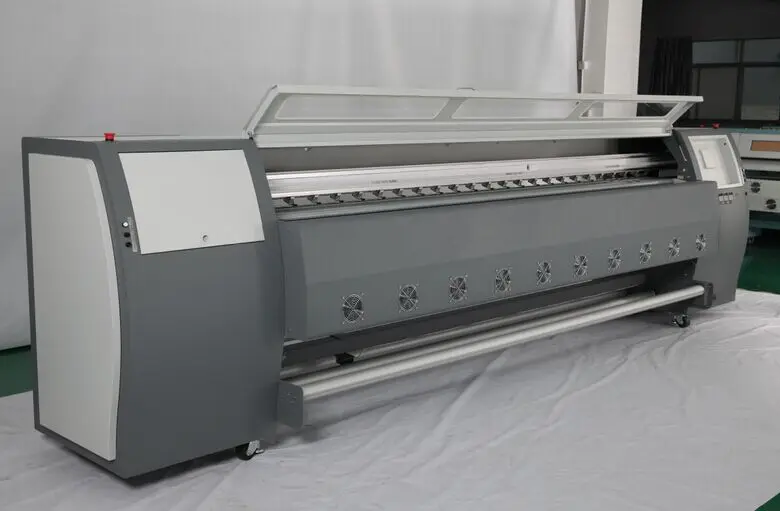

Challenger FY 3286J large format inkjet printer

Product Overview

Description

1.with 6 SPT 508 gray scale printheads
2.3.2m max printing width
3.full aluminum platform
4.infiniti outdoor printing machine



infiniti/challenger digital printer FY-3286J

1.with 6 SPT 508 gray scale printheads
2.3.2m max printing width
3.full aluminum platform

4.6 corlor: C M Y K Lc Lm

5. Adopt USB2.0 output system,faster and more flexible

6. AC X,Y servo motor operate stably
7.speed data port, ensure high speed and quality and long scale output printing







Model	FY-3286J
Printhead	Instrumet Group SPT Printhead From Japan
Number of Printhead	6 Heads
Number of Model	SPT 508 gray scale head (12-36 pico liter)
Printhead Sequency	1x6
Printing Speed	Printing mode                        Output (m²/hr) Draf mode                            2 PASS 93 Production mode                      3 PASS 64 Quality mode                         4 PASS 49 High qualitiy mode                     6 PASS 32
Maximum Printing Width	3,200mm(125.98inch)
Ink	Type : Solvent Ink & ECO-Solvent Ink  Color: 6 Colors(C,M,Y,K,Lc,Lm)  Capacity :1L or 5L Per Main Tank of Each Color  Ink Supply System :Low Ink Detector, Auto or Manual Ink Supply System
Media	Width & Weight : Maximum3,300mm(129.92’’) 120KG   Type :Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc Roll Media or Sheet Media
Auto Media Feeding System	Equipped (Max. Media Weight 80kg)
Auto Cleaning System	Individual Positive Pressure Cleaning  Anti-clogged Flash Function & Capping System
Pre-heat & Dry System	Equipped (Drying System Optional)
Clamp	Equipped
Printing Interface	USB2.0 Cable
Printhead High	Above Media Adjustable
RIP Software	Maintop(equip) , UltraPrint ,Photoprint
Power	Printer :AC 220V, 50Hz  3.5A  770W Platen heating: AC  220V,50HZ  9A  1980W
Machine Dimension	L4, 500 x W905 x H1,260mm / 348KG
Package Dimension	L4, 590 x W1,050 x H890mm / 591KG
Operation Environment	Temperature : 20°C~28°C Humidity : 40%~60%







Machine always be packed in the safe wooden box to against damagad .

Printer should be strictly check by us before send out .

What is more , we will send the tracking unmber to you after send out the machine , you can check the printer any where by internet . That will be more convenience and clear .

We always keep stocking all kinds model of printers



 Technical support :



1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .

2. All kinds of original spare parts for the machine to ensure your machine running smoothly .

What is more , all the printers have one year warranty . During the warrnty, if any problems of the parts , you can send us back to repair or exchange .



More products:

We supply original sk4 , galaxy dx5 , GP-1, flora ...inks .

All kinds print head board , main board , ink tube, solvent pump , date cable ....

 Technical Support  :

 1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .

 2. All kinds of original spare parts for the machine to ensure your machine running smoothly .

 What is more , all the printers have one year warranty . During the warranty, if any problems of the parts , you can send us back to repair or exchange .

 This month our company has discount for the machine . And the shipping cost will be 30% off.  Please feel feel to contact us .



Contacting information :

 Name : Mandy wen    Sales manager

Tel:  0086 020 32053500

Cellphone and whatsapp  : +0086 15989224480

 Skype: mandywen76

 Hope to receive your massage !
