D4.2X4.5M leather overloading tanning wooden drum for beam house for wet blue hides
- Category: >>>
- Supplier: Yancheng Shibiao Machinery Manufacturing Co. Ltd.
Share on (60183679152):
Product Overview
Description
Φ4200X4500mm wooden overloading drum
Product Description
The Specification(mm) | Φ4200X450mm wooden overloading liming/tanning drum | |
Loading capacity | If leather :water=1:2.For liming, load 16-18 ton leather For tanning, load 12 ton leather | |
Drum body | Wood Material | Imported Ekki from Africa |
Plate thickness(plank) | 90mm, 1400kg/m3 | |
Wood Guarantee | 15 years | |

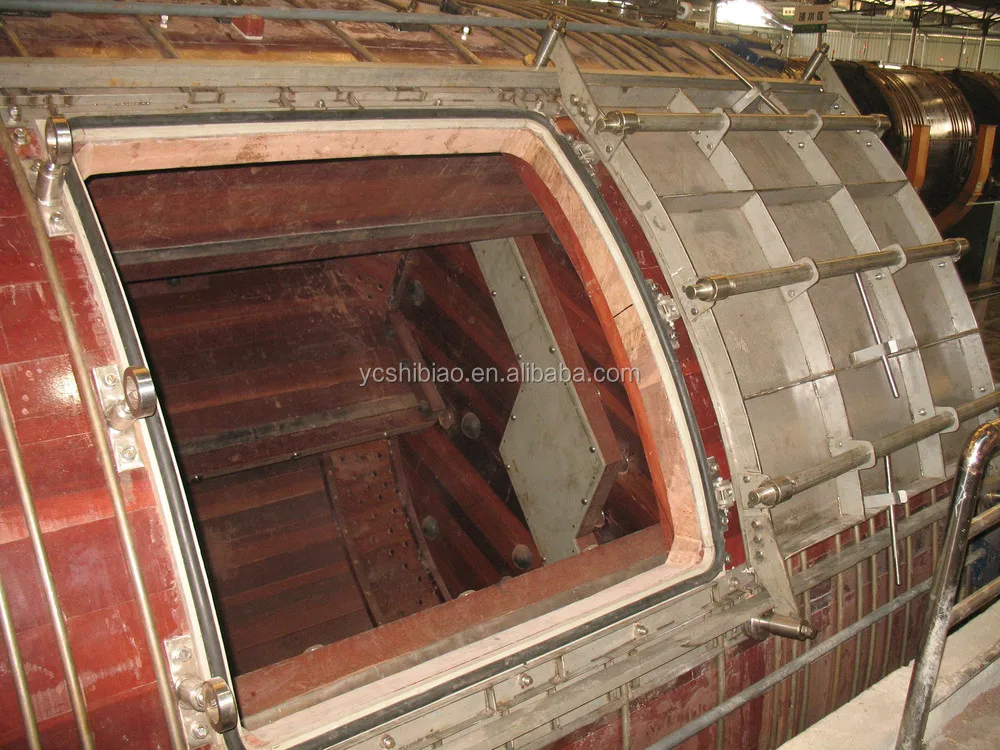

Drum’s door | Material and style of the door | AISI 316L Stainless steel traversing gate, screw is AISI 316L stainless steel |
Dimension of the door | Size of large door 1300x1300, size of small door 450x450 | |
Gearwheel | Diameter | Φ3200mm,M14 |
Material | standard cast-steel ,integrated casting with main spindle | |
Guarantee | All use life except normal abrasion | |
Spider/star | Diameter | Φ3100mm |
Material | standard cast-steel ,integrated casting with main spindle | |
Guarantee | All use life except normal abrasion | |
Assembly screws for gearwheel and star | PP nylon cap, 45# steel screws | |
Drum Revolution speed | 2 rpm , single speed, (made as request), Customer need confirm drum speed | |
Motor | 45kw Customer need confirm voltage and frequency | |
Gear box | Hard-surface gear,280 style Specially used in drum ,and provide pneumatic brake Customer need inform the gear box direction, it means it’s on left or right side when person faces drum standing on the ground. | |
Pinion of gear box | Wear-resistant steel pinion | |
Main spindle and the bearing | Main spindleZG45#,provide ZWZ 23056CK/W33+sleeve,self-aligning bearing | |

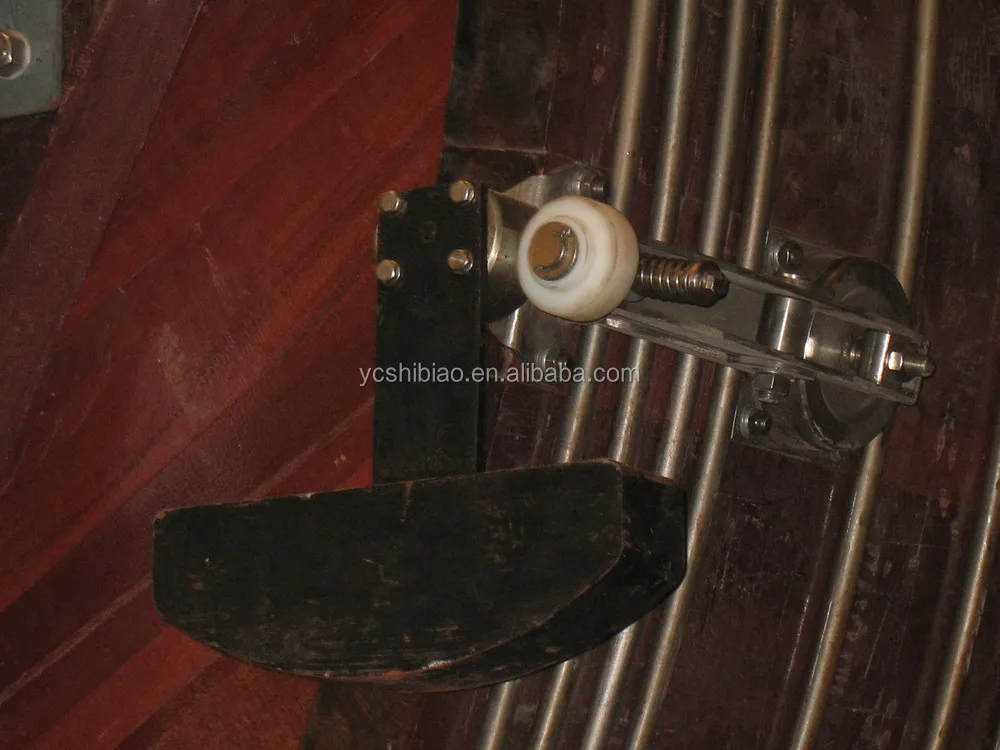

Drain valve,water guide | All Material of drain valve are AISI 316L stainless steel, draining two sides ,4 valves each side . One side water guide, PP material | |
Vent valve | Venting one side,3 valves, AISI 316L stainless steel | |
Outside drum | CranesΦ20x26,transverse braceΦ30x6, vertical rodΦ22x12,all Material are 45# steel . Cranes hot galvanization | |
Drainage banana | 2 PP material drainage bananas | |

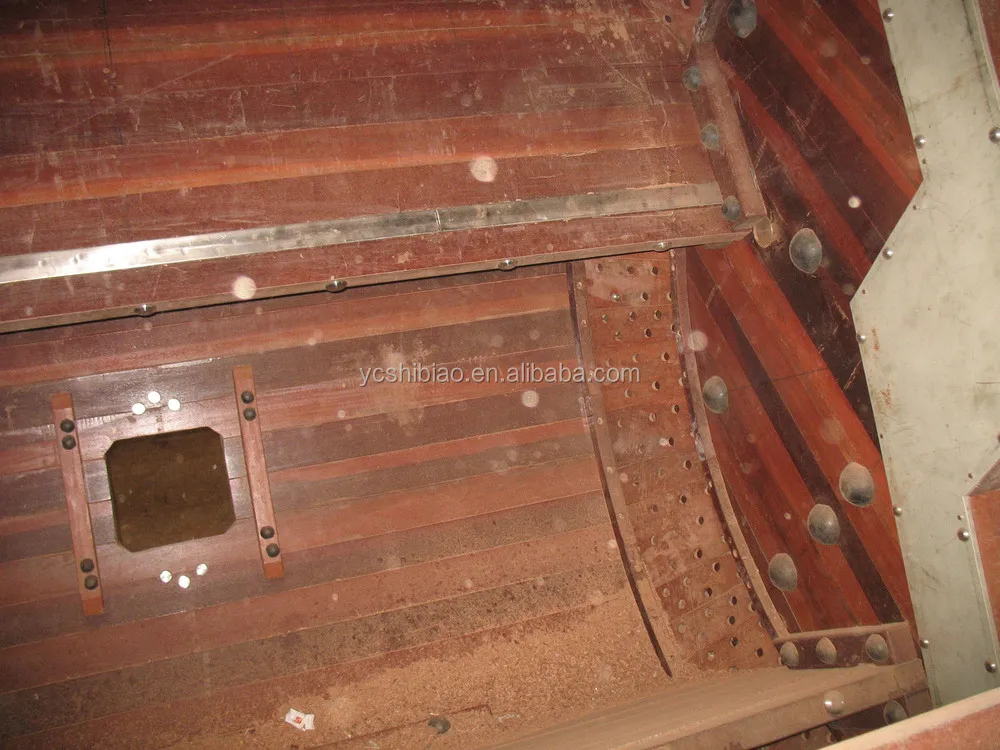

Inside drum Shelf | 4 Huge diagonal inclined shelves, I-stainless steel frame | |
Rotating joint | Combine with stainless steel and bronze | |
Inside Screws touched leather | Except PP nylon cap for gearwheel and star, other touched leather screws are AISI 316L stainless steel material | |
Electrical control cabinet | Every drum has a cabinet with functions of forward and reverse starting, crawl, controlling total working time, reduced voltage starting and brake lag. | |

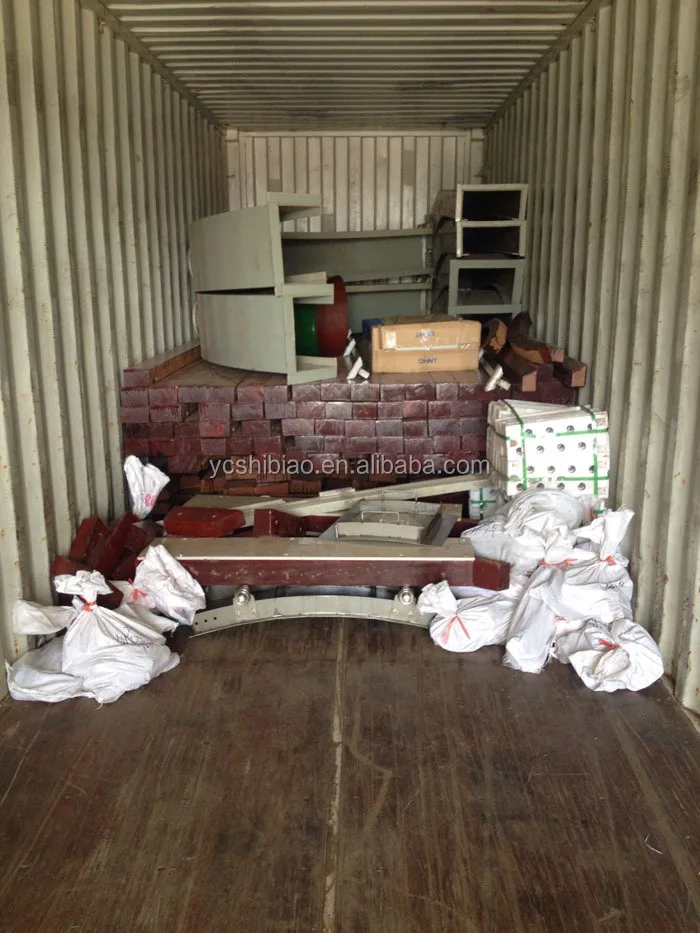

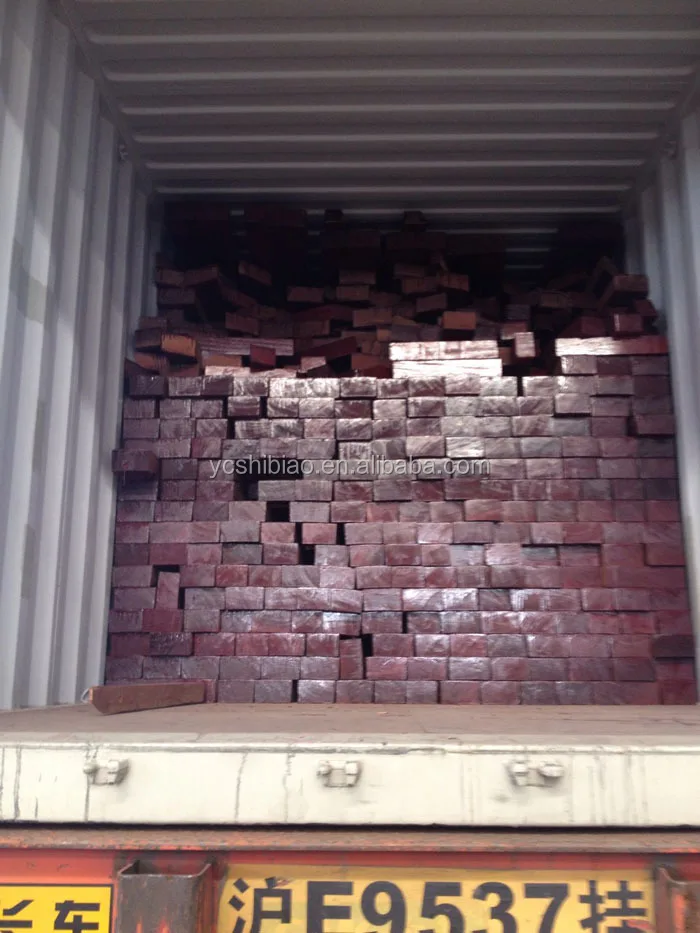

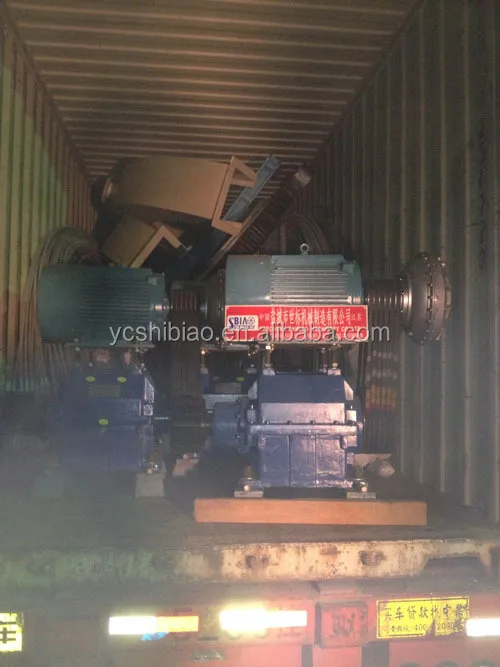

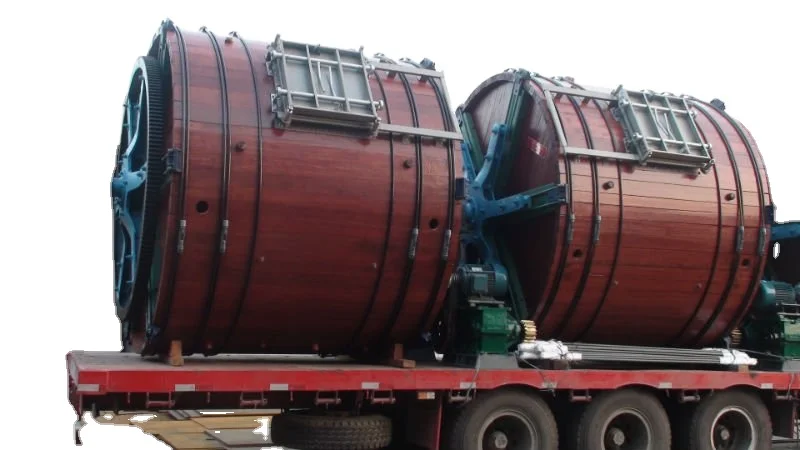

Packaging & Shipping
Company Information
Yancheng Shibiao Machinery Manufacturing Co., Ltd. (Former named Yancheng City Panhuang Leather machinery Plant) was reformed its ownership system to be a private enterprise. The company lies in Yancheng City in the coastal area of the Yellow Sea in Northern Jiangsu. Yancheng City is a boom industrial town in eastern coastal area in Jiangsu, a memorial place where the New Fourth Army rebuilt its military headquarter, and a tourism city of natural scene of coastal beaches and wetlands-economic development zone, sheyang district,Yancheng. The company provides Overloading wooden drums (the same as the newest one in Italy/ Spain), GJOB1-2 series impendent iron, wooden drums, Y-shape stainless steel automatic drums, GJOF series full-automatic stainless steel cylinder, octagonal milling drums, HC series paddles, and many other leather machinery products all the year round. Products are sold well in Zhejiang, Shandong, Guangdong, Fujian, Henan, Hebei, Sichuan, Xinjiang, Liaoning, and other areas. And they are popular with many leather factories all over the country. The products have been successively passed provincial tests and the test by National Leather & Shoe Machinery Quality Testing and Supervision Center. The products have been awarded the Silver Prize on China High- and New- Technology & New- Products Exhibition in year of 2010. The products' parts: The steel-cored nylon-plastic drum posts, have been obtained the national patent right. At the same time, the company provides many services including design of leather machineries with special specifications, repair and adjustment of equipment, and technical reform. The company has established complete testing system and reliable after-sale services. For a long time, Yancheng City Shibiao Leather Machinery Co., Ltd. Has always been guided by the principle of seeking existence by quality, seeking development by service, and the good reputation is the aim. Sincerely welcome customers old and new to come for a business cooperation and welcome friends from all social circles to give guidance!
