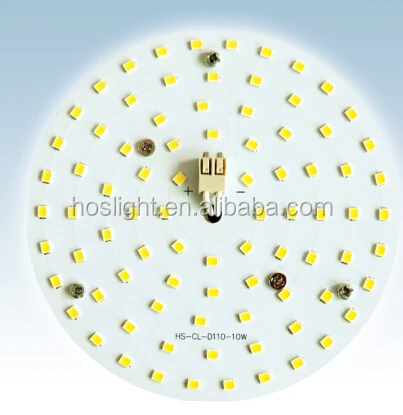

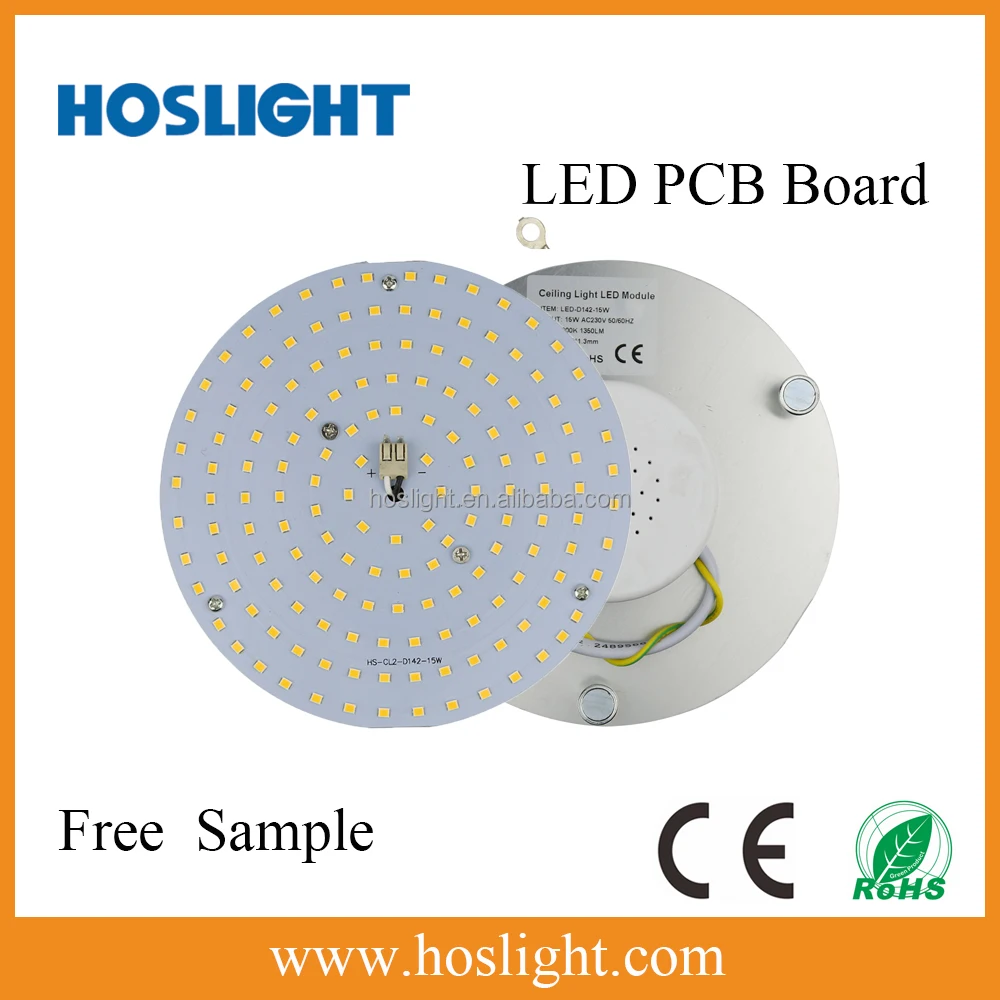

Hottest 15W ceiling light led module/mc pcb board for the resource replacement of circle tube

Product Overview

Description

  Hottest 15W ceiling light led module/mc pcb board for the resource replacement of circle tube





1. Features of the ceiling light LED module



No UV or RF interference, no Mercury or Lead.



Ultra thin PCB panel design, only1.3mm.



Taiwan Imported original Epistar chip.



Life-span:50000 hours.



Industrial powerful magnet,Firm installation,Easy installation



3 years warranty



With CE, RoHS approval.



Φ110mm, Φ142mm, Φ180mm, Φ210mm are available.





2. Specification of ceiling light LED pcb board



Power:	15W
Size:	Φ142*1.3mm
LED:	156pcs Epistar LED 2835
CRI:	83 Ra
Lumen efficiency:	90 lm/w
Lumen output:	930-1000 lm
Power factor:	>90%
Power efficiency:	>85%
Lumen depreciation:	3‰
CCT:	3000K/4000K/6000K
Voltage:	184-240V
Material:	Aluminum, magnet
Bean angle:	120°
Weight:	190g
Certificate:	CE, RoHS
Application:	Replace old ceiling light source





3. How to Choose the ceiling light LED module to replace the light source





4. Outline dimension of ceiling light LED pcb board

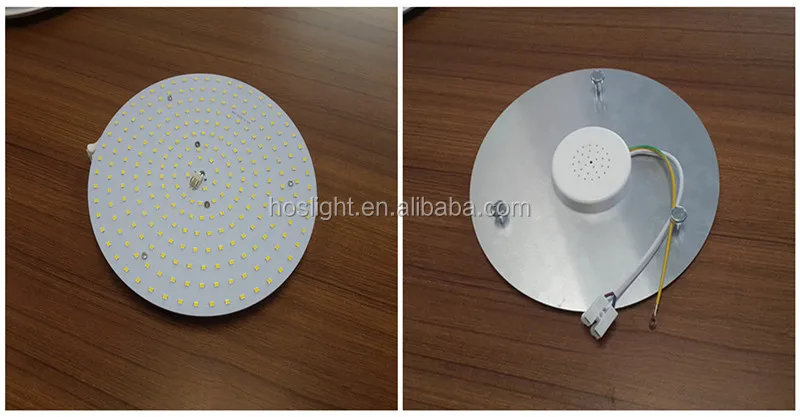

5. Package of ceiling light LED module

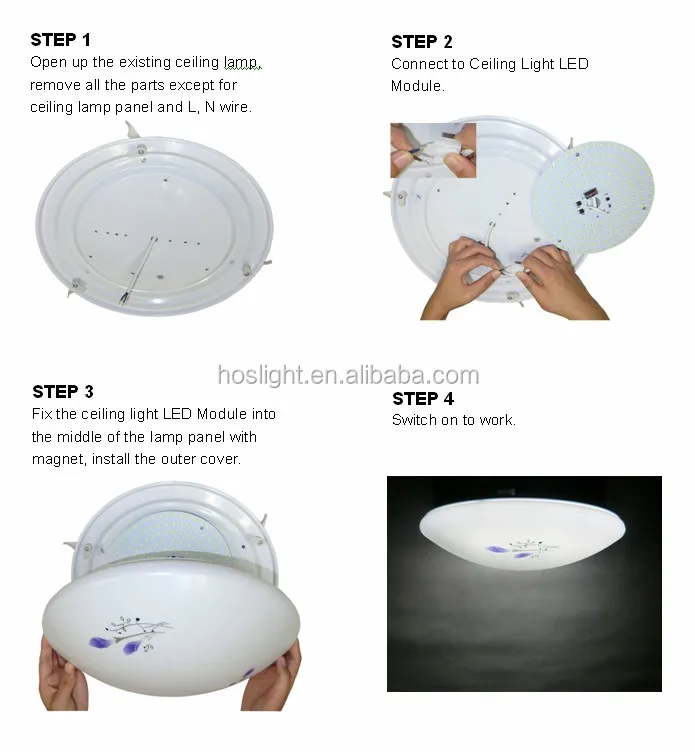

6. Installation of ceiling light LED module

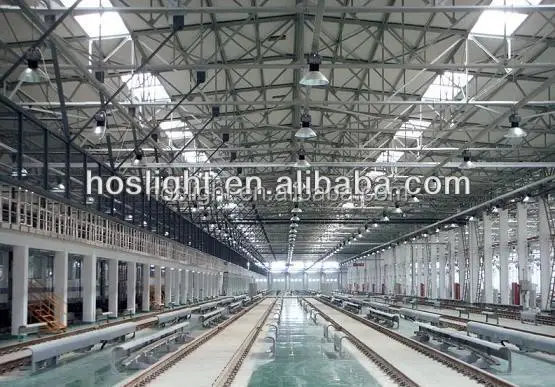

8. Application of ceiling light LED module/led pcb board





Remarks:

1. Please install the lamp by professionals.

2. Please make sure the right voltage before working.

3. For indoor use only, please stay away from heat and vibration source.

4. Switch OFF the power before installing the Ceiling light LED round PCB Board.



8. Certificates of ceiling light LED module
