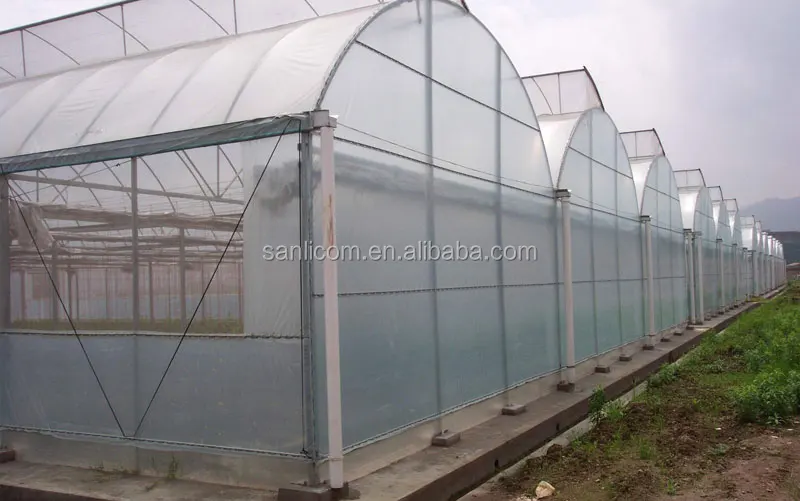

Double Layer Inflated Poly Film Greenhouses

Product Overview

Description



Model	Cladding material	Span(mm)	Section(mm)	Top height (mm)	Snow Load(KN/M2)	Wind Load(KN/M2)
SLC FG-841	Anti-drip Film	9600	4000	2000-3000	0.2KN/m2	0.4KN/m2
SLC FG -842	Anti-drip Film	9600	4000	2500-3000	0.2KN/m2	0.5KN/m2
SLC FG -843	Anti-drip Film	8000	4000	2000-3000	0.3KN/m2	0.4KN/m2
SLC FG -844	Anti-drip Film	12000	4000	3000-3500	0.3KN/m2	0.5KN/m2
SLC FG -845	Anti-drip Film	9600	4000	2500-3500	0.2KN/m2	0.5KN/m2

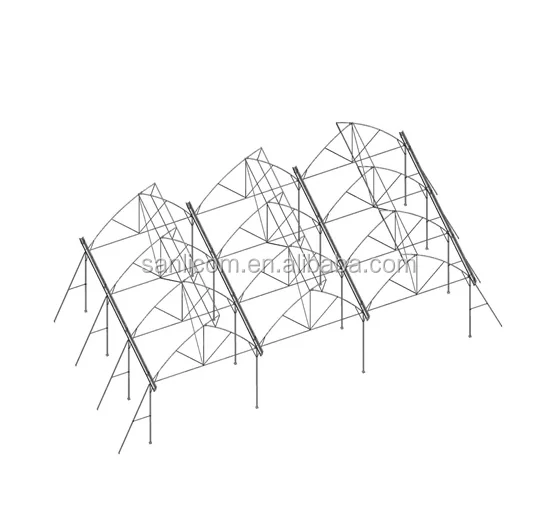

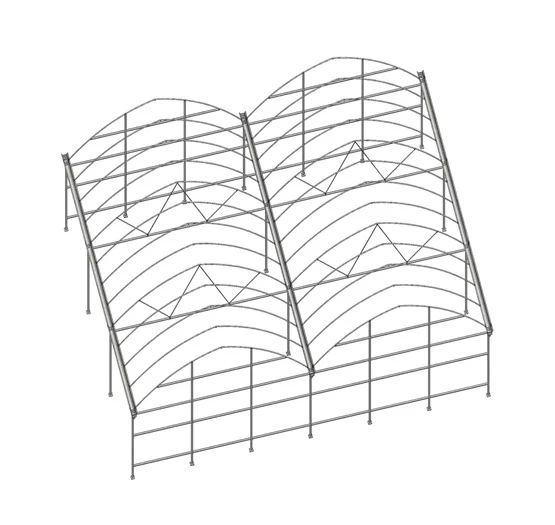

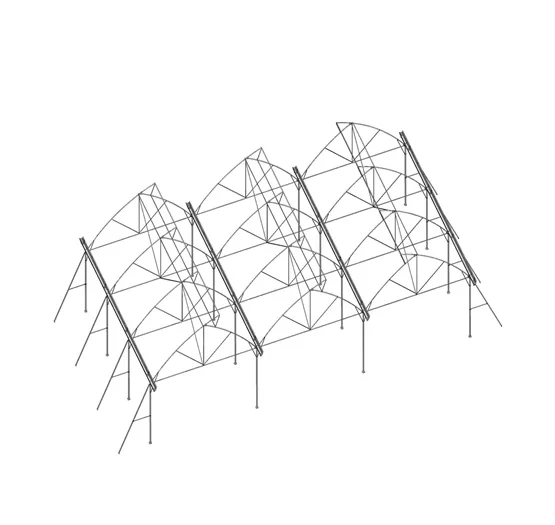

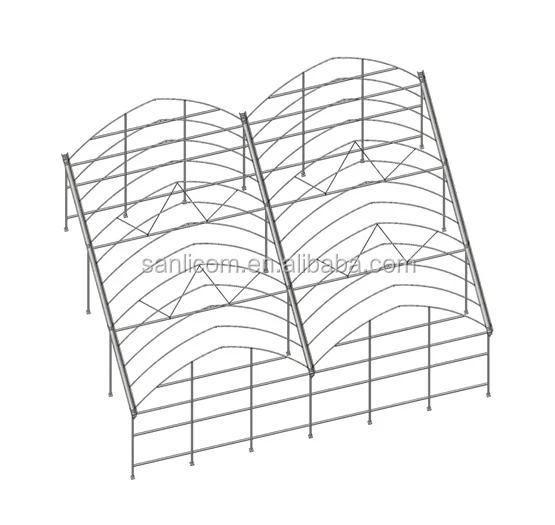

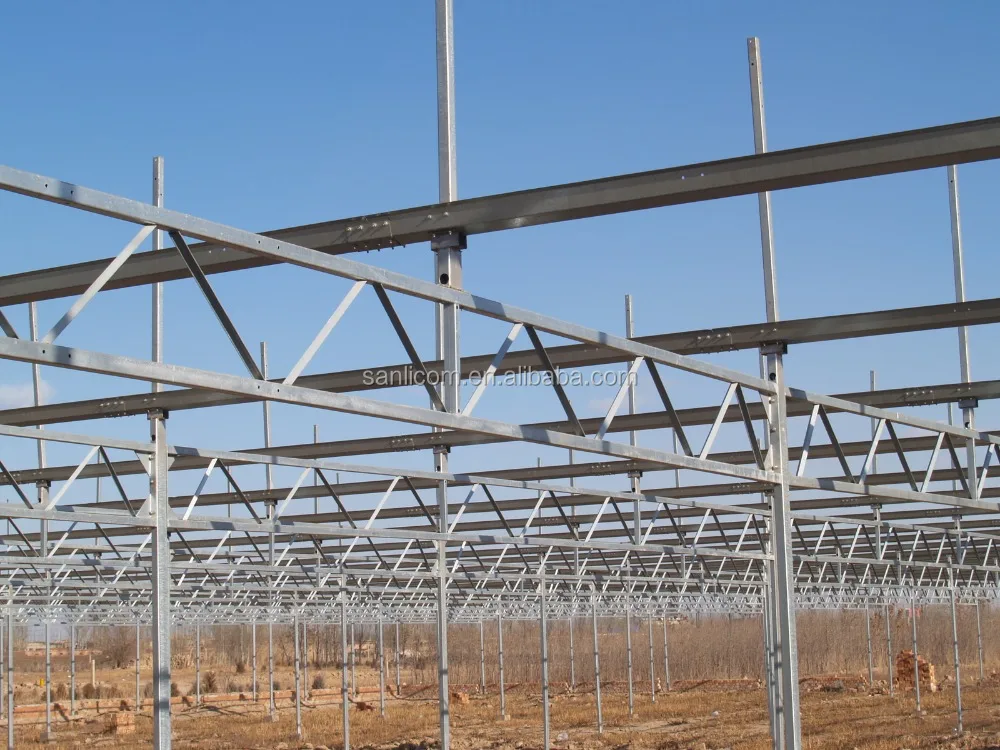

The frame works structure is consisting of main poles, truss, gutters and various joint levers and joints. It is assembly style without any welding point. All material is hot galvanized with zinc cover 275g/M²

Wind load: 0.5 KN/M², Snow load: 0.4 KN/M², Max Tonnage: 150/M³/H

• The rack and pinion driven windows can make full use of natural wind;
• Aluminum sliding  doors;
• The intelligent controlling system (including the intelligent computer controller, weather station, various sensors and operation system), can intelligently control all systems like ventilation system, shading system, cooling system, heaters, fans, etc, in the greenhouse to maintain a comfortable environment for plants according to the pre-established environmental parameter;
• Optional equipments according to actual needs of clients: Shading system, fogger system, Cooling pads & Exhaust fans system, heating system, irrigation system, supplemental lighting system, etc;
