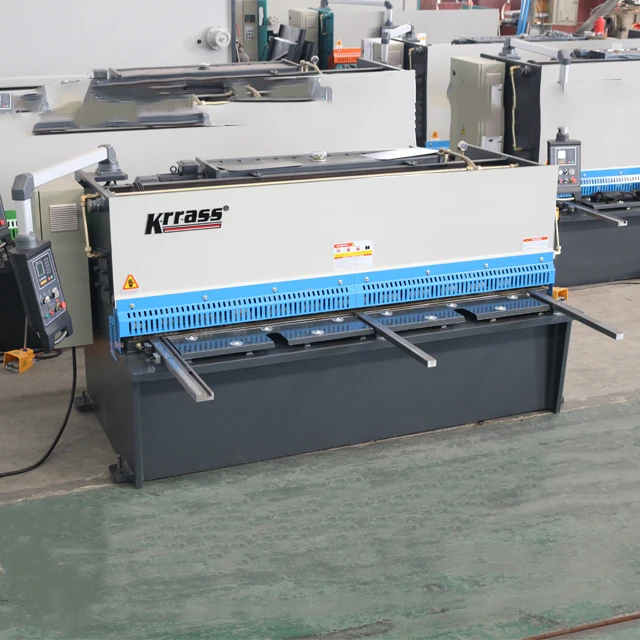

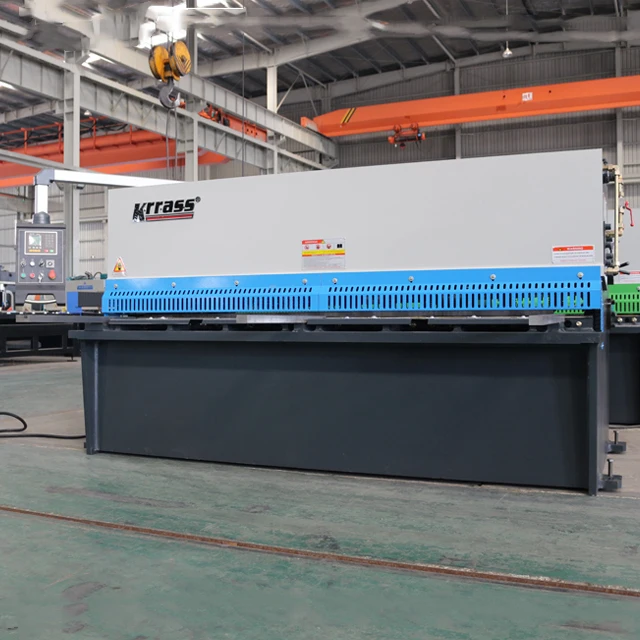

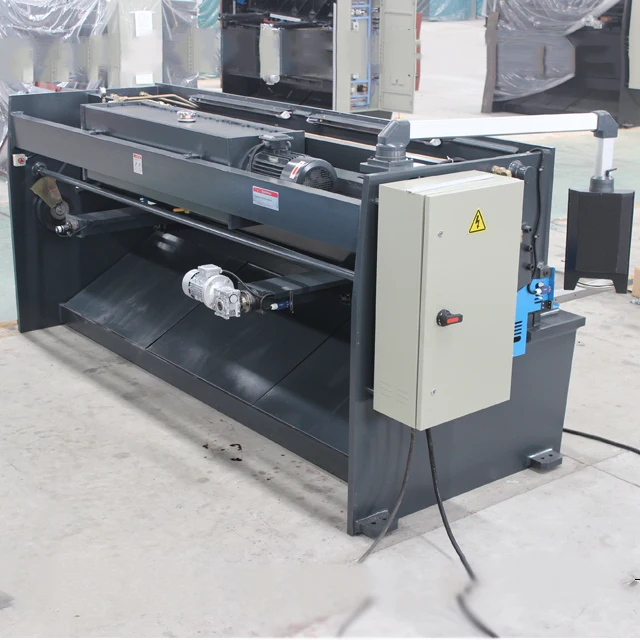

QC12Y 6X2500 portable hydraulic shearing machine , iron sheet hydraulic shear with CE

Product Overview

Description





1. Product Description





1.Standard Equipment:



• Estun E21S NC control system


• Powered Back guage X-axis


• DELTA Inverter controlled back guage

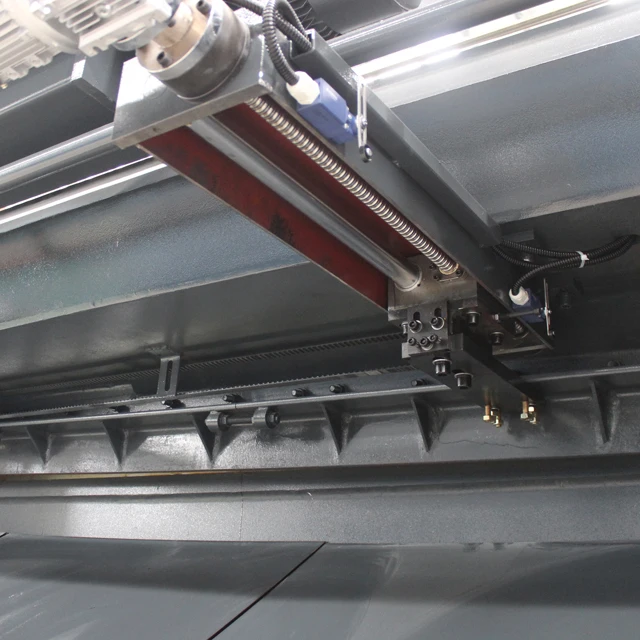

• HIWIN Ball screws &Polished  rod with 0,05mm accuracy


• Squaring Arm and Front Support Arms


• Germany Bosch-Rexroth Hydraulic


• Germany EMB Tubing connector


• Germany Siemens Main Motor


• Telemecanique Schneider Electrics


• Hydraulic &Electrical overload protection


• Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)

2.Safety Equipment:

• Safety Standards(2006/42/EC)
  1.EN 12622:2009+A1:2013
  2.EN ISO 12100:2010
  3.EN 60204-1:2006+A1:2009

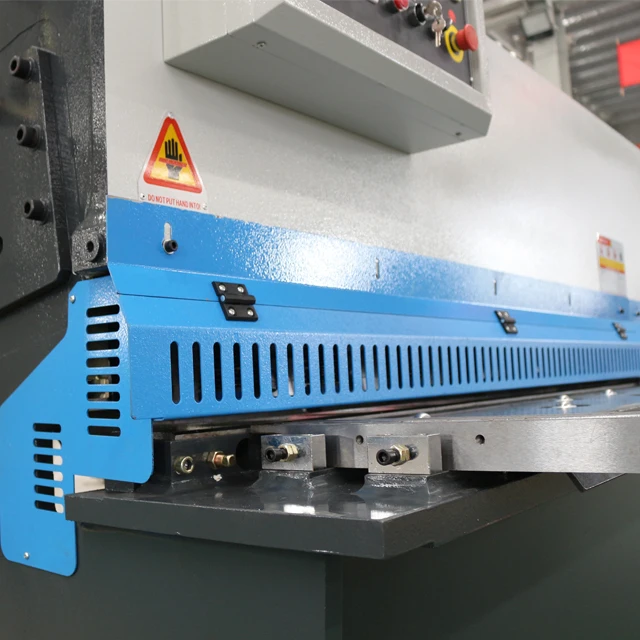

• Front finger Protection(Safety light curtain)


• South Korea Kacon Foot Switch(Lever 4 of Safety)


• Back metal safe fence with CE standards


• Safety relay with Monitor the pedal switch &safety protection

3.Estun E21S NC control System



• Backgauge control


• Control for general AC motors, frequency inverter


• Intelligent positioning


• Double programmable digital output


• Stock counter


• Program memory of up to 40 programs Up to 25 steps per program


• One side positioning


• Retract function


• One key backup/restore of parameters


• mm/inch


• Chinese/English





Watch Video on Youtube

https://www.youtube.com/watch?v=nWoNjhAro18



2. Features



•  Totally EU streamlined design, Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.


• Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany


• The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.


• The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21S with Delta inverter.


• Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.


• Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.



3. Configuration
