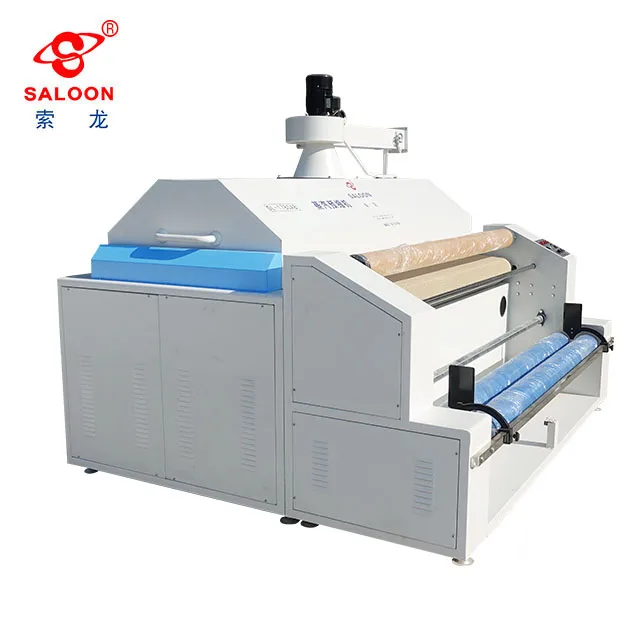

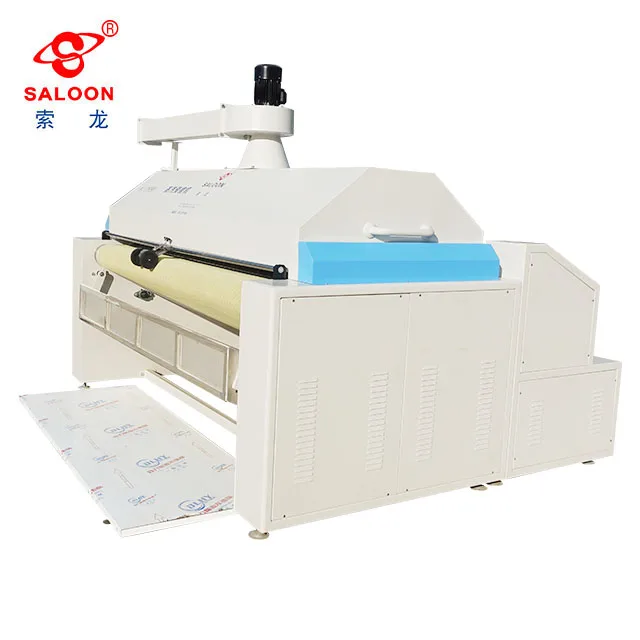

For Cloth Finishing Fabric Cloth Pre Shrinking And Forming Machine

Share on (60184342602):


Price:

Quantity:


Product Overview

Description



Shrinking width
2050mm
Dimensions(L*W*H)
2500*2680*2110mm
Conveying speed
0-40y/ min
Voltage
380V/ 50Hz
Steam consumption
100kg/ H
Power
13.25kw




Product Character
The machine is divided into one steam humidification areas, which are connected to each device by conveyor belt, equipped with imported material convetor belt.
● Electric eye will monitor the process.
● The steam temperature can be turned according to different cloth materials the temperatureis within 125℃ ~ 185℃ with repid temperature rise.
● Suction hood device: It absorbs residual steam in the humidification zone to keep the air in the workplace fresh.
● Length measurer: Electronic length measurer, which accurately measure the fabric length.
● Net belt automatic deviation correction device: automatically adjusts when the net takes away deviation, frequency conversion speed regulating conveyor belt.
