Greenhouse Shading Rack and Pinion

Product Overview

Description

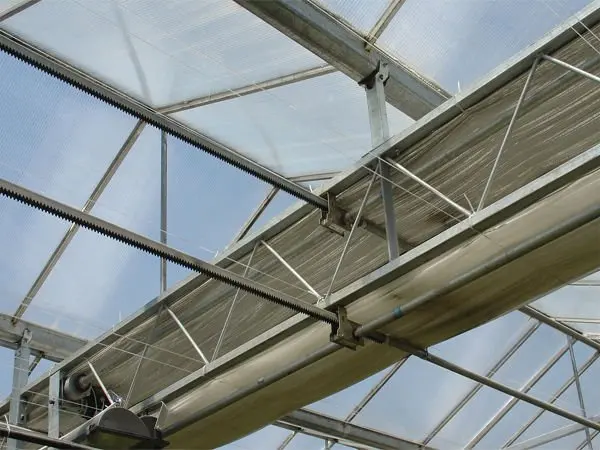

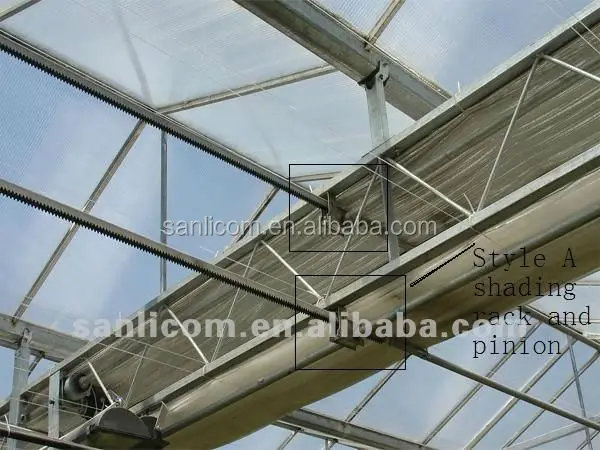

Rack and Pinion used in greenhous for Ventilation, used as a set with the Windowing and Shading Motor.

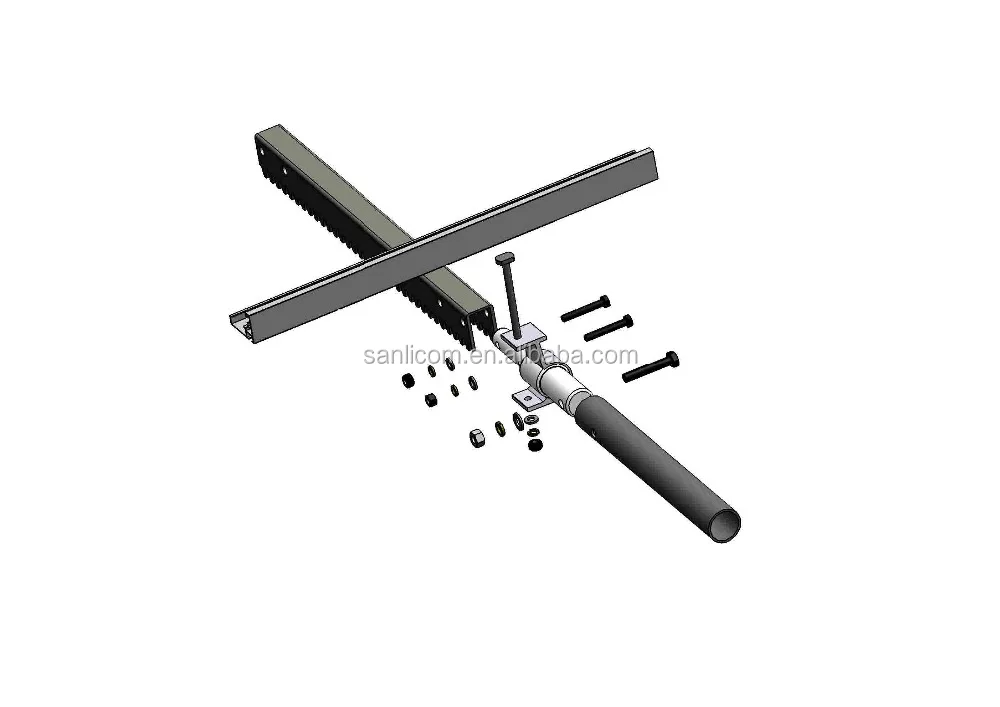

Rack and pinion direct vent system,Straight and arc rack both available. Thickness for ventilation rack in 2.0mm and 2.5mm.Powder matallurgy gear box and stainless casting steel gear box for ventilation pinion are available.





Art No.	Voltage	Power	Output speed	Output torque
SLC-K550/40-2.6	380V	550W	2.6rpm	400Nm
SLC-K550/40-5.2	380V	550W	5.2rpm	400Nm
SLC-K750/80-2.6	380V	750W	2.6rpm	800Nm
SLC-K750/80-5.2	380V	750W	5.2rpm	800Nm

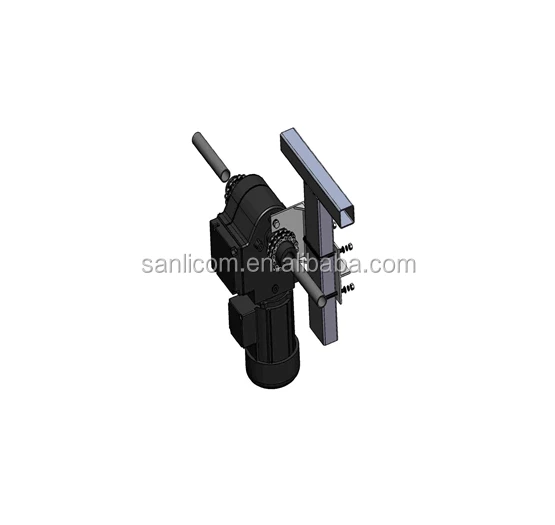

SLC Gear Motor is a product produced for Window open/close and Shade Systems with reducer case, motor and limit device in one set, and the good points are of small in size, light in weight and reliable in performance.

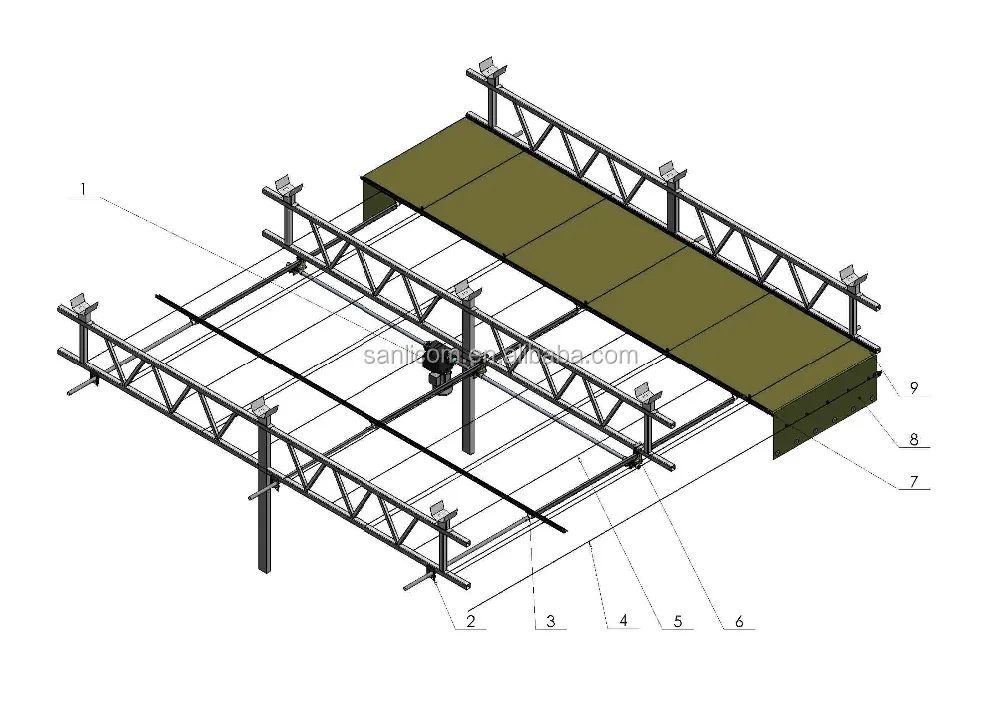

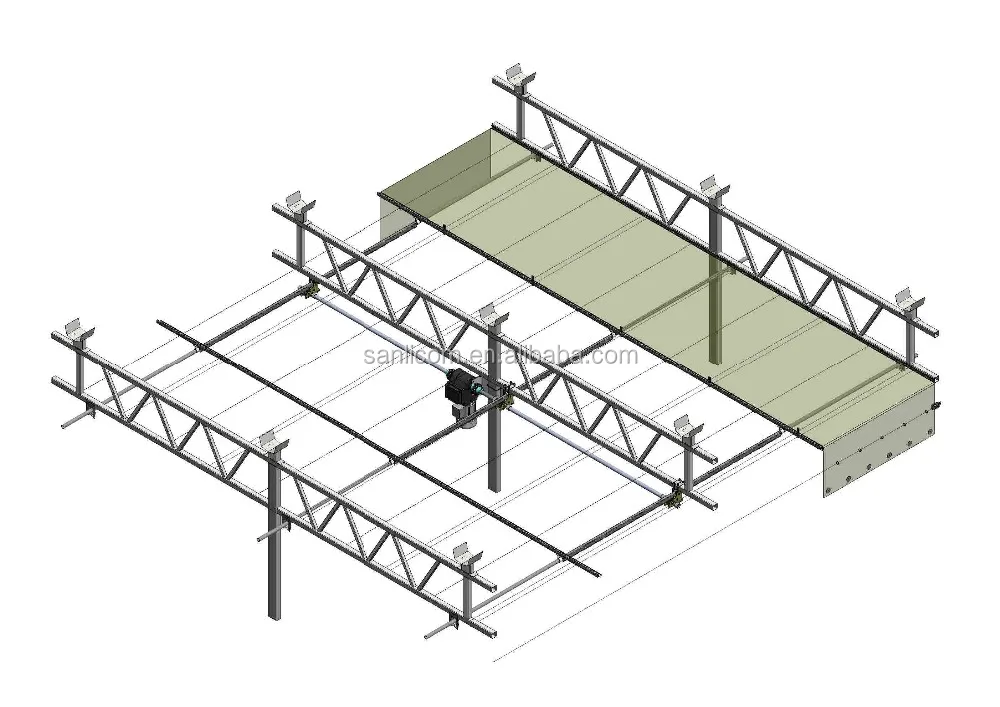

The motor can be used for Shade System in three ways: Type A Shade System, Type B Shade System and Cable Wire Shade System.
