1/8' shut off valve spring check valve plastic check valve

Product Overview

Description

 spring valves check valves one way valves



Body material	PP
Sealing material	FKM



opening pressure: < 2KP

back pressure:  200KPA

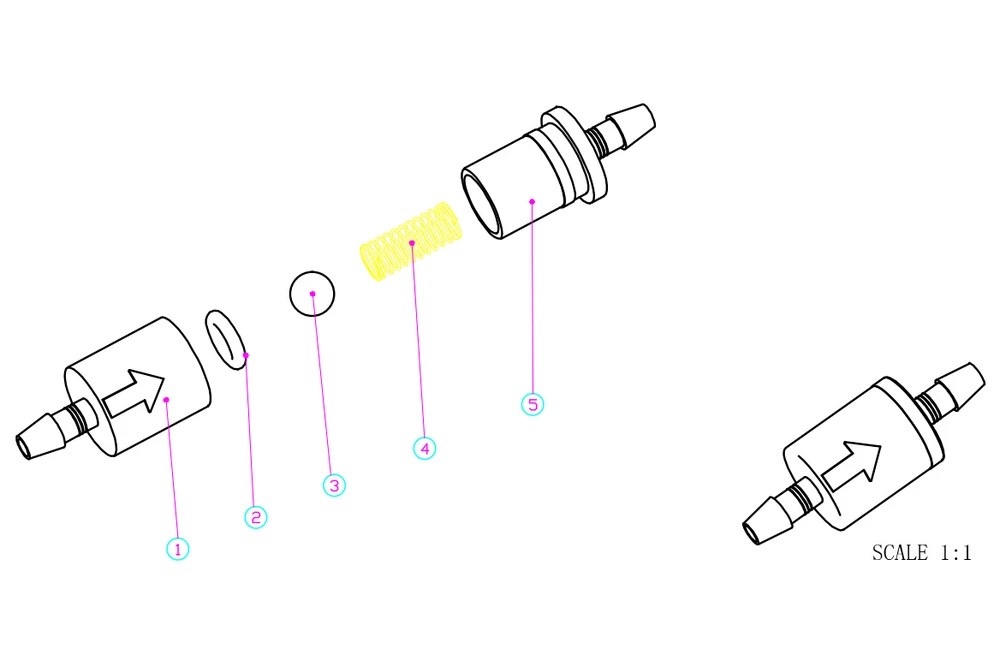

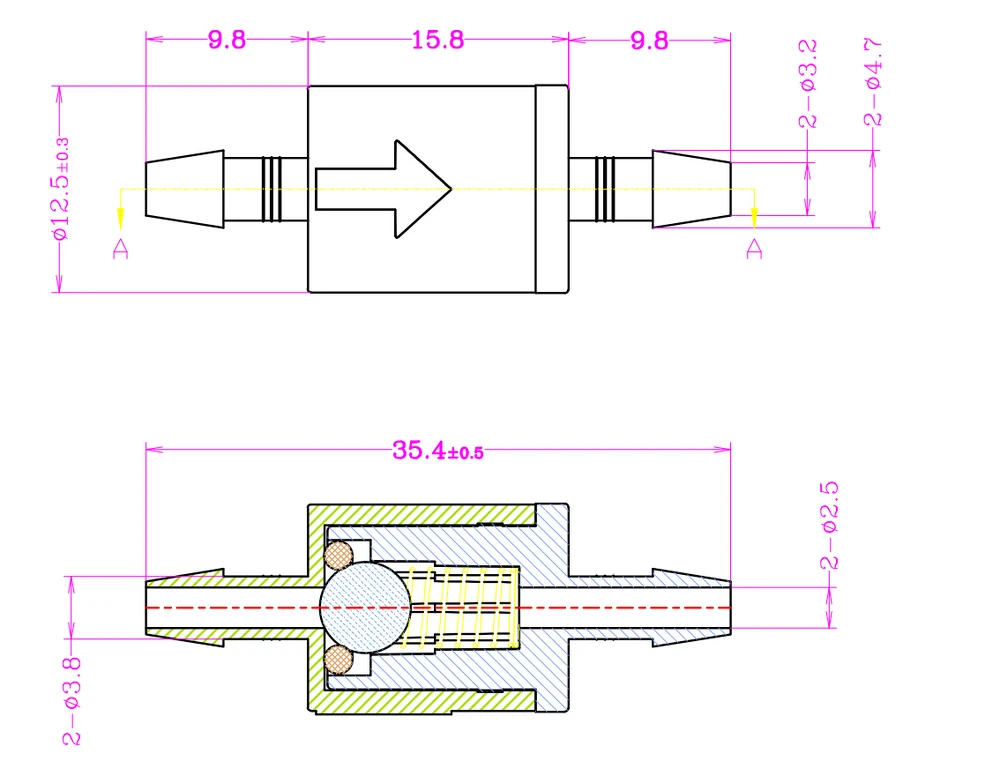

Drawing :





Application

1. industrial inkjet


2. wide inkjet printers


3. tester


4. gasoline engine

Check valves are used to prevent flow of fluid (gas or liquid) in one direction and allow flow in the other direction.

1.Five port sizes. (nominal inside diameter of the tube in which it fits) 1/8", 3/16", 1/4", 5/16" and 3/8".

2.Three housing materials. nylon type 66, polypropylene and PVDF

3.Four diaphragm materials. fluorosilicone, Viton, silicone and EPDM



Function:

1.Prevents damage to equipment, pumps, and flow systems by preventing backflow

2.Tubing barbed check valves are for an inert high purity smooth and clear flow path.

3.Use with liquids and gases for pressure or vacuum applications.

4.The check valves has a low pressure drop and can be specified with a wide variety of cracking pressures



Advantage:

1.We offer competitive pricing and reliability because we are the manufacture.

2.If your design requires a unique configuration, we will be pleased to quote your needs.

3.plastic materials can save money for you and are simple, compactultrasonic welding to connect more

Firmly



Packing
plastic bag and wrapped, cased in small carton



Surprise: The freight is for free!



MOQ: 100 piecs
