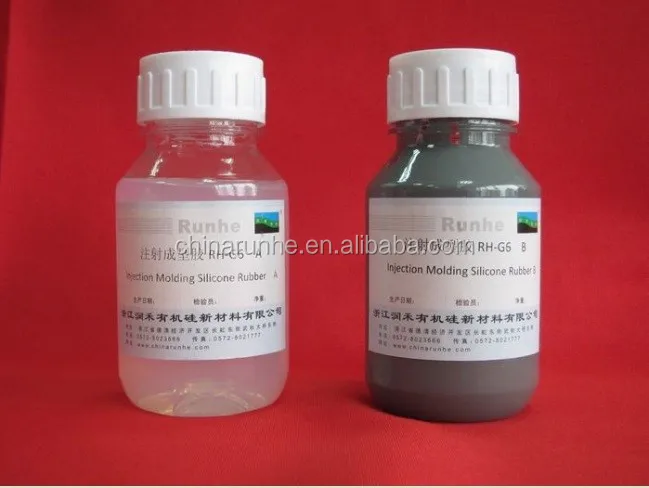

RH-G601 Factory prices Insulator liquid silicone rubber (injection molding system,as Dow Corning HV 1551/55P)
Property
2-components additional liquid silicone rubber, catalyzed by Platinum. which is produced by addition reaction,medium temperature curing.suitable for injection molding, mixing ration of parts A:B=1:1
Basic Character
Appearance:transparent liquid/gray liquid
Viscosity (25℃,mPa.s):150000~160000
Operative time after mixture:24h( 25℃)
Density ( 25℃):1.09
Shore A hardness:40-42
Elongation at break>600%
Tear strength>25kN/m
Uncured properties | Test method | Properties | Unit | Figure |
Appearance: A transparent, B grey | ||||
| Viscosity(28℃) | Pa.S | 140/160 | |
|
| Operative time after mixture | Hr,25℃ | 48 |
Cured properties | ISO1183-1:2004 | Specific gravity | g/cm3 | 1.10 |
ASTM D2240-05 | Shore A hardness |
| 40 | |
ISO 37:2011 | Tensile strengh | MPa | 7.05 | |
ISO 37:2011 | Elongation at break | % | 450 | |
ISO 37:2011 | Tensile set(50℃±2℃,200% elongation rate for 48h) | % | 2.6 | |
ASTM D624-00 | Tear strength | KN/m | 21.2 | |
IEC60093:1980 | Volume resistivity | Ω.mm | 4.6×1015 | |
IEC60250:1969 | Relative permittivity 100Hz |
| 2.90 | |
IEC60250:1969 | Dissipation factor 100Hz |
| 2.66×10-3 | |
IEC60243-1:1998 | Frequency electrical strength(Normal oil,rapid pressurization) | kV/mm | 17.1 | |
IEC60587:2007 | Tracking resistance | Grade | 1A 4.5 | |
Feature
Low Viscosity
Fine hydrophobicity
High tear strength
Rapid vulcanization at moderate and low temperature
Fine tracking resistance
Applications

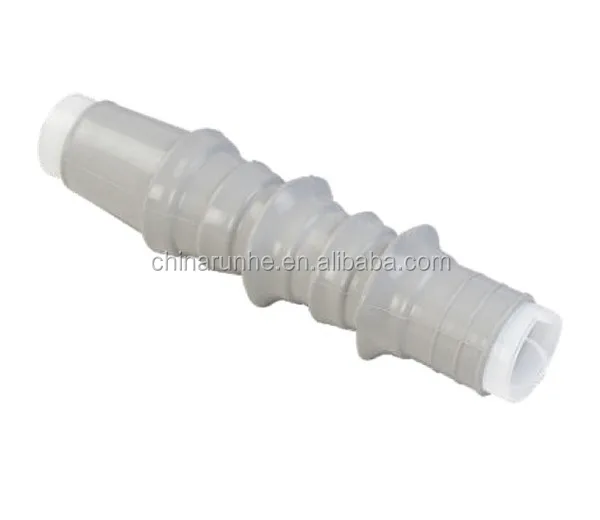

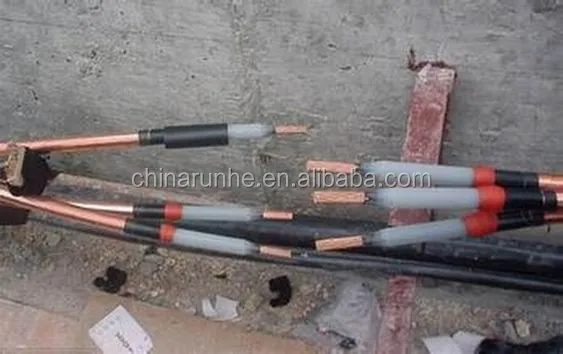

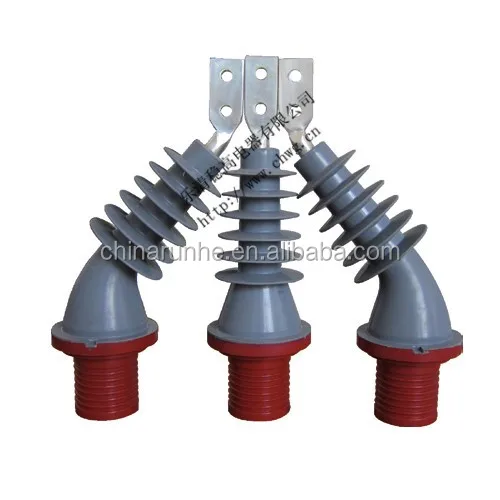

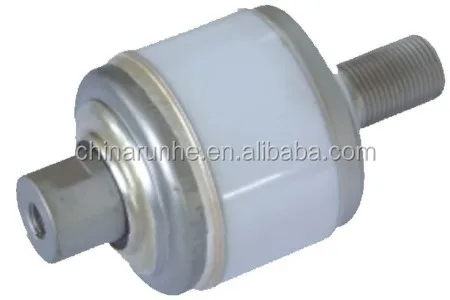

Medium and high voltage resistance cable accessories, indoor and outdoor cold shrinking terminal, insulators,hollow insulators, etc.
Package and Storage
20 or 200kg /drums.
Runhe Chemical, ISO9001,ISO14001. SGS and Intertek.
Produce 2-Component Additional Type Liquid Silicone Rubber(2-K LSR),Injection molding Silicone Elastomer Materials.
