Airy air filter material air purifier hepa filter hand made hepa filter dust catch net

Product Overview

Description

Airy air filter material air purifier hepa filter hand made hepa filter  dust catch net





Specialty:



1.  The disposable hepa filter can collect 0.3 Micron or below particles and used as the terminal filtration.



2. It is processed by super fine fiberglass media separated by hot-melt adhesive with double polyurethane gasket. Inside sponge can avoid any leakage. Injection molding mesh can protect the inside media very good.



3. The disposable hepa filter pleated type can form a ventilation channel, increase filtration area and airflow, decrease the resistance.



4.  Disposable hepa filter is featured with high efficiency and dust holding, low resistance, uniform airflow, easy installation.



5.The disposable hepa filter is individually tested via PSL particle, Using MPPS (DOP Test) laser particle counting device to measure overall efficiency of the filter.



6. Temperature resistance: 80°C, relative humidity is 80%.





Application:



The disposable hepa filter is widely used as terminal filter in top grade purifying equipments of Electronics Factory, semiconductor, precision mechanism, pharmaceutical factory, hospital, food sanitation etc.





Specification:

Size(mm)	Rated Airflow(m3/h )	Filter Area(m2)	Dust Holding Capacity(g/m2)	Initial Pressure Drop(Pa)	Final Pressure Drop(Pa)	Average Arrestance
305x305x50	200	1.8	100	≤220	400	≥99.99%
484x484x50	500	4.6	300	≤220	400	≥99.99%
610x610x50	800	7.5	450	≤220	400	≥99.99%
915x610x50	1200	11.2	700	≤220	400	≥99.99%
1220x610x50	1600	14.9	900	≤220	400	≥99.99%
305x305x69	260	2.5	150	≤220	400	≥99.99%
484x484x69	700	6.6	400	≤220	400	≥99.99%
610x610x69	1100	10.7	650	≤220	400	≥99.99%
915x610x69	1600	16	950	≤220	400	≥99.99%
1220x610x69	2200	21.3	1000	≤220	400	≥99.99%
610x610x90	1500	14.9	900	≤220	400	≥99.99%
915x610x90	2000	22.3	1200	≤220	400	≥99.99%
1220x610x90	2800	29.8	1800	≤220	400	≥99.99%

 Note: Special Size Available Upon Request.

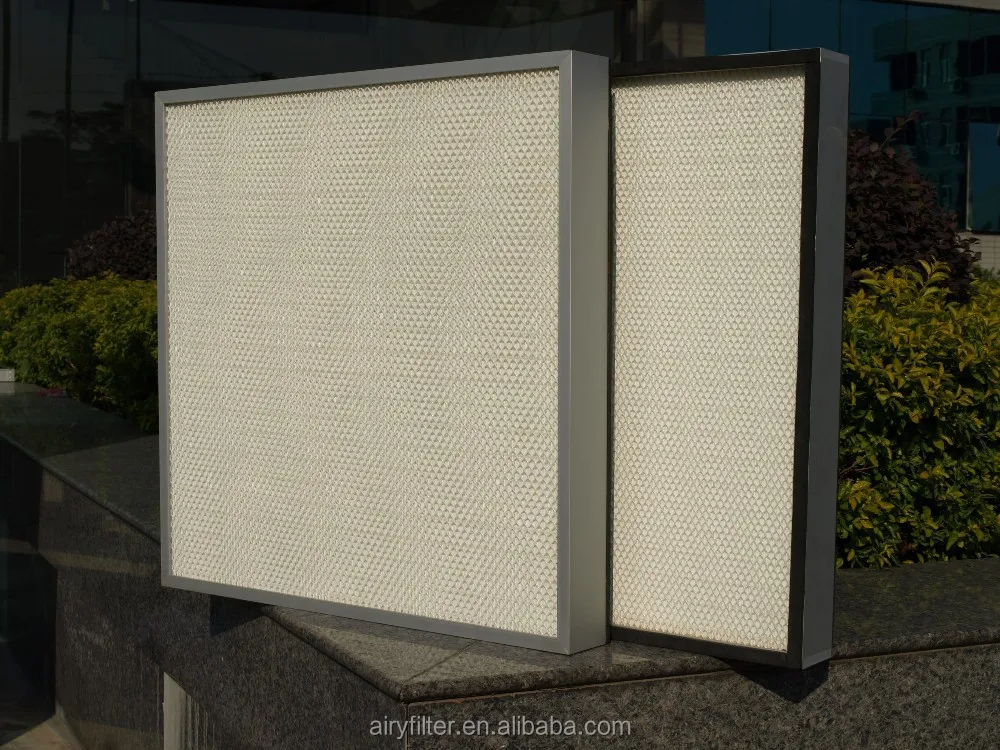

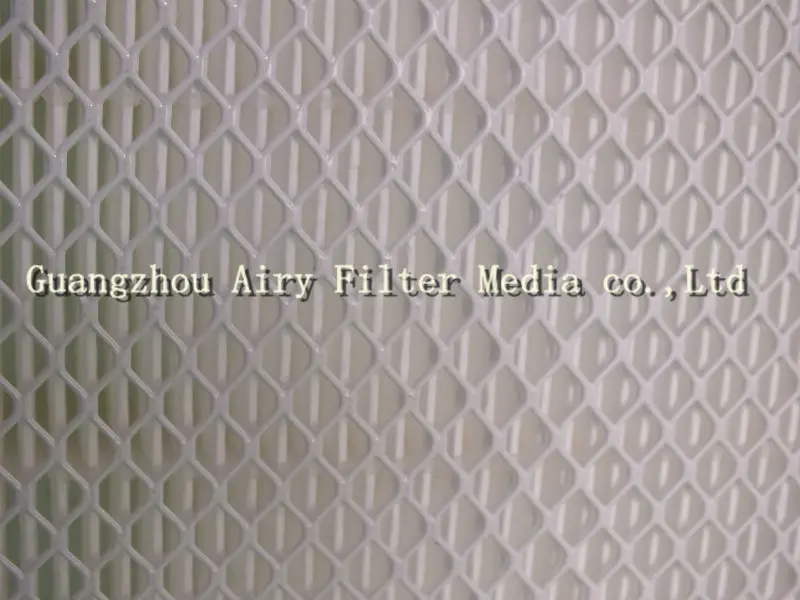

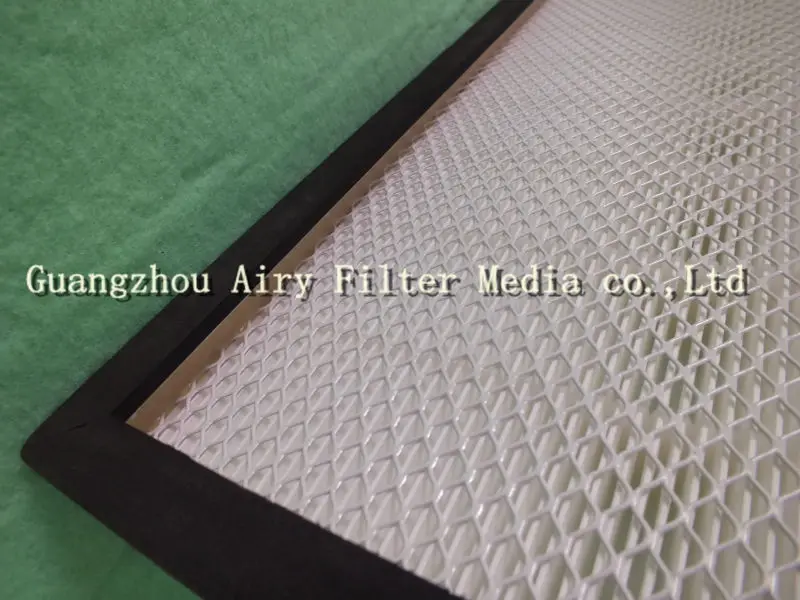

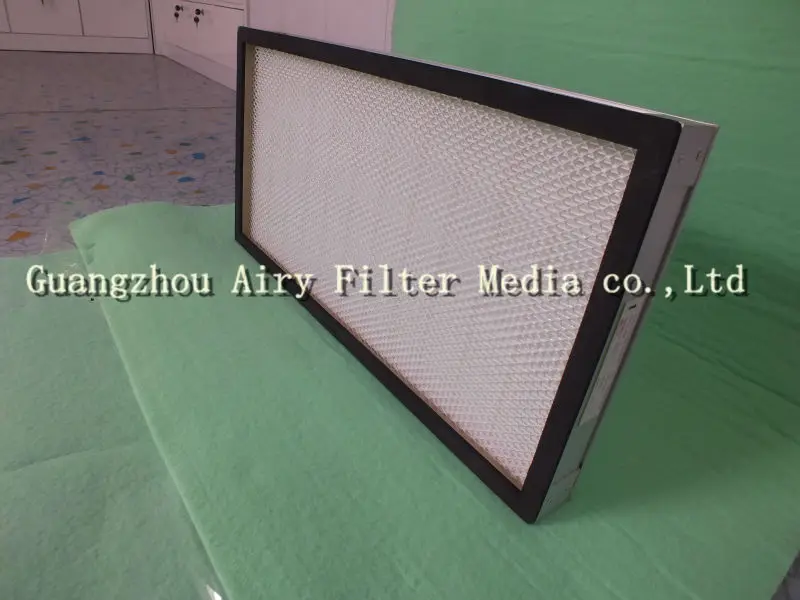

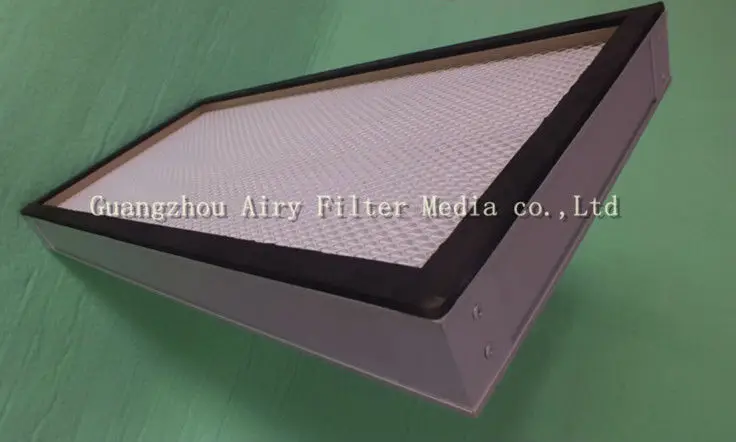

Product View

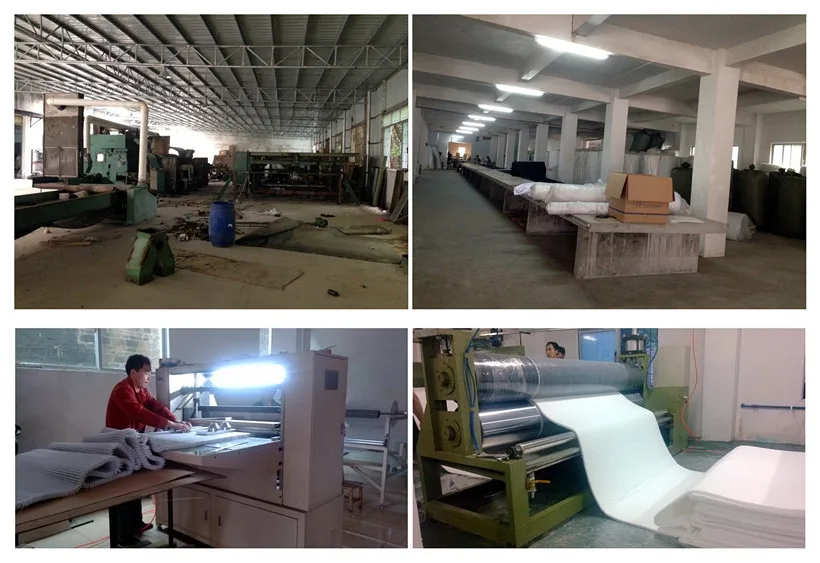

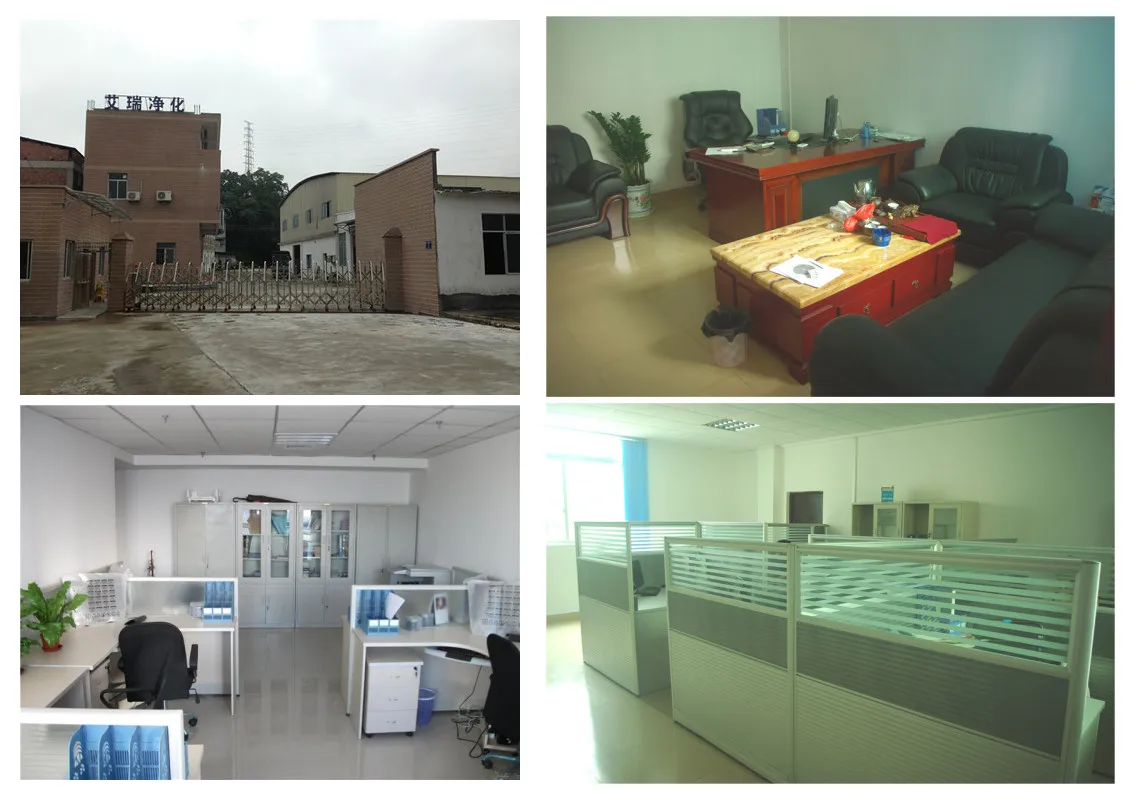

Company And Factory View

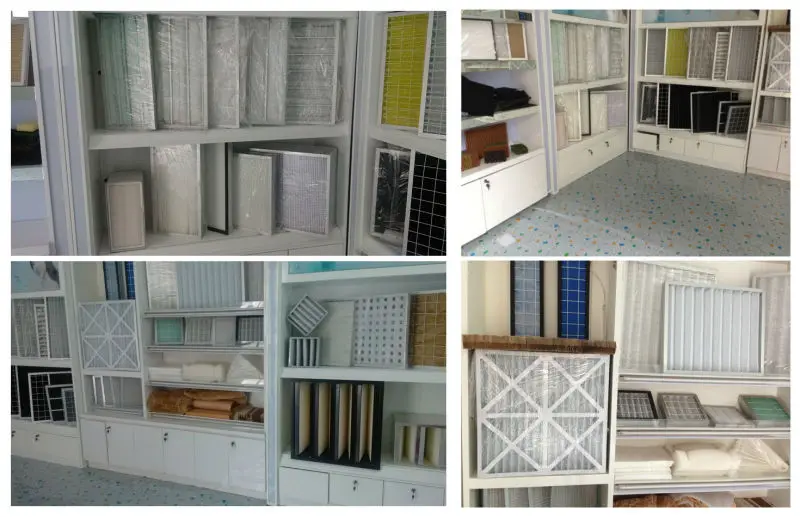

Sample Room
