Rechargeable Aviation Battery Silver Zinc Battery 15XYG45 (3)

Product Overview

Description

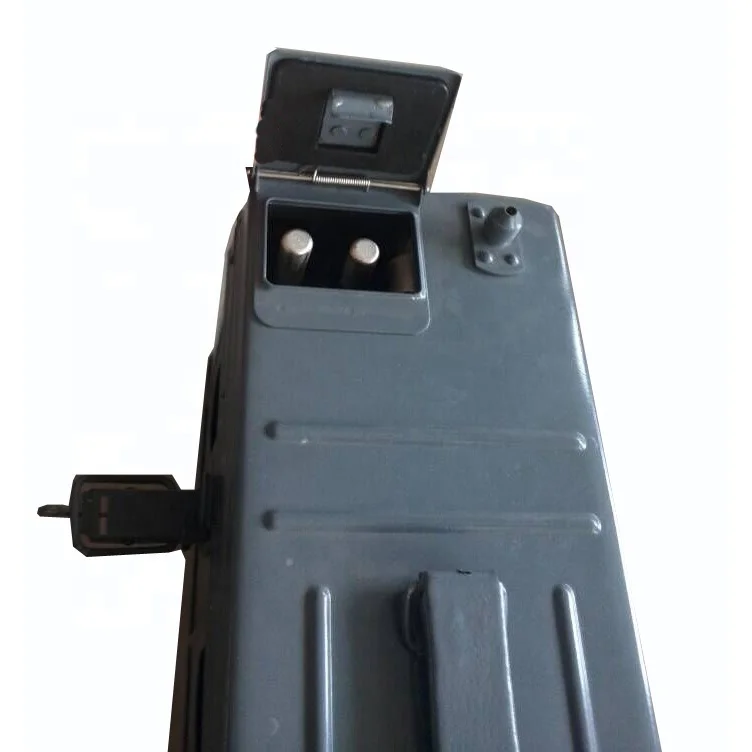

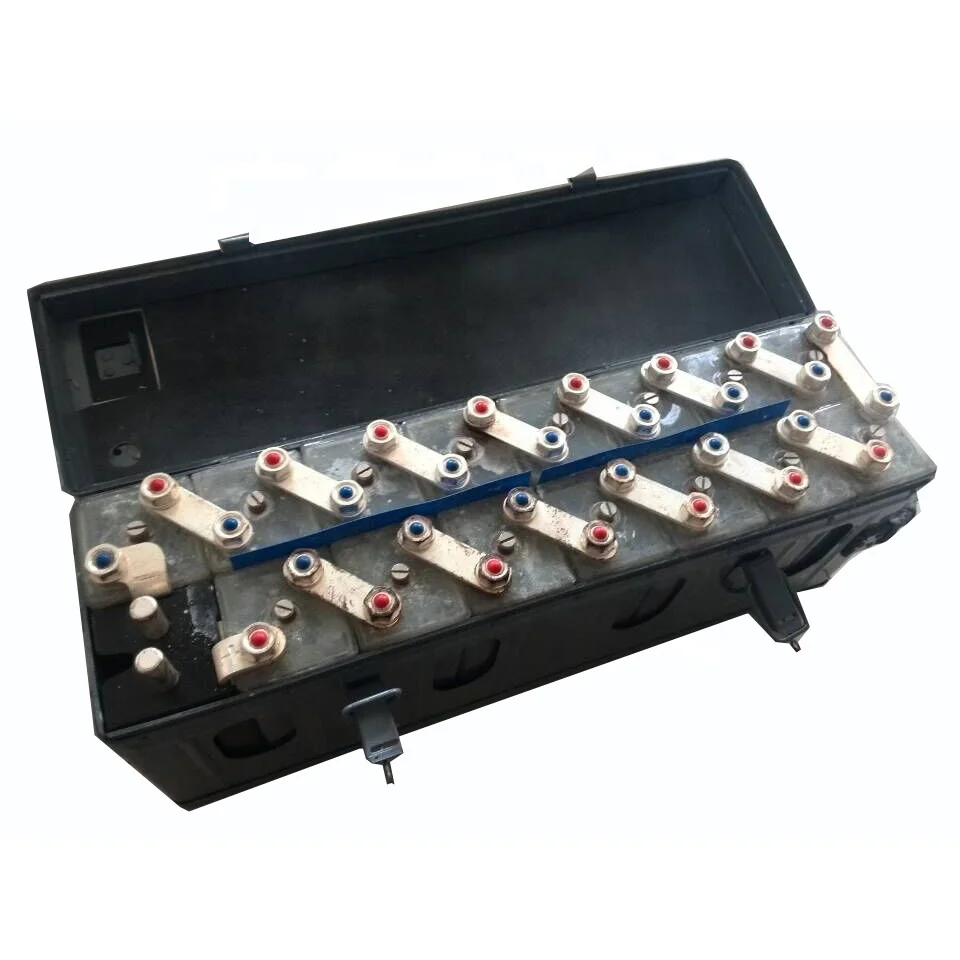

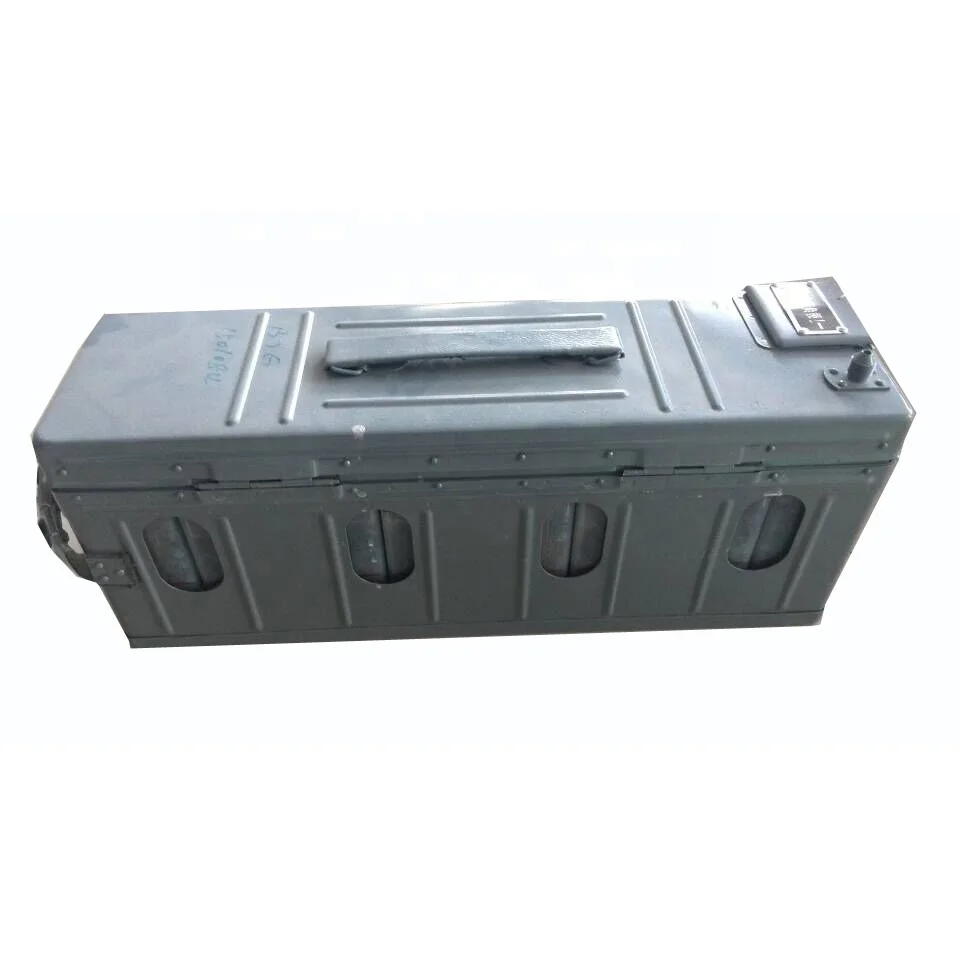

15XYG45-(3) battery is Ag-Zn battery with high rate discharge capacity. It consists of 15 cells of 45Ah which are connected in series and are placed into a stainless container. The electrolyte can be seen and checked through the window on the container. The AC input and DC output are universal, and suitable for various aircraft.



Parameters:



  1.1 Overall dimensions: 432±2×129±2×222±2 (mm)



  1.2 Weight: ≤15.2 kg (without electrolyte)



          ≤17.9 kg (with electrolyte)



  1.3 Nominal voltage: 22.5 V



Nominal capacity: 45A



  1.4 Service life:



After filling with electrolyte, the battery can be equipped on the aircraft for 12 months and operated for 210 flying hours.



(The total flight number started by the battery automatically isn’t more than 70 times.)







Features:



small volume,light,weight,high capacity,high
specific energy and power,low self dischar-
geand steady level discharge vlotage and etc.
It can be used for lighting,telecommunica-
tion,starting,powering,standby powerfor air-
plane,and the precision instruments and remote measuring.
