ABS PET PVC PP PE Film Granulator Pelletizer Plastic Recycling Granule Making Machine

Product Overview

Description

Plastic PP PE film pelletizing extruder machine: Product description of PP PE film plastic recycling granulating machine





This granulator machine is used to make pellets from waste plastics, like PP, PE films, or HDPE, PP flakes or PET flakes.

For plastic PP, PE films, we developed a compact pelletizing line for them. Due to the films are very soft and foamed, it’s difficult to be filled into extruder directly, even by force feeder screw, the efficiency is not good, and can be blocked. So, we integrated the most advanced technologies and cost-effective concepts for this kind of machine, we developed the PP, PE film granulating machine.





Main technical parameters:



Extruder	SJ85	SJ100	SJ130	SJ160
Screw diameter	85mm	100mm	130mm	160mm
Main motor	55kw	90kw	132kw	160kw
Compactor power	37kw	55kw	75kw	90kw
Capacity	100-150 kg/h	200-300 kg/h	300-400 kg/h	500-600 kg/h









Usage

This granulator machine is mainly used to make pellets from waste plastics, like PP, PE films, agricultural films, LDPE stretch films, LLDPE films, PP woven bags, shopping bags, and other soft PP,PE plastics.

Processing capacity is from 100kg/h to 500kg/h.

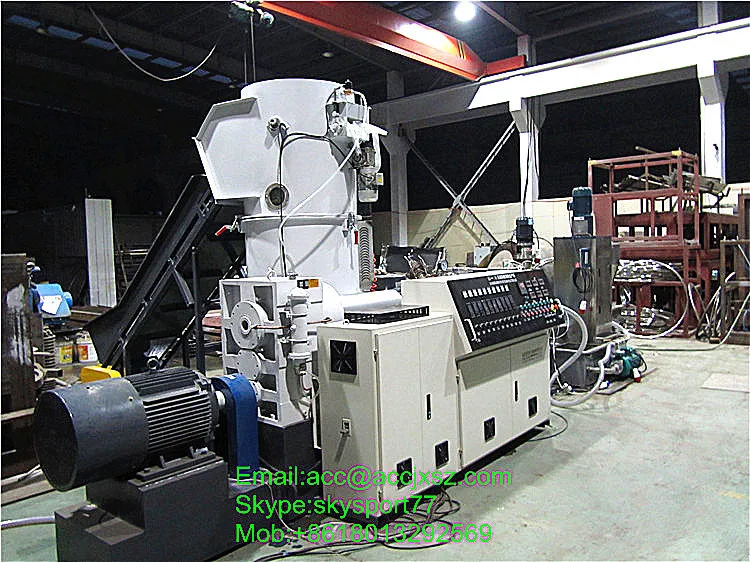

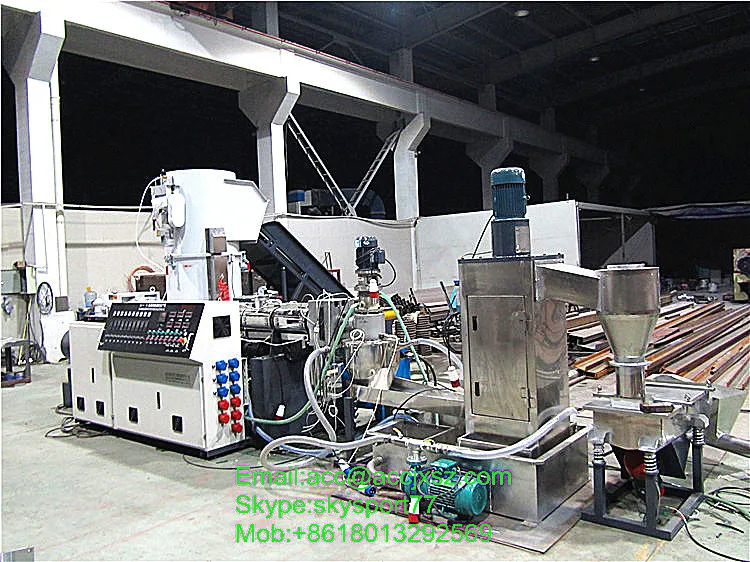

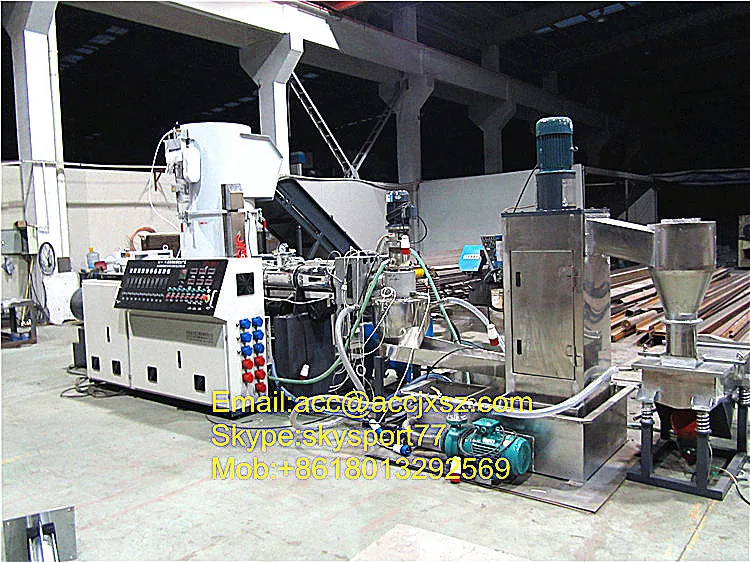

PE film compactor granulating machine, this granulating line is mainly consists of:

1. Belt conveyor:  feed the clean films or bags into the cutting compactor
2. Metal detector:check whether there is metal in the films or bags, protect the blades of cutting compact and screws
3. Cutting compactor:cut the materials again and make materials shrink, then force feed the shrunk material into the extruder. For the same capacity, the power consumption is only 50% of the agglomerator.
4. Single screw extruder: for plasticizing the materials and exhausting the gas, it is made of 38CrMoAlA generally.
5. hydraulic screen changer: filter the impurities, improve the granules quality
6. Water ring Pelletizer:includes mould and pelleting blades, we can provide both vertical type and horizontal type.
7. Water cooling tank: use circular water for cooling the granules immediately after pelleting cut.
8. Vibration screen:to filter out non-standard pellets and get even uniform quality pellets.
9. Vertical dewatering machine: convey the granules helically from bottom to top, the rotary rotor and the stainless screen help to drain the water, and convey the granules out from the machine
10. Blower system:use the blower to blow the granules to the storage silo through the SS304 pipe.
11. Storage silo: for storing the final pellets.



 Guarantees:



1. Product electrical components to implement quality assurance for six months (from date of shipment)



2. Equipment Quality Assurance warranty period of one year (from date of shipment)



3. Quality guarantee period, should the damage appears artificial parts, the company will be provided free of charge to the purchaser Manufacturers



4. Quality guarantee period, the company will provide the most preferential prices paid to the purchaser Manufacturers



5. "Supply-side free of charge to provide the main electrical appliances, spare parts manual and maintenance of books, equipment manuals, and machine maintenance information, provision of equipment, water, electricity, gas and equipment installation plans.
