100L 500L Manufacture Best Price Pressurized Solar Water Heater Solar Geysers
- Category: Solar Water Heaters >>>
- Supplier: Haining Ousikai Industry & Trade Co. Ltd.
Share on (60185504413):
Product Overview
Description

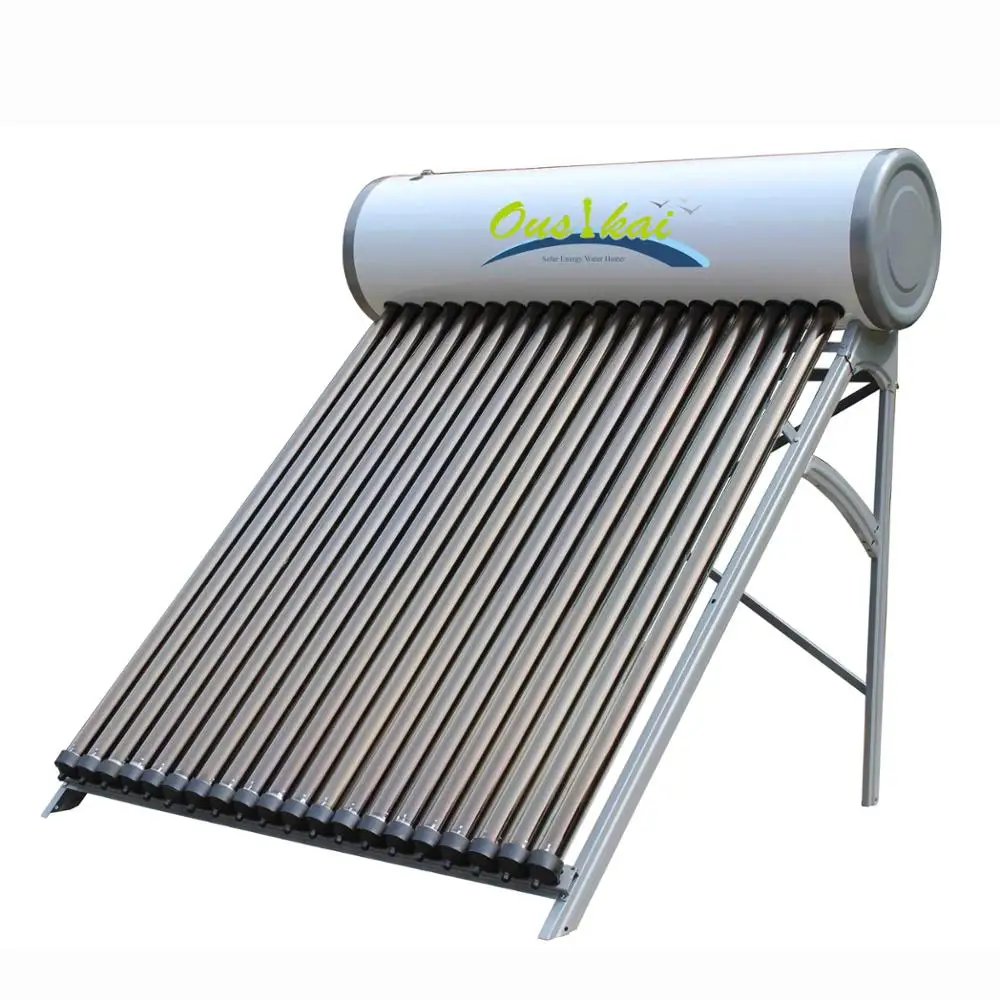

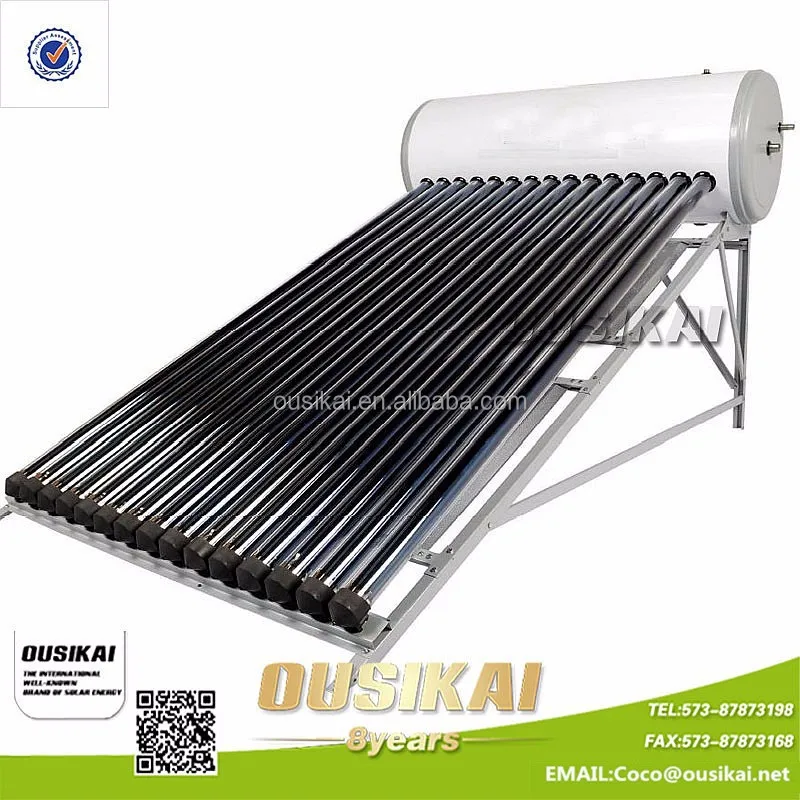

100L-500L Manufacture Best Price Pressurized Solar Water Heater Solar Geysers
Model:
| OS-IPS-15 |
| OS-IPS-18 |
| OS-IPS-20 |
| OS-IPS-24 |
| OS-IPS-30 |
| OS-IPS-36 |
Popular in:
Lebanon,Mexico,India,Brazil,Vietnam,Iran,UAE,Kuwait,Afghanistan,Argentina,Georgia,etc.
Brand:
OUSIKAI & OEM provide
Solar Geysers solar water heater
Product Description
OUSIKAI compact pressure solar water heater series:
| Model | Capacity(Liter) | Tube specification | Tube quantity | Packing size(CBM) | Loading quantity(Sets) | ||
| 20'GP | 40'GP | 40'HQ | |||||
| OS-IPS-15 | 135L | Φ58mm*1800mm | 15 | 0.550 | 58 | 122 | 144 |
| OS-IPS-18 | 150L | Φ58mm*1800mm | 18 | 0.666 | 41 | 85 | 100 |
| OS-IPS-20 | 165L | Φ58mm*1800mm | 20 | 0.740 | 37 | 80 | 94 |
| OS-IPS-24 | 200L | Φ58mm*1800mm | 24 | 0.888 | 32 | 68 | 80 |
| OS-IPS-30 | 250L | Φ58mm*1800mm | 30 | 1.110 | 26 | 55 | 65 |
| OS-IPS-36 | 300L | Φ58mm*1800mm | 36 | 1.332 | 21 | 45 | 54 |
Please tell us model name? , quantity numbers?
you want. , and your destination seaport or place?.
Specification:
| 1. Inner tank: 1.2mm thickness stainless steel SUS304; 360 diameter | ||||||||
| 2. Outer tank: 0.4mm thickness stainless steel, 460 diameter | ||||||||
| 3. Vacuum tube: QB-AL-CU-SS-58-1800 with heat pipe | ||||||||
| 4. Frame: 2.0mm thickess Aluminum Alloy/1.2mm stainless steel | ||||||||
| 5. Max. Fluid pressure (Pa): 0.6Mpa | ||||||||
| 6. Operating fluid pressure (Pa): 0.6Mpa | ||||||||
| 7. Test pressure:1.2Mpa | ||||||||
| 8. Insulation layer:55mm polyurethane integral foam | ||||||||
| 9. Heat preservation: 72hours | ||||||||
| 10. Heat pipe: 90mm length condenser, 14mm diameter body, thickness: 0.6mm | ||||||||
| 11. Dust Proof Rubber: EPDM |
Features and advantages:
1.Anti-freezing: No water in the vacuum tube, so it still can work well even several tubes are broken.
2.Intelligent controller,electric back up heater and automatic, work at anytime and enjoyable.
3. Easy plug-in installation. Whether installed on slopes or flat roof.
4.Compact pressurized system tank can work withstands over 6 bar water pressure.
5.The hydraulic pressure is same as tap water and it creats a comfortable bathing.
6.It has T/P valve, air vent makes the system work very stable and safety.
7.Can be used all year round in the cold climate.
8.Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
What is the difference between Non-pressurized solar water heater and pressurized type?
1. The Split pressurized water tank can be put inside the building, the hot water loses less energy than the normal one.
2. The split pressurized can be used in cold winter which is even below -35 C.
3. strong pressure water makes your bath more comfortable.
Working principle
Working principle:
1.Solar absorption: Solar radition is absorbed by the vacuum tubes and then converted into heat.
2.Heat transfer: The liquid in the heat pipe changes into vapor which rises to the condenser. The heat conducts the
water inside the tank and the vapor becomes liquid, returning to the base of the heat pipe again. This continuous
circulation transfers heat from the heat pipe to the cold water in the tank as long as sun is heating the collectors.
3. When using the hot water, the cold water flows through the inlet, the condensors absorb the heat then transfer into
the cold water.Finally, temperture rises up ceaselss.
Solar Heat Pipe
Installation:
- assemble the stand
- put the tank
- put the reflectors
- put the pipes (the vacuum pipes do not have to be exposed to direct sun light, before you connect it with the water system)
- connect the tank
- connect with the water system
- connect with the controller
Packaging & Shipping
Packing and shipping
MOQ: 20'GP container (Sample is available)
Warranty: 10 years guarantee for whole set solar water heater
Payment term: 30% deposit by TT, Balance for BL by TT or LC
Delivery time: 7 days after confirmed
Port of departure: Shanghai or Ningbo
Supply ability: 8000 sets per month
Package: Standard export cartons
Our Services
Payment term
1. T/T
2. L/C at sight
3. 30% Deposit in advance and balance should be paid before shipment based on you nominate the forwarder
4. 30% Deposit in advance and balance should be paid after receiving the B/L copy.
Our service for you
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best
to offer you
5. All of our products are produced by our professional workman and we have our high-work-effect
foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every
order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
Company information
Company Overview | Ousikai(DINXING) Industry&Trade Co.Ltd. |
Owns two factories covering an area of 9,000 square meters | |
Certificates | CE/TUV rheinland |
Capability | Total annual sales volume reaches above US$4500,000.00 |
Able to source across multiple industries | |
OEM&ODM service for more than 20 brands | |
Techniques | Professional in most kinds of solar water heaters and accessories |
Service | Strongly support our clients in sourcing, sample development, merchandising follow up, shipping handling, etc. |
We have our own factory specialized in manufacturing Solar Water Heaters. We have established
the relationship with customers in different countries. With strong relationships and good credit,
we cooperate closely to develop the global markets together.
