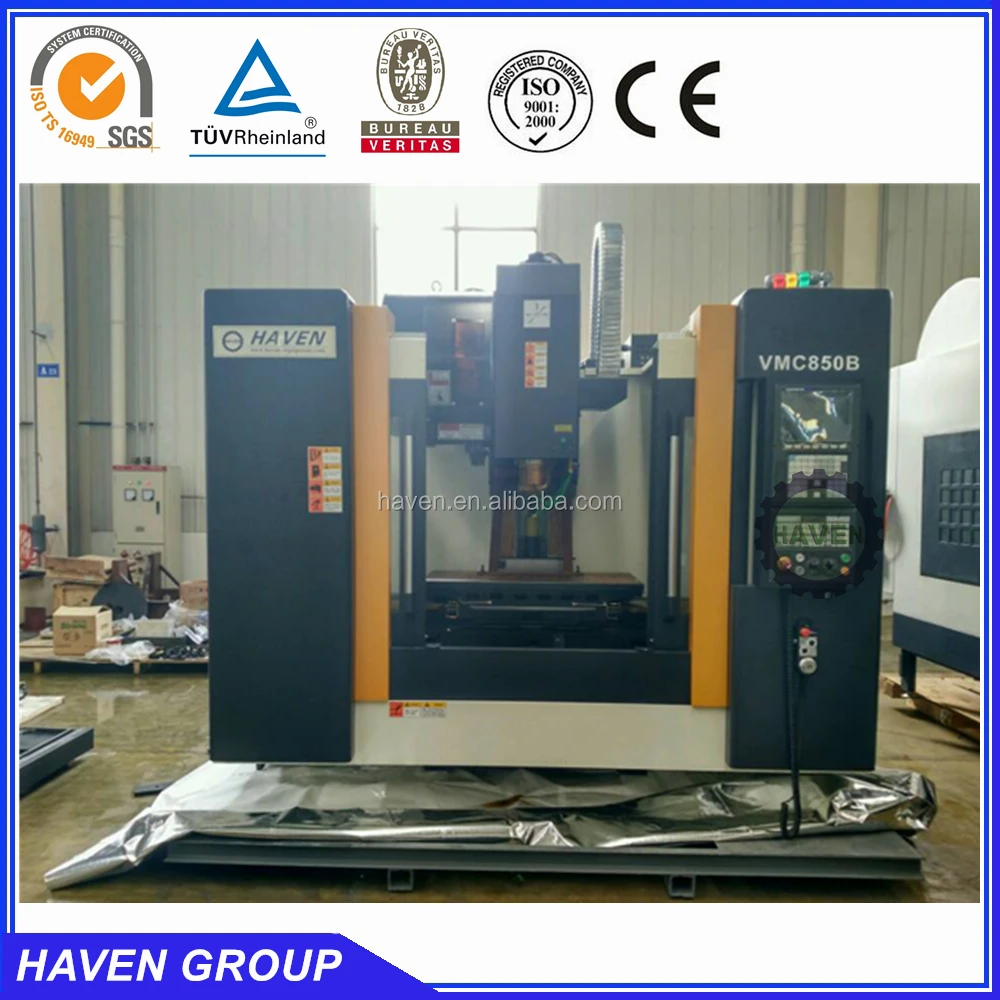

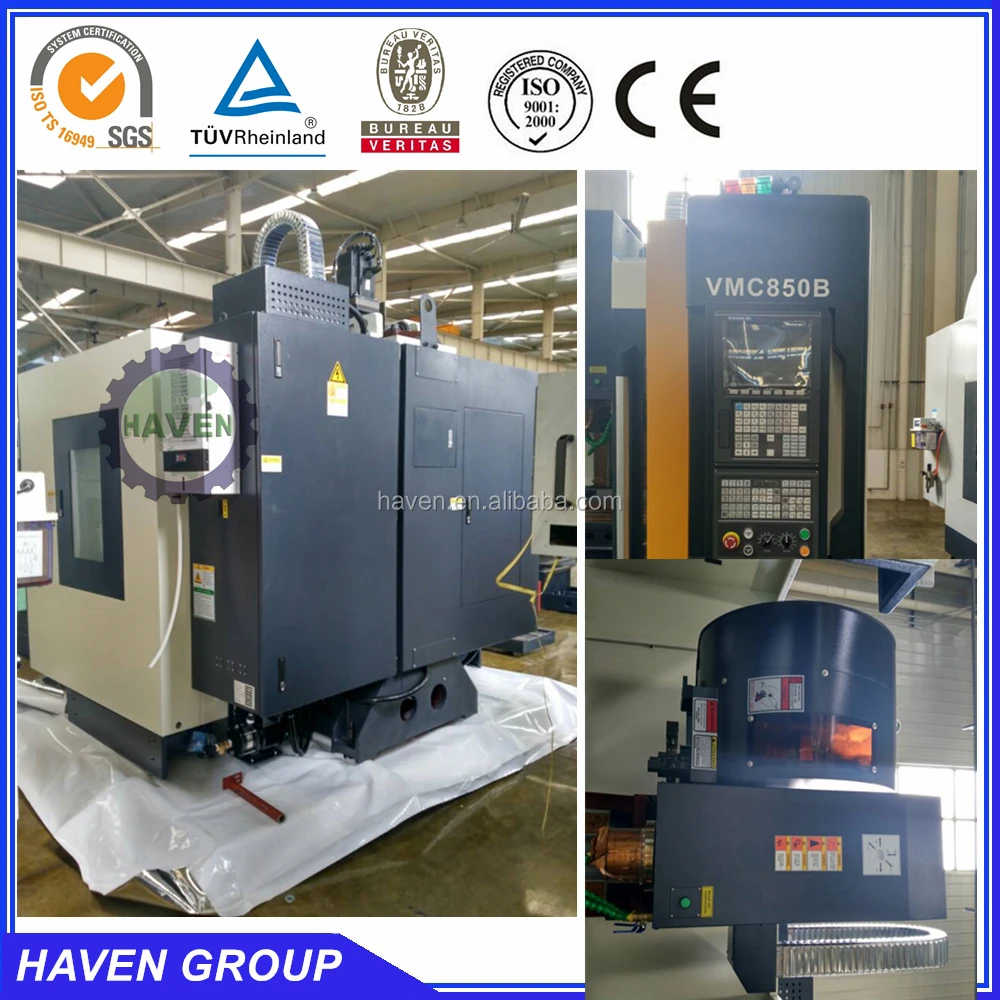

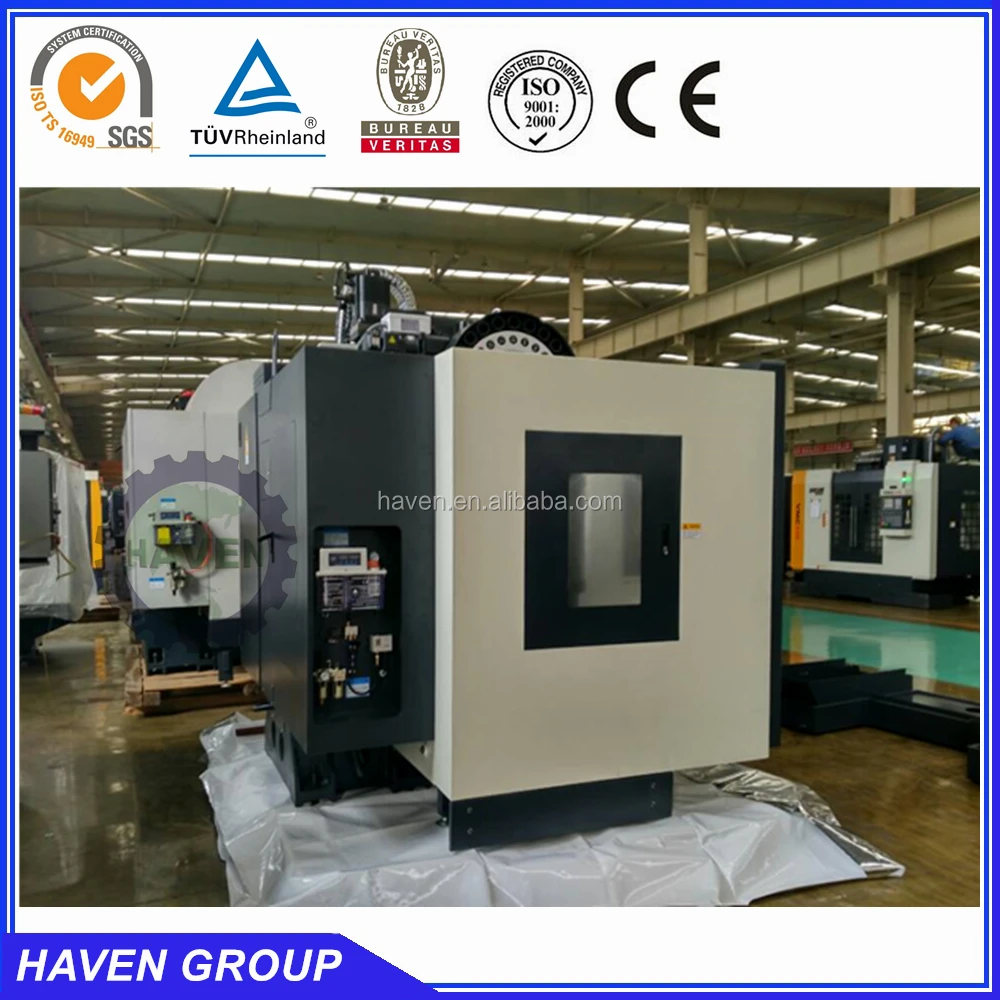

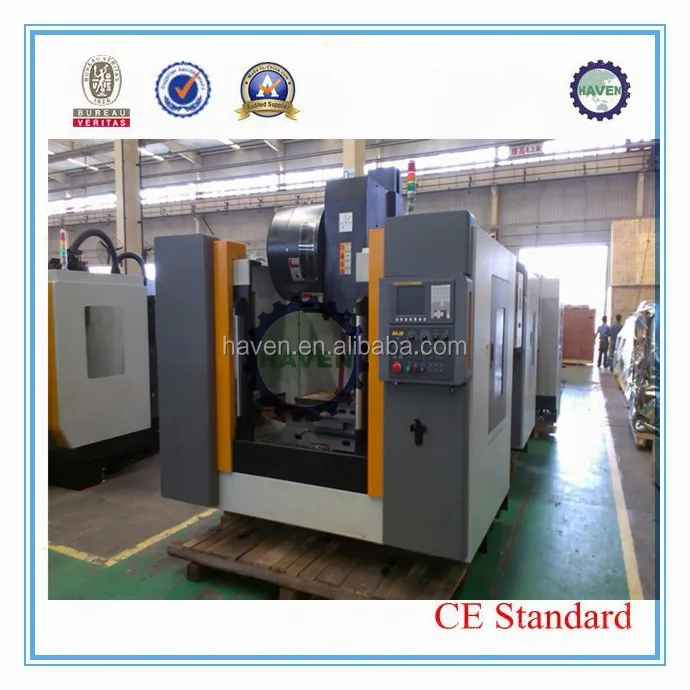

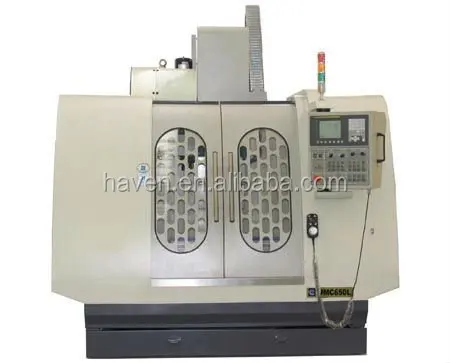

VMC850B cnc lathe vertical machining and turning machine center

Product Overview

Description



Vertical machine center main functions:

Rectangular hardened sliding ways are applied in X-axis, Y-axis and Z-axis. The machine has high rigidity, high accuracy, high speed, high efficiency, high reliability, large torque and wide machining range. This series machines are designed for milling, drilling, reaming, boring, tapping, and counter boring/sinking valve type workpieces, cams, moulds/dies, chuck type workpieces, and case type workpieces used in automobile industry, motor cycle industry, machinery manufacturing, sewing machine industry, motor industry, and instrument industry, especially those in complex shapes like 2-dimension or 3-dimension concave/convex moulds and cavities. The machine is either suitable for multi-product small/medium patch production or mass production when fitted to a production line. Use of the said machines can save technical equipment, shorten production preparation time, ensure product quality and improve productivity.



Specification		Unit	VMC650	VMC850B
Table	Table face (W×L)	mm	420×800	500×1050
	T-slot (number-size × space)	mm	3-18×135	3-18×150
	Permissible load	kg	600	600
Spindle	Spindle taper hole	/	ISO 40	ISO 40
	Spindle motor (cont./15min overload)	kW	5.5/7.5	7.5/11
	Max spindle speed	r/min	8000	8000
Stroke	X-axis right and left stroke	mm	650	800
	Y-axis back and forth stroke	mm	400	500
	Z-axis up and down stroke	mm	480	550
	Distance of spindle nose to table face	mm	80-560	105-655
	Distance of spindle center to column way	mm	480	550
Feed	X/Y-axis rapid traverse	m/min	12	16
	Z-axis rapid traverse	m/min	10	12
	Max feedrate	mm/min	10000	10000
Magazine	Capacity of tool magazine	pcs	16/20/24	16/20/24
	Max tool weight	kg	8	8
Accuracy	Positioning (JIS)	mm	±0.008	±0.008
	Repeatability (JIS)	mm	±0.003	±0.003
Others	Air source	L/min	250	250
	Air pressure	MPa	0.6	0.6
	Machine gross weight	kg	5000	5500
	Machine net weight	kg	4500	5000
	Dimension	mm	2340x2270x2250	2700x2300x2630
