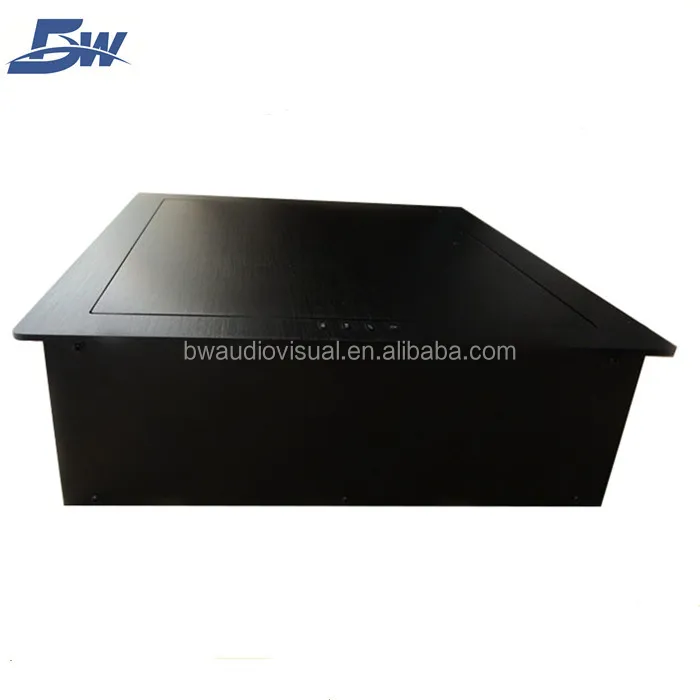

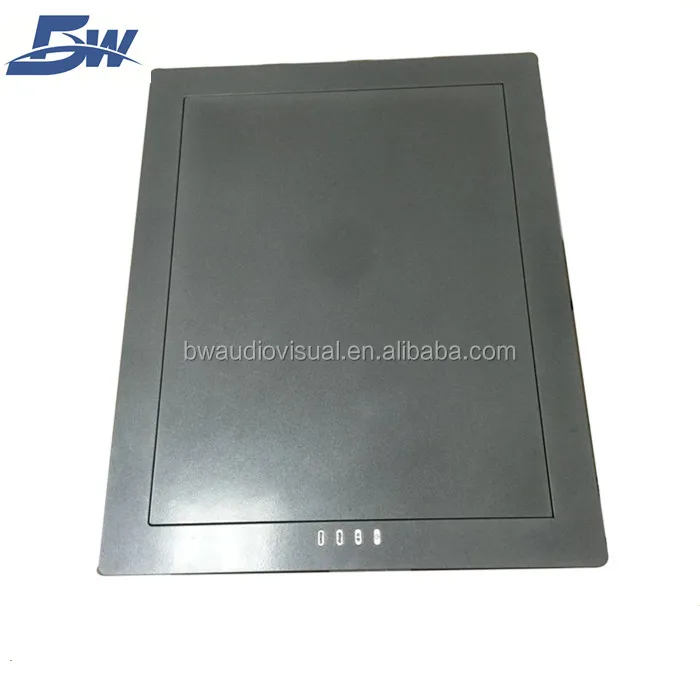

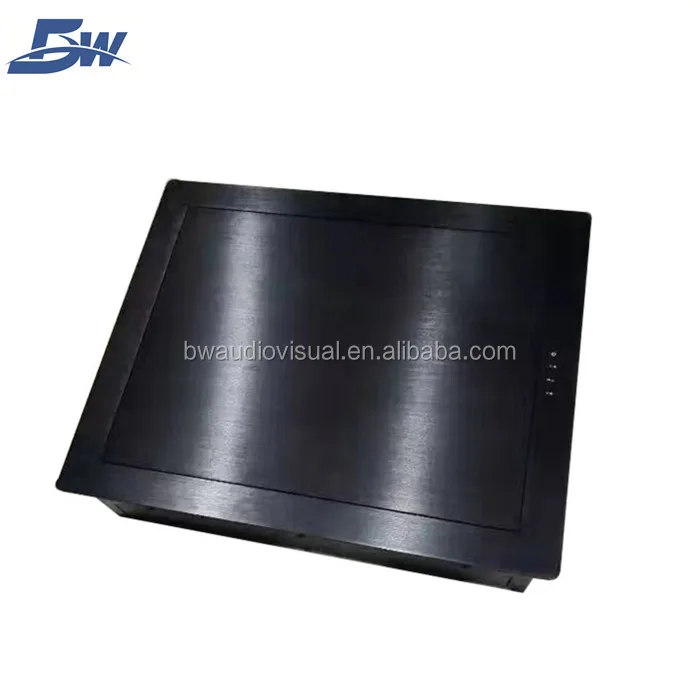

Manufacture Advanced Motorized Flip Up Lift For Conference System
Product Description
Description:
BW-LFT series flip up lift specially designs for high-class conference solutions. With its stable and reliable performance, simple and smart operation, It’s pretty popular in AV conferencing, intelligent office furniture, multimedia education, military command and financial analysis system etc.
With its unique overall functions, it provides an efficient solution and enjoyable experience in conference communication especially for enormous information share like data, image and sound etc. The lift is usually used together with our tabletop sockets to produce unexpected results.
Our strict quality control and product inspection system also guarantee the product quality.
Characteristics:
- 17”, 19”,22” available, others can be customized
- Max flip up angle is 135 degrees;

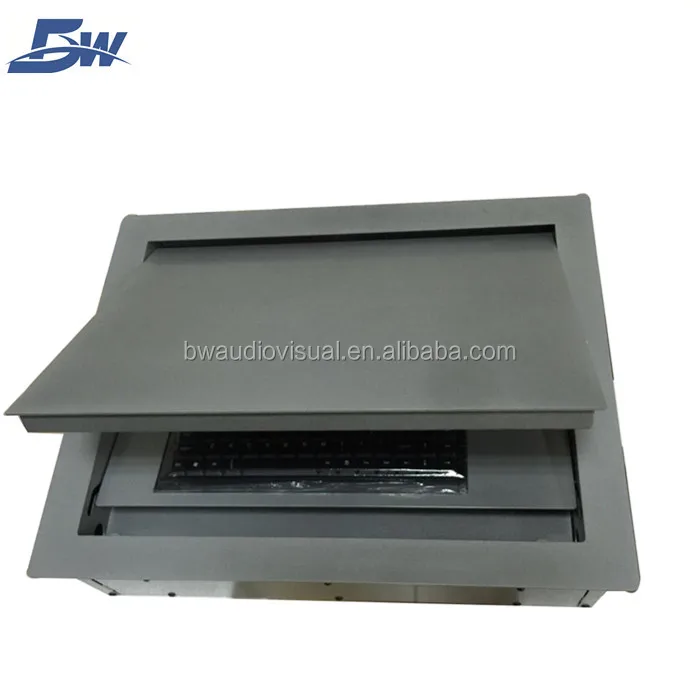

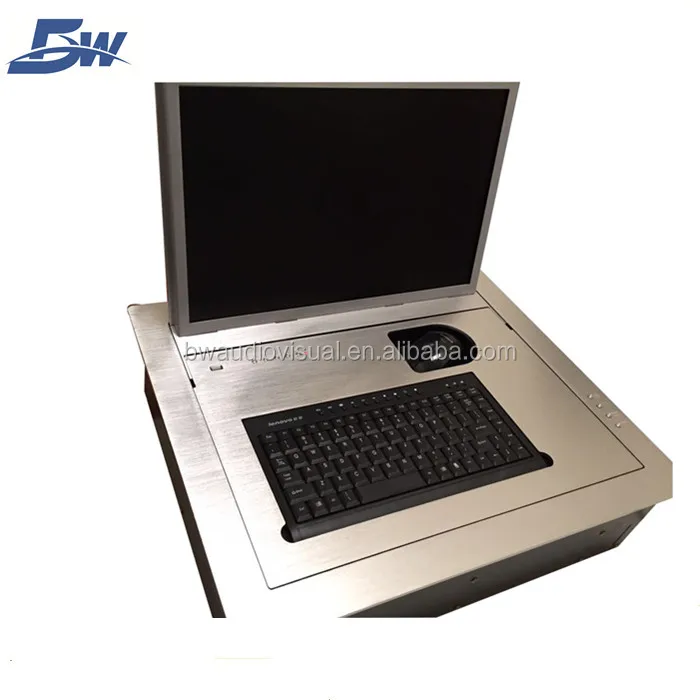

- Keyboard and mouse both up and down with the monitor;
- due to its ultra-thin design, the screen should be bare screen;
- Selecting qualified mute motor with CE CCC marked
- Provided with English buttons to control the lift, UP, DOWN, PAUSE
- Remote control ,manual control and central control;
- Circuit Board protection system: Supply power automatically when the monitor lifts up. Power off automatically when lift down to help reduce energy consumption
- Equipped with different data interfaces for convenient data access.
Parameters
| Item NO. | BW-LFN17 | BW-LFN19 | ||
| Style | LCD Lift with monitor | LCD Lift with monitor | ||
| Panel size | 460*460*2.5mm | 527*436*2.5mm | ||
| Box size | 440*430*120mm | 500*420*120mm | ||
| Monitor type | non-touch bare screen | |||
| Material | carbon steel | |||
| Color | silver/black | |||
| Flip up angle | 0°-135° | |||
| Configuration | keyboard, mouse | |||
| Voltage | 110-220V | |||
| Certificate | CE | |||
Operation
- Before used, check terminal power and connection lines
- Code proofreading of remote control if needed, details refer to manual pls;
- Press “UP” button on the panel or controller to lift up the monitor;
- During the up process, press “pause” button to remain at the most suitable angle for you;
- After use finished, press “DOWN” button to lift down the monitor;
- The power will be automatically off after lift down;
- Plug off the power and connection lines
Packaging & Shipping
Package Of Flip Up Lift
wooden package G.W 26KG
Shipping Of Flip Up Lift
by courier like DHL, FedEx, UPS, TNT, TOLL etc.
by air to any airport around the world
by sea to any port around the world
by trail to inland countries
Our Services
1. Sample service is available
2. OEM is warmly welcomed
3. Shipment and sample quality tracking.
4. Quick response , enquiry will be repond within 24 hours
5. high qualified after sale service
FAQ

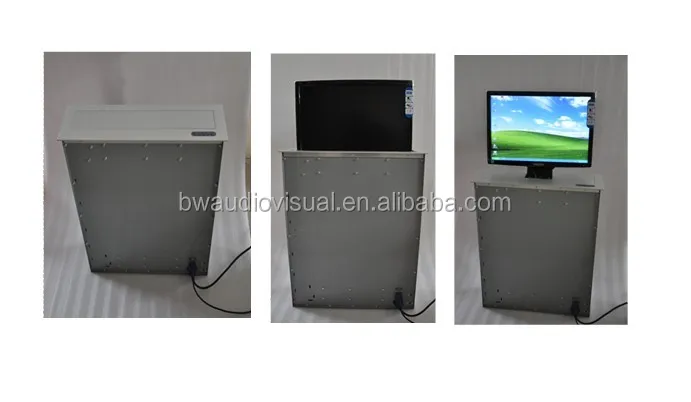

Picture Of Flip Up Lift
Other Related Lcd Lift
Certifications
Thanks for visiting our website. Should you know more information about the motorized lcd lift, do feel free to contact me.
